Table of Contents:

1. Introduction

1.1 What is Temperature & Humidity Sensor

The Dragino S31-CB and S31B-CB are NB-IoT/LTE-M Temperature and Humidity Sensor for Internet of Things solution. It is used to measure the surrounding environment temperature and relative air humidity precisely, and then upload to IoT server via NB-IoT or CAT-M1 network.

The temperature & humidity sensor used in S31x-CB is SHT31, which is fully calibrated, linearized, and temperature compensated digital output from Sensirion, it provides a strong reliability and long-term stability. The SHT31 is fixed in a waterproof anti-condensation casing for long term use.

S31x-CB supports different uplink methods include MQTT, MQTTs, TCP, UDP or CoAP for different application requirement. and Support Uplinks to various IoT Servers.

S31x-CB is powered by 8500mAh Li-SOCI2 battery, It is designed for long term use up to several years. (Real-world battery life depends on the use environment, update period and uplink method. Please check related Power Analyze report).

*make sure you have NB-IoT or CAT-M1 coverage locally.

1.2 ​Features

  • For -NB Bands: B1/B2/B3/B4/B5/B8/B12/B13/B17/B18/B19/B20/B25/B28/B66/B70/B85
  • For -CB Bands: B1/B2/B3/B4/B5/B8/B12/B13//B18/B19/B20/B25/B28/B66/B71/B85
  • CAT-M1 / LTE-M Bands: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B27/B28/B66/B85
  • Ultra-low power consumption
  • External 3 meters SHT31 probe (For S31-CB)
  • Measure range -40°C ~ 80°C
  • Temperature & Humidity alarm
  • Multiply Sampling and one uplink
  • Uplink via MQTT, MQTTs, TCP, UDP or CoAP
  • GNSS for Location Report
  • Support Bluetooth v5.1 remote configure and update firmware
  • Uplink on periodically
  • Downlink to change configure
  • 8500mAh Battery for long term use
  • Nano SIM card slot for NB-IoT SIM

1.3 Specification

Common DC Characteristics:

  • Supply Voltage: 2.6v ~ 3.6v
  • Operating Temperature: -40 ~ 85°C

Temperature Sensor:

  • Range: -40 to + 80°C
  • Accuracy: ±0.2 @ 0-90 °C
  • Resolution: 0.1°C
  • Long Term Shift: <0.03 °C/yr

Humidity Sensor:

  • Range: 0 ~ 99.9% RH
  • Accuracy: ± 2%RH ( 0 ~ 100%RH)
  • Resolution: 0.01% RH
  • Long Term Shift: <0.25 %RH/yr

NB-IoT Spec:

NB-IoT Module: BG95-NGFF

Support Bands:

  • B1 @H-FDD: 2100MHz
  • B2 @H-FDD: 1900MHz
  • B3 @H-FDD: 1800MHz
  • B4 @H-FDD: 2100MHz
  • B5 @H-FDD: 860MHz
  • B8 @H-FDD: 900MHz
  • B12 @H-FDD: 720MHz
  • B13 @H-FDD: 740MHz
  • B17 @H-FDD: 730MHz
  • B18 @H-FDD: 870MHz
  • B19 @H-FDD: 870MHz
  • B20 @H-FDD: 790MHz
  • B25 @H-FDD: 1900MHz
  • B28 @H-FDD: 750MHz
  • B66 @H-FDD: 2000MHz
  • B70 @H-FDD: 2000MHz
  • B85 @H-FDD: 700MHz

Battery:

  • Li/SOCI2 un-chargeable battery
  • Capacity: 8500mAh
  • Self Discharge: <1% / Year @ 25°C
  • Max continuously current: 130mA
  • Max boost current: 2A, 1 second

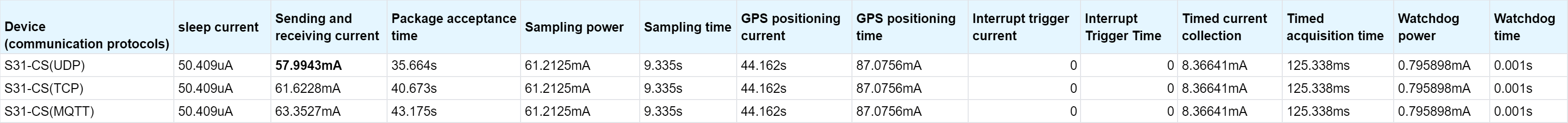

Power Consumption:

  • STOP Mode: 14uA @ 3.3v
  • Max transmit power: 350mA@3.3v

1.4 Applications

  • Smart Buildings & Home Automation
  • Logistics and Supply Chain Management
  • Smart Metering
  • Smart Agriculture
  • Smart Cities
  • Smart Factory

1.5 Sleep mode and working mode

Deep Sleep Mode: Sensor doesn't have any NB-IoT/CAT-M1 activate. This mode is used for storage and shipping to save battery life.

Working Mode: In this mode, Sensor will work as NB-IoT Sensor to Join NB-IoT network and send out sensor data to server. Between each sampling/tx/rx periodically, sensor will be in IDLE mode), in IDLE mode, sensor has the same power consumption as Deep Sleep mode.

1.6 Button & LEDs


Behavior on ACTFunctionAction
Pressing ACT between 1s < time < 3sSend an uplink

If sensor has already attached to NB-IoT/CAT-M1 network, sensor will send an uplink packet, blue led will blink once.
Meanwhile, BLE module will be active and user can connect via BLE to configure device.

Pressing ACT for more than 3sActive Device

Green led will fast blink 5 times, device will enter OTA mode for 3 seconds. And then start to  attach NB-IoT/CAT-M1 network.
Green led will solidly turn on for 5 seconds after joined in network.
Once sensor is active, BLE module will be active and user can connect via BLE to configure device, no matter if device attach NB-IoT/CAT-M1 network or not.

Fast press ACT 5 times.Deactivate DeviceRed led will solid on for 5 seconds. Means device is in Deep Sleep Mode.

Note: When the device is executing a program, the buttons may become invalid. It is best to press the buttons after the device has completed the program execution.

1.7 BLE connection

S31x-CB support BLE remote configure and firmware update.

BLE can be used to configure the parameter of sensor or see the console output from sensor. BLE will be only activate on below case:

  • Press button to send an uplink
  • Press button to active device.
  • Device Power on or reset.

If there is no activity connection on BLE in 60 seconds, sensor will shut down BLE module to enter low power mode.

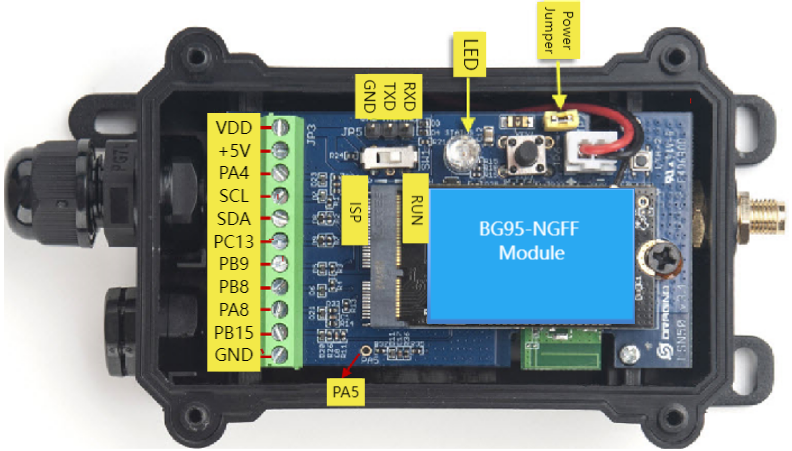

1.8 Pin Definitions , Switch & SIM Direction


1.8.1 Jumper JP2

Power on Device when put this jumper.

Power off device when take out this jumper

1.8.2 BOOT MODE / SW1

1) ISP: upgrade mode, device won't have any signal in this mode. but ready for upgrade firmware. LED won't work. Firmware won't run.

2) Flash: work mode, device starts to work and send out console output for further debug

1.8.3 Reset Button

Press to reboot the device.

1.8.4 SIM Card Direction

See this link. How to insert SIM Card.

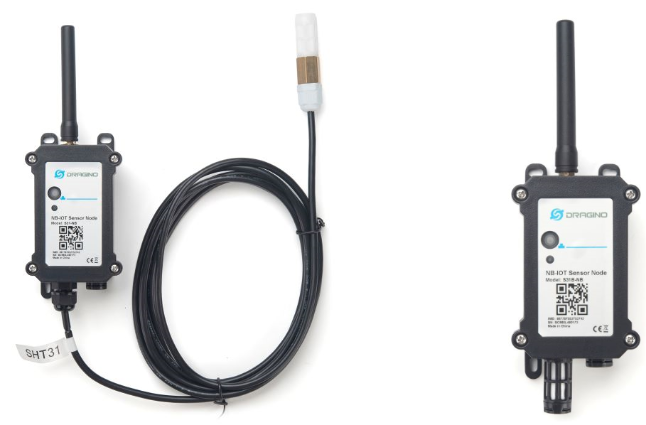

1.9 Hardware Variant

ModelPhotoProbe Info

S31-CB


1 x SHT31 Probe

Cable Length : 3 meters



S31B-CB


1 x SHT31 Probe

Installed in device.



2. Use S31x-CB to communicate with IoT Server

2.1 Send data to IoT server via NB-IoT/CAT-M1 network

The S31x-CB is equipped with a NB-IoT module, the pre-loaded firmware in S31x-CB will get environment data from sensors and send the value to local NB-IoT network via the NB-IoT module.  The NB-IoT network will forward this value to IoT server via the protocol defined by S31x-CB.

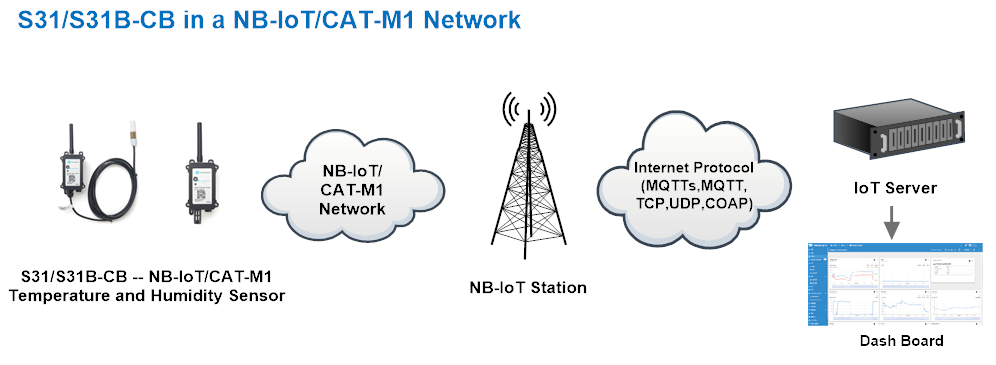

Below shows the network structure:


There are two version: -GE and -1T version of S31x-CB.

GE Version: This version doesn't include SIM card or point to any IoT server. User needs to use AT Commands to configure below two steps to set S31x-CB send data to IoT server.

  • Install NB-IoT SIM card and configure APN. See instruction of Attach Network.

Below shows result of different server as a glance.

ServersDash BoardComments
Node-Red



DataCake



Tago.IO
General UDPRaw Payload. Need Developer to design Dash Board
General MQTTRaw Payload. Need Developer to design Dash Board
ThingSpeak



ThingsBoard




1T Version: This version has 1NCE SIM card pre-installed and configure to send value to DataCake. User Just need to select the sensor type in DataCake and Activate S31x-CB and user will be able to see data in DataCake. See here for DataCake Config Instruction.

2.2 ​Payload Types

To meet different server requirement, S31x-CB supports different payload type.

Includes:

User can specify the payload type when choose the connection protocol. Example:

AT+PRO=2,0            // Use UDP Connection & hex Payload

AT+PRO=2,5            // Use UDP Connection & Json Payload

AT+PRO=3,5            // Use MQTT Connection & Json Payload

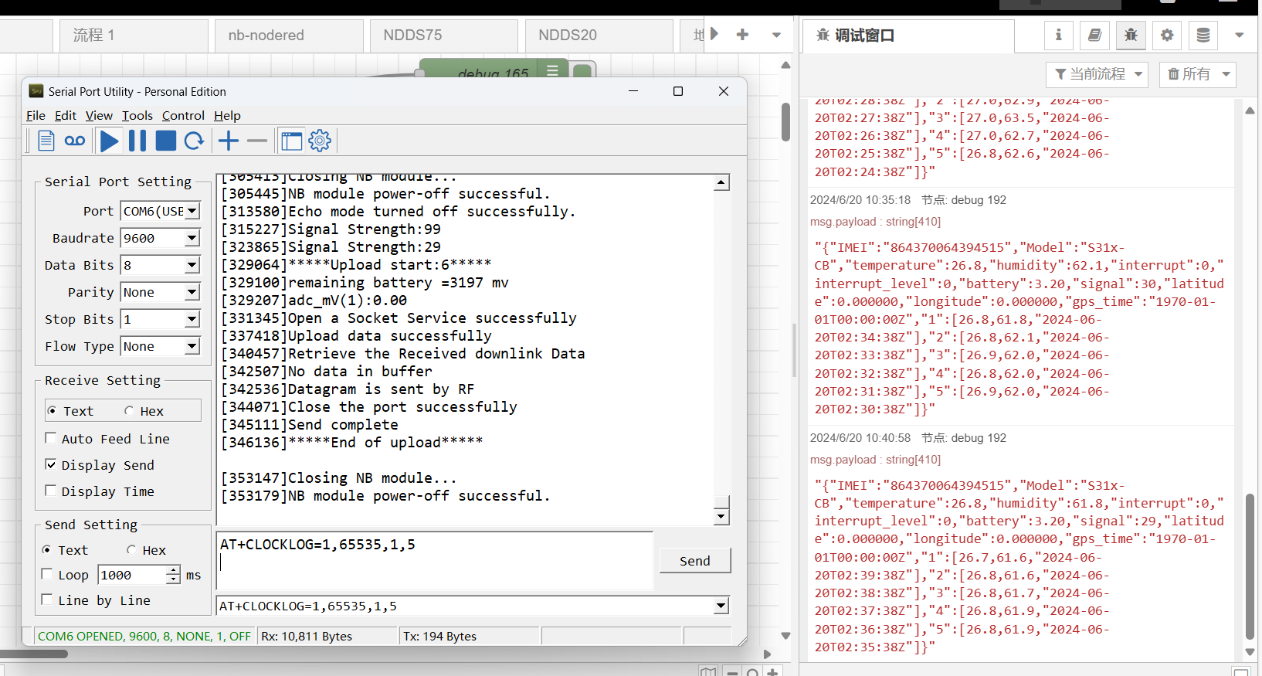

2.2.1 General Json Format(Type=5)

This is the General Json Format. As below:

{"IMEI":"864370064394515","Model":"S31x-CB","temperature":31.1,"humidity":78.0,"interrupt":0,"interrupt_level":0,"battery":3.54,"signal":29,"latitude":22.706150,"longitude":114.242830,"gps_time":"2024-06-13T06:30:01Z","1":[29.8,62.0,"2024-06-13T06:26:32Z"],"2":[30.8,66.0,"2024-06-13T06:21:20Z"],"3":[31.2,67.0,"2024-06-13T06:19:20Z"],"4":[32.4,63.0,"2024-06-13T06:17:20Z"],"5":[32.6,78.0,"2024-06-13T06:15:20Z"],"6":[32.3,78.0,"2024-06-13T06:13:20Z"],"7":[32.4,76.8,"2024-06-13T06:11:20Z"],"8":[32.3,76.4,"2024-06-13T06:09:20Z"]}

Notice, from above payload:

  • Temperature, Humidity, Interrupt, Interrupt_level, Battery, Signal, latitude, longitude&GPS time are the value at uplink time.
  • Json entry 1 ~ 8 are the last 1 ~ 8 sampling data as specify by AT+CLOCKLOG=1,65535,15,8  Command. Each entry includes (from left to right): Temperature, Humidity, Sampling time.

Example:

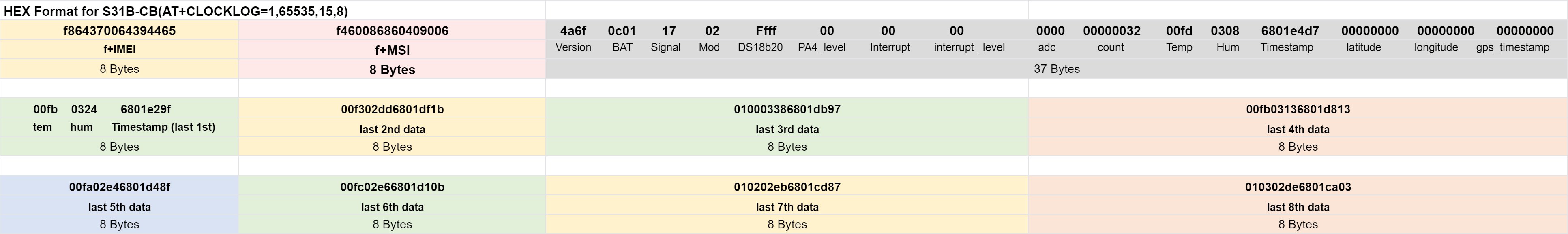

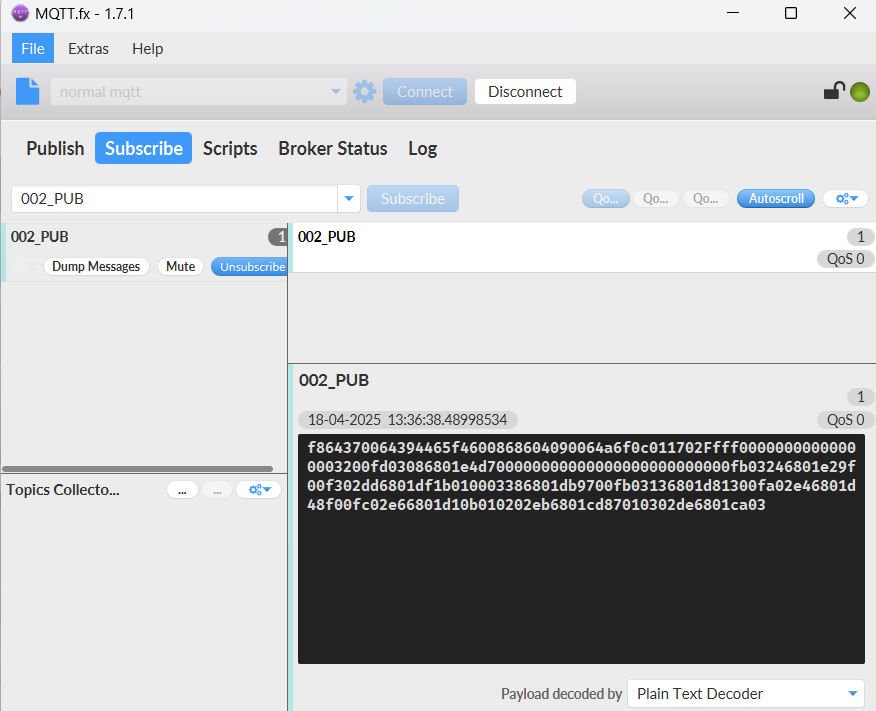

2.2.2 HEX format Payload(Type=0)

This is the HEX Format. As below:

f8643700643945154a640dc71f01Ffff0000000000013102cc666a909f015a788606cf341e666a909f01340294666a8fe00138029e666a8f6801440276666a8ef00146030c666a8e780143030c666a8e0001440300666a8d88014302fc666a8d10014502fa666a8c98



Version:

These bytes include the hardware and software version.

Higher byte: Specify Sensor Model: 0x4a for S31B-CB & S31-CB

Lower byte: Specify the software version: 0x64=100, means firmware version 1.0.0

BAT (Battery Info):

Ex1: 0x0DC7 = 3527mV

Signal Strength:

NB-IoT Network signal Strength.

Ex1: 0x1f = 31

0        -113dBm or less

1        -111dBm

2...30 -109dBm... -53dBm

31      -51dBm or greater

99      Not known or not detectable

DS18B20_Temperature:

Example: 0x00de(H)= 222(D) =22.2℃

Note: If the DS18B20 sensor is not connected, the hex payload is 0xFFFF and Serial port print: -409.5 ° C.

PA4_level:

Level of PA4 pin. (0: Low level     1: High level)

Interrupt:

This data field shows if this packet is generated by interrupt or not.

Example:

If byte[0]&0x01=0x00 : Normal uplink packet.

If byte[0]&0x01=0x01 : Interrupt Uplink Packet.

Interrupt_level:

This byte shows whether the interrupt is triggered by a high or low level.

Ex1: 0x00  Interrupt triggered by falling edge (low level)

Ex2: 0x01  Interrupt triggered by rising edge (high level)

Temperature:

If payload is: 0105H:  (0105 & 8000 == 0), temp = 0105H /10 = 26.1 degree

If payload is: FF3FH :  (FF3F & 8000 == 1) , temp = (FF3FH - 65536)/10 = -19.3 degrees.

(FF3F & 8000: Judge whether the highest bit is 1, when the highest bit is 1, it is negative)

Humidity:

Read:0295(H)=661(D)    Value:  661 / 10=66.1, So 66.1%

TimeStamp & GPS Timestamp

Unit TimeStamp Example: 666A909F(H) = 1718259871(D)

Put the decimal value into this link(https://www.epochconverter.com/) to get the time.

Latitude:

Example: 0x015a7886(H)=22706310(D)=22.706150

Longitude:

Example: 0x06cf341e(H)=114242590(D)=114.242830

2.2.3 ThingsBoard Payload(Type=3)

Type3 payload special design for ThingsBoard, it will also configure other default server to ThingsBoard.

{
    "topic": "2276492",
    "payload": {
        "IMEI": "864370064394515",
        "Model": "S31x-CB",
        "temperature": 26.9,
        "humidity": 59.5,
        "interrupt": 0,
        "interrupt_level": 0,
        "battery": 3.51,
        "signal": 25,
        "latitude": 0.0,
        "longitude": 0.0,
        "gps_time": "2024-06-13T07:23:27Z",
        "1": [26.7, 60.5, "2024-06-13T07:22:01Z"],
        "2": [26.5, 61.9, "2024-06-13T07:20:01Z"],
        "3": [26.5, 60.5, "2024-06-13T07:18:01Z"],
        "4": [26.5, 63.6, "2024-06-13T07:16:01Z"],
        "5": [26.5, 62.1, "2024-06-13T07:14:01Z"],
        "6": [26.5, 62.4, "2024-06-13T07:12:01Z"],
        "7": [26.4, 62.2, "2024-06-13T07:10:01Z"],
        "8": [26.5, 62.9, "2024-06-13T07:08:01Z"]
    }
}


2.2.4 ThingSpeak Payload(Type=1)

This payload meets ThingSpeak platform requirement. It includes only four fields. Form 1~4 are:

Temperature, Humidity, Battery & Signal. This payload type only valid for ThingsSpeak Platform

As below:

field1=Tem&field2=Hum&field3=BatV&field4=Singal


3. Configure S31x-CB

3.1 Configure Methods

S31x-CB supports below configure method:

​​​3.2  Serial Access Password

After the Bluetooth or UART connection is successful, use the Serial Access Password to enter the AT command window.

The label on the box of the node will print the initial password: AT+PIN=xxxxxx, and directly use the six-digit password to access the AT instruction window.


If you need to change the password, use AT+PWORD=xxxxxx (6 characters), -CB nodes only support lowercase letters.


Note: After entering the command, you need to add a line break, and you can also set automatic line breaks in the Bluetooth tool or UART connection tool.


3.3 AT Commands Set

AT+<CMD>?                    : Help on <CMD>

AT+<CMD>                      : Run <CMD>

AT+<CMD>=<value>      : Set the value

AT+<CMD>=?                  : Get the value

General Commands

AT                    : Attention

AT?                  : Short Help

ATZ                 : MCU Reset

AT+TDC          : Application Data Transmission Interval

AT+CFG          : Print all configurations

AT+DEUI                  : Get or set the Device ID

AT+INTMOD            : Set the trigger interrupt mode

AT+5VT           : Set extend the time of 5V power

AT+PRO          : Choose agreement

AT+RXDL        : Extend the receiving time

AT+DNSCFG   : Get or Set DNS Server

AT+GETSENSORVALUE   : Returns the current sensor measurement

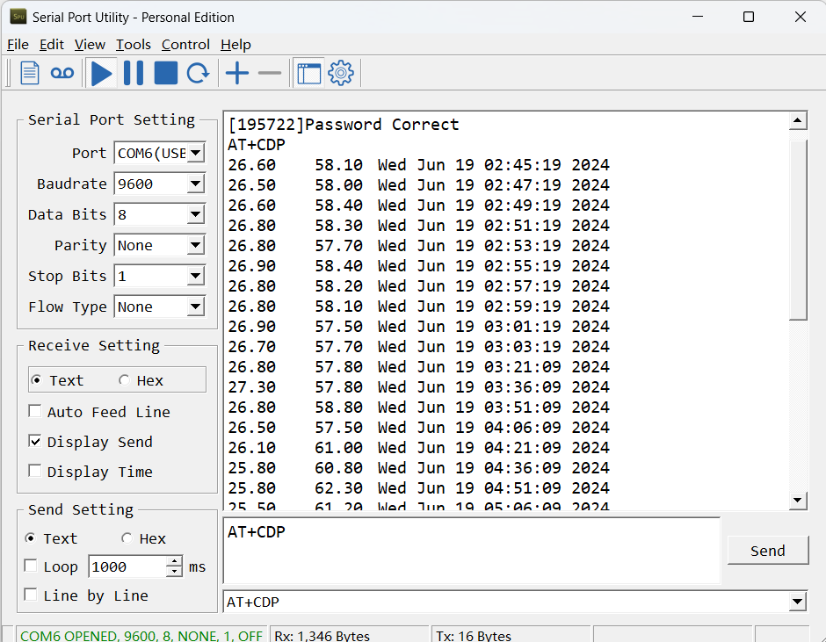

AT+CDP               : AT+CDP Read cached data/AT+CDP=0  Clear cached data

AT+SHTEMP        : Get or Set alarm of temp

AT+SHHUM         : Get or Set alarm of moisture

AT+SERVADDR    :Server Address

MQTT Management

AT+CLIENT               : Get or Set MQTT client

AT+UNAME              : Get or Set MQTT Username

AT+PWD                  : Get or Set MQTT password

AT+PUBTOPIC          : Get or Set MQTT publish topic

AT+SUBTOPIC          : Get or Set MQTT subscription topic

AT+MQOS               : Set the QoS level of MQTT

Information

AT+FDR               : Reset Parameters to Factory Default

AT+FDR1             : Reset parameters to factory default values except for passwords

AT+PWORD        : Serial Access Password

AT+LDATA           : Get the last upload data

AT+CDP               : AT+CDP Read cached data/AT+CDP=0  Clear cached data

3.4 Test Uplink and Change Update Interval

By default, Sensor will send uplinks every 2 hours.

User can use below commands to change the uplink interval.

AT Command: AT+TDC

Example: AT+TDC=7200   // Set Update Interval to 7200 seconds

Downlink Commands: 0x01

Format: Command Code (0x01) followed by 3 bytes.

Example:     12 hours= 43200 seconds     43200(D)=0xA8C0(H)

                    Downlink Payload: 01 00 A8 C0          // AT+TDC=43200, Set Update Interval to 12 hours.

Note: User can also push the button for more than 1 second to activate an uplink.

3.5 Set the receiving time

Feature: Extend the receiving time

AT Command: AT+RXDL

Example: AT+RXDL=1000   // Set the receiving time delay to 1000ms

Downlink Commands: 0x03

Format: Command Code (0x03) followed by 3 bytes.

Example:  Downlink Payload: 03 00 03 E8     // AT+RXDL=1000

3.6 Reset

Feature: Trig a reset of the MCU.

AT Command: ATZ

Downlink Commands: 0x04FF

3.7 +5V

Feature: Set extend the time of 5V power.

AT Command: AT+5VT

Example: AT+5VT=2000  // Set extend the time of 5V power to 2000 ms

Downlink Commands: 0x05

Format: Command Code (0x05) followed by 3 bytes.

Example:  Downlink Payload: 05 00 07 D0    // AT+5VT=2000

3.8 Trigger an uplink by external interrupt

S31x-CB has an external trigger interrupt function. Users can use the PB15 pin to trigger the upload of data packets.

AT command:

  • AT+INTMOD         // Set the trigger interrupt mode
  • AT+INTMOD=0    // Disable Interrupt
  • AT+INTMOD=1    // Trigger by rising and falling edge
  • AT+INTMOD=2    // Trigger by falling edge
  • AT+INTMOD=3    // Trigger by rising edge

Downlink Commands: 0x06

Format: Command Code (0x06) followed by 3 bytes.

Example1:  Downlink Payload: 06 00 00 01    // AT+INTMOD=1

Example2:  Downlink Payload: 06 00 00 03    //AT+INTMOD=3

3.9 Set the QoS level

This command is used to set the QoS level of MQTT.

AT command:

  • AT+MQOS=xx   // 0~2

Downlink command: 0x07

Format: Command Code (0x07) followed by 1 byte.

Ex1: Downlink payload: 0x0700   //AT+MQOS=0

Ex2: Downlink payload: 0x0701   //AT+MQOS=1

3.10 Clock logging

Sometimes when we deploy lots of end nodes in field. We want all sensors sample data at the same time, and upload these data together for analyze. In such case, we can use clock loging feature.

We can use this command to set the start time of data recording and the time interval to meet the requirements of the specific collection time of data.

AT command: AT+CLOCKLOG=a,b,c,d

a: 0: Disable Clock logging.   1: Enable Clock Logging

b: Specify First sampling start second: range (0 ~ 3599, 65535)         // Note: If parameter b is set to 65535, the log period starts after the node accesses the network and sends packets.

c: Specify the sampling interval: range (0 ~ 255 minutes)

d: How many entries should be uplink on every TDC (max 32)

Note: To disable clock recording, set the following parameters: AT+CLOCKLOG=1,65535,0,0


Example:

AT+CLOCKLOG=1,65535,1,5

After the node sends the first packet, data is recorded to the memory at intervals of 1 minute. For each TDC uplink, the uplink load will include: battery information + the last 5 memory records (payload + timestamp).


Note: Users need to synchronize the server time before configuring this command. If the server time is not synchronized before this command is configured, the command takes effect only after the node is reset.

Downlink command: 0x08

Format: Command Code (0x08) followed by 5 bytes.

  • Example 1: Downlink Payload: 08 01 FFFF 0F 08              // Set SHT record time: AT+CLOCKLOG=1,65535,15,8
  • Example 2: Downlink Payload: 08 01 04B0 0F 08             // Set SHT record time: AT+CLOCKLOG=1,1200,15,8

Note: When entering the downlink payload, there must be no Spaces between bytes.

3.11 Set the TLS mode

Refer to this link (MQTT Connection to send data to Tago.io)to use the TLS mode.

AT Command: AT+TLSMOD

Example 1:  AT+TLSMOD=0,0   // Disable TLS Mode.

Example 2:  AT+TLSMOD=1,0   // No authentication

                     AT+TLSMOD=1,1   // Perform server authentication

                     AT+TLSMOD=1,2   // Perform server and client authentication if requested by the remote server

Downlink command: 0x09

Format: Command Code (0x09) followed by 2 bytes.

Example1:  Downlink Payload: 09 00 00    // AT+TLSMOD=0,0

Example2:  Downlink Payload: 09 01 02    // AT+TLSMOD=1,2

3.12 Set GNSS open time

Extend the time to turn on GNSS. The automatic GPS location time is extended when the node is activated.

AT Command: AT+GNSST

Example: AT+GNSST=30  // Set the GPS positioning time to 30 seconds

Downlink command: 0x10

Format: Command Code (0x10) followed by 2 bytes.

Example:  Downlink Payload: 10 00 1E    // AT+GNSST=30

3.13 Turn on/off GPS

AT Command: AT+GPS

Ex1:  AT+GPS=0    // Turn off GPS

Ex2:  AT+GPS=1    // Turn on GPS

Downlink command: 0x11

Format: Command Code (0x11) followed by 1 byte.

Example:  Downlink Payload: 11 01   // AT+GPS=1

3.14 Set GPS positioning interval

Feature: Set GPS positioning interval (unit: hour).

When GPS is enabled, the node automatically locates and uplinks each time it passes GTDC time after activation.

AT Command: AT+GTDC

Example: AT+GTDC=24    // Set the GPS positioning interval to 24h.

Downlink command: 0x12

Format: Command Code (0x12) followed by 3 bytes.

Example: 24 hours:  24(D)=0x18(H)

               Downlink Payload: 12 00 00 18   // AT+GTDC=24

3.15 Set the search network time

Feature: Get or Set the time to join the network(unit: minutes).

AT Command: AT+CSQTIME

Example: AT+CSQTIME=10   // Set the search time to 10 minutes.

Downlink command: 0x13

Format: Command Code (0x13) followed by 1 byte.

Example:  Downlink Payload: 13 0A  //AT+CSQTIME=10

3.16 Humidity and Temperature alarm function

On each sampling define by AT+CLOCKLOG=1,65535,15,8 ( default 15 minutes), when the value exceed the range, it will trigger an Alarm and immediately sends a uplink.

AT Command:

AT+ SHTEMP=min,max

Example: AT+ SHTEMP=20,30   // Alarm when temperature lower than 20 or higher than 30

AT+ SHHUM=min,max

Example: AT+ SHHUM=50,80     // Alarm when humidity lower than 50 or higher than 80.

Downlink Commands: 0x0A

Format: Command Code (0x0A) followed by 4 bytes.

The first and second bytes following the function code are the minimum and maximum value of SHTEMP, and the third and fourth bytes are the minimum and maximum value of SHHUM.

  • Example 1: Downlink Payload: 0A 14 1E 32 50             // AT+ SHTEMP=20,30 & AT+ SHHUM=50,80
  • Example 2: Downlink Payload: 0A 00 00 00 00            // disable temperature and humidity alarm.

Notice:

  • To disable Alarm, user can set min and max to same value , such as AT+SHTEMP=0,0 and AT+SHHUM=50,50
  • If user only want to send only min or max, user can set the alarm to a value that device won't reach. For example: AT+SHTEMP=-80,0(Alarm above 0 degrees Celsius).

3.17 Set the IPv4 or IPv6

This command is used to set IP version.

AT command:

  • AT+IPTYPE=1      // IPv4
  • AT+IPTYPE=2      // IPv6

3.18 Configure Network Category to be Searched for under LTE RAT.

AT command: AT+IOTMOD=xx

xx:       0: eMTC

            1: NB-IoT

            2: eMTC and NB-IoT

3.19 Factory data reset

Two different restore factory Settings configurations.

AT command:

  • AT+FDR       // Reset Parameters to Factory Default.
  • AT+FDR1     // Reset parameters to factory default values except for passwords.

3.20 Set CoAP option

Feature: Set CoAP option, follow this link to set up the CoaP protocol.

AT command: AT+URI1~AT+URI8

AT+URI1=11,CoAP endpoint URl length,"CoAP endpoint URl"   // 11 is a fixed parameter.

Example:  AT+URI1=11,38,"i/13a35fbe-9515-6e55-36e8-081fb6aacf86"

3.21 Power on / power off BG95 module

This command is used to power on and power off BG95 module.

  • AT command: AT+QSW

The module is powered on after the command is sent for the first time, and powered off after the command is sent again.


3.22 Example Query saved historical records

  • AT command: AT+CDP

This command can be used to search the saved history, recording up to 32 groups of data, each group of historical data contains a maximum of 100 bytes.


3.23 Uplink log query

  • AT command: AT+GETLOG

This command can be used to query upstream logs of data packets.


3.23 Uplink log query

  • AT command: AT+GETLOG

This command can be used to query upstream logs of data packets.


3.24  Print last few data entries

Feature: Print the last few data entries

AT command: AT+PLDTA

Command Example4 bytes
AT+PLDTA=5
Print last 5 entries

Stop Tx events when read sensor data

1 24/9/20 23:31:37 temp=29.4 hum=70.4

2 24/9/20 23:46:33 temp=29.4 hum=71.2

3 24/9/21 00:01:33 temp=29.4 hum=71.0

4 24/9/21 00:16:47 temp=29.5 hum=71.3

5 24/9/21 00:31:33 temp=27.5 hum=68.0

Start Tx events

OK

Downlink Command:

No downlink commands for feature

3.25 Print data entries base on page

Feature: Print the sector data from start page to stop page.

AT command: AT+PDTA

Command Example4 bytes
AT+PDTA=1,1
Print page 1 to 1

Stop Tx events when read sensor data

8028B00 24/9/20 10:31:33 temp=25.3 hum=60.0

8028B08 24/9/20 10:46:33 temp=25.3 hum=59.0

8028B10 24/9/20 11:01:33 temp=25.1 hum=59.3

8028B18 24/9/20 11:16:33 temp=25.0 hum=60.7

8028B20 24/9/20 11:31:33 temp=24.9 hum=61.4

8028B28 24/9/20 11:46:33 temp=24.7 hum=60.6

8028B30 24/9/20 12:01:33 temp=24.8 hum=60.8

8028B38 24/9/20 12:16:33 temp=24.6 hum=61.0

8028B40 24/9/20 12:31:33 temp=24.5 hum=60.8

8028B48 24/9/20 12:46:33 temp=24.6 hum=60.5

8028B50 24/9/20 13:01:33 temp=25.1 hum=60.5

8028B58 24/9/20 13:16:33 temp=26.4 hum=61.3

8028B60 24/9/20 13:31:33 temp=27.0 hum=61.9

8028B68 24/9/20 13:46:33 temp=27.4 hum=62.3

8028B70 24/9/20 14:01:33 temp=27.6 hum=62.6

8028B78 24/9/20 14:16:33 temp=27.8 hum=63.4

Start Tx events

OK

Downlink Command:

No downlink commands for feature

3.26 Clear Flash Record

Feature: Clear flash storage for data log feature.

AT command: AT+CLRDTA

Command ExampleFunctionResponse
AT+CLRDTA

Clear date record

Stop Tx events,Please wait for the erase to complete

Clear all stored sensor data...

Start Tx events

OK

Downlink Command:  0x32

  • Example: 0x32 00        //  Same as AT+CLRDTA

4. Battery & Power Consumption

S31x-CB use ER26500 + SPC1520 battery pack. See below link for detail information about the battery info and how to replace.

Battery Info & Power Consumption Analyze .

5. Firmware update

User can change device firmware to::

  • Update with new features.
  • Fix bugs.

Firmware and changelog can be downloaded from : Firmware download link

Methods to Update Firmware:

  • (Recommended way) OTA firmware update via BLE: Instruction.

6. FAQ

6.1 How can I access the BG95-NGFF AT Commands?

User can access to BG95-NGFF directly and send AT Commands.

See BG95-NGFF AT Command set

6.2 General Manual for -CB , -CS models

Users can follow the instructions in this link to see how to configure to connect to different servers.

7. Order Info

Part Number: S31-CB-XX  / S31B-CB-XX

XX:

  • GE: General version ( Exclude SIM card)
  • 1T: with 1NCE* 10 years 500MB SIM card and Pre-configure to ThingsEye server

1NCE SIM Card NB-IoT network coverage: Austria, Belgium, Bulgaria, Croatia, Czech Republic, Denmark, Finland, Germany, Great Britain, Greece, Hungary, Ireland, Italy, Latvia, Malta, Netherlands, Norway, Puerto Rico, Russia, Slovak , Republic, Slovenia, Spain, Sweden, Switzerland, Taiwan, USA, US Virgin Islands.

1NCE SIM Card LTE-M network coverage: Argentina, Austria, Australia, Belgium, Canada, Denmark, Estonia, Finland, France, Germany, Great Britain, Hungary, Ireland, Japan, Jersey, Korea, Repiblic of, Latvia, Luxembourg, Mexico, Netherlands, New Zealand, Norway, Poland, Puerto Rico, Romania, Spain, Sweden, Switzerland, Taiwan, USA, US Virgin Islands.

8. ​Packing Info

Package Includes:

  • S31-CB or S31-CB  Temperature & Humidity Sensor x 1
  • External antenna x 1

Dimension and weight:

  • Device Size: 13.0 x 5 x 4.5 cm
  • Device Weight: 150g
  • Package Size / pcs : 14.0 x 8x 5 cm
  • Weight / pcs : 180g

9. Support

  • Support is provided Monday to Friday, from 09:00 to 18:00 GMT+8. Due to different timezones we cannot offer live support. However, your questions will be answered as soon as possible in the before-mentioned schedule.
  • Provide as much information as possible regarding your enquiry (product models, accurately describe your problem and steps to replicate it etc) and send a mail to Support@dragino.cc.



Tags:

Copyright ©2010-2022 Dragino Technology Co., LTD. All rights reserved
Dragino Wiki v2.0
