1.1 What is CPL03-CB NB-IoT/LTE-M Pulse/Contact Sensor

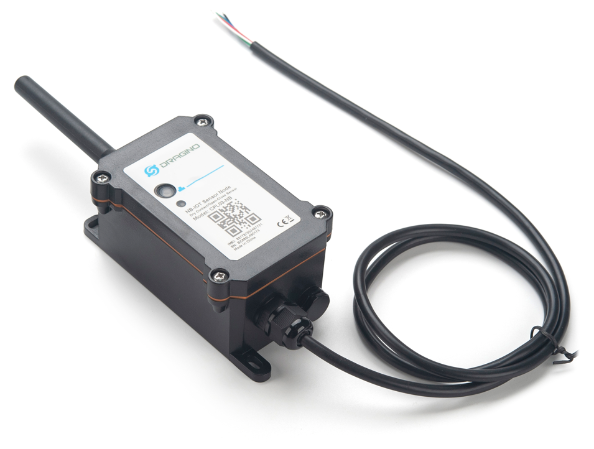

The Dragino CPL03-CB is a NB-IoT/LTE-M Contact Sensor for Internet of Things solution. It detects dry contact status, open time, open counts, and then upload to IoT server via NB-IoT or CAT-M1 network.

The CPL03-CB will send periodically data every day as well as for each dry contact action. It also counts the contact open times and calculate last open duration. User can also disable the uplink for each open/ close event, instead, device can count each open event and uplink periodically.

CPL03-CB supports open alarm feature, user can set open alarm for instant notice. CPL03-CB supports Datalog feature, it can save the data when there is no NB-IoT network and uplink when network recover.

CPL03-CB is designed for outdoor use. It has a weatherproof enclosure and industrial level battery to work in low to high temperatures.

CPL03-CB supports different uplink methods including MQTT, MQTTs, UDP , TCP or CoAP for different application requirement, and support uplinks to various IoT Servers.

CPL03-CB supports BLE configure and OTA update which make user easy to use.

CPL03-CB is powered by 8500mAh Li-SOCI2 battery, it is designed for long-term use up to several years.

CPL03-CB has optional built-in SIM card and default IoT server connection version. Which makes it works with simple configuration.




1.2 ​Features

  • For -NB Bands: B1/B2/B3/B4/B5/B8/B12/B13/B17/B18/B19/B20/B25/B28/B66/B70/B85
  • For -CB Bands: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B28/B66/B71/B85
  • CAT-M1 / LTE-M Bands: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B27/B28/B66/B85
  • Upload water flow volume
  • Door Open/Close detect
  • Door open/close statistics
  • Datalog Feature
  • Open Alarm Feature
  • Multiply Sampling and one uplink
  • Uplink via MQTT, MQTTs, TCP, UDP or CoAP
  • GNSS for Location Report
  • Support Bluetooth v5.1 remote configure and update firmware
  • Uplink on periodically
  • Downlink to change configure
  • 8500mAh Battery for long term use
  • Nano SIM card slot for NB-IoT SIM



1.3 Specification

Common DC Characteristics:

  • Supply Voltage: 2.6v ~ 3.6v
  • Operating Temperature: -40 ~ 85°C

NB-IoT Spec:

NB-IoT Module: BG95-NGFF

Support Bands:

  • B1 @H-FDD: 2100MHz
  • B2 @H-FDD: 1900MHz
  • B3 @H-FDD: 1800MHz
  • B4 @H-FDD: 2100MHz
  • B5 @H-FDD: 860MHz
  • B8 @H-FDD: 900MHz
  • B12 @H-FDD: 720MHz
  • B13 @H-FDD: 740MHz
  • B17 @H-FDD: 730MHz
  • B18 @H-FDD: 870MHz
  • B19 @H-FDD: 870MHz
  • B20 @H-FDD: 790MHz
  • B25 @H-FDD: 1900MHz
  • B28 @H-FDD: 750MHz
  • B66 @H-FDD: 2000MHz
  • B70 @H-FDD: 2000MHz
  • B85 @H-FDD: 700MHz

Battery:

  • Li/SOCI2 un-chargeable battery
  • Capacity: 8500mAh
  • Self Discharge: <1% / Year @ 25°C
  • Max continuously current: 130mA
  • Max boost current: 2A, 1 second

Power Consumption

  • STOP Mode: 10uA @ 3.3v
  • Max transmit power: 350mA@3.3v



1.4 Applications

  • Open/Close Detection
  • Pulse meter application
  • Dry Contact Detection



1.5 Sleep mode and working mode

Deep Sleep Mode: Sensor doesn't have any NB-IoT activate. This mode is used for storage and shipping to save battery life.

Working Mode: In this mode, Sensor will work as NB-IoT Sensor to Join NB-IoT network and send out sensor data to server. Between each sampling/tx/rx periodically, sensor will be in IDLE mode), in IDLE mode, sensor has the same power consumption as Deep Sleep mode.

1.6 Button & LEDs


Behavior on ACTFunctionAction
Pressing ACT between 1s < time < 3sSend an uplink

If sensor has already attached to NB-IoT network, sensor will send an uplink packet, blue led will blink once.
Meanwhile, BLE module will be active and user can connect via BLE to configure device.

Pressing ACT for more than 3sActive Device

Green led will fast blink 5 times, device will enter OTA mode for 3 seconds. And then start to  attach NB-IoT network.
Green led will solidly turn on for 5 seconds after joined in network.
Once sensor is active, BLE module will be active and user can connect via BLE to configure device, no matter if device attach NB-IoT network or not.

Fast press ACT 5 times.Deactivate DeviceRed led will solid on for 5 seconds. Means device is in Deep Sleep Mode.

Note: When the device is executing a program, the buttons may become invalid. It is best to press the buttons after the device has completed the program execution.

1.7 BLE connection

CPL03-CB support BLE remote configure and firmware update.

BLE can be used to configure the parameter of sensor or see the console output from sensor. BLE will be only activate on below case:

  • Press button to send an uplink
  • Press button to active device.
  • Device Power on or reset.

If there is no activity connection on BLE in 60 seconds, sensor will shut down BLE module to enter low power mode.

1.8 Pin Definitions , Switch & SIM Direction

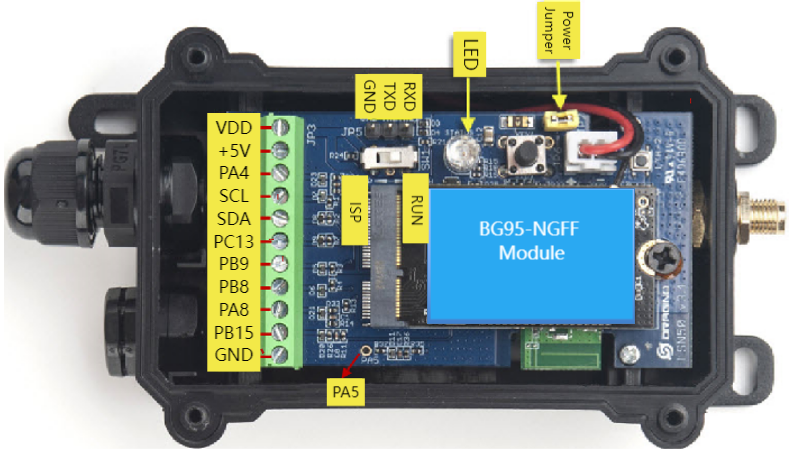

1.8.1 Jumper JP2

Power on Device when put this jumper.

1.8.2 BOOT MODE / SW1

1) ISP: upgrade mode, device won't have any signal in this mode. but ready for upgrade firmware. LED won't work. Firmware won't run.

2) Flash: work mode, device starts to work and send out console output for further debug

1.8.3 Reset Button

Press to reboot the device.

1.8.4 SIM Card Direction

See this link. How to insert SIM Card.

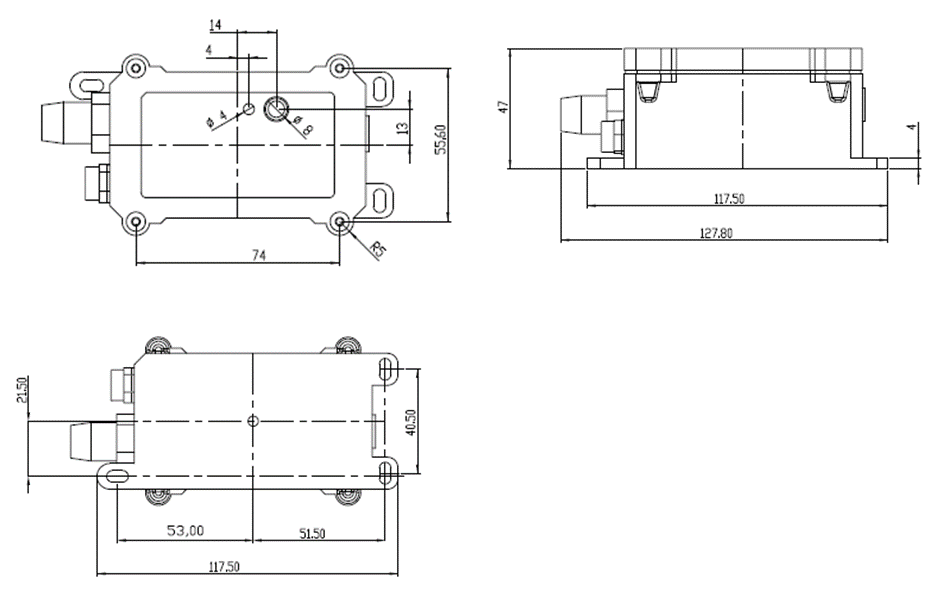

1.9 Mechanical




2. Use CPL03-CB to communicate with IoT Server

2.1 Send data to IoT server via NB-IoT network

The CPL03-CB is equipped with a NB-IoT module, the pre-loaded firmware in CPL03-CB will get environment data from sensors and send the value to local NB-IoT network via the NB-IoT module.  The NB-IoT network will forward this value to IoT server via the protocol defined by CPL03-CB.

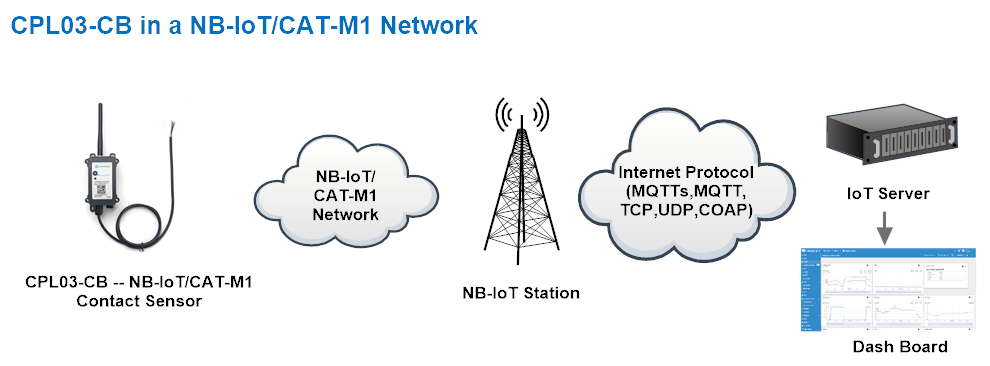

Below shows the network structure:


There are two version: -GE and -1T version of CPL03-CB.

GE Version: This version doesn't include SIM card or point to any IoT server. User needs to use AT Commands to configure below two steps to set CPL03-CB send data to IoT server.

  • Install NB-IoT SIM card and configure APN. See instruction of Attach Network.

Below shows result of different server as a glance.

ServersDash BoardComments

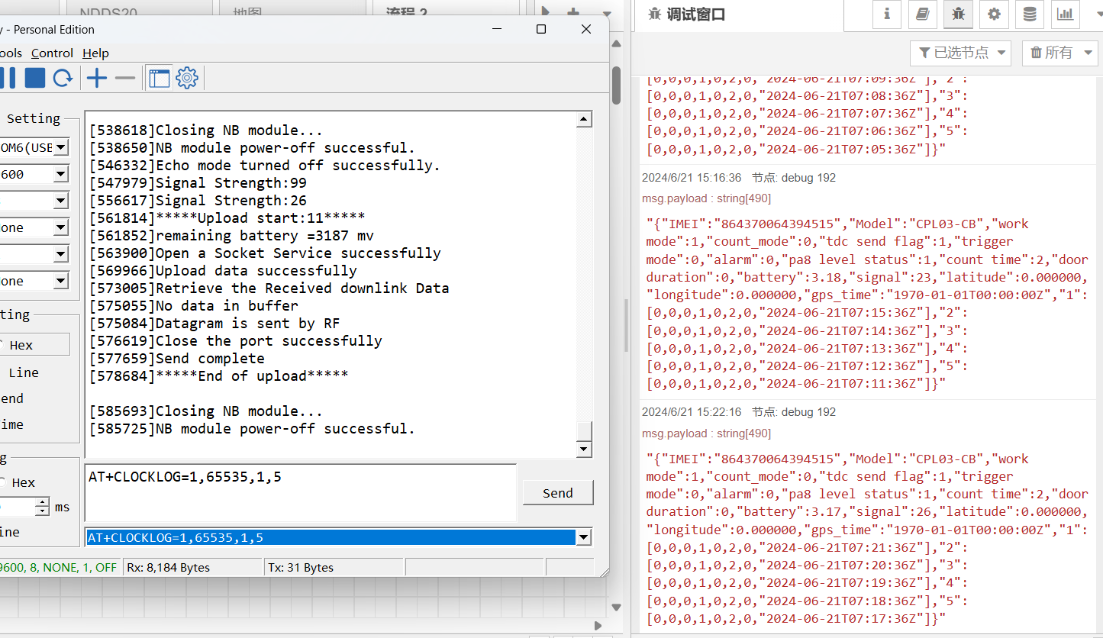

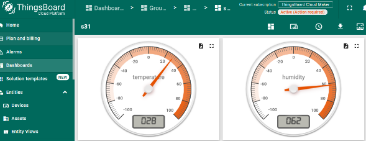

Node-Red



DataCake



Tago.IO
General UDPRaw Payload. Need Developer to design Dash Board
General MQTTRaw Payload. Need Developer to design Dash Board

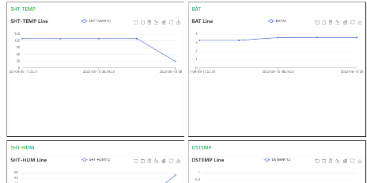

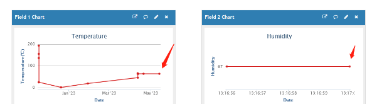

ThingSpeak

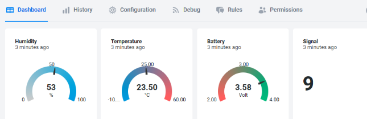

ThingsBoard




1T Version: This version has 1NCE SIM card pre-installed and configure to send value to DataCake. User Just need to select the sensor type in DataCake and Activate CPL03-CB and user will be able to see data in DataCake. See here for DataCake Config Instruction.

2.2 ​Payload Types

To meet different server requirement, CPL03-CB supports different payload type.

Includes:

User can specify the payload type when choose the connection protocol. Example:

AT+PRO=2,0            // Use UDP Connection & hex Payload

AT+PRO=2,5            // Use UDP Connection & Json Payload

AT+PRO=3,5            // Use MQTT Connection & Json Payload

2.2.1 General Json Format(Type=5)

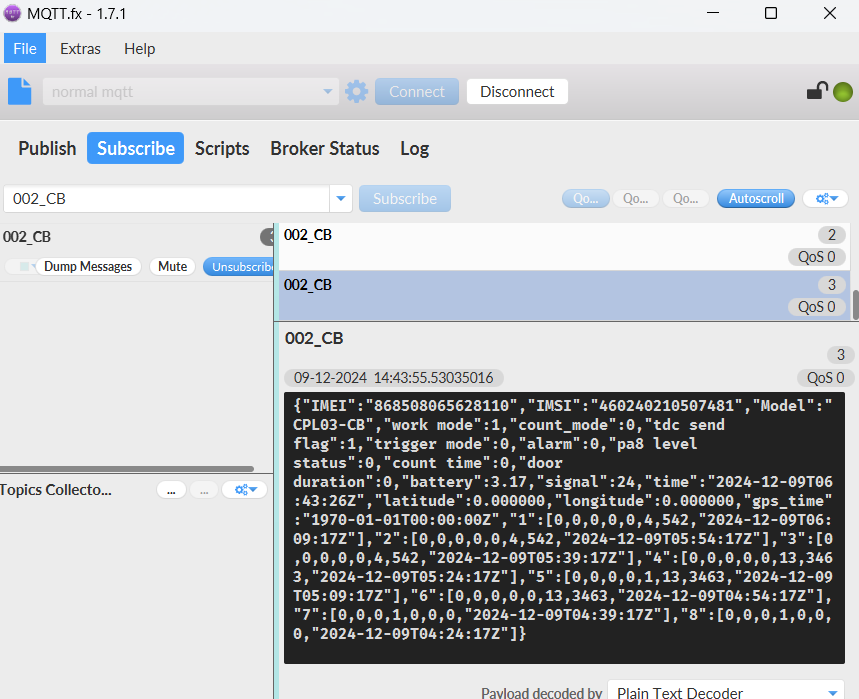

2.2.1.1 AT+MOD=1(Real-Time Open/Close Status)

{"IMEI":"864370064394515","Model":"CPL03-CB","work mode":1,"count_mode":0,"tdc send flag":1,"trigger mode":0,"alarm":0,"pa8 level status":1,"count time":147,"door duration":0,"battery":3.45,"signal":31,"latitude":22.705590,"longitude":114.242930,"gps_time":"2024-06-20T06:30:53Z","1":[0,0,0,1,0,0,0,"2024-06-20T05:48:50Z"],"2":[0,0,0,1,0,0,0,"2024-06-20T05:33:50Z"],"3":[0,0,0,1,0,0,0,"2024-06-20T05:18:50Z"],"4":[0,0,0,1,0,0,0,"2024-06-20T05:03:50Z"],"5":[0,0,0,1,0,0,0,"2024-06-20T04:48:50Z"],"6":[0,0,0,1,0,0,0,"2024-06-20T04:33:50Z"],"7":[0,0,0,1,0,0,0,"2024-06-20T04:18:50Z"],"8":[0,0,0,1,0,0,0,"2024-06-20T04:03:50Z"]}


Notice, from above payload:

  • work mode, count_mode, tdc_send flag, trigger mode, alarm, pa8 level status, count time, door duration, Battery, Signal, latitude, longitude&GPS time are the value at uplink time.
  • Json entry 1 ~ 8 are the last 1 ~ 8 sampling data as specify by AT+CLOCKLOG=1,65535,15,8  Command. Each entry includes (from left to right): count_mode, tdc_send flag, trigger mode, alarm, pa8 level status, count time, door durationv & Sampling time.
  • Count mod: Default=0

0: Uplink total open door times since factory

1 : Uplink total open door times since last FPORT=2 uplink.

  • TDC send flag

When the flag is 1, it means sending packets at normal time intervals.

Otherwise, it is a packet sent at non-TDC time.



  • Work mod

0: CPL03-CB-Real-Time Open/Close Status mode.

1: CPL03-CB-3 pulse mode.

  • Trigger mod

0: The pulse count will increment by one after a close to open event and the last duration is for the open event.

1: The pulse count will increment by one after a open to close event and the last duration is for the close event.



  •  Alarm

  • pa8 level status

0: The PA8 pin level is low.

1: The PA8 pin level is high.



  •  count time

Total pulse/counting base on dry contact trigger event

Range (3 Bytes) : 0x000000 ~ 0xFFFFFF . Max: 16777215



  •  Door duration

1) AT+TTRMOD1=0 : Dry Contact last open duration.(Unit: sec)


2) AT+TTRMOD1=1 : Dry Contact last close duration.(Unit: sec)


2.2.1.2 AT+MOD=2(3 pulse mode)

{"IMEI":"864370064394515","Model":"CPL03-CB","work mode":2,"calc flag":1,"count_mode":0,"tdc send flag":1,"count time1":2,"count time2":0,"count time3":0,"battery":3.45,"signal":31,"latitude":22.706580,"longitude":114.242350,"gps_time":"2024-06-21T07:59:33Z","1":[0,0,2,0,0,"2024-06-21T07:57:58Z"],"2":[0,0,2,0,0,"2024-06-21T07:57:13Z"],"3":[0,0,2,0,0,"2024-06-21T07:50:53Z"],"4":[0,0,2,0,0,"2024-06-21T07:49:46Z"],"5":[0,0,2,0,0,"2024-06-21T07:48:46Z"]}


Notice, from above payload:

  • work mode, calc flag, count_mode, tdc send flag, count time1, count time2, count time3, Battery, Signal, Latitude, Longitude & GPS_time are the value at uplink time.
  • Json entry 1 ~ 8 are the last 1 ~ 8 sampling data as specify by AT+CLOCKLOG=1,65535,15,8  Command. Each entry includes (from left to right): calc flag, count_mode, count time1, count time2, count time3, Sampling time.

Max COUNT for each port is 16777215. Exceed this number will reset to 1.

  • Count mod: Default=0

0: Uplink total count times since factory

1: Uplink total count times since last FPORT=2 uplink.

  • TDC send flag

When the flag is 1, it means sending packets at normal time intervals.

Otherwise, it is a packet sent at non-TDC time.

  • Work mod

0: Real-Time Open/Close Status mode.

1: 3 x pulse counting mode.

  •  Calculate Flag

The calculate flag is a user define field, IoT server can use this filed to handle different meter with different pulse factor. For example, if there are 100 water meters, meter 1 ~50 are 1 liter/pulse and meter 51 ~ 100 has 1.5 liter/pulse.

User can set calculate flag to 1 for meter 1~50 and 2 for meter 51 ~ 100, So IoT Server can use this field for calculation.

Default value: 0.

Range (3 bits): (b)000 ~ (b) 111

Refer: Set Calculate Flag

  •  Port1 Total Pulse(PA8 of pin)

Range (3 Bytes) : 0x000000 ~ 0xFFFFFF . Max: 16777215.Exceed this number will reset to 1.

  •  Port2 Total Pulse(PA4 of pin)

Range (3 Bytes) : 0x000000 ~ 0xFFFFFF . Max: 16777215.Exceed this number will reset to 1.

  •  Port3 Total Pulse(PB15 of pin)

Range (3 Bytes) : 0x000000 ~ 0xFFFFFF . Max: 16777215.Exceed this number will reset to 1.

  •  Latitude & Longitude

With GPS enabled, the node will automatically search for latitude and longitude each time it is reset.
And the node automatically locates and uplinks each time it passes GTDC time after activation.

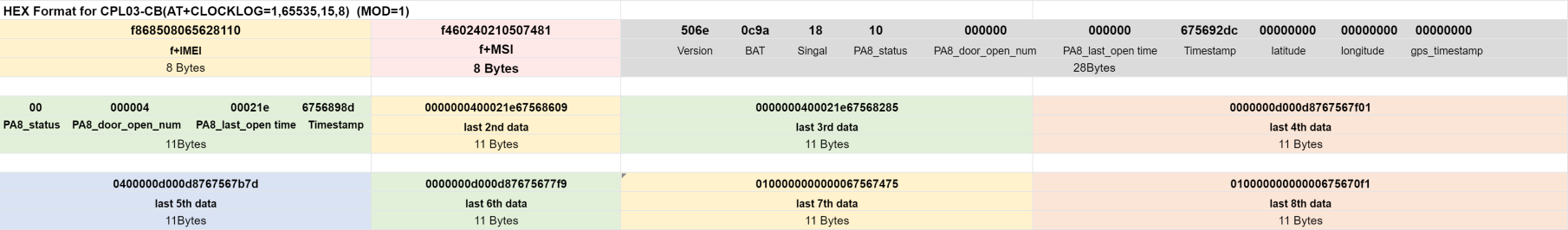

2.2.2 HEX format Payload(Type=0)

2.2.2.1 AT+MOD=1(Real-Time Open/Close Status)

f86437006439451550640da01f110000930000006673cb93015a756606cf39aa6673cb93010000000000006673c2c2010000000000006673bf3e010000000000006673bbba010000000000006673b836010000000000006673b4b2010000000000006673b12e010000000000006673adaa010000000000006673aa26

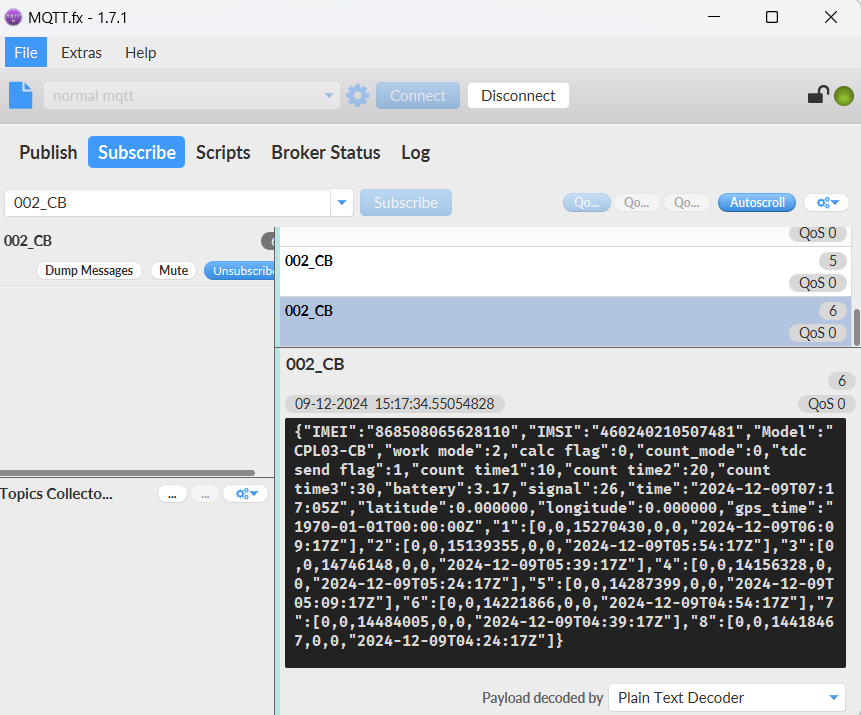

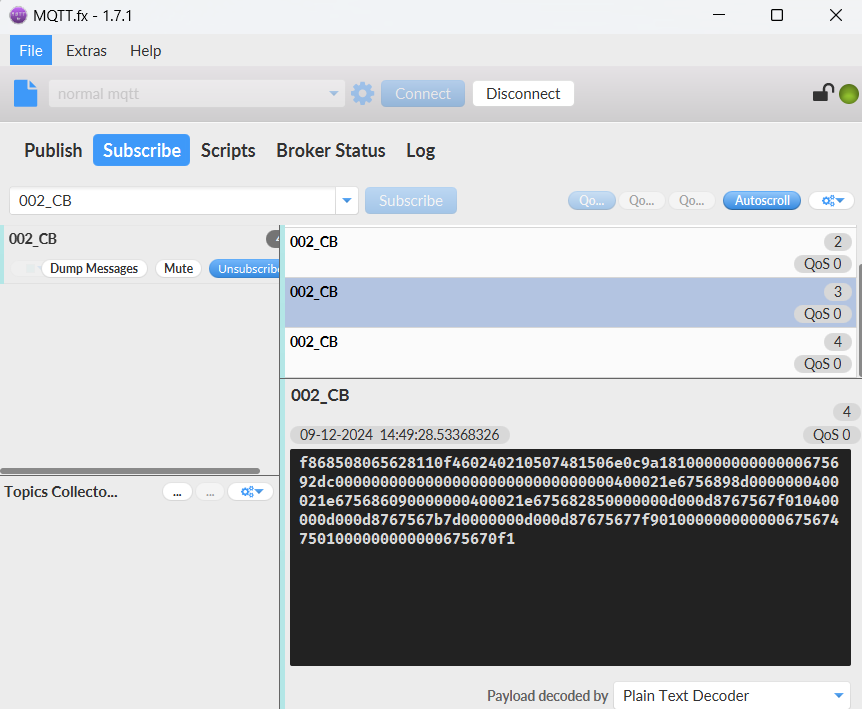

If we use the MQTT client to subscribe to this MQTT topic, we can see the following information when the NB sensor uplink data.


Version:

These bytes include the hardware and software version.

Higher byte: Specify Sensor Model: 0x50 for CPL03-CB

Lower byte: Specify the software version: 0x64=100, means firmware version 1.0.0

BAT (Battery Info):

Ex1: 0x0dda = 3546mV

Signal Strength:

NB-IoT Network signal Strength.

Ex1: 0x15 = 21

0        -113dBm or less

1        -111dBm

2...30 -109dBm... -53dBm

31      -51dBm or greater

99      Not known or not detectable



PA8 Status:

PA8 Status consists of Count mode, TDC send flag, Trigger mode, PA8 alarm status, PA8 level status.

(PA8 level Status=(count_mode<<5) | (tdc_send_flag<<4) | (0<<3) | (trigger_mode[0]<<2) | (pa8_alarm_status<<1) | pa8_level_status)

Timestamp:

Unit Timestamp Example: 650abc40(H) = 1695202368(D)

Put the decimal value into this link(https://www.epochconverter.com)) to get the time.

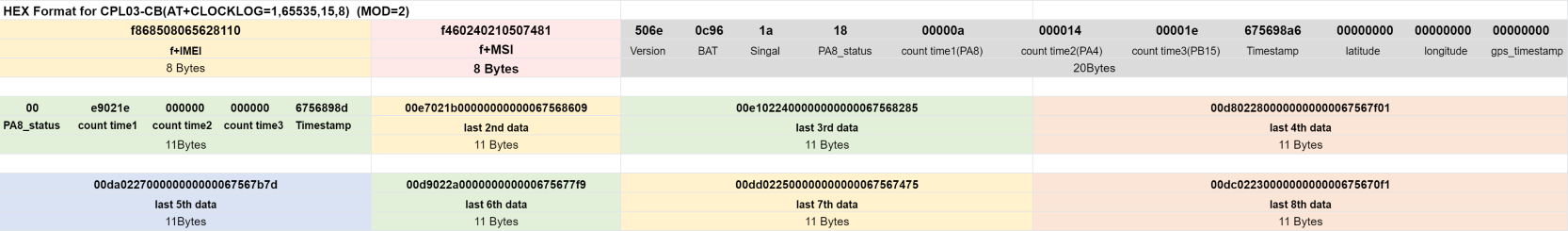

2.2.2.2 AT+MOD=2(3 pulse mode)

f86437006439451550640d461d1800000000000000000066768d94015a796c06cf33f666768d940800000000000100000066768d590800000000000000000066768d1d0800000000000000000066768ce10800000000000000000066768ca50800000000000000000066768c690800000000000000000066768c3b0800000000000000000066768b7d0800000000000000000066768b41

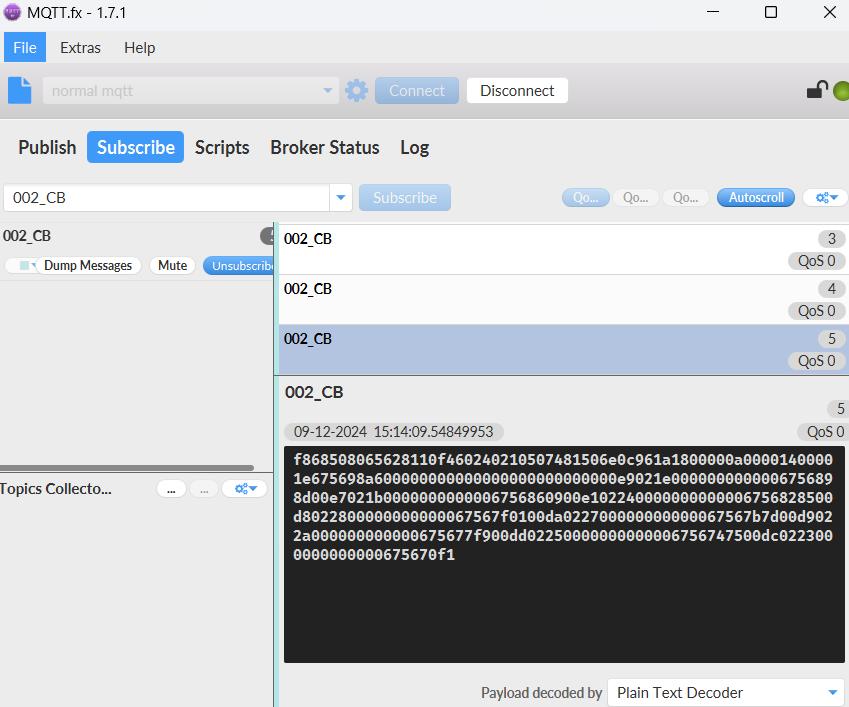

If we use the MQTT client to subscribe to this MQTT topic, we can see the following information when the NB sensor uplink data.


Version:

These bytes include the hardware and software version.

Higher byte: Specify Sensor Model: 0x50 for CPL03-CB

Lower byte: Specify the software version: 0x64=100, means firmware version 1.0.0

BAT (Battery Info):

Ex1: 0x0dda = 3546mV

Signal Strength:

NB-IoT Network signal Strength.

Ex1: 0x15 = 21

0        -113dBm or less

1        -111dBm

2...30 -109dBm... -53dBm

31      -51dBm or greater

99      Not known or not detectable



PA8 Status:

PA8 Status consists of Count mode, TDC send flag, Calculate flag.

(PA8 level Status=(count_mode<<5) | (tdc_send_flag<<4) | (1<<3) |calculate_flag)

Timestamp:

Unit Timestamp Example: 650abc40(H) = 1695202368(D)

Put the decimal value into this link(https://www.epochconverter.com)) to get the time.

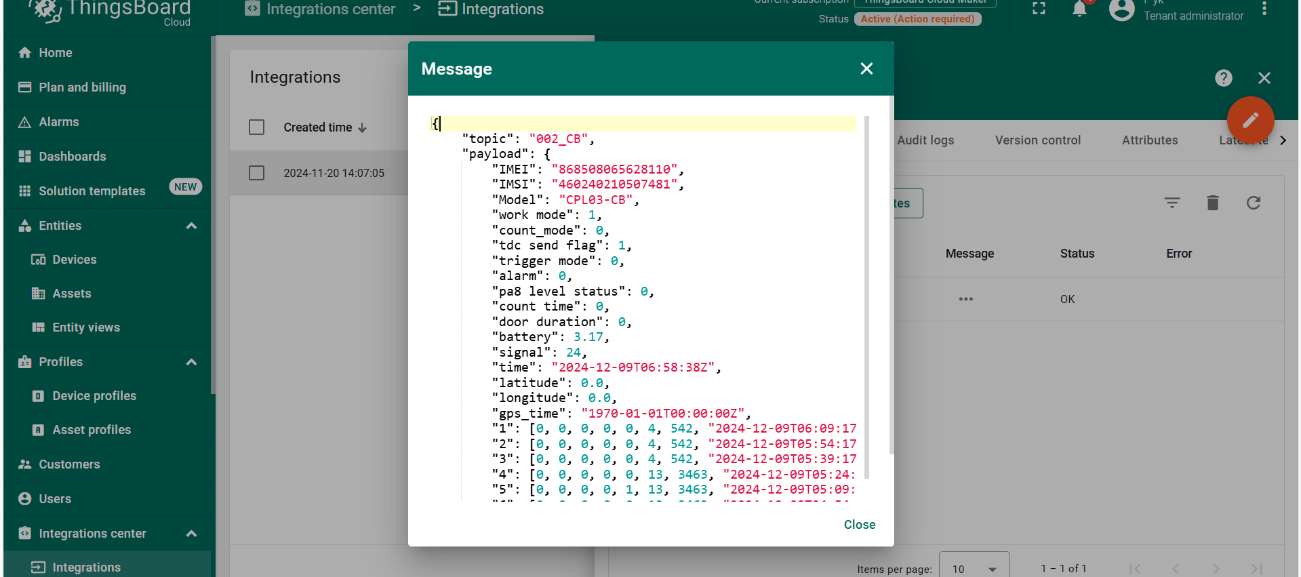

2.2.3 ThingsBoard Payload(Type=3)

Type3 payload special design for ThingsBoard, it will also configure other default server to ThingsBoard.



2.2.3.1 AT+MOD=1(Real-Time Open/Close Status)



{
    "topic": "CPL03_CB_PUB",
    "payload": {
        "IMEI": "864370064394515",
        "Model": "CPL03-CB",
        "work mode": 1,
        "count_mode": 0,
        "tdc send flag": 1,
        "trigger mode": 0,
        "alarm": 0,
        "pa8 level status": 1,
        "count time": 0,
        "door duration": 0,
        "battery": 3.42,
        "signal": 31,
        "latitude": 0.0,
        "longitude": 0.0,
        "gps_time": "2024-06-22T01:54:28Z",
        "1": [0, 0, 0, 1, 0, 2, 0, "2024-06-22T01:35:34Z"],
        "2": [0, 0, 0, 1, 0, 2, 0, "2024-06-22T01:34:40Z"],
        "3": [0, 0, 0, 1, 0, 2, 0, "2024-06-22T01:31:02Z"],
        "4": [0, 0, 0, 1, 0, 2, 0, "2024-06-22T01:30:02Z"],
        "5": [0, 0, 0, 1, 0, 2, 0, "2024-06-22T01:29:02Z"],
        "6": [0, 0, 0, 1, 0, 2, 0, "2024-06-22T01:28:06Z"],
        "7": [0, 0, 0, 1, 0, 2, 0, "2024-06-22T01:20:10Z"],
        "8": [0, 0, 0, 1, 0, 2, 0, "2024-06-22T01:19:10Z"]
    }
}


2.2.3.2 AT+MOD=2(3 pulse mode)

{
    "topic": "CPL03_CB_PUB",
    "payload": {
        "IMEI": "864370064394515",
        "Model": "CPL03-CB",
        "work mode": 2,
        "calc flag": 0,
        "count_mode": 0,
        "tdc send flag": 1,
        "count time1": 0,
        "count time2": 1,
        "count time3": 0,
        "battery": 3.29,
        "signal": 31,
        "latitude": 22.70396,
        "longitude": 114.24473,
        "gps_time": "2024-06-22T09:27:17Z",
        "1": [0, 0, 0, 0, 0, "2024-06-22T09:25:50Z"],
        "2": [0, 0, 0, 0, 0, "2024-06-22T09:25:22Z"],
        "3": [0, 0, 0, 0, 0, "2024-06-22T09:21:46Z"],
        "4": [0, 0, 0, 0, 0, "2024-06-22T09:17:44Z"],
        "5": [0, 0, 0, 0, 0, "2024-06-22T09:16:44Z"],
        "6": [0, 0, 0, 0, 0, "2024-06-22T09:15:44Z"],
        "7": [0, 0, 0, 0, 0, "2024-06-22T09:14:44Z"],
        "8": [0, 0, 0, 0, 0, "2024-06-22T09:13:44Z"]
    }
}

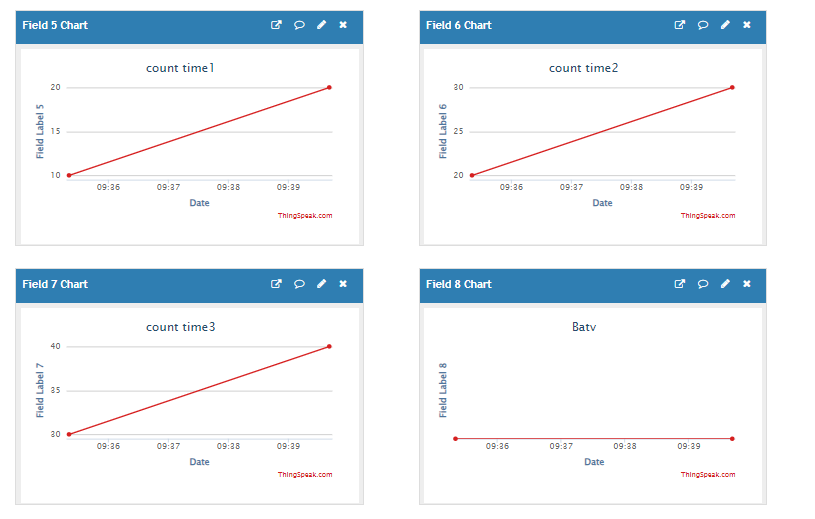

2.2.4 ThingSpeak Payload(Type=1)

2.2.4.1 AT+MOD=1(Real-Time Open/Close Status)

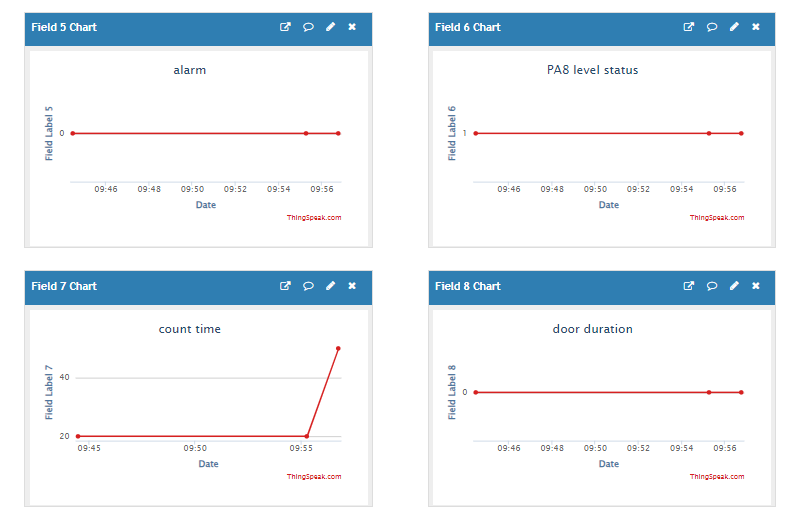

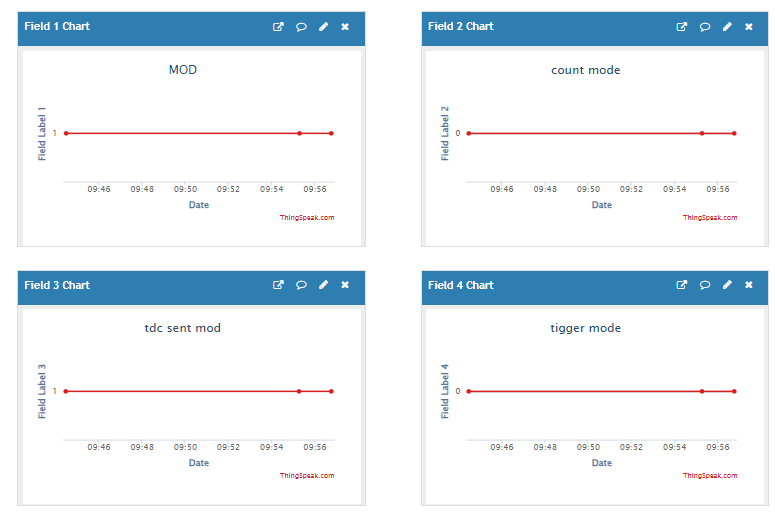

field1=work mod value&field2=count mode value&ield3=tdc send flag value&field4=trigger mode value&field5=alarm value&field6=pa8 level status value&field7=count time value&field8=door duration value



2.2.4.2 AT+MOD=2(3 pulse mode)

field1=work mod value&field2=calc flag value&field3=count mode value&ield4=tdc send flag value&field5=count time1 value&field6=count time2 value&field7=count time3 value&field8=Battery value





3. Configure CPL03-CB

3.1 Configure Methods

CPL03-CB supports below configure method:



3.2  Serial Access Password

After the Bluetooth or UART connection is successful, use the Serial Access Password to enter the AT command window.

The label on the box of the node will print the initial password: AT+PIN=xxxxxx, and directly use the six-digit password to access the AT instruction window.


If you need to change the password, use AT+PWORD=xxxxxx (6 characters), -CB nodes only support lowercase letters.


Note: After entering the command, you need to add a line break, and you can also set automatic line breaks in the Bluetooth tool or UART connection tool.


3.3 AT Commands Set

AT+<CMD>?           : Help on <CMD>

AT+<CMD>                      : Run <CMD>

AT+<CMD>=<value>      : Set the value

AT+<CMD>=?          : Get the value

General Commands

AT                    : Attention

AT?                  : Short Help

ATZ                 : MCU Reset

AT+TDC          : Application Data Transmission Interval

AT+CFG          : Print all configurations

AT+DEUI                  : Get or set the Device ID

AT+5VT           : Set extend the time of 5V power

AT+PRO          : Choose agreement

AT+RXDL        : Extend the sending and receiving time

AT+DNSCFG   : Get or Set DNS Server

AT+GETSENSORVALUE   : Returns the current sensor measurement

AT+NOUD  : Get or Set the number of data to be uploaded

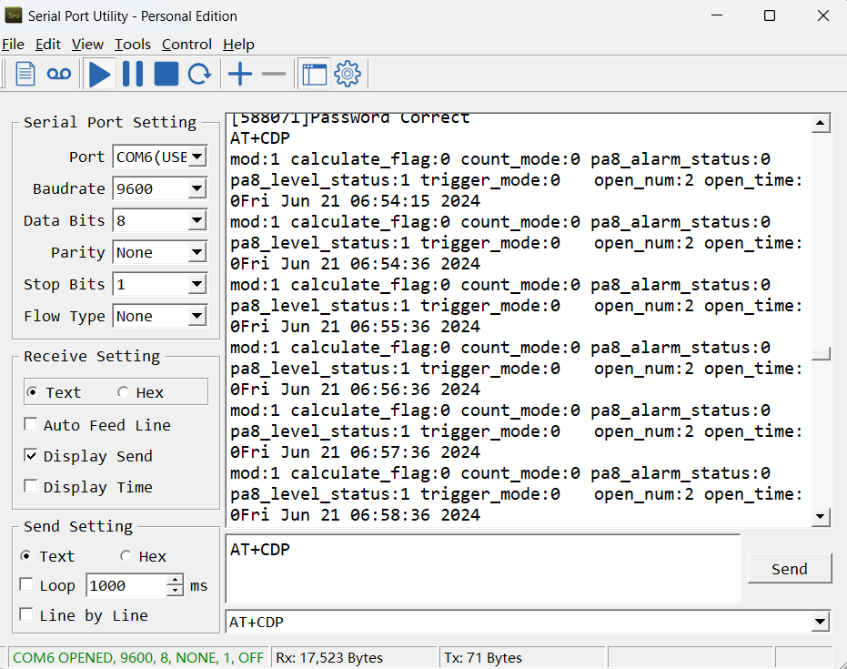

AT+CDP     : Read or Clear cached data

AT+SERVADDR :   Server Address

MQTT Management

AT+CLIENT               : Get or Set MQTT client

AT+UNAME              : Get or Set MQTT Username

AT+PWD                  : Get or Set MQTT password

AT+PUBTOPIC          : Get or Set MQTT publish topic

AT+SUBTOPIC          : Get or Set MQTT subscription topic

AT+MQOS                : Set the QoS level of MQTT

Information

AT+FDR              : Factory Data Reset

AT+FDR1             : Reset parameters to factory default values except for passwords

AT+PWORD        : Serial Access Password

AT+LDATA           : Get the last upload data

AT+CDP               : Read or Clear cached data

3.4  ​Mode switching

3.4.1 Real-Time Open/Close Status

Default working mode

AT Command: AT+MOD=1

Downlink Command: 0x02 01

The wiring of the Real-Time Open/Close Status mode is as follows:


3.4.1.1 Set Alarm Base on Timeout

It only takes effect when AT+MOD=1.

CPL03-CB can monitor the timeout for a status change, this feature can be used to monitor some events such as door opening too long etc. Related Parameters are:

1. Keep Status: Status to be monitor

Keep Status = 1: Monitor Close to Open event

Keep Status = 0: Monitor Open to Close event

2. Keep Time: Timeout to send an Alarm

Range 0 ~ 65535(0xFFFF) seconds.

If keep time = 0, Disable Alarm Base on Timeout feature.

If keep time > 0, device will monitor the keep status event and send an alarm when status doesn’t change after timeout.

  • AT Command: AT+TTRIG

AT+TTRIG=1,30   --> When the Keep Status change from connect to disconnect, and device remains in disconnect status for more than 30 seconds. CPL03-CB will send an uplink packet, the Alarm bit (the second bit of 1st byte of payload) on this uplink packet is set to 1.

AT+TTRIG=0,0      --> Default Value, disable timeout Alarm.

  • Downlink Command: 0x0F

Format: Command Code (0x0F) followed by 8 bytes, each parameter after 0F takes 4 bytes.

Example: Downlink payload: 0x0F 00 00 00 01 00 00 00 1E   //AT+TTRIG=1,30  30(D)=0x1E(H)

3.4.1.2 TTRIG timeout status alarm

Feature: Set TTRIG of Alarm interval. (unit: minute)

It only takes effect when AT+MOD=1.
It needs to be used with AT+TTRIG . When TTRIG times out and causes an alarm, and the status does not change subsequently, an alarm packet will be sent at the alarm interval.

AT Command: AT+TTRALARM

Example:

  • AT+TTRALARM=0        //disable continuous alarm
  • AT+TTRALARM=60      //Set the alarm interval to 60 minutes (unit: minutes)

Downlink Command: 0x0A

Example:

  • Downlink payload: 0x0A 00    //AT+TTRALARM=0
  • Downlink payload: 0x0A 3C    //AT+TTRALARM=60, 60(D)=0x3C(H)

3.4.1.3 Clear current door open count

Feature: Manually Clear current door open count

AT Command: AT+CLRC    //Clear current open count and the duration of the last open

Downlink Command: 0xA1 00   //AT+CLRC

3.4.1.4 Enable / Disable Alarm

Feature: Enable/Disable Alarm for open/close event. Default value 0.

AT Command:  AT+DISALARM

Command ExampleFunctionResponse
AT+DISALARM=1End node will only send packets in TDC time.OK
AT+DISALARM=0End node will send packets in TDC time or status change for door sensorOK

Downlink Command:  0x0B

Example: Downlink payload: 0x0B 00    //AT+DISALARM=0

3.4.2 pulse mode

To use this working mode, you need to set AT+MOD=2.

AT Command: AT+MOD=2

Downlink Command: 0x02 02

The wiring of the three pulse counting mode are as follows:


For AT+MOD=2:

3.4.2.1 Port1,Port2,Port3 count mode

  • Port1: Get or Set the trigger interrupt mode(PA8)

             AT Command: AT+TTRMOD1      0: Signal falling edge(Default), 1: Signal raising edge

             Ex1: AT+TTRMOD1=0   //Count and trigger from close to open (falling edge), default.

             Ex2: AT+TTRMOD1=1   //Count and trigger from open to close (rising edge).

            Downlink Command: 0x0C

             Example: 0x0C00     //AT+TTRMOD1=0

  • Port2: Get or Set the trigger interrupt mode(PA4)

            AT Command: AT+TTRMOD2      0: Signal falling edge(Default), 1: Signal raising edge

             Ex1: AT+TTRMOD2=0   //Count and trigger from close to open (falling edge), default.

             Ex2: AT+TTRMOD2=1   //Count and trigger from open to close (rising edge).

            Downlink Command: 0x0D

             Example: 0x0D01     //AT+TTRMOD2=1

  • Port3: Get or Set the trigger interrupt mode(PB15)

            AT Command: AT+TTRMOD3      0: Signal falling edge(Default), 1: Signal raising edge

             Ex1: AT+TTRMOD3=0   //Count and trigger from close to open (falling edge), default.

             Ex2: AT+TTRMOD3=1   //Count and trigger from open to close (rising edge).

            Downlink Command: 0x0E

             Example: 0x0E00     //AT+TTRMOD3=0

3.4.2.2 Set the calculate flag

Feature: Set the calculate flag(Range is 0 to 7), It only takes effect when AT+MOD=2.

            AT Command:AT+CALCFLAG=aa ( Default : 0 )

             Example: AT+CALCFLAG=2

            Downlink Command: 0xA3

             Example: 0xA3 02     //AT+CALCFLAG=2

3.4.2.3 Set Count value

Feature: Manually set the count number

In Real-Time Open/Close Status mode work mode, the Total_pulse set by the "AT+SETCNT=1,xx" command.

In 3 x pulse counting mode work mode, the Port1_Total_pulse(PA8) set by the "AT+SETCNT=1,xx" command.

            AT Command: AT+SETCNT

            AT+SETCNT=1,aa

            AT+SETCNT=2,aa

            AT+SETCNT=3,aa

There is no corresponding downlink command.

There is a downlink instruction to clear the count: 0x10 00, when the user downlinks 0x10 00, the count of Port1, Port2 and Port3 clears to 0.

3.5 Count Mod

Feature: Manually set the count mode.

AT Command: AT+COUNTMOD      0: Accumulative (Default), 1: Reset after uplink.

Example: AT+COUNTMOD=0

Downlink Command: 0xA2

Example: 0xA2 00     //AT+COUNTMOD=0

3.6 Test Uplink and Change Update Interval

By default, Sensor will send uplinks every 2 hours.

User can use below commands to change the uplink interval.

AT Command: AT+TDC

Example: AT+TDC=7200   // Set Update Interval to 7200 seconds

Downlink Command: 0x01

Format: Command Code (0x01) followed by 3 bytes.

Example:     12 hours= 43200 seconds     43200(D)=0xA8C0(H)

                    Downlink Payload: 01 00 A8 C0          // AT+TDC=43200, Set Update Interval to 12 hours.

Note: User can also push the button for more than 1 seconds to activate an uplink.

3.7 Set the receiving time

Feature: Extend the receiving time

AT Command: AT+RXDL

Example: AT+RXDL=1000   // Set the receiving time delay to 1000ms

Downlink Command: 0x03

Format: Command Code (0x03) followed by 3 bytes.

Example:  Downlink Payload: 03 00 03 E8     //AT+RXDL=1000

3.8 Reset

Feature: Trig a reset of the MCU.

AT Command: ATZ

Downlink Command: 0x04FF

3.9 +5V

Feature: Set extend the time of 5V power.

AT Command: AT+5VT

Example: AT+5VT=2000  //Set extend the time of 5V power to 2000 ms

Downlink Command: 0x05

Format: Command Code (0x05) followed by 3 bytes.

Example:  Downlink Payload: 05 00 07 D0    //AT+5VT=2000

3.10 Trigger an uplink by external interrupt

CPL03-CB has an external trigger interrupt function. Users can use the PB15 pin to trigger the upload of data packets.

AT command:

  • AT+INTMOD         // Set the trigger interrupt mode
  • AT+INTMOD=0    // Disable Interrupt
  • AT+INTMOD=1    // Trigger by rising and falling edge
  • AT+INTMOD=2    // Trigger by falling edge
  • AT+INTMOD=3    // Trigger by rising edge

Downlink Command: 0x06

Format: Command Code (0x06) followed by 3 bytes.

Example1:  Downlink Payload: 06 00 00 01    //AT+INTMOD=1

Example2:  Downlink Payload: 06 00 00 03    //AT+INTMOD=3

3.11 Set the QoS level

This command is used to set the QoS level of MQTT.

AT command:

  • AT+MQ0S=xx   // 0~2

Downlink Command: 0x07

Format: Command Code (0x07) followed by 1 byte.

Ex1: Downlink payload: 0x07 00   //AT+MQOS=0

Ex2: Downlink payload: 0x07 01   //AT+MQOS=1

3.12 Clock logging

Sometimes when we deploy lots of end nodes in field. We want all sensors sample data at the same time, and upload these data together for analyze. In such case, we can use clock loging feature.

We can use this command to set the start time of data recording and the time interval to meet the requirements of the specific collection time of data.

AT command: AT+CLOCKLOG=a,b,c,d

a: 0: Disable Clock logging.   1: Enable Clock Logging

b: Specify First sampling start second: range (0 ~ 3599, 65535)         // Note: If parameter b is set to 65535, the log period starts after the node accesses the network and sends packets.

c: Specify the sampling interval: range (0 ~ 255 minutes)

d: How many entries should be uplink on every TDC (max 32)

Note: To disable clock recording, set the following parameters: AT+CLOCKLOG=1,65535,0,0


Example:

AT+CLOCKLOG=1,65535,1,5

After the node sends the first packet, data is recorded to the memory at intervals of 1 minute. For each TDC uplink, the uplink load will include: battery information + the last 5 memory records (payload + timestamp).


Note: Users need to synchronize the server time before configuring this command. If the server time is not synchronized before this command is configured, the command takes effect only after the node is reset.

Downlink command: 0x08

Format: Command Code (0x08) followed by 5 bytes.

  • Example 1: Downlink Payload: 08 01 FFFF 0F 08             // Set SHT record time: AT+CLOCKLOG=1,65535,15,8
  • Example 2: Downlink Payload: 08 01 04B0 0F 08             // Set SHT record time: AT+CLOCKLOG=1,1200,15,8

Note: When entering the downlink payload, there must be no Spaces between bytes.

3.13 Set the TLS mode

Refer to this link (MQTT Connection to send data to Tago.io)to use the TLS mode.

AT Command: AT+TLSMOD

Example 1:  AT+TLSMOD=0,0   //Disable TLS Mode.

Example 2:  AT+TLSMOD=1,0   //No authentication

                     AT+TLSMOD=1,1   //Perform server authentication

                     AT+TLSMOD=1,2   //Perform server and client authentication if requested by the remote server

Downlink command: 0x09

Format: Command Code (0x09) followed by 2 bytes.

Example1:  Downlink Payload: 09 00 00    //AT+TLSMOD=0,0

Example2:  Downlink Payload: 09 01 02    //AT+TLSMOD=1,2

3.14 Set GNSS open time

Extend the time to turn on GNSS. The automatic GPS location time is extended when the node is activated.

AT Command: AT+GNSST

Example: AT+GNSST=30  //Set the GPS positioning time to 30 seconds

Downlink command: 0x10

Format: Command Code (0x10) followed by 2 bytes.

Example:  Downlink Payload: 10 00 1E    //AT+GNSST=30

3.15 Turn on/off GPS

AT Command: AT+GPS

Ex1:  AT+GPS=0    //Turn off GPS

Ex2:  AT+GPS=1    //Turn on GPS

Downlink command: 0x11

Format: Command Code (0x11) followed by 1 byte.

Example:  Downlink Payload: 11 01   //AT+GPS=1

3.16 Set GPS positioning interval

Feature: Set GPS positioning interval (unit: hour).

When GPS is enabled, the node automatically locates and uplinks each time it passes GTDC time after activation.

AT Command: AT+GTDC

Example: AT+GTDC=24  //Set the GPS positioning interval to 24h.

Downlink command: 0x12

Format: Command Code (0x12) followed by 3 bytes.

Example: 24 hours:  24(D)=0x18(H)

               Downlink Payload: 12 00 00 18  //AT+GTDC=24

3.17 Set the search network time

Feature: Get or Set the time to join the network(unit: minutes).

AT Command: AT+CSQTIME

Example: AT+CSQTIME=10 //Set the search time to 10 minutes.

Downlink command: 0x13

Format: Command Code (0x13) followed by 1 byte.

Example:  Downlink Payload: 13 0A  //AT+CSQTIME=10

3.18 Set the IPv4 or IPv6

This command is used to set IP version.

AT command:

  • AT+IPTYPE=1      // IPv4
  • AT+IPTYPE=2      // IPv6

3.19 Configure Network Category to be Searched for under LTE RAT.

AT command: AT+IOTMOD=xx

xx:       0: eMTC

            1: NB-IoT

            2: eMTC and NB-IoT

3.20 Factory data reset

Two different restore factory Settings configurations.

AT command:

  • AT+FDR       // Reset Parameters to Factory Default.
  • AT+FDR1     // Reset parameters to factory default values except for passwords.

3.21 Set CoAP option

Feature: Set CoAP option, follow this link to set up the CoaP protocol.

AT command: AT+URI1~AT+URI8

AT+URI1=11,CoAP endpoint URl length,"CoAP endpoint URl"   // 11 is a fixed parameter.

Example:  AT+URI1=11,38,"i/13a35fbe-9515-6e55-36e8-081fb6aacf86"

3.22 Power on / power off BG95 module

This command is used to power on and power off BG95 module.

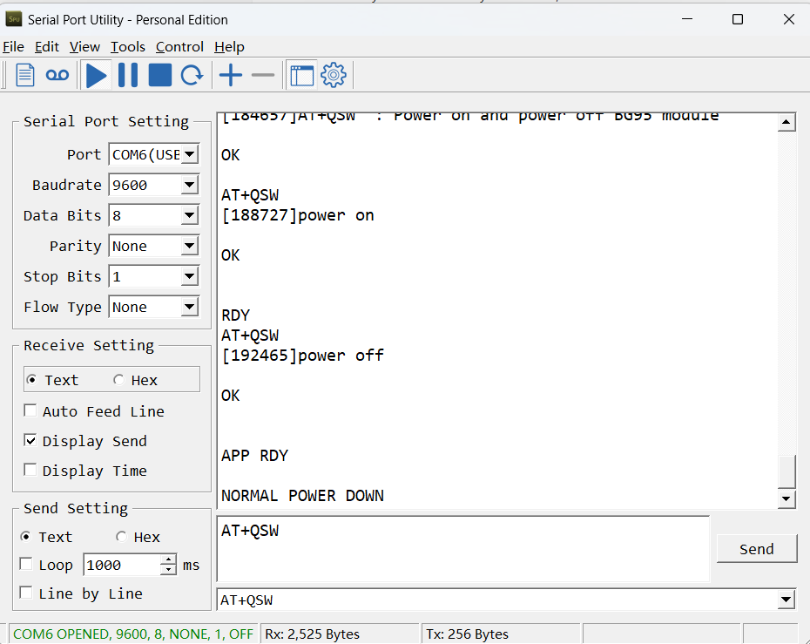

  • AT command: AT+QSW

The module is powered on after the command is sent for the first time, and powered off after the command is sent again.


3.23 Example Query saved historical records

  • AT command: AT+CDP

This command can be used to search the saved history, recording up to 32 groups of data, each group of historical data contains a maximum of 100 bytes.


3.24 Uplink log query

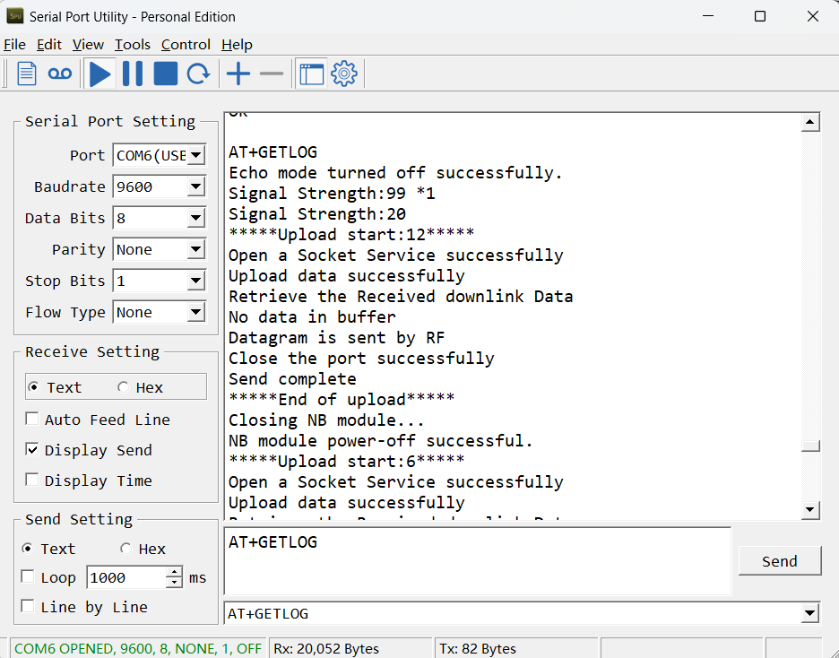

  • AT command: AT+GETLOG

This command can be used to query upstream logs of data packets.




4. Battery & Power Consumption

CPL03-CB use ER26500 + SPC1520 battery pack. See below link for detail information about the battery info and how to replace.

Battery Info & Power Consumption Analyze .

5. Firmware update

User can change device firmware to::

  • Update with new features.
  • Fix bugs.

Firmware and changelog can be downloaded from : Firmware download link

Methods to Update Firmware:

  • (Recommended way) OTA firmware update via BLE: Instruction.



6. FAQ

6.1 How can I access the BG95-NGFF AT Commands?

User can access to BG95-NGFF directly and send AT Commands.

See BG95-NGFF AT Command set

6.2  How to Connect Dry contacts or Wet Contacts

CPL03-CB can only be connected to dry contacts by default, and the wiring method is to connect the two ports of dry contacts to the VDD pin and pulse input pin of CPL03-CB respectively.

If you want to connect a wet contact, you need to change the original wiring method. The wiring method is that the GND of the wet contact is connected to the GND of CPL03-CB, and the pulse output is connected to the pulse pin, but the pulse output voltage of the wet contact must be less than 3.6V.

6.3 What is the maximum total number of pulses for CPL03? What happens after the maximum total number of pulses is reached?

The maximum total number of pulses for CPL03 is three bytes FF FF FF (16,777,215).

The count is reset when the maximum total number of pulses is reached.

6.4 General Manual for -CB , -CS models

Users can follow the instructions in this link to see how to configure to connect to different servers.

7. Order Info

Part Number: CPL03-CB-XX

XX

  • GE: General version ( Exclude SIM card)
  • 1T: with 1NCE* 10 years 500MB SIM card and Pre-configure to ThingsEye server

1NCE SIM Card NB-IoT network coverage: Austria, Belgium, Bulgaria, Croatia, Czech Republic, Denmark, Finland, Germany, Great Britain, Greece, Hungary, Ireland, Italy, Latvia, Malta, Netherlands, Norway, Puerto Rico, Russia, Slovak , Republic, Slovenia, Spain, Sweden, Switzerland, Taiwan, USA, US Virgin Islands.

1NCE SIM Card LTE-M network coverage: Argentina, Austria, Australia, Belgium, Canada, Denmark, Estonia, Finland, France, Germany, Great Britain, Hungary, Ireland, Japan, Jersey, Korea, Repiblic of, Latvia, Luxembourg, Mexico, Netherlands, New Zealand, Norway, Poland, Puerto Rico, Romania, Spain, Sweden, Switzerland, Taiwan, USA, US Virgin Islands.

8. ​Packing Info

Package Includes:

  • CPL03-CB NB-IoT/LTE-M Pulse/Contact sensor x 1
  • External antenna x 1

Dimension and weight:

  • Device Size: 13.0 x 5 x 4.5 cm
  • Device Weight: 150g
  • Package Size / pcs : 14.0 x 8x 5 cm
  • Weight / pcs : 180g



9. Support

  • Support is provided Monday to Friday, from 09:00 to 18:00 GMT+8. Due to different timezones we cannot offer live support. However, your questions will be answered as soon as possible in the before-mentioned schedule.
  • Provide as much information as possible regarding your enquiry (product models, accurately describe your problem and steps to replicate it etc) and send a mail to Support@dragino.cc.



Tags:

Copyright ©2010-2022 Dragino Technology Co., LTD. All rights reserved
Dragino Wiki v2.0
