1. Introduction

1.1 What is LoRaWAN Soil pH Sensor

The Dragino SPH01-LB/LS is a LoRaWAN Soil pH Sensor for IoT of Agriculture. It is designed to measure the soil PH and soil temperature, so to send to the platform to analyze the soil acid or alkali level. The probe is IP68 waterproof.

SPH01-LB/LS probe is made by Solid AgCl reference electrode and Pure metal pH sensitive electrode. It can detect soil's pH with high accuracy and stable value. The SPH01-LB/LS probe can be buried into soil for long time use.

The LoRa wireless technology used in SPH01-LB/LS allows device to send data and reach extremely long ranges at low data-rates. It provides ultra-long range spread spectrum communication and high interference immunity whilst minimizing current consumption.

SPH01-LB/LS supports BLE configure and wireless OTA update which make user easy to use.

SPH01-LB/LS is powered by 8500mAh Li-SOCI2 battery or solar powered + Li-ion battery it is designed for long term use up to 5 years.

Each SPH01-LB/LS is pre-load with a set of unique keys for LoRaWAN registrations, register these keys to local LoRaWAN server and it will auto connect after power on.


1.2 ​Features

  • LoRaWAN 1.0.3 Class A
  • Bands: CN470/EU433/KR920/US915/EU868/AS923/AU915/IN865
  • Ultra-low power consumption
  • Monitor soil pH with temperature compensation.
  • Monitor soil temperature
  • Monitor Battery Level
  • Support pH calibration by end user
  • Support Bluetooth v5.1 and LoRaWAN remote configure
  • Support wireless OTA update firmware
  • IP66 Waterproof Enclosure
  • IP68 rate for the Sensor Probe
  • AT Commands to change parameters
  • Downlink to change configure
  • 8500mAh Li/SOCl2 Battery (SPH01-LB)
  • Solar panel + 3000mAh Li-ion battery (SPH01-LS)

1.3 Specification

Common DC Characteristics:

  • Supply Voltage: Built-in Battery , 2.5v ~ 3.6v
  • Operating Temperature: -40 ~ 85°C

Soil pH:

  • Range: 3 ~ 10 pH
  • Resolution: 0.01 pH
  • Accuracy: ±2% under (0~50 ℃, Accuracy will poor under 0 due to frozen)
  • Temperature Compensation Range: 0 ~ 50℃
  • IP68 Protection
  • Length: 3.5 meters

Soil Temperature:

  • Range -40℃~85℃
  • Resolution: 0.1℃
  • Accuracy: <±0.5℃(-10℃~40℃),<±0.8℃ (others)
  • IP68 Protection
  • Length: 3.5 meters

LoRa Spec:

  • Frequency Range,  Band 1 (HF): 862 ~ 1020 Mhz
  • Max +22 dBm constant RF output vs.
  • RX sensitivity: down to -139 dBm.
  • Excellent blocking immunity

Battery:

  • Li/SOCI2 un-chargeable battery
  • Capacity: 8500mAh
  • Self-Discharge: <1% / Year @ 25°C
  • Max continuously current: 130mA
  • Max boost current: 2A, 1 second

Power Consumption

  • Sleep Mode: 5uA @ 3.3v
  • LoRa Transmit Mode: 125mA @ 20dBm, 82mA @ 14dBm

1.4 Applications

  • Smart Agriculture

1.5 Sleep mode and working mode

Deep Sleep Mode: Sensor doesn't have any LoRaWAN activate. This mode is used for storage and shipping to save battery life.

Working Mode: In this mode, Sensor will work as LoRaWAN Sensor to Join LoRaWAN network and send out sensor data to server. Between each sampling/tx/rx periodically, sensor will be in IDLE mode), in IDLE mode, sensor has the same power consumption as Deep Sleep mode.

1.6 Button & LEDs


Behavior on ACTFunctionAction
Pressing ACT between 1s < time < 3sSend an uplink

If sensor is already Joined to LoRaWAN network, sensor will send an uplink packet, blue led will blink once.
Meanwhile, BLE module will be active and user can connect via BLE to configure device.

Pressing ACT for more than 3sActive Device

Green led will fast blink 5 times, device will enter OTA mode for 3 seconds. And then start to JOIN LoRaWAN network.
Green led will solidly turn on for 5 seconds after joined in network.
Once sensor is active, BLE module will be active and user can connect via BLE to configure device, no matter if device join or not join LoRaWAN network.

Fast press ACT 5 times.Deactivate DeviceRed led will solid on for 5 seconds. Means device is in Deep Sleep Mode.

1.7 BLE connection

SPH01-LB/LS support BLE remote configure.

BLE can be used to configure the parameter of sensor or see the console output from sensor. BLE will be only activate on below case:

  • Press button to send an uplink
  • Press button to active device.
  • Device Power on or reset.

If there is no activity connection on BLE in 60 seconds, sensor will shut down BLE module to enter low power mode.

1.8 Pin Definitions

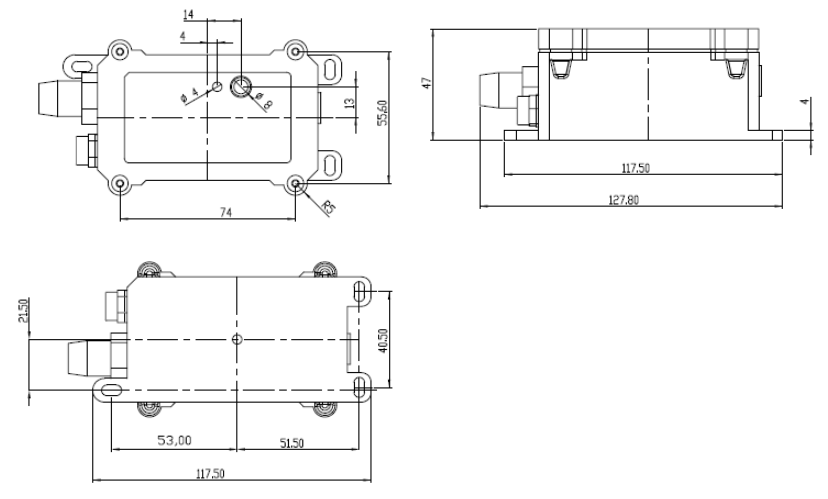

1.9 Mechanical

1.9.1 for LB version




1.9.2 for LS version


2. Configure SPH01-LB/LS to connect to LoRaWAN network

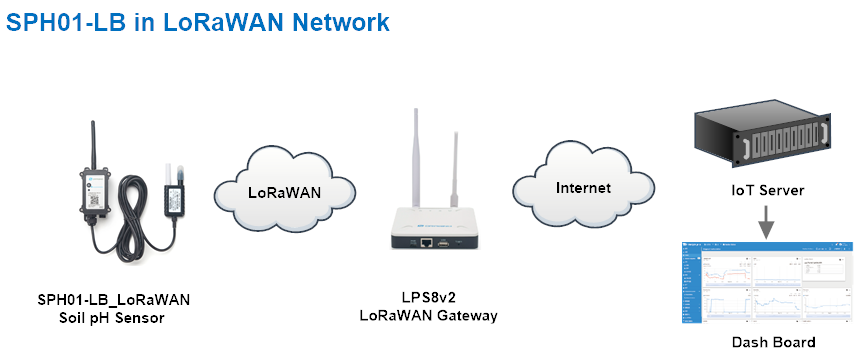

2.1 How it works

The SPH01-LB/LS is configured as LoRaWAN OTAA Class A mode by default. It has OTAA keys to join LoRaWAN network. To connect a local LoRaWAN network, you need to input the OTAA keys in the LoRaWAN IoT server and press the button to activate the SPH01-LB/LS. It will automatically join the network via OTAA and start to send the sensor value. The default uplink interval is 20 minutes.



2.2 ​Quick guide to connect to LoRaWAN server (OTAA)

Following is an example for how to join the TTN v3 LoRaWAN Network. Below is the network structure; we use the LPS8v2  as a LoRaWAN gateway in this example.


The LPS8v2 is already set to connected to TTN network , so what we need to now is configure the TTN server.



Step 1: Create a device in TTN with the OTAA keys from SPH01-LB/LS.

Each SPH01-LB/LS is shipped with a sticker with the default device EUI as below:


You can enter this key in the LoRaWAN Server portal. Below is TTN screen shot:

Register the device


Add APP EUI and DEV EUI


Add APP EUI in the application


Add APP KEY


Step 2: Activate on SPH01-LB/LS

Press the button for 5 seconds to activate the SPH01-LB/LS.

Green led will fast blink 5 times, device will enter OTA mode for 3 seconds. And then start to JOIN LoRaWAN network. Green led will solidly turn on for 5 seconds after joined in network.

After join success, it will start to upload messages to TTN and you can see the messages in the panel.

2.3 ​Uplink Payload

SPH01-LB/LS will uplink payload via LoRaWAN with below payload format:

Uplink payload includes in total 11 bytes.

Normal uplink payload:

Size(bytes)

2222111
ValueBATSoil pHSoil TemperatureReserve


2.3.1 Battery Info

Check the battery voltage for SPH01-LB/LS.

Ex1: 0x0B45 = 2885mV

Ex2: 0x0B49 = 2889mV

2.3.2 DS18B20 Temperature sensor

This is optional, user can connect external DS18B20 sensor to the +3.3v, 1-wire and GND pin . and this field will report temperature.

Example:

If payload is: 0105H:  (0105 & FC00 == 0), temp = 0105H /10 = 26.1 degree

If payload is: FF3FH :  (FF3F & FC00 == 1) , temp = (FF3FH - 65536)/10 = -19.3 degrees.

2.3.3 Soil pH

Range: 0 ~ 14 pH

Example:

 0x02B7(H) = 695(D) = 6.95pH

2.3.4 Soil Temperature

Get Soil Temperature

Example:

If payload is: 0105H:  (0105 & FC00 == 0), temp = 0105H /10 = 26.1 degree

If payload is: FF3FH :  (FF3F & FC00 == 1) , temp = (FF3FH - 65536)/10 = -19.3 degrees.

2.3.5 Interrupt Pin

This data field shows if this packet is generated by interrupt or not. Click here for the hardware and software set up.

Example:

0x00: Normal uplink packet.

0x01: Interrupt Uplink Packet.

2.3.6 Message Type

For a normal uplink payload, the message type is always 0x01.

Valid Message Type:

Message Type CodeDescriptionPayload
0x01Normal UplinkNormal Uplink Payload
0x02Reply configures infoConfigure Info Payload
0x03Reply Calibration InfoCalibration Payload

2.3.7 Decode payload in The Things Network

While using TTN network, you can add the payload format to decode the payload.


The payload decoder function for TTN is here:

In the page Applications --> Payload Formats --> Custom --> decoder to add the decoder from: https://github.com/dragino/dragino-end-node-decoder

2.4 Uplink Interval

The SPH01-LB/LS by default uplink the sensor data every 20 minutes. User can change this interval by AT Command or LoRaWAN Downlink Command. See this link: Change Uplink Interval

2.5 Datalog Feature

Datalog Feature is to ensure IoT Server can get all sampling data from Sensor even if the LoRaWAN network is down. For each sampling, SPH01-LB/LS will store the reading for future retrieving purposes.

2.5.1 Ways to get datalog via LoRaWAN

Set PNACKMD=1, SPH01-LB/LS will wait for ACK for every uplink, when there is no LoRaWAN network, SPH01-LB/LS will mark these records with non-ack messages and store the sensor data, and it will send all messages (10s interval) after the network recovery.

  • a) SPH01-LB/LS will do an ACK check for data records sending to make sure every data arrive server.

  • b) SPH01-LB/LS will send data in CONFIRMED Mode when PNACKMD=1, but SPH01-LB/LS won't re-transmit the packet if it doesn't get ACK, it will just mark it as a NONE-ACK message. In a future uplink if SPH01-LB/LS gets a ACK, SPH01-LB/LS will consider there is a network connection and resend all NONE-ACK messages.

2.5.2 Unix TimeStamp

SPH01-LB/LS uses Unix TimeStamp format based on


User can get this time from link:  https://www.epochconverter.com/ :

Below is the converter example


So, we can use AT+TIMESTAMP=1611889405 or downlink 3060137afd00 to set the current time 2021 – Jan -- 29 Friday 03:03:25

2.5.3 Set Device Time

User need to set SYNCMOD=1 to enable sync time via MAC command.

Once SPH01-LB/LS Joined LoRaWAN network, it will send the MAC command (DeviceTimeReq) and the server will reply with (DeviceTimeAns) to send the current time to SPH01-LB/LS. If SPH01-LB/LS fails to get the time from the server, SPH01-LB/LS will use the internal time and wait for next time request (AT+SYNCTDC to set the time request period, default is 10 days).

Note: LoRaWAN Server need to support LoRaWAN v1.0.3(MAC v1.0.3) or higher to support this MAC command feature, Chirpstack,TTN V3 v3 and loriot support but TTN V3 v2 doesn't support. If server doesn't support this command, it will through away uplink packet with this command, so user will lose the packet with time request for TTN V3 v2 if SYNCMOD=1.

2.5.4 Datalog Uplink payload (FPORT=3)

The Datalog uplinks will use below payload format.

Retrieval data payload:

Size(bytes)22214
ValuePH

Temperature

DS18B20_TemperatureLevel of PA8Unix Time Stamp

Poll Message Flag: 1: This message is a poll message reply.

  • Poll Message Flag is set to 1.
  • Each data entry is 11 bytes, to save airtime and battery, devices will send max bytes according to the current DR and Frequency bands.

For example, in US915 band, the max payload for different DR is:

a) DR0: max is 11 bytes so one entry of data

b) DR1: max is 53 bytes so devices will upload 4 entries of data (total 44 bytes)

c) DR2: total payload includes 11 entries of data

d) DR3: total payload includes 22 entries of data.

If devise doesn't have any data in the polling time. Device will uplink 11 bytes of 0

Example:

If SPH01-LB/LS has below data inside Flash:


If user sends below downlink command:  31646D84E1646D856C05

Where : Start time: 646D84E1 = time 23/5/24 03:30:41

             Stop time: 646D856C= time 23/5/24 03:33:00

2.5.5 Poll sensor value

Users can poll sensor values based on timestamps. Below is the downlink command.

Downlink Command to poll Open/Close status (0x31)
1byte4bytes4bytes1byte
31Timestamp startTimestamp endUplink Interval

Timestamp start and Timestamp end-use Unix TimeStamp format as mentioned above. Devices will reply with all data logs during this period, using the uplink interval.

For example, downlink command image-20220518162852-1.png

Is to check 2021/11/12 12:00:00 to 2021/11/12 15:00:00's data

Uplink Internal =5s,means SPH01-LB/LS will send one packet every 5s. range 5~255s.

2.6 Installation and Maintain

2.6.1 Before measurement

If the SPH01-LB/LS has more than 7 days not use or just clean the pH probe. User should put the probe inside pure water for more than 24 hours for activation. If no put in water, user need to put inside soil for more than 24 hours to ensure the measurement accuracy.

2.6.2 Measurement

Measurement the soil surface:

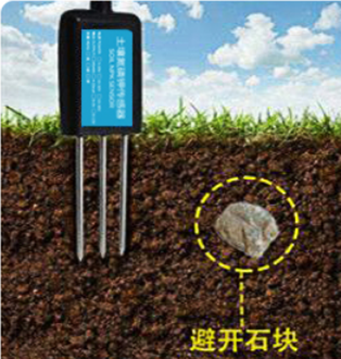

Choose the proper measuring position. Split the surface soil according to the measured deep.

Put pure water, or rainwater to make the soil of measurement point to moist mud. Remove rocks or hard things.

Slowly insert the probe to the measure point. Don't use large force which will break the probe. Make sure not shake when inserting.

Put soil over the probe after insert. And start to measure.

Measurement inside soil:

Dig a hole with diameter > 20CM.

Insert the probe inside, method like measure the surface.

2.6.3 Maintain Probe

1. pH probe electrode is fragile and no strong. User must avoid strong force or hitting it.

2. After long time use (3~ 6  months). The probe electrode needs to be clean; user can use high grade sandpaper to polish it or put in 5% hydrochloric acid for several minutes. After the metal probe looks like new, user can use pure water to wash it.

3. Probe reference electrode is also no strong, need to avoid strong force or hitting.

4. User should keep reference electrode wet while not use.

5. Avoid the probes to touch oily matter. Which will cause issue in accuracy.

6. The probe is IP68 can be put in water.



2.7 Calibration

Step1 : Clean probe

user can use high grade sandpaper to polish it or put in 5% hydrochloric acid for several minutes. After the metal probe looks new, users can clean it to remove hydrochloric acid or other liquids from the surface.

Step2 : Immerse the sensor in ph buffer solution to make the sensor values stable

User can do calibration for the probe. It is limited to use below pH buffer solution to calibrate: 4.00, 6.86, 9.18. When calibration, user need to clean the electrode and put the probe in the pH buffer solution to wait the value stable ( a new clean electrode might need max 24 hours to be stable).

Note:Only one ph buffer with one of the ph values needs to be calibrated during calibration. Wait for the sensor measurement value to be stable, it does not need to be the same as the ph marked by the ph buffer

Step3 : The numerically stable sensors were calibrated using commands

 User can use below command to calibrate.

pH buffer solutionAT Command to calibrateDownlink CommandRead Cal Value
4.00AT+PHCAL=4

0x13 04
Reply with Calibrate payload

AT+PHCAL=?
Example 41,61,91

6.86AT+PHCAL=6

0x13 06
Reply with Calibrate payload

AT+PHCAL=?
9.18AT+PHCAL=9

0x13 09
Reply with Calibrate payload

AT+PHCAL=?
Factory DefaultAT+PHCAL=15

0x13 15
Reply with Calibrate payload

AT+PHCAL=?
Example 151

To use the AT COMMAND, refer to this link:

To use Downlink, take TTN as an example, please refer to this link:

  • LoRaWAN Downlink.  Instruction for different platforms: See IoT LoRaWAN Server section.

When the command is successfully used, the node sends a uplink.
This is the payload for uplink

Calibration Payload

Size(bytes)

11171
Value

PH4 Calibrate value

PH6.86 Calibrate value

PH9.18 Calibrate value

Reserve

Message Type
Always 0x03

User can also send 0x14 downlink command to poll the current calibration payload.

Downlink Control TypeFPortType CodeDownlink payload size(bytes)
Get Calibration Version InfoAny142
  • Reply to the confirmation package: 14 01
  • Reply to non-confirmed packet: 14 00

Step4:After the calibration is completed, its measurement results in this ph buffer solution should be consistent with the numerical value of the command used in the calibration.

Examples:
After using the command AT+PH=9 in 9.18ph buffer
The readout returned by the sensor in 9.18ph buffer should be pH=9

2.8 Frequency Plans

The SPH01-LB/LS uses OTAA mode and below frequency plans by default. Each frequency band use different firmware, user update the firmware to the corresponding band for their country.

http://wiki.dragino.com/xwiki/bin/view/Main/End%20Device%20Frequency%20Band/

3. Configure SPH01-LB/LS

3.1 Configure Methods

SPH01-LB/LS supports below configure method:

3.2 General Commands

These commands are to configure:

  • General system settings like: uplink interval.
  • LoRaWAN protocol & radio related command.

They are same for all Dragino Devices which support DLWS-005 LoRaWAN Stack. These commands can be found on the wiki:

http://wiki.dragino.com/xwiki/bin/view/Main/End%20Device%20AT%20Commands%20and%20Downlink%20Command/

3.3 Commands special design for SPH01-LB/LS

These commands only valid for SPH01-LB/LS, as below:

3.3.1 Set Transmit Interval Time

Feature: Change LoRaWAN End Node Transmit Interval.

AT Command: AT+TDC

Command ExampleFunctionResponse
AT+TDC=?Show current transmit Interval

30000
OK
the interval is 30000ms = 30s

AT+TDC=60000Set Transmit Interval

OK
Set transmit interval to 60000ms = 60 seconds

Downlink Command: 0x01

Format: Command Code (0x01) followed by 3 bytes time value.

If the downlink payload=0100003C, it means set the END Node's Transmit Interval to 0x00003C=60(S), while type code is 01.

  • Example 1: Downlink Payload: 0100001E       // Set Transmit Interval (TDC) = 30 seconds

  • Example 2: Downlink Payload: 0100003C      // Set Transmit Interval (TDC) = 60 seconds



3.3.2 Set Interrupt Mode

Feature, Set Interrupt mode for GPIO_EXTI of pin.

When AT+INTMOD=0 is set, GPIO_EXTI is used as a digital input port.

AT Command: AT+INTMOD

Command ExampleFunctionResponse
AT+INTMOD=?Show current interrupt mode

0
OK
the mode is 0 =Disable Interrupt

AT+INTMOD=2

Set Transmit Interval
0. (Disable Interrupt),
1. (Trigger by rising and falling edge)
2. (Trigger by falling edge)
3. (Trigger by rising edge)

OK

Downlink Command: 0x06

Format: Command Code (0x06) followed by 3 bytes.

This means that the interrupt mode of the end node is set to 0x000003=3 (rising edge trigger), and the type code is 06.

  • Example 1: Downlink Payload: 06000000       //  Turn off interrupt mode
  • Example 2: Downlink Payload: 06000003      //   Set the interrupt mode to rising edge trigger

3.3.3 Calibrate Sensor

Detail See Calibration Guide for the user of 0x13 and 0x14 downlink commands

3.3.4 Get Firmware Version Info

Feature: use downlink to get firmware version.

Downlink Command: 0x26

Downlink Control TypeFPortType CodeDownlink payload size(bytes)
Get Firmware Version InfoAny262
  • Reply to the confirmation package: 26 01
  • Reply to non-confirmed packet: 26 00

Device will send an uplink after got this downlink command. With below payload:

Configures info payload:

Size(bytes)12112
ValueSensor ModelFirmware VersionFrequency BandSub-bandBAT

Software Type: Always 0x2C for SPH01-LB/LS

Firmware Version: 0x0100, Means: v1.0.0 version

Frequency Band:

0x01: EU868

0x02: US915

0x03: IN865

0x04: AU915

0x05: KZ865

0x06: RU864

0x07: AS923

0x08: AS923-1

0x09: AS923-2

0x0a: AS923-3

0x0b: CN470

0x0c: EU433

0x0d: KR920

0x0e: MA869

Sub-Band:

AU915 and US915: value 0x00 ~ 0x08

CN470: value 0x0B ~ 0x0C

Other Bands: Always 0x00

Battery Info:

Check the battery voltage.

Ex1: 0x0B45 = 2885mV

Ex2: 0x0B49 = 2889mV

4. Battery & Power Consumption

SPH01-LB use ER26500 + SPC1520 battery pack and SPH01-LS use 3000mAh Recharable Battery with Solar Panel. See below link for detail information about the battery info and how to replace.

Battery Info & Power Consumption Analyze .

5. OTA Firmware update

User can change firmware SPH01-LB/LS to:

  • Change Frequency band/ region.
  • Update with new features.
  • Fix bugs.

Firmware and changelog can be downloaded from : Firmware download link

Methods to Update Firmware:

6. FAQ

6.1  AT Commands input doesn't work

In the case if user can see the console output but can't type input to the device. Please check if you already include the ENTER while sending out the command. Some serial tool doesn't send ENTER while press the send key, user need to add ENTER in their string.

7. Order Info

Part Number: SPH01-LB-XX or SPH01-LS-XX

XX: The default frequency band

  • AS923: LoRaWAN AS923 band
  • AU915: LoRaWAN AU915 band
  • EU433: LoRaWAN EU433 band
  • EU868: LoRaWAN EU868 band
  • KR920: LoRaWAN KR920 band
  • US915: LoRaWAN US915 band
  • IN865: LoRaWAN IN865 band
  • CN470: LoRaWAN CN470 band

8. ​Packing Info

Package Includes:

  • SPH01-LB or SPH01-LS LoRaWAN Soil Ph Sensor x 1

Dimension and weight:

  • Device Size: cm
  • Device Weight: g
  • Package Size / pcs : cm
  • Weight / pcs : g

9. Support

  • Support is provided Monday to Friday, from 09:00 to 18:00 GMT+8. Due to different timezones we cannot offer live support. However, your questions will be answered as soon as possible in the before-mentioned schedule.
  • Provide as much information as possible regarding your enquiry (product models, accurately describe your problem and steps to replicate it etc) and send a mail to Support@dragino.cc.
Tags:

Copyright ©2010-2022 Dragino Technology Co., LTD. All rights reserved
Dragino Wiki v2.0
