1. Introduction

1.1 What is CPL03-LB/LS LoRaWAN Pulse/Contact Sensor

The Dragino CPL03-LB/LS is a LoRaWAN Contact Sensor for Internet of Things solution. It detects dry contact status, open time, open counts, and then upload to IoT server via LoRaWAN wireless protocol.

The CPL03-LB/LS will send periodically data every day as well as for each dry contact action. It also counts the contact open times and calculate last open duration. User can also disable the uplink for each open/close event, instead, device can count each open event and uplink periodically.

The LoRa wireless technology used in CPL03-LB/LS allows device to send data and reach extremely long ranges at low data-rates. It provides ultra-long range spread spectrum communication and high interference immunity whilst minimizing current consumption.

CPL03-LB/LS supports open alarm feature, user can set open alarm for instant notice. CPL03-LB/LS supports Datalog feature, it can save the data when there is no LoRaWAN network and uplink when network recover.

CPL03-LB/LS is designed for outdoor use. It has a weatherproof enclosure and industrial level battery to work in low to high temperatures.

CPL03-LB/LS supports BLE configure and wireless OTA update which make user easy to use.

CPL03-LB/LS is powered by 8500mAh Li-SOCI2 battery or solar powered + li-on battery, it is designed for long term use up to 5 years.

Each CPL03-LB/LS is pre-load with a set of unique keys for LoRaWAN registrations, register these keys to local LoRaWAN server and it will auto connect after power on.

1.2 ​Features

• LoRaWAN 1.0.3 Class A
• Bands: CN470/EU433/KR920/US915/EU868/AS923/AU915/IN865
• Ultra-low power consumption
• Open/Close detect
• Open/Close statistics
• Supports open alarm feature
• Supports Datalog feature
• Support Bluetooth v5.1 and LoRaWAN remote configure
• Support wireless OTA update firmware
• Uplink on periodically and open/close event
• Downlink to change configure
• 8500mAh Li/SOCl2 Battery (CPL03-LB)
• Solar panel + 3000mAh Li-on battery (CPL03-LS)

1.3 Specification

Common DC Characteristics:

• Supply Voltage: Built-in Battery , 2.5v ~ 3.6v
• Operating Temperature: -40 ~ 85°C

LoRa Spec:

• Frequency Range,  Band 1 (HF): 862 ~ 1020 Mhz
• Max +22 dBm constant RF output vs.
• RX sensitivity: down to -139 dBm.
• Excellent blocking immunity

Battery:

• Li/SOCI2 un-chargeable battery
• Capacity: 8500mAh
• Self-Discharge: <1% / Year @ 25°C
• Max continuously current: 130mA
• Max boost current: 2A, 1 second

Power Consumption

• Sleep Mode: 5uA @ 3.3v
• LoRa Transmit Mode: 125mA @ 20dBm, 82mA @ 14dBm

1.4 Applications

• Open/Close Detection
• Pulse meter application
• Dry Contact Detection

1.5 Sleep mode and working mode

Deep Sleep Mode: Sensor doesn't have any LoRaWAN activate. This mode is used for storage and shipping to save battery life.

Working Mode: In this mode, Sensor will work as LoRaWAN Sensor to Join LoRaWAN network and send out sensor data to server. Between each sampling/tx/rx periodically, sensor will be in IDLE mode), in IDLE mode, sensor has the same power consumption as Deep Sleep mode.

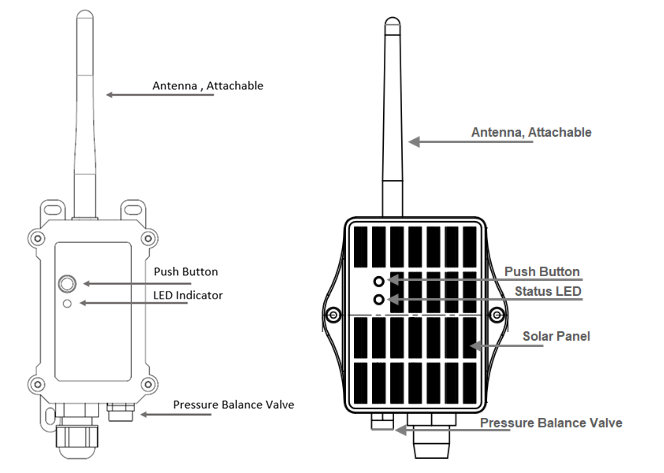

1.6 Button & LEDs

1.7 BLE connection

CPL03-LB/LS support BLE remote configure.

BLE can be used to configure the parameter of sensor or see the console output from sensor. BLE will be only activate on below case:

• Press button to send an uplink
• Press button to active device.
• Device Power on or reset.

If there is no activity connection on BLE in 60 seconds, sensor will shut down BLE module to enter low power mode.

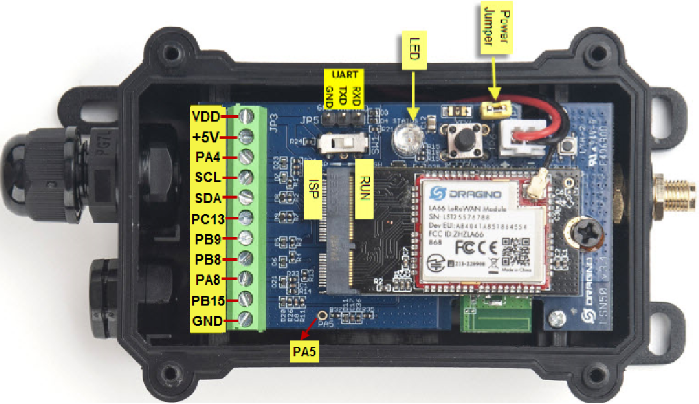

1.8 Pin Definitions

1.9 Mechanical

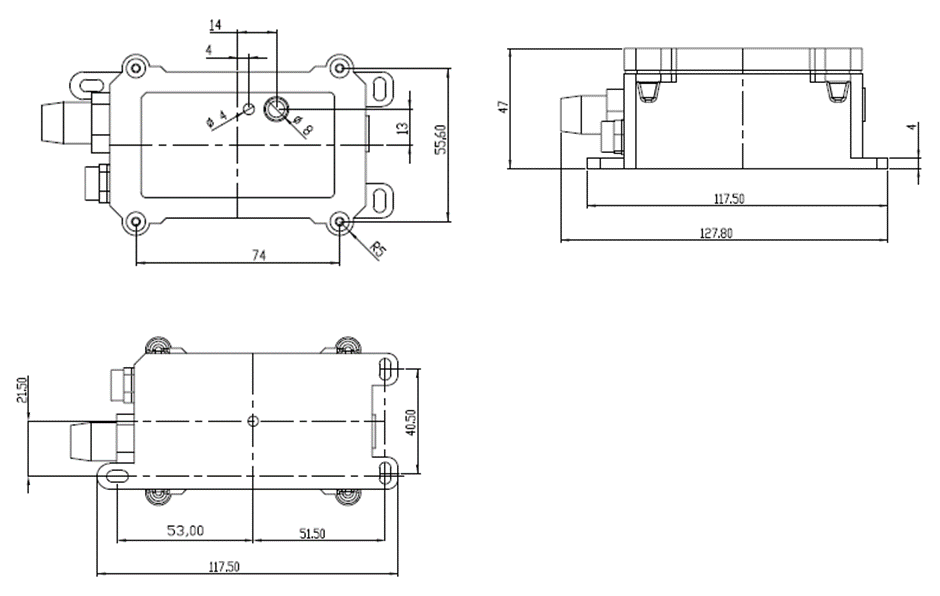

1.9.1 for LB version

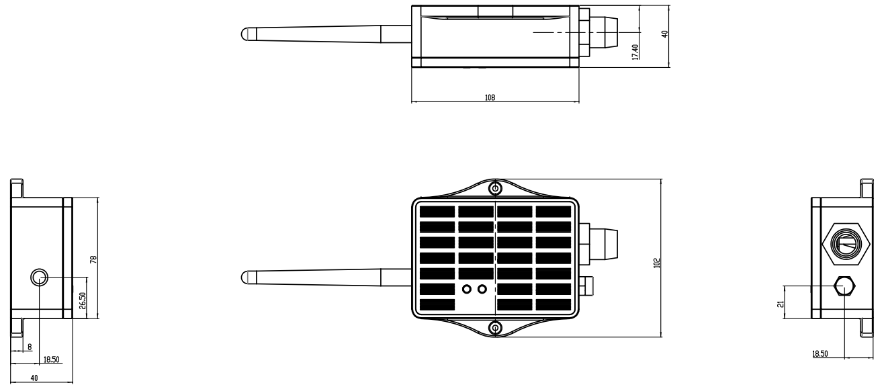

1.9.2 for LS version

2. Configure CPL03-LB/LS to connect to LoRaWAN network

2.1 How it works

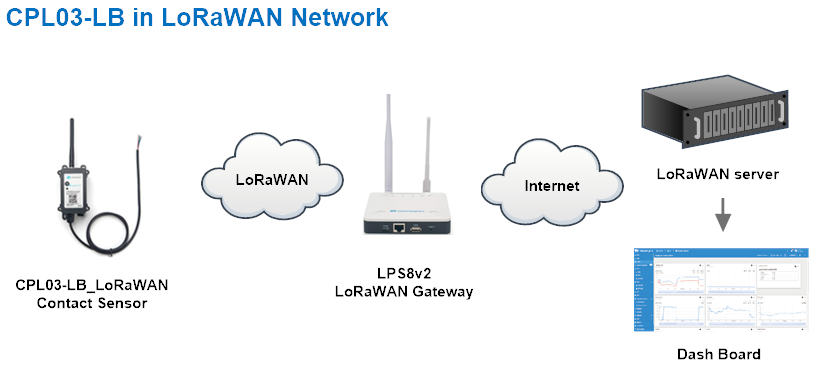

The CPL03-LB/LS is configured as LoRaWAN OTAA Class A mode by default. It has OTAA keys to join LoRaWAN network. To connect a local LoRaWAN network, you need to input the OTAA keys in the LoRaWAN IoT server and press the button to activate the CPL03-LB/LS. It will automatically join the network via OTAA and start to send the sensor value. The default uplink interval is 2 hours.

2.2 ​Quick guide to connect to LoRaWAN server (OTAA)

Following is an example for how to join the TTN v3 LoRaWAN Network. Below is the network structure; we use the LPS8v2  as a LoRaWAN gateway in this example.

The LPS8v2 is already set to connected to TTN network , so what we need to now is configure the TTN server.

Step 1: Create a device in TTN with the OTAA keys from CPL03-LB/LS.

Each CPL03-LB/LS is shipped with a sticker with the default device EUI as below:

You can enter this key in the LoRaWAN Server portal. Below is TTN screen shot:

Register the device

Add APP EUI and DEV EUI

Add APP EUI in the application

Add APP KEY

Step 2: Activate on CPL03-LB/LS

Press the button for 5 seconds to activate the CPL03-LB/LS.

Green led will fast blink 5 times, device will enter OTA mode for 3 seconds. And then start to JOIN LoRaWAN network. Green led will solidly turn on for 5 seconds after joined in network.

After join success, it will start to upload messages to TTN and you can see the messages in the panel.

2.3 ​Uplink Payload

2.3.1 Device Status, FPORT=5

Include device configure status. Once CPL03-LB/LS Joined the network, it will uplink this message to the server. After that, CPL03-LB/LS will uplink Device Status every 12 hours.

Users can also use the downlink command(0x26 01) to ask CPL03-LB/LS to resend this uplink. This uplink payload also includes the DeviceTimeReq to get time.

The Payload format is as below.

Example parse in TTNv3

Sensor Model: For CPL03-LB/LS, this value is 0x20

Firmware Version: 0x0100, Means: v1.0.0 version

Frequency Band:

0x01: EU868

0x02: US915

0x03: IN865

0x04: AU915

0x05: KZ865

0x06: RU864

0x07: AS923

0x08: AS923-1

0x09: AS923-2

0x0a: AS923-3

0x0b: CN470

0x0c: EU433

0x0d: KR920

0x0e: MA869

Sub-Band:

AU915 and US915:value 0x00 ~ 0x08

CN470: value 0x0B ~ 0x0C

Other Bands: Always 0x00

Battery Info:

Check the battery voltage.

Ex1: 0x0B45 = 2885mV

Ex2: 0x0B49 = 2889mV

2.3.2 Sensor Configuration, FPORT=4

CPL03-LB/LS will only send this command after getting the downlink command (0x26 02) from the server.

Example parse in TTNv3

•  TDC: (default: 0x001C20)

•  Disalarm: (default: 0)

•  Keep Status & Keep Time

•  Trigger1 mod (default: 0)

•  Trigger2 mod (default: 0)

• Alarm interval(default: 0)

When the state of the door sensor has not been changed after the timeout alarm, the device will send a uplink every alarm interval. It will stop the alarm until the state of the door sensor is changed after the timeout alarm.

2.3.3 CPL01:Real-Time Open/Close Status, Uplink FPORT=2

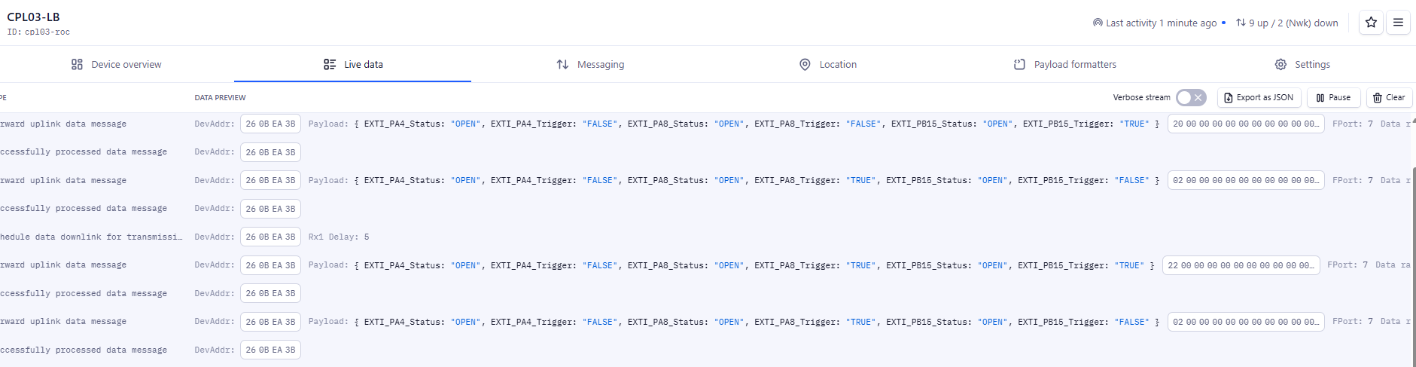

Default working mode, AT+MOD=1:

The wiring of the Real-Time Open/Close Status mode is as follows：

Status & Alarm field:

• Count mod:Default=0

0: Uplink total open door times since factory

1 : Uplink total open door times since last FPORT=2 uplink.

• TDC flag

When the flag is 1, it means sending packets at normal time intervals.

Otherwise, it is a packet sent at non-TDC time.

•  Alarm

•  Status

•  Total pulse

•  The last duration

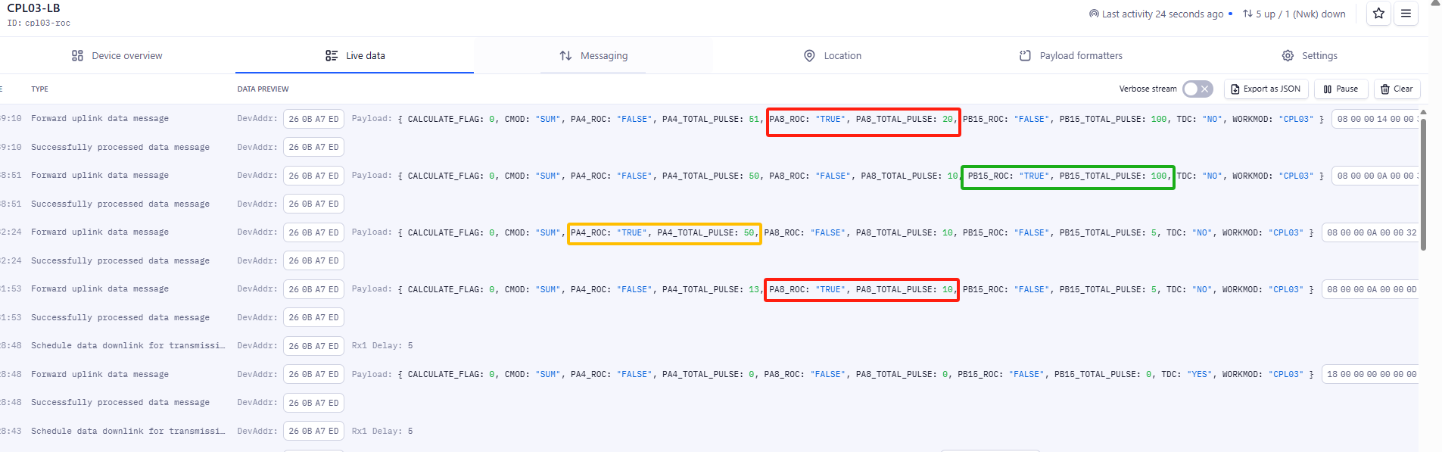

2.3.4 CPL03:3 pulse mode, Uplink FPORT=6

To use this working mode, you need to set AT+MOD=2.

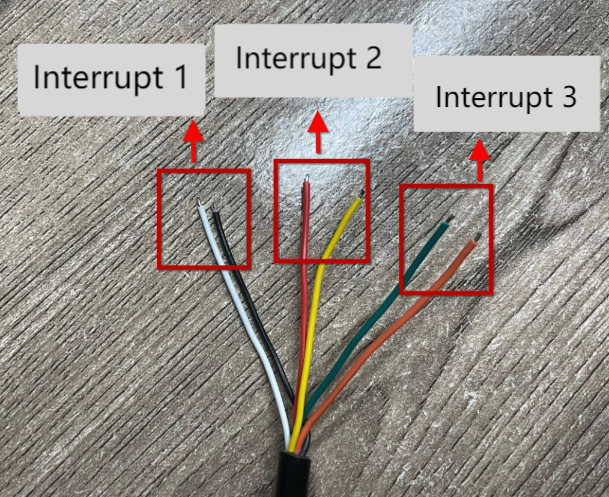

The wiring of the three pulse counting mode are as follows：

Status:

Max COUNT for each port is 16777215. Exceed this number will reset to 1.

• Count mod:Default=0

0: Uplink total open door times since factory

1 : Uplink total open door times since last FPORT=2 uplink.

• TDC flag

When the flag is 1, it means sending packets at normal time intervals.

Otherwise, it is a packet sent at non-TDC time.

• Work mod

0: CPL01-Real-Time Open/Close Status mode.

1: CPL03-3 pulse mode.

•  Calculate Flag

Related AT Command:

AT+TTRMOD1:  Port1 count mode;   0: Signal falling edge(Default), 1: Signal raising edge

             AT+TTRMOD1=0  Downlink Command: 0xA4 01 00

             AT+TTRMOD1=1  Downlink Command: 0xA4 01 01

AT+TTRMOD2:  Port2 count mode;   0: Signal falling edge(Default), 1: Signal raising edge

             AT+TTRMOD2=0  Downlink Command: 0xA4 02 00

             AT+TTRMOD2=1  Downlink Command: 0xA4 02 01

AT+TTRMOD3:  Port3 count mode;  0: Signal falling edge(Default), 1: Signal raising edge

             AT+TTRMOD3=0  Downlink Command: 0xA4 03 00

             AT+TTRMOD3=1  Downlink Command: 0xA4 03 01

AT+CALCFLAG:  Calculate Flag ( Default : 0 )

             AT+CALCFLAG=aa  Downlink Command: 0xA5 aa

AT+COUNTMOD:  Accumulative Mode;  0: Accumulative (Default),1: Reset after uplink.

            AT+COUNTMOD=0   Downlink Command: 0x0B 00

            AT+COUNTMOD=1   Downlink Command: 0x0B 01

AT+SETCNT:  Set count value

            AT+SETCNT=1,aa  Downlink Command: 0xA6 01 aa aa aa

            AT+SETCNT=2,aa  Downlink Command: 0xA6 02 aa aa aa

            AT+SETCNT=3,aa  Downlink Command: 0xA6 03 aa aa aa

2.3.5 Historical Open/Close Event, FPORT=3

• Each data entry is 11 bytes and has the same structure as Real-Time open/close status, to save airtime and battery, CPL03-LB/LS will send max bytes according to the current DR and Frequency bands.

 Downlink:

 Uplink:

Parsed Value:

CPL01:

2.4 Payload Decoder file

In TTN, use can add a custom payload so it shows friendly reading

In the page Applications --> Payload Formats --> Custom --> decoder to add the decoder from: https://github.com/dragino/dragino-end-node-decoder

2.5 Datalog Feature

Datalog Feature is to ensure IoT Server can get all sampling data from Sensor even if the LoRaWAN network is down. For each sampling, CPL03-LB/LS will store the reading for future retrieving purposes.

Note:After the device is reset, in cumulative counting mode ,the last stored count value will be read as the initial value.

2.5.1 Ways to get datalog via LoRaWAN

Set PNACKMD=1, CPL03-LB/LS will wait for ACK for every uplink, when there is no LoRaWAN network, CPL03-LB/LS will mark these records with non-ack messages and store the sensor data, and it will send all messages (10s interval) after the network recovery.

• a) CPL03-LB/LS will do an ACK check for data records sending to make sure every data arrive server.

• b) CPL03-LB/LS will send data in CONFIRMED Mode when PNACKMD=1, but CPL03-LB/LS won't re-transmit the packet if it doesn't get ACK, it will just mark it as a NONE-ACK message. In a future uplink if CPL03-LB/LS gets a ACK, CPL03-LB/LS will consider there is a network connection and resend all NONE-ACK messages.

2.5.2 Unix TimeStamp

CPL03-LB/LS uses Unix TimeStamp format based on

User can get this time from link:  https://www.epochconverter.com/ :

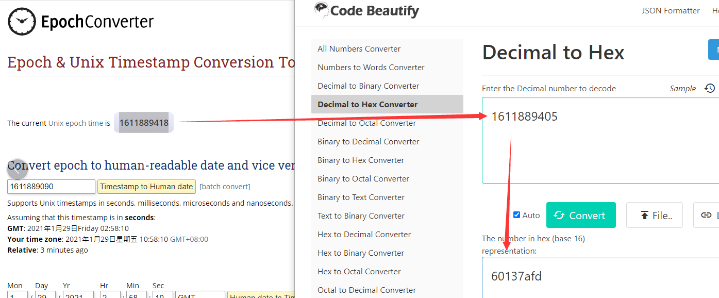

Below is the converter example

So, we can use AT+TIMESTAMP=1611889405 or downlink 3060137afd00 to set the current time 2021 – Jan -- 29 Friday 03:03:25

2.5.3 Set Device Time

User need to set SYNCMOD=1 to enable sync time via MAC command.

Once CPL03-LB/LS Joined LoRaWAN network, it will send the MAC command (DeviceTimeReq) and the server will reply with (DeviceTimeAns) to send the current time to CPL03-LB/LS. If CPL03-LB/LS fails to get the time from the server, CPL03-LB/LS will use the internal time and wait for next time request (AT+SYNCTDC to set the time request period, default is 10 days).

Note: LoRaWAN Server need to support LoRaWAN v1.0.3(MAC v1.0.3) or higher to support this MAC command feature, Chirpstack,TTN V3 v3 and loriot support but TTN V3 v2 doesn't support. If server doesn't support this command, it will through away uplink packet with this command, so user will lose the packet with time request for TTN V3 v2 if SYNCMOD=1.

2.5.4 Poll sensor value

Users can poll sensor values based on timestamps. Below is the downlink command.

2.6 Frequency Plans

The CPL03-LB/LS uses OTAA mode and below frequency plans by default. Each frequency band use different firmware, user update the firmware to the corresponding band for their country.

http://wiki.dragino.com/xwiki/bin/view/Main/End%20Device%20Frequency%20Band/

3. Configure CPL03-LB/LS

3.1 Configure Methods

CPL03-LB/LS supports below configure method:

• AT Command via Bluetooth Connection (Recommended): BLE Configure Instruction.

• AT Command via UART Connection : See UART Connection.

• LoRaWAN Downlink.  Instruction for different platforms: See IoT LoRaWAN Server section.

3.2 General Commands

These commands are to configure:

• General system settings like: uplink interval.

• LoRaWAN protocol & radio related command.

They are same for all Dragino Devices which support DLWS-005 LoRaWAN Stack. These commands can be found on the wiki:

http://wiki.dragino.com/xwiki/bin/view/Main/End%20Device%20AT%20Commands%20and%20Downlink%20Command/

3.3 Commands special design for CPL03-LB/LS

These commands only valid for CPL03-LB/LS, as below:

3.3.1 Set Transmit Interval Time

• Example 1: Downlink Payload: 01 00 00 1E       // Set Transmit Interval (TDC) = 30 seconds

• Example 2: Downlink Payload: 01 00 00 3C      // Set Transmit Interval (TDC) = 60 seconds

3.3.2 Set Power Output Duration

Control the output duration 5V . Before each sampling, device will

1. first enable the power output to external sensor,

2. keep it on as per duration, read sensor value and construct uplink payload

3. final, close the power output.

AT Command: AT+5VT

Downlink Command: 0x07

Format: Command Code (0x07) followed by 2 bytes.

The first and second bytes are the time to turn on.

• Example 1: Downlink Payload: 07 00 00     --->   AT+5VT=0

• Example 2: Downlink Payload: 07 01 F4      --->  AT+5VT=500

3.3.3 Enable / Disable Alarm

It only takes effect when AT+MOD=1.

Feature: Enable/Disable Alarm for open/close event. Default value 0.

AT Command:

Downlink Command:

0xA7 01     //  Same As AT+DISALARM=1

0xA7 00     //  Same As AT+DISALARM=0

3.3.4 Alarm Base on Timeout

It only takes effect when AT+MOD=1.

3.3.5 TTRIG timeout status alarm

It only takes effect when AT+MOD=1.

AT Command:

Downlink Command:

Example:  0C aa  => AT+TTRALARM= aa

3.3.6 Set trigger mode of PA8

Feature: Set the trigger interrupt mode.

AT Command: AT+TTRMOD1

Downlink Command:

• Example1: 0xA4 01 01       //  Same as AT+ TTRMOD1 =1
• Example2: 0xA4 01 00       //  Same as AT+ TTRMOD1 =0

3.3.7 Set trigger mode of PA4

It only takes effect when AT+MOD=2.

Feature: Set the trigger interrupt mode.

AT Command: AT+TTRMOD2

Downlink Command:

• Example1: 0xA4 02 01       //  Same as AT+ TTRMOD2 =1
• Example2: 0xA4 02 00       //  Same as AT+ TTRMOD2 =0

3.3.8 Set trigger mode of PB15

It only takes effect when AT+MOD=2.

Feature: Set the trigger interrupt mode.

AT Command: AT+TTRMOD3

Downlink Command:

• Example1: 0xA4 03 01       //  Same as AT+ TTRMOD3 =1
• Example2: 0xA4 03 00       //  Same as AT+ TTRMOD3 =0

3.3.9 Set the calculate flag

It only takes effect when AT+MOD=2.

Feature: Set the calculate flag.(Range is 0 to 7)

AT Command: AT+CALCFLAG

Downlink Command:

• Example: 0XA5 01         //  Same as AT+CALCFLAG =1

3.3.10 Set count number

Feature: Manually set the count number

In CPL01 work mode, the Total_pulse set by the "AT+SETCNT=1,xx" command.

In CPL03 work mode, the Port1_Total_pulse(PA8) set by the "AT+SETCNT=1,xx" command.

AT Command: AT+SETCNT

Downlink Command:

0xA6 01 00 00 64    ==>   AT+SETCNT=1,100

0xA6 02 00 00 00    ==>   AT+SETCNT=2,0

0xA6 03 00 00 32    ==>   AT+SETCNT=3,50

3.3.11  Clear all counter values

Feature: Manually clear all counter values

AT Command:

Downlink Command: 0xA6 01

3.3.12  Count Mod

Feature: Manually set the count mode.

AT Command:

Downlink Command:

Example1:  0B 00  => AT+COUNTMOD=0

Example2:  0B 01  => AT+COUNTMOD=1

3.3.13  Work Mod

Feature: Manually set the work mode.

AT Command:

Downlink Command:

Example1:  0A 01  => AT+MOD=1

Example2:  0A 02  => AT+MOD=2

3.3.14  Set Time Sync Mode

Feature: Enable/Disable Sync system time via LoRaWAN MAC Command (DeviceTimeReq), LoRaWAN server must support v1.0.3 protocol to reply to this command.

SYNCMOD is set to 1 by default. If user wants to set a different time from the LoRaWAN server, the user needs to set this to 0.

AT Command:

Downlink Command:

0x28 01           // Same As AT+SYNCMOD=1

0x28 01 08      // Same As AT+SYNCMOD=1,8

0x28 01 F4      // Same As AT+SYNCMOD=1,-12

0x28 00           // Same As AT+SYNCMOD=0

4. Battery & Power Consumption

CPL03-LB use ER26500 + SPC1520 battery pack and CPL03-LS use 3000mAh Recharable Battery with Solar Panel. See below link for detail information about the battery info and how to replace.

Battery Info & Power Consumption Analyze .

5. OTA Firmware update

User can change firmware CPL03-LB/LS to:

• Change Frequency band/ region.

• Update with new features.

• Fix bugs.

Firmware and changelog can be downloaded from : Firmware download link

Methods to Update Firmware:

• (Recommanded way) OTA firmware update via wireless : http://wiki.dragino.com/xwiki/bin/view/Main/Firmware%20OTA%20Update%20for%20Sensors/

• Update through UART TTL interface : Instruction.

6. FAQ

6.1  AT Commands input doesn't work

In the case if user can see the console output but can't type input to the device. Please check if you already include the ENTER while sending out the command. Some serial tool doesn't send ENTER while press the send key, user need to add ENTER in their string.

6.2  How to Connect Dry contacts or Wet Contacts

CPL03-LB/LS can only be connected to dry contacts by default, and the wiring method is to connect the two ports of dry contacts to the VDD pin and pulse input pin of CPL03-LB/LS respectively.

If you want to connect a wet contact, you need to change the original wiring method. The wiring method is that the GND of the wet contact is connected to the GND of CPL03-LB/LS, and the pulse output is connected to the pulse pin, but the pulse output voltage of the wet contact must be less than 3.6V.

6.3 What is the maximum total number of pulses for CPL03? What happens after the maximum total number of pulses is reached?

The maximum total number of pulses for CPL03 is three bytes FF FF FF (16,777,215)
The count is reset when the maximum total number of pulses is reached

7. Order Info

Part Number: CPL03-LB-XX or CPL03-LS-XX

XX: The default frequency band

• AS923: LoRaWAN AS923 band

• AU915: LoRaWAN AU915 band

• EU433: LoRaWAN EU433 band

• EU868: LoRaWAN EU868 band

• KR920: LoRaWAN KR920 band

• US915: LoRaWAN US915 band

• IN865: LoRaWAN IN865 band

• CN470: LoRaWAN CN470 band

8. ​Packing Info

Package Includes:

• CPL03-LB or CPL03-LS LoRaWAN Pulse/Contact Sensor x 1

Dimension and weight:

• Device Size: cm

• Device Weight: g

• Package Size / pcs : cm

• Weight / pcs : g

9. Support

• Support is provided Monday to Friday, from 09:00 to 18:00 GMT+8. Due to different timezones we cannot offer live support. However, your questions will be answered as soon as possible in the before-mentioned schedule.

• Provide as much information as possible regarding your enquiry (product models, accurately describe your problem and steps to replicate it etc) and send a mail to Support@dragino.cc.
