1. Introduction

The Dragino LoRaWAN gateway can communicate with LORIOT LoRaWAN Network Server:

Below list the products and requirements that support communication with LORIOT using Semtech UDP:

    1. LoRaWAN Gateway model: LPS8LG308DLOS8,LPS8N,LG308N

    2. Firmware version since : lgw--build-v5.4.1661158991-20220822-1704



2. Gateway Registration for Semtech UDP

2.1 Step 1: Get Gateway ETH0 MAC Address

Dragino LoRaWAN gateway uses ETH0 MAC address to generate Gateway EUI to communicate with LORIOT, The user needs to find the ETH0 MAC in the "System -> System Overviewmenu.


2.2 Step 2: Register Gateway


Choose gateway model


Special reminder: If the user does not find the gateway Model, then git --> Packet Forwarder Semtech  can be selected


Enter the ETH0 MAC of the gateway



2.3 Step 3: Back to Semtech UDP page

Back to the page of Semtech UDP check the secondary server settings and click the button of Save&Apply.

Server Address:                            --> LORIOT Different servers use different addresses, Such as: next.loriot.io

Uplink /Downlink Port :                --> 1780


2.4 Step 4: Check Connection

LORIOT will show disconnect if Gateway doesn't connect

LORIOT will show connect if Gateway connect to LORIOT ok.


2.5 Trouble Shooting

User can check the station log in the LogRead --> System Log page.


and recode the station log in the  LogRead  -->  Recode Log page.




3. Gateway Registration for Basics Station

The LoRa Basics™ Station protocol simplifies the management of large-scale LoRaWAN networks. LoRa Basics™ Station is the preferred way of connecting Gateways to LORIOT. The LoRa Basics Station doc

Below list the support products and Requirements:

  1.  LoRaWAN Gateway model:   LIG16LG308DLOS8 ,LPS8 ,LPS8N,LG308N

      2.  Firmware version since :   lgw--build-v5.4.1704801796-20240109-2005

What do you need to prepare?

A gateway that can access the internet normally

3.1  Step 1: Register Gateway




Enter the gateway ID into the Custom EUI


3.2  Step 2: Generate and Download TLS Certificate


Download LORIOT's three TLS certificates, which are:

DigiCert_Global_Root_G2.crt , "Gateway EUI".gws.loriot.io.crt , "Gateway EUI".gws.loriot.io.key


3.3 Step 3: Configure frequency

Note: The Dragino gateway supports only one Channel plan


3.4  Step 4: Access the gateway GUI

User need to upload the TLS CA Certificate,TLS Key,TLS Certificate and configure the LNS URI

3.5  Step 5: Configure Station

User need to input Server URI, Server CUPS Key and LNS Key, as well as install CUPS certificate.

just to clarify:

   Server URI                     -->    Server Address, Example: wss://ap2.loriot.io:717
   TLS CA Certificate         -->    DigiCert_Global_Root_G2.crt
   TLS Key                         -->    "Gateway EUI".gws.loriot.io.key
   TLS Certificate              -->    "Gateway EUI".gws.loriot.io.crt


3.6  Start Station

When the user has finished the configuration, Please click "Save&Apply" to start station to connect LORIOT.

3.7  Check Connection

If user completes the above steps,which will see Log in the LORIOT.


3.8  Trouble Shooting

User can check the station log in the LogRead --> System Log page.


and recode the station log in the LogRead  -->  Recode Log page.


4. End Device Note

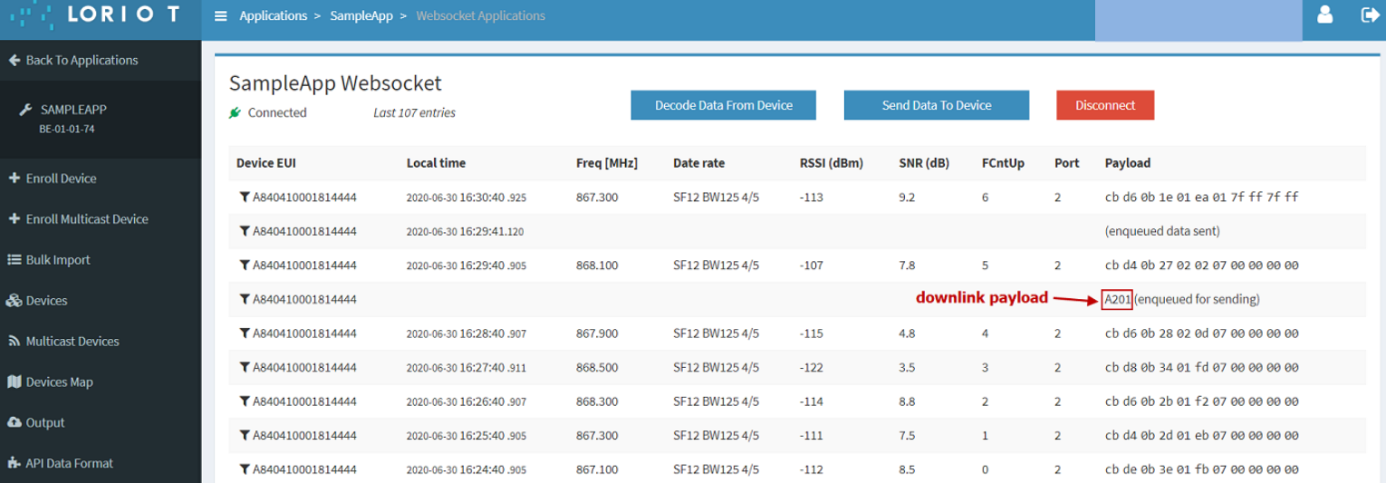

4.1 Downlink Setup
