Table of Contents:

1. Introduction

1.1 What is NB-IoT/LTE-M Analog Sensor

The Dragino PS-CB-NA is a NB-IoT/LTE-M Analog Sensor for Internet of Things solution. PS-CB-NA has 5v and 12v output, 4~20mA, 0~30v input interface to power and get value from Analog Sensor. PS-CB-NA will convert the Analog Value to NB-IoT wireless data and send to IoT platform via NB-IoT network.

PS-CB-NA supports different uplink methods including MQTT, MQTTs, UDP, TCP or CoAP for different application requirement, and support uplinks to various IoT Servers.

PS-CB-NA supports BLE configure and OTA update which make user easy to use.

PS-CB-NA is powered by 8500mAh Li-SOCI2 battery, it is designed for long-term use up to several years.

PS-CB-NA has optional built-in SIM card and default IoT server connection version. Which makes it works with simple configuration.

1.2 ​Features

  • For -NB Bands: B1/B2/B3/B4/B5/B8/B12/B13/B17/B18/B19/B20/B25/B28/B66/B70/B85
  • For -CB Bands: B1/B2/B3/B4/B5/B8/B12/B13//B18/B19/B20/B25/B28/B66/B71/B85
  • CAT-M1 / LTE-M Bands: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B27/B28/B66/B85
  • Ultra-low power consumption
  • 1 x 0~20mA input , 1 x 0~30v input
  • 5v and 12v output to power external sensor
  • Multiply Sampling and one uplink
  • GNSS for Location Report
  • Support Bluetooth v5.1 remote configure and update firmware
  • Uplink on periodically
  • Downlink to change configure
  • 8500mAh Battery for long term use
  • IP66 Waterproof Enclosure
  • Uplink via MQTT, MQTTs, TCP, or UDP
  • Nano SIM card slot for NB-IoT SIM

1.3 Specification

Common DC Characteristics:

  • Supply Voltage: 2.6v ~ 3.6v
  • Operating Temperature: -40 ~ 85°C

Current Input (DC) Measuring :

  • Range: 0 ~ 20mA
  • Accuracy: 0.02mA
  • Resolution: 0.001mA

Voltage Input Measuring:

  • Range: 0 ~ 30v
  • Accuracy: 0.02v
  • Resolution: 0.001v

NB-IoT Spec:

NB-IoT Module: BG95-NGFF

Support Bands:

  • B1 @H-FDD: 2100MHz
  • B2 @H-FDD: 1900MHz
  • B3 @H-FDD: 1800MHz
  • B4 @H-FDD: 2100MHz
  • B5 @H-FDD: 860MHz
  • B8 @H-FDD: 900MHz
  • B12 @H-FDD: 720MHz
  • B13 @H-FDD: 740MHz
  • B17 @H-FDD: 730MHz
  • B18 @H-FDD: 870MHz
  • B19 @H-FDD: 870MHz
  • B20 @H-FDD: 790MHz
  • B25 @H-FDD: 1900MHz
  • B28 @H-FDD: 750MHz
  • B66 @H-FDD: 2000MHz
  • B70 @H-FDD: 2000MHz
  • B85 @H-FDD: 700MHz

Battery:

  • Li/SOCI2 un-chargeable battery
  • Capacity: 8500mAh
  • Self Discharge: <1% / Year @ 25°C
  • Max continuously current: 130mA
  • Max boost current: 2A, 1 second

Power Consumption

  • STOP Mode: 10uA @ 3.3v
  • Max transmit power: 350mA@3.3v

1.4 Applications

  • Smart Buildings & Home Automation
  • Logistics and Supply Chain Management
  • Smart Metering
  • Smart Agriculture
  • Smart Cities
  • Smart Factory

1.5 Sleep mode and working mode

Deep Sleep Mode: Sensor doesn't have any NB-IoT activate. This mode is used for storage and shipping to save battery life.

Working Mode: In this mode, Sensor will work as NB-IoT Sensor to Join NB-IoT network and send out sensor data to server. Between each sampling/tx/rx periodically, sensor will be in IDLE mode), in IDLE mode, sensor has the same power consumption as Deep Sleep mode.

1.6 Button & LEDs


Behavior on ACTFunctionAction
Pressing ACT between 1s < time < 3sSend an uplink

If sensor has already attached to NB-IoT network, sensor will send an uplink packet, blue led will blink once.
Meanwhile, BLE module will be active and user can connect via BLE to configure device.

Pressing ACT for more than 3sActive Device

Green led will fast blink 5 times, device will enter OTA mode for 3 seconds. And then start to  attach NB-IoT network.
Green led will solidly turn on for 5 seconds after joined in network.
Once sensor is active, BLE module will be active and user can connect via BLE to configure device, no matter if device attach NB-IoT network or not.

Fast press ACT 5 times.Deactivate DeviceRed led will solid on for 5 seconds. Means device is in Deep Sleep Mode.

Note: When the device is executing a program, the buttons may become invalid. It is best to press the buttons after the device has completed the program execution.

1.7 BLE connection

PS-CB-NA support BLE remote configure and firmware update.

BLE can be used to configure the parameter of sensor or see the console output from sensor. BLE will be only activate on below case:

  • Press button to send an uplink
  • Press button to active device.
  • Device Power on or reset.

If there is no activity connection on BLE in 60 seconds, sensor will shut down BLE module to enter low power mode.

1.8 Pin Definitions , Switch & SIM Direction

PS-CB-NA use the mother board which as below.


1.8.1 Jumper JP2

Power on Device when put this jumper.

1.8.2 BOOT MODE / SW1

1) ISP: upgrade mode, device won't have any signal in this mode. but ready for upgrade firmware. LED won't work. Firmware won't run.

2) Flash: work mode, device starts to work and send out console output for further debug

1.8.3 Reset Button

Press to reboot the device.

1.8.4 SIM Card Direction

See this link. How to insert SIM Card.

2. Use PS-CB-NA to communicate with IoT Server

2.1 Send data to IoT server via NB-IoT/CAT-M1 network

The PS-CB-NA is equipped with a NB-IoT module, the pre-loaded firmware in PS-CB-NA will get environment data from sensors and send the value to local NB-IoT network via the NB-IoT module.  The NB-IoT network will forward this value to IoT server via the protocol defined by PS-CB-NA.

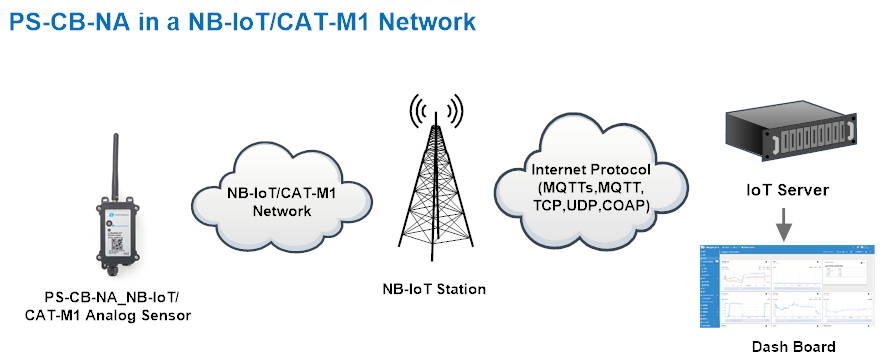

Below shows the network structure:


There are two version: -GE and -1T version of PS-CB-NA.

GE Version: This version doesn't include SIM card or point to any IoT server. User needs to use AT Commands to configure below two steps to set PS-CB-NA send data to IoT server.

  • Install NB-IoT SIM card and configure APN. See instruction of Attach Network.

Below shows result of different server as a glance.

ServersDash BoardComments
Node-Red



DataCake



Tago.IO
General UDPRaw Payload. Need Developer to design Dash Board
General MQTTRaw Payload. Need Developer to design Dash Board
ThingSpeak



ThingsBoard




1T Version: This version has 1NCE SIM card pre-installed and configure to send value to DataCake. User Just need to select the sensor type in DataCake and Activate PS-CB-NA and user will be able to see data in DataCake. See here for DataCake Config Instruction.

2.2 ​Payload Types

To meet different server requirement, PS-CB-NA supports different payload type.

Includes:

User can specify the payload type when choose the connection protocol. Example:

AT+PRO=2,0            // Use UDP Connection & hex Payload

AT+PRO=2,5            // Use UDP Connection & Json Payload

AT+PRO=3,0            // Use MQTT Connection & hex Payload

AT+PRO=3,1           // Use MQTT Connection & ThingSpeak

AT+PRO=3,3           // Use MQTT Connection & ThingsBoard

AT+PRO=3,5            // Use MQTT Connection & Json Payload

AT+PRO=4,0            // Use TCP Connection & hex Payload

AT+PRO=4,5            // Use TCP Connection & Json Payload

2.2.1 General Json Format(Type=5)

This is the General Json Format. As below:

{"IMEI":"864370064394515","Model":"PS-CB","idc_intput":3.896,"vdc_intput":0.000,"battery":3.649,"signal":24,"latitude":22.706230,"longitude":114.242650,"gps_time":"2024-07-26T03:10:15Z","1":[3.895,0.000,"2024-07-26T02:55:34Z"],"2":[2.509,3.639,"2024-07-25T07:50:36Z"],"3":[2.509,3.639,"2024-07-25T07:49:36Z"],"4":[2.509,3.640,"2024-07-25T07:48:36Z"],"5":[2.509,3.639,"2024-07-25T07:47:36Z"],"6":[2.509,3.640,"2024-07-25T07:46:36Z"],"7":[2.509,3.640,"2024-07-25T07:45:36Z"],"8":[2.509,3.640,"2024-07-25T07:44:36Z"]}

If we use the MQTT client to subscribe to this MQTT topic, we can see the following information when the CB sensor uplink data.


Notice, from above payload:

  • Idc_input , Vdc_input , Battery & Signal are the value at uplink time.
  • Json entry 1 ~ 8 are the last 1 ~ 8 sampling data as specify by AT+CLOCKLOG=1,65535,15,8  Command. Each entry includes (from left to right): Idc_input , Vdc_input, Sampling time.

2.2.2 HEX format Payload(Type=0)

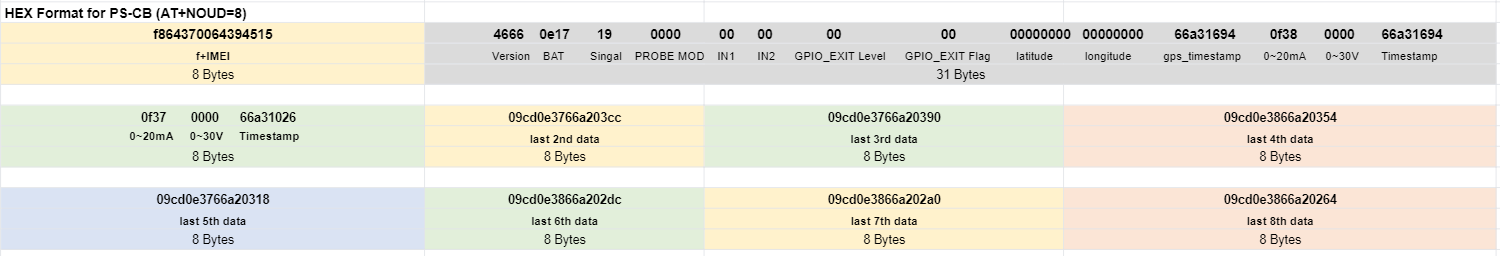

This is the HEX Format. As below:

f86437006439451546660e1719000000000000000000000000000066a316940f38000066a316940f37000066a3102609cd0e3766a203cc09cd0e3766a2039009cd0e3866a2035409cd0e3766a2031809cd0e3866a202dc09cd0e3866a202a009cd0e3866a20264


If we use the MQTT client to subscribe to this MQTT topic, we can see the following information when the CB sensor uplink data.


Version:

These bytes include the hardware and software version.

Higher byte: Specify Sensor Model: 0x46 for PS-CB-NA

Lower byte: Specify the software version: 0x66=102, means firmware version 1.0.2

BAT (Battery Info):

Check the battery voltage for PS-CB-NA.

Ex1: 0x0dde = 3550mV

Ex2: 0x0B49 = 2889mV

Signal Strength:

NB-IoT Network signal Strength.

Ex1: 0x13 = 19

0        -113dBm or less

1        -111dBm

2...30 -109dBm... -53dBm

31      -51dBm or greater

99      Not known or not detectable

Probe Model:

PS-CB-NA might connect to different kind of probes, 4~20mA represent the full scale of the measuring range. So a 12mA output means different meaning for different probe.

For example.

Probe Type4~20mA scale for this probeExample: 12mA actually meaning for this probe
PH Combination Electrodes0 ~ 14 pHPH Value: 7
Water Pressure Sensor0~5 meters2.5 meters pure water
Pressure transmitter probe0~1MPa0.5MPa air / gas or water pressure

User can set different probe model for above probes. So IoT server is able to se identical how it should parse the 4~20mA or 0~30v sensor value and get the correct value.

IN1 & IN2:

IN1 and IN2 are used as Digital input pins.

Example:

01 (H):    IN1 or  IN2 pin is high level.

00 (L):     IN1 or  IN2 pin is low level.

GPIO_EXTI Level:

GPIO_EXTI is used as Interrupt Pin.

Example:

01 (H):    GPIO_EXTI pin is high level.

00 (L):    GPIO_EXTI pin is low level.

GPIO_EXTI Flag:

This data field shows if this packet is generated by Interrupt Pin or not.

Note: The Interrupt Pin is a separate pin in the screw terminal.

Example:

0x00: Normal uplink packet.

0x01: Interrupt Uplink Packet.

Longitude:

Example: 0x015A7A7A(H)=22706810(D)=22.706810

Longitude:

Example: 0x06CF33CE(H)=114242510(D)=114.242510

0~20mA:

Example:

27AE(H) = 10158 (D)/1000 = 10.158mA.


Connect to a 2 wire 4~20mA sensor.


0~30V:

Measure the voltage value. The range is 0 to 30V.

Example:

138E(H) = 5006(D)/1000= 5.006V

TimeStamp & GPS_Timestamp:

Unit TimeStamp Example: 66A31694(H) = 1721964180(D)

Put the decimal value into this link(https://www.epochconverter.com))to get the time.

2.2.3 ThingsBoard Payload(Type=3)

Type3 payload special design for ThingsBoard, it will also configure other default server to ThingsBoard.

{
    "topic": "CB_PUB",
    "payload": {
        "IMEI": "864370064394515",
        "Model": "PS-CB",
        "idc_intput": 3.895,
        "vdc_intput": 0.0,
        "battery": 3.529,
        "signal": 26,
        "latitude": 0.0,
        "longitude": 0.0,
        "gps_time": "1970-01-01T00:00:00Z",
        "1": [3.895, 0.0, "2024-07-26T03:40:43Z"],
        "2": [3.895, 0.0, "2024-07-26T03:39:43Z"],
        "3": [3.895, 0.0, "2024-07-26T03:38:43Z"],
        "4": [3.894, 0.0, "2024-07-26T03:34:32Z"],
        "5": [3.895, 0.0, "2024-07-26T02:55:34Z"],
        "6": [2.509, 3.639, "2024-07-25T07:50:36Z"],
        "7": [2.509, 3.639, "2024-07-25T07:49:36Z"],
        "8": [2.509, 3.64, "2024-07-25T07:48:36Z"]
    }
}


2.2.4 ThingSpeak Payload(Type=1)

This payload meets ThingSpeak platform requirement. It includes only four fields. Form 1~6 are:

Idc_input , Vdc_input , Battery, Signal, Interrupt & Interrupt level. This payload type only valid for ThingsSpeak Platform

As below:

field1=idc_intput value&field2=vdc_intput value&field3=battery value&field4=signal value&field5=Interrupt value&field6=Interrupt_level value


3. Configure PS-CB-NA

3.1 Configure Methods

PS-CB-NA supports below configure method:

3.2  Serial Access Password

After the Bluetooth or UART connection is successful, use the Serial Access Password to enter the AT command window.

The label on the box of the node will print the initial password: AT+PIN=xxxxxx, and directly use the six-digit password to access the AT instruction window.


If you need to change the password, use AT+PWORD=xxxxxx (6 characters), CB nodes only support lowercase letters.


Note: After entering the command, you need to add a line break, and you can also set automatic line breaks in the Bluetooth tool or UART connection tool.


3.3 AT Commands Set

AT+<CMD>? : Help on <CMD>

AT+<CMD> : Run <CMD>

AT+<CMD>=<value> : Set the value

AT+<CMD>=? : Get the value

General Commands

AT : Attention

AT? : Short Help

AT+MODEL : Get module information

ATZ : Trig a reset of the MCU

AT+DEUI : Get or set the Device ID

AT+SLEEP : Get or set the sleep status

AT+DEBUG : Set more info output

AT+CFG : Print all settings

AT+SERVADDR: Get or Set the Server address

AT+TDC : Get or set the application data transmission interval in s

AT+INTMOD : Get or Set the trigger interrupt mode (0:input,1:falling or rising,2:falling,3:rising)

AT+APN : Get or set the APN

AT+3V3T : Get or Set extend the time of 3V3 power

AT+5VT : Get or Set extend the time of 5V power

AT+12VT : Get or Set extend the time of 12V power

AT+PROBE : Get or Set the probe model

AT+PRO : Get or Set usage agreement (1:COAP,2:UDP,3:MQTT,4:TCP)

AT+RXDL : Get or Set the receiving time

AT+GETSENSORVALUE : Returns the current sensor measurement

AT+DNSCFG : Get or Set DNS Server

AT+CSQTIME : Get or Set the time to join the network

AT+GDNS : Get or Set the DNS

AT+TLSMOD : Get or Set the TLS mode

AT+IPTYPE : Set the IPv4 or IPv6

AT+QSW : Power on and power off BG95 module

AT+CLOCKLOG: Enable or Disable Clock Logging

AT+TIMESTAMP : Get or Set UNIX timestamp in second

AT+GETLOG : Print serial port logs

MQTT Management

AT+CLIENT : Get or Set the MQTT clientID

AT+UNAME : Get or Set the MQTT Username

AT+PWD : Get or Set the MQTT password

AT+PUBTOPIC: Get or set MQTT publishing topic

AT+SUBTOPIC: Get or set MQTT subscription topic

AT+MQOS : Set the QoS level of MQTT

Coap Management

AT+URI1: Get or set CoAP option 1

AT+URI2: Get or set CoAP option 2

AT+URI3: Get or set CoAP option 3

AT+URI4: Get or set CoAP option 4

AT+URI5: Get or set CoAP option 5

AT+URI6: Get or set CoAP option 6

AT+URI7: Get or set CoAP option 7

AT+URI8: Get or set CoAP option 8

GPS

AT+GNSST : Extend the time to turn on GNSS

AT+GPS : Turn off and on GPS

AT+GTDC : Get or set GPS positioning interval in units of h

Information

AT+FDR1 : Reset parameters to factory default values except for passwords

AT+FDR : Reset Parameters to Factory Default

AT+PWORD : Get or set the System password

AT+CDP : Read or Clear cached data

AT+LDATA : Get the last upload data

3.4 Trggier an uplink by external interrupt

PS-CB-NA has an external trigger interrupt function. Users can use the GPIO_EXTI pin to trigger the upload of data packets.

AT command:

  • AT+INTMOD         // Set the trigger interrupt mode
  • AT+INTMOD=0    // Disable Interrupt,as a digital input pin
  • AT+INTMOD=1    // Trigger by rising and falling edge
  • AT+INTMOD=2    // Trigger by falling edge
  • AT+INTMOD=3    // Trigger by rising edge

Downlink Command: 0x06

Format: Command Code (0x06) followed by 3 bytes.

This means that the interrupt mode of the end node is set to 0x000003=3 (rising edge trigger), and the type code is 06.

  • Example 1: Downlink Payload: 06000000       //  Turn off interrupt mode
  • Example 2: Downlink Payload: 06000003      //   Set the interrupt mode to rising edge trigger

3.5 Set Power Output Duration

Control the output duration 3V3 , 5V or 12V. Before each sampling, device will

1. first enable the power output to external sensor,

2. keep it on as per duration, read sensor value and construct uplink payload

3. final, close the power output.

AT Command: AT+3V3T

Command ExampleFunctionResponse
AT+3V3T=?Show 3V3 open time.

0
OK

AT+3V3T=0Normally open 3V3 power supply.

OK
default setting

AT+3V3T=1000Close after a delay of 1000 milliseconds.

OK

AT+3V3T=65535Normally closed 3V3 power supply.

OK

AT Command: AT+5VT

Command ExampleFunctionResponse
AT+5VT=?Show 5V open time.

0
OK

AT+5VT=0Normally closed 5V power supply.

OK
default setting

AT+5VT=1000Close after a delay of 1000 milliseconds.

OK

AT+5VT=65535Normally open 5V power supply.

OK

AT Command: AT+12VT

Command ExampleFunctionResponse
AT+12VT=?Show 12V open time.

0
OK

AT+12VT=0Normally closed 12V power supply.OK
AT+12VT=500Close after a delay of 500 milliseconds.

OK

Downlink Command: 0x07

Format: Command Code (0x07) followed by 3 bytes.

The first byte is which power, the second and third bytes are the time to turn on.

  • Example 1: Downlink Payload: 070101F4  --->   AT+3V3T=500
  • Example 2: Downlink Payload: 0701FFFF   --->  AT+3V3T=65535
  • Example 3: Downlink Payload: 070203E8  --->  AT+5VT=1000
  • Example 4: Downlink Payload: 07020000  --->  AT+5VT=0
  • Example 5: Downlink Payload: 070301F4  --->  AT+12VT=500
  • Example 6: Downlink Payload: 07030000  --->  AT+12VT=0

3.6 Set the Probe Model

Users need to configure this parameter according to the type of external probe. In this way, the server can decode according to this value, and convert the current value output by the sensor into water depth or pressure value.

AT Command: AT +PROBE

AT+PROBE=aabb

When aa=00, it is the water depth mode, and the current is converted into the water depth value; bb is the probe at a depth of several meters.

When aa=01, it is the pressure mode, which converts the current into a pressure value;

bb represents which type of pressure sensor it is.

(A->01,B->02,C->03,D->04,E->05,F->06,G->07,H->08,I->09,J->0A,K->0B,L->0C)

Command ExampleFunctionResponse
AT +PROBE =?Get or Set the probe model.0
OK
AT +PROBE =0003Set water depth sensor mode, 3m type.OK

AT +PROBE =000A



Set water depth sensor mode, 10m type.OK
AT +PROBE =0101Set pressure transmitters mode, first type(A).OK
AT +PROBE =0000Initial state, no settings.OK

Downlink Command: 0x08

Format: Command Code (0x08) followed by 2 bytes.

  • Example 1: Downlink Payload: 080003  --->   AT+PROBE=0003
  • Example 2: Downlink Payload: 080101  --->   AT+PROBE=0101

Added AT+STDC command to collect the voltage of VDC_INPUT/IDC_INPUT multiple times and upload it at one time.

AT Command: AT +STDC

AT+STDC=aa,bb,bb

aa:
0: means disable this function and use TDC to send packets.
1: means that the function is enabled to send packets by collecting VDC data for multiple times
2: means that the function is enabled to send packets by collecting IDC data for multiple times
bb: Each collection interval (s), the value is 1~65535
cc: the number of collection times, the value is 1~120

Command ExampleFunctionResponse
AT+STDC=?Get the mode of multiple acquisitions and one uplink.1,10,18
OK
AT+STDC=1,10,18Set the mode of multiple acquisitions and one uplink, collect once every 10 seconds, and report after 18 times.

Attention:Take effect after ATZ

OK

AT+STDC=0, 0,0

Use the TDC interval to send packets.(default)



Attention:Take effect after ATZ

OK

Downlink Command: 0xAE

Format: Command Code (0xAE) followed by 4 bytes.

  • Example 1: Downlink Payload: AE 01 02 58 12 --->   AT+STDC=1,600,18

3.8 Clock logging

Sometimes when we deploy lots of end nodes in field. We want all sensors sample data at the same time, and upload these data together for analyze. In such case, we can use clock loging feature.

We can use this command to set the start time of data recording and the time interval to meet the requirements of the specific collection time of data.

  • AT Command: AT +CLOCKLOG=a,b,c,d

a: 0: Disable Clock logging.   1: Enable Clock Logging

b: Specify First sampling start second: range (0 ~ 3599, 65535)         // Note: If parameter b is set to 65535, the log period starts after the node accesses the network and sends packets.

c: Specify the sampling interval: range (0 ~ 255 minutes)

d: How many entries should be uplink on every TDC (max 32)

Note: To disable clock recording, set the following parameters: AT+CLOCKLOG=1,65535,0,0


Example:

AT+CLOCKLOG=1,65535,1,3

After the node sends the first packet, data is recorded to the memory at intervals of 1 minute. For each TDC uplink, the uplink load will include: battery information + the last 3 memory records (payload + timestamp).


Note: Users need to synchronize the server time before configuring this command. If the server time is not synchronized before this command is configured, the command takes effect only after the node is reset.

3.9 Power on / power off BG95 module

This command is used to power on and power off BG95 module.

  • AT command: AT+QSW

The module is powered on after the command is sent for the first time, and powered off after the command is sent again.


3.10 Example Query saved historical records

  • AT command: AT+CDP

This command can be used to search the saved history, recording up to 32 groups of data, each group of historical data contains a maximum of 100 bytes.


3.11 Uplink log query

  • AT command: AT+GETLOG

This command can be used to query upstream logs of data packets.


4. Battery & Power Consumption

PS-CB-NA use ER26500 + SPC1520 battery pack. See below link for detail information about the battery info and how to replace.

Battery Info & Power Consumption Analyze .

5. Firmware update

User can change device firmware to::

  • Update with new features.
  • Fix bugs.

Firmware and changelog can be downloaded from : Firmware download link

Methods to Update Firmware:

  • (Recommended way) OTA firmware update via BLE: Instruction.

6. FAQ

6.1 How can I access t BG95-NGFF AT Commands?

User can access to BG95-NGFF directly and send AT Commands.

See BG95-NGFF AT Command set

6.2 How to configure the device through the MQTT subscription function?(Since version v1.0.3)

Subscription content: {AT COMMAND}

Example:

Setting AT+5VT=500 through Node-RED requires MQTT to send the content {AT+5VT=500}.


The serial port displays:


7. Order Info

Part Number: PS-CB-NA-XX-YY

XX:

  • GE: General version ( Exclude SIM card)
  • 1T: with 1NCE* 10 years 500MB SIM card and Pre-configure to ThingsEye server

YY: The grand connector hole size

  • M12: M12 hole
  • M16: M16 hole
  • M20: M20 hole

8. ​Packing Info

Package Includes:

  • PS-CB-NA NB-IoT/LTE-M Analog Sensor  x 1
  • External antenna x 1

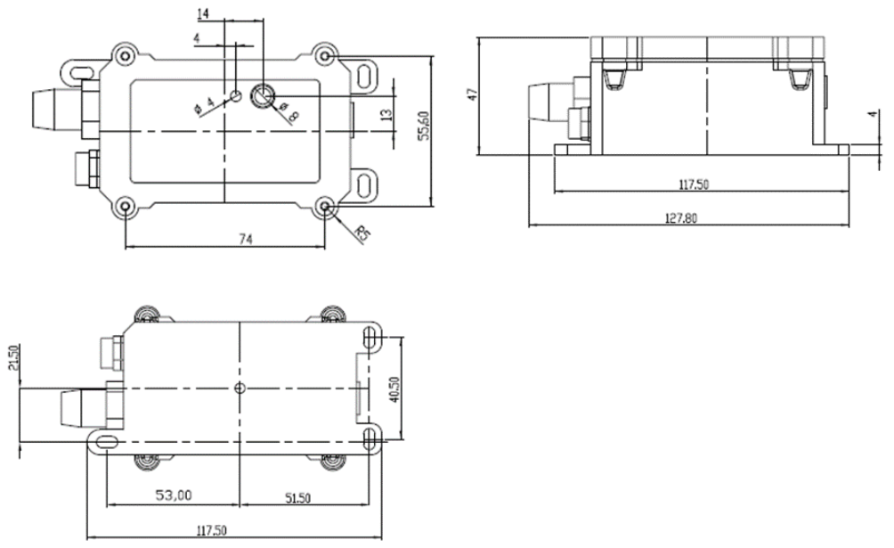

Dimension and weight:

  • Device Size:  cm
  • Device Weight: g
  • Package Size / pcs :  cm
  • Weight / pcs : g

9. Support

  • Support is provided Monday to Friday, from 09:00 to 18:00 GMT+8. Due to different timezones we cannot offer live support. However, your questions will be answered as soon as possible in the before-mentioned schedule.
  • Provide as much information as possible regarding your enquiry (product models, accurately describe your problem and steps to replicate it etc) and send a mail to Support@dragino.cc.



Tags:

Copyright ©2010-2022 Dragino Technology Co., LTD. All rights reserved
Dragino Wiki v2.0
