1. Introduction

1.1 What is DS03A-CB NB-IoT/LTE-M Door Sensor

The Dragino DS03A-CB is a  NB-IoT/LTE-M Door Sensor for Internet of Things solution. It detects door open/close status and uplinks to IoT server via NB-IoT/CAT-M1 network. user can see the door status, open duration, open counts in the IoT Server.

The DS03A-CB will send periodically data every 2 hours as well as for each door open/close action. It also counts the door open times and calculates the last door open duration. Users can also disable the uplink for each open/close event, instead, DS03A-CB can count each open event and uplink periodically.

DS03A-CB supports Datalog Feature, it can save the data when there is no NB-IoT/LTE-M network and uplink when network recover.

DS03A-CB has the Open Alarm Feature, user can set this feature so the device will send an alarm if the door has been open for a certain time.

DS03A-CB is designed for outdoor use. It has a weatherproof enclosure and industrial level battery to work in low to high temperatures

DS03A-CB supports different uplink methods including MQTT, MQTTs, UDP , TCP or CoAP for different application requirement, and support uplinks to various IoT Servers.

DS03A-CB supports BLE configure and OTA update which make user easy to use.

DS03A-CB is powered by 8500mAh Li-SOCI2 battery, it is designed for long-term use up to several years.

DS03A-CB has optional built-in SIM card and default IoT server connection version. Which makes it works with simple configuration.

1.2 ​Features

  • For -NB Bands: B1/B2/B3/B4/B5/B8/B12/B13/B17/B18/B19/B20/B25/B28/B66/B70/B85
  • For -CB Bands: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B28/B66/B71/B85
  • CAT-M1 / LTE-M Bands: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B27/B28/B66/B85
  • Ultra-low power consumption
  • Door Open/Close detect
  • Door open/close statistics
  • Datalog Feature
  • Open Alarm Feature
  • Probe length: 40cm
  • Multiply Sampling and one uplink
  • Uplink via MQTT, MQTTs, TCP, UDP or CoAP
  • GNSS for Location Report
  • Support Bluetooth v5.1 remote configure and update firmware
  • Uplink on periodically
  • Downlink to change configure
  • 8500mAh Battery for long term use
  • Nano SIM card slot for NB-IoT SIM


1.3 Specification

Common DC Characteristics:

  • Supply Voltage: 2.6v ~ 3.6v
  • Operating Temperature: -40 ~ 85°C

NB-IoT Spec:

NB-IoT Module: BG95-NGFF

Support Bands:

  • B1 @H-FDD: 2100MHz
  • B2 @H-FDD: 1900MHz
  • B3 @H-FDD: 1800MHz
  • B4 @H-FDD: 2100MHz
  • B5 @H-FDD: 860MHz
  • B8 @H-FDD: 900MHz
  • B12 @H-FDD: 720MHz
  • B13 @H-FDD: 740MHz
  • B17 @H-FDD: 730MHz
  • B18 @H-FDD: 870MHz
  • B19 @H-FDD: 870MHz
  • B20 @H-FDD: 790MHz
  • B25 @H-FDD: 1900MHz
  • B28 @H-FDD: 750MHz
  • B66 @H-FDD: 2000MHz
  • B70 @H-FDD: 2000MHz
  • B85 @H-FDD: 700MHz

Battery:

  • Li/SOCI2 un-chargeable battery
  • Capacity: 8500mAh
  • Self Discharge: <1% / Year @ 25°C
  • Max continuously current: 130mA
  • Max boost current: 2A, 1 second

Power Consumption

  • STOP Mode: 10uA @ 3.3v
  • Max transmit power: 350mA@3.3v


1.4 Applications


1.5 Sleep mode and working mode

Deep Sleep Mode: Sensor doesn't have any NB-IoT/LTE-M activate. This mode is used for storage and shipping to save battery life.

Working Mode: In this mode, Sensor will work as NB-IoT Sensor to Join NB-IoT network and send out sensor data to server. Between each sampling/tx/rx periodically, sensor will be in IDLE mode), in IDLE mode, sensor has the same power consumption as Deep Sleep mode.

1.6 Button & LEDs


Behavior on ACTFunctionAction
Pressing ACT between 1s < time < 3sSend an uplink

If sensor has already attached to NB-IoT network, sensor will send an uplink packet, blue led will blink once.
Meanwhile, BLE module will be active and user can connect via BLE to configure device.

Pressing ACT for more than 3sActive Device

Green led will fast blink 5 times, device will enter OTA mode for 3 seconds. And then start to  attach NB-IoT/LTE-M network.
Green led will solidly turn on for 5 seconds after joined in network.
Once sensor is active, BLE module will be active and user can connect via BLE to configure device, no matter if device attach NB-IoT network or not.

Fast press ACT 5 times.Deactivate DeviceRed led will solid on for 5 seconds. Means device is in Deep Sleep Mode.

Note: When the device is executing a program, the buttons may become invalid. It is best to press the buttons after the device has completed the program execution.

1.7 BLE connection

DS03A-CB support BLE remote configure and firmware update.

BLE can be used to configure the parameter of sensor or see the console output from sensor. BLE will be only activate on below case:

  • Press button to send an uplink
  • Press button to active device.
  • Device Power on or reset.

If there is no activity connection on BLE in 60 seconds, sensor will shut down BLE module to enter low power mode.

1.8 Pin Definitions , Switch & SIM Direction


1.8.1 Jumper JP2

Power on Device when put this jumper.

1.8.2 BOOT MODE / SW1

1) ISP: upgrade mode, device won't have any signal in this mode. but ready for upgrade firmware. LED won't work. Firmware won't run.

2) Flash: work mode, device starts to work and send out console output for further debug

1.8.3 Reset Button

Press to reboot the device.



1.8.4 SIM Card Direction

See this link. How to insert SIM Card.

1.9 Mechanical




Probe Mechanical:


1.10 Magnet Distance

  • Wood Door: 10mm ~ 30mm
  • Iron Door: 30 ~ 45mm


2. Use DS03A-CB to communicate with IoT Server

2.1 Send data to IoT server via NB-IoT network

The DS03A-CB is equipped with a NB-IoT module, the pre-loaded firmware in DS03A-CB will get environment data from sensors and send the value to local NB-IoT network via the NB-IoT module.  The NB-IoT network will forward this value to IoT server via the protocol defined by DS03A-CB.

Below shows the network structure:


There are two version: -GE and -1T version of DS03A-CB.

GE Version: This version doesn't include SIM card or point to any IoT server. User needs to use AT Commands to configure below two steps to set DS03A-CB send data to IoT server.

  • Install NB-IoT SIM card and configure APN. See instruction of Attach Network.

Below shows result of different server as a glance.

ServersDash BoardComments
Node-Red



DataCake



Tago.IO
General UDPRaw Payload. Need Developer to design Dash Board
General MQTTRaw Payload. Need Developer to design Dash Board
ThingSpeak



ThingsBoard




1T Version: This version has 1NCE SIM card pre-installed and configure to send value to DataCake. User Just need to select the sensor type in DataCake and Activate DS03A-CB and user will be able to see data in DataCake. See here for DataCake Config Instruction.

2.2 ​Payload Types

To meet different server requirement, DS03A-CB supports different payload type.

Includes:

User can specify the payload type when choose the connection protocol. Example:

AT+PRO=2,0            // Use UDP Connection & hex Payload

AT+PRO=2,5            // Use UDP Connection & Json Payload

AT+PRO=3,5            // Use MQTT Connection & Json Payload

2.2.1 General Json Format(Type=5)

This is the General Json Format. Payloads in General Json format for single-channel mode and double-channel mode have different byte lengths.

The General Json format payload for the single-channel mode is as follows:

{"IMEI":"864370064394515","Model":"DS03A-CB","level status":1,"alarm status":0,"door open num":0,"last open time":0,"level status2":1,"alarm status2":0,"door open num2":0,"last open time2":0,"battery":3.19,"signal":29,"latitude":0.000000,"longitude":0.000000,"gps_time":"1970-01-01T00:00:00Z","1":[1,0,0,"2024-07-12T09:00:53Z"],"2":[1,0,0,"2024-07-12T08:45:53Z"],"3":[1,0,0,"2024-07-12T08:30:53Z"],"4":[1,0,0,"2024-07-12T08:15:53Z"],"5":[1,0,0,"2024-07-12T08:00:53Z"],"6":[1,0,0,"2024-07-12T07:45:53Z"],"7":[240,126977,61441,"2024-07-12T07:26:58Z"],"8":[240,126977,61441,"2024-07-12T07:25:58Z"]}


The General Json format payload for the double-channel mode is as follows:

{"IMEI":"864370064394515","Model":"DS03A-CB","level status":1,"alarm status":0,"door open num":0,"last open time":0,"level status2":1,"alarm status2":0,"door open num2":0,"last open time2":0,"battery":3.19,"signal":25,"latitude":0.000000,"longitude":0.000000,"gps_time":"1970-01-01T00:00:00Z","1":[0,0,0,1,0,0,"2024-07-12T09:00:53Z"],"2":[1,0,0,1,0,0,"2024-07-12T08:45:53Z"],"3":[1,0,0,1,0,0,"2024-07-12T08:30:53Z"],"4":[1,0,0,1,0,0,"2024-07-12T08:15:53Z"],"5":[1,0,0,1,0,0,"2024-07-12T08:00:53Z"],"6":[1,0,0,1,0,0,"2024-07-12T07:45:53Z"],"7":[1,0,0,240,126977,61441,"2024-07-12T07:26:58Z"],"8":[1,0,0,240,126977,61441,"2024-07-12T07:25:58Z"]}


Notice, from above payload:

  • level status, alarm status, door open num, last open time, level status2, alarm status2, door open sum2, last open time2, Battery, Signal, Latitude, Longitude & GPS_time are the value at uplink time.
  • Json entry 1 ~ 8 are the last 1 ~ 8 sampling data as specify by AT+CLOCKLOG=1,65535,15,8  Command. Each entry includes (from left to right):

          Single-channel mode: level status, door open num, last open time, Sampling time.

          Double-channel mode: level status, door open num, last open time, level status2, door open sum2, last open time2, Sampling time.

2.2.2 HEX format Payload(Type=0)

This is the HEX Format. Payloads in HEX format for single-channel mode and double-channel mode have different byte lengths.

The HEX format payload for the single-channel mode is as follows:

f8643700643945154b640c801c0101000000000000006690f4e6000000000000000000000000010000000000006690f0c5010000000000006690ed41010000000000006690e9bd010000000000006690e639010000000000006690e2b5010000000000006690df31f001f00100f0016690dac2f001f00100f0016690da86


If we use the MQTT client to subscribe to this MQTT topic, we can see the following information when the NB sensor uplink data.


The HEX format payload for the double-channel mode is as follows:

f8643700643945154b640c841b01010000000000000001000000000000006690f5fe00000000000000000000000001000000000000000000000000006690f0c501000000000000010000000000006690ed4101000000000000010000000000006690e9bd01000000000000010000000000006690e63901000000000000010000000000006690e2b501000000000000010000000000006690df31f001f00100f001010000000000006690dac2f001f00100f001010000000000006690da86


If we use the MQTT client to subscribe to this MQTT topic, we can see the following information when the NB sensor uplink data.


Version:

These bytes include the hardware and software version.

Higher byte: Specify Sensor Model: 0x12 for DS03A-CB

Lower byte: Specify the software version: 0x7b=123, means firmware version 1.2.3

BAT (Battery Info):

Ex1: 0x0dda = 3546mV

Signal Strength:

NB-IoT Network signal Strength.

Ex1: 0x15 = 21

0        -113dBm or less

1        -111dBm

2...30 -109dBm... -53dBm

31      -51dBm or greater

99      Not known or not detectable

Timestamp:

Unit Timestamp Example: 650abc40(H) = 1695202368(D)

Put the decimal value into this link(https://www.epochconverter.com)) to get the time.

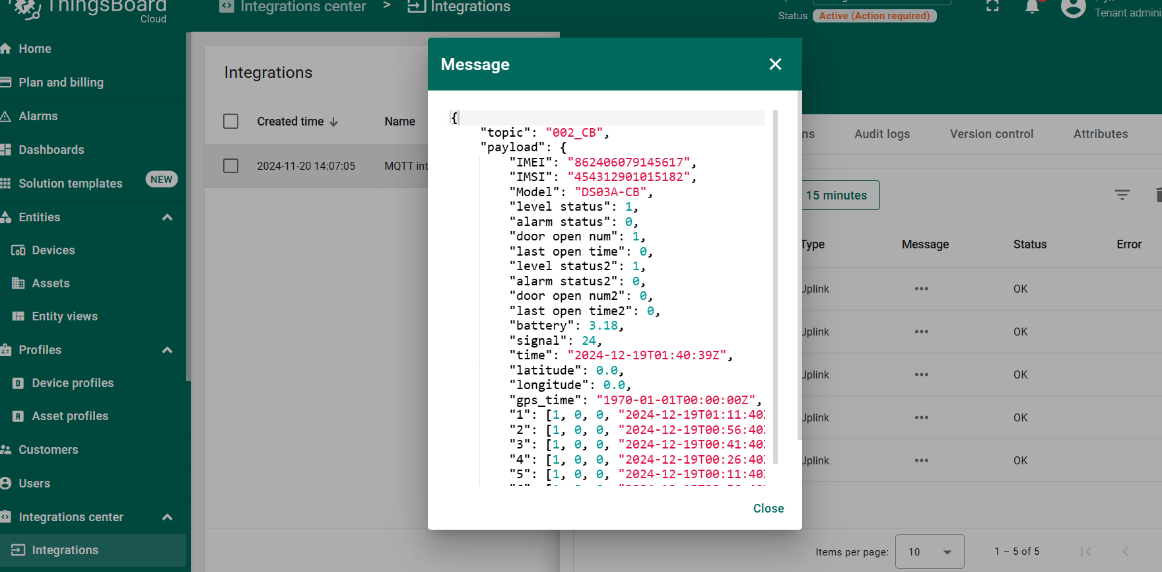

2.2.3 ThingsBoard Payload(Type=3)

Type3 payload special design for ThingsBoard, it will also configure other default server to ThingsBoard.

The type3 format payload for the single-channel mode is as follows:

{
    "topic": "2276492",
    "payload": {
        "IMEI": "864370064394515",
        "Model": "DS03A-CB",
        "level status": 1,
        "alarm status": 0,
        "door open num": 0,
        "last open time": 0,
        "level status2": 1,
        "alarm status2": 0,
        "door open num2": 0,
        "last open time2": 0,
        "battery": 3.24,
        "signal": 24,
        "latitude": 22.70629,
        "longitude": 114.24269,
        "gps_time": "2024-07-05T02:22:24Z",
        "1": [1, 0, 0, "2024-07-05T02:07:59Z"],
        "2": [1, 0, 0, "2024-07-05T01:49:55Z"],
        "3": [1, 0, 0, "2024-07-05T01:48:55Z"],
        "4": [1, 0, 0, "2024-07-05T01:47:55Z"],
        "5": [1, 0, 0, "2024-07-05T01:46:55Z"],
        "6": [1, 0, 0, "2024-07-05T01:45:55Z"],
        "7": [1, 0, 0, "2024-07-05T01:44:55Z"],
        "8": [1, 0, 0, "2024-07-05T01:43:55Z"]
    }
}

The type3 format payload for the double-channel mode is as follows:

{
    "topic": "2276492",
    "payload": {
        "IMEI": "864370064394515",
        "Model": "DS03A-CB",
        "level status": 1,
        "alarm status": 0,
        "door open num": 0,
        "last open time": 0,
        "level status2": 1,
        "alarm status2": 0,
        "door open num2": 0,
        "last open time2": 0,
        "battery": 2.96,
        "signal": 28,
        "latitude": 22.70632,
        "longitude": 114.2429,
        "gps_time": "2024-07-05T03:13:49Z",
        "1": [0, 0, 0, 1, 0, 0, "2024-07-05T02:07:59Z"],
        "2": [1, 0, 0, 1, 0, 0, "2024-07-05T01:49:55Z"],
        "3": [1, 0, 0, 1, 0, 0, "2024-07-05T01:48:55Z"],
        "4": [1, 0, 0, 1, 0, 0, "2024-07-05T01:47:55Z"],
        "5": [1, 0, 0, 1, 0, 0, "2024-07-05T01:46:55Z"],
        "6": [1, 0, 0, 1, 0, 0, "2024-07-05T01:45:55Z"],
        "7": [1, 0, 0, 1, 0, 0, "2024-07-05T01:44:55Z"],
        "8": [1, 0, 0, 1, 0, 0, "2024-07-05T01:43:55Z"]
    }
}


2.2.4 ThingSpeak Payload(Type=1)

This payload meets ThingSpeak platform requirement. It includes eight fields. Form 1~8 are:

Distance, Battery & Signal. This payload type only valid for ThingsSpeak Platform

As below:

field1=Flow value&field2=Battery value&field3=signal value



3. Configure DS03A-CB

3.1 Configure Methods

DS03A-CB supports below configure method:

​​​3.2  Serial Access Password

After the Bluetooth or UART connection is successful, use the Serial Access Password to enter the AT command window.

The label on the box of the node will print the initial password: AT+PIN=xxxxxx, and directly use the six-digit password to access the AT instruction window.


If you need to change the password, use AT+PWORD=xxxxxx (6 characters), -CB nodes only support lowercase letters.


Note: After entering the command, you need to add a line break, and you can also set automatic line breaks in the Bluetooth tool or UART connection tool.


3.3 AT Commands Set

AT+<CMD>? : Help on <CMD>

AT+<CMD> : Run <CMD>

AT+<CMD>=<value> : Set the value

AT+<CMD>=? : Get the value

General Commands

AT: Attention

AT?: Short Help

AT+MODEL : Get module information

ATZ : Trig a reset of the MCU

AT+CFGMOD : Working mode selection

AT+DEUI : Get or set the Device ID

AT+CFG : Print all settings

AT+SERVADDR: Get or Set the Server address

AT+TDC : Get or set the application data transmission interval in s

AT+INTMOD : Get or Set the trigger interrupt mode (0:input,1:falling or rising,2:falling,3:rising)

AT+APN : Get or set the APN

AT+5VT : Get or Set extend the time of 5V power

AT+PRO : Get or Set usage agreement (1:COAP,2:UDP,3:MQTT,4:TCP)

AT+RXDL : Get or Set the receiving time

AT+GETSENSORVALUE : Returns the current sensor measurement

AT+DNSCFG : Get or Set DNS Server

AT+DEBUG : Enable or Disable debug mode

AT+DISALARM: Enable/Disable Alarm for door open/close or water leak event

AT+TTRALARM: Get or Set TTRIG1 of Alarm interval (unit: minute)

AT+TTRCHANNEL: Get or Set the number of interrupt channels

AT+COUNTMOD:Get or Set the count mode

AT+TTRIG1 : Get or Set Alarm Base on Timeout

AT+TTRIG2 : Get or Set Alarm Base on Timeout

AT+CLRC : Clear current door open count

AT+CSQTIME : Get or Set the time to join the network

AT+GDNS : Get or Set the DNS

AT+TLSMOD : Get or Set the TLS mode

AT+SLEEP : Get or Set the sleep mode

AT+MQOS : Set the QoS level of MQTT

AT+IPTYPE : Set the IPv4 or IPv6

AT+QSW : Power on and power off BG95 module

AT+GETLOG : Print serial port logs

AT+CLOCKLOG: Get or set SHT record time

AT+QBAND: Get or set Frequency Band

AT+IOTMOD: Configure Network Category to be Searched for under LTE RAT

MQTT Management

AT+CLIENT : Get or Set the MQTT clientID

AT+UNAME : Get or Set the MQTT Username

AT+PWD : Get or Set the MQTT password

AT+PUBTOPIC: Get or set MQTT publishing topic

AT+SUBTOPIC: Get or set MQTT subscription topic

Coap Management

AT+URI1: Get or set CoAP option 1

AT+URI2: Get or set CoAP option 2

AT+URI3: Get or set CoAP option 3

AT+URI4: Get or set CoAP option 4

AT+URI5: Get or set CoAP option 5

AT+URI6: Get or set CoAP option 6

AT+URI7: Get or set CoAP option 7

AT+URI8: Get or set CoAP option 8

GPS

AT+GNSST : Extend the time to turn on GNSS

AT+GPS : Turn off and on GPS

AT+GTDC : Get or set GPS positioning interval in units of h

Information

AT+FDR1 : Reset parameters to factory default values except for passwords

AT+FDR : Reset Parameters to Factory Default

AT+PWORD : Get or set the System password

AT+CDP : Read or Clear cached data

AT+LDATA : Get the last upload data

3.4 Test Uplink and Change Update Interval

By default, Sensor will send uplinks every 2 hours.

User can use below commands to change the uplink interval.

AT Command: AT+TDC

Example: AT+TDC=7200   // Set Update Interval to 7200 seconds

Downlink Commands: 0x01

Format: Command Code (0x01) followed by 3 bytes.

Example:     12 hours= 43200 seconds     43200(D)=0xA8C0(H)

                    Downlink Payload: 01 00 A8 C0          // AT+TDC=43200, Set Update Interval to 12 hours.

Note: User can also push the button for more than 1 seconds to activate an uplink.

3.5 Set the receiving time

Feature: Extend the receiving time

AT Command: AT+RXDL

Example: AT+RXDL=1000   // Set the receiving time delay to 1000ms

Downlink Commands: 0x03

Format: Command Code (0x03) followed by 3 bytes.

Example:  Downlink Payload: 03 00 03 E8     //AT+RXDL=1000

3.6 Reset

Feature: Trig a reset of the MCU.

AT Command: ATZ

Downlink Commands: 0x04FF

3.7 +5V

Feature: Set extend the time of 5V power.

AT Command: AT+5VT

Example: AT+5VT=2000  //Set extend the time of 5V power to 2000 ms

Downlink Commands: 0x05

Format: Command Code (0x05) followed by 3 bytes.

Example:  Downlink Payload: 05 00 07 D0    //AT+5VT=2000

3.8 Trigger an uplink by external interrupt

DS03A-CB has an external trigger interrupt function. Users can use the PB15 pin to trigger the upload of data packets.

AT command:

  • AT+INTMOD         // Set the trigger interrupt mode
  • AT+INTMOD=0    // Disable Interrupt
  • AT+INTMOD=1    // Trigger by rising and falling edge
  • AT+INTMOD=2    // Trigger by falling edge
  • AT+INTMOD=3    // Trigger by rising edge

Downlink Commands: 0x06

Format: Command Code (0x06) followed by 3 bytes.

Example1:  Downlink Payload: 06 00 00 01    //AT+INTMOD=1

Example2:  Downlink Payload: 06 00 00 03    //AT+INTMOD=3

3.9 Set the QoS level

This command is used to set the QoS level of MQTT.

AT command:

  • AT+MQOS=xx   // 0~2

Downlink command: 0x07

Format: Command Code (0x07) followed by 1 byte.

Ex1: Downlink payload: 0x0700   //AT+MQOS=0

Ex2: Downlink payload: 0x0701   //AT+MQOS=1

3.10 Clock logging

Sometimes when we deploy lots of end nodes in field. We want all sensors sample data at the same time, and upload these data together for analyze. In such case, we can use clock loging feature.

We can use this command to set the start time of data recording and the time interval to meet the requirements of the specific collection time of data.

AT command: AT+CLOCKLOG=a,b,c,d

a: 0: Disable Clock logging.   1: Enable Clock Logging

b: Specify First sampling start second: range (0 ~ 3599, 65535)         // Note: If parameter b is set to 65535, the log period starts after the node accesses the network and sends packets.

c: Specify the sampling interval: range (0 ~ 255 minutes)

d: How many entries should be uplink on every TDC (max 32)

Note: To disable clock recording, set the following parameters: AT+CLOCKLOG=1,65535,0,0


Example:

AT+CLOCKLOG=1,65535,1,5

After the node sends the first packet, data is recorded to the memory at intervals of 1 minute. For each TDC uplink, the uplink load will include: battery information + the last 5 memory records (payload + timestamp).


Note: Users need to synchronize the server time before configuring this command. If the server time is not synchronized before this command is configured, the command takes effect only after the node is reset.

Downlink command: 0x08

Format: Command Code (0x08) followed by 5 bytes.

  • Example 1: Downlink Payload: 08 01 FFFF 0F 08             // Set SHT record time: AT+CLOCKLOG=1,65535,15,8
  • Example 2: Downlink Payload: 08 01 04B0 0F 08             // Set SHT record time: AT+CLOCKLOG=1,1200,15,8

Note: When entering the downlink payload, there must be no Spaces between bytes.

3.11 Set the TLS mode

Refer to this link (MQTT Connection to send data to Tago.io)to use the TLS mode.

AT Command: AT+TLSMOD

Example 1:  AT+TLSMOD=0,0   //Disable TLS Mode.

Example 2:  AT+TLSMOD=1,0   //No authentication

                     AT+TLSMOD=1,1   //Perform server authentication

                     AT+TLSMOD=1,2   //Perform server and client authentication if requested by the remote server

Downlink command: 0x09

Format: Command Code (0x09) followed by 2 bytes.

Example1:  Downlink Payload: 09 00 00    //AT+TLSMOD=0,0

Example2:  Downlink Payload: 09 01 02    //AT+TLSMOD=1,2

3.12 Set GNSS open time

Extend the time to turn on GNSS. The automatic GPS location time is extended when the node is activated.

AT Command: AT+GNSST

Example: AT+GNSST=30  //Set the GPS positioning time to 30 seconds

Downlink command: 0x10

Format: Command Code (0x10) followed by 2 bytes.

Example:  Downlink Payload: 10 00 1E    //AT+GNSST=30

3.13 Turn on/off GPS

AT Command: AT+GPS

Ex1:  AT+GPS=0    //Turn off GPS

Ex2:  AT+GPS=1    //Turn on GPS

Downlink command: 0x11

Format: Command Code (0x11) followed by 1 byte.

Example:  Downlink Payload: 11 01   //AT+GPS=1

3.14 Set GPS positioning interval

Feature: Set GPS positioning interval (unit: hour).

When GPS is enabled, the node automatically locates and uplinks each time it passes GTDC time after activation.

AT Command: AT+GTDC

Example: AT+GTDC=24  //Set the GPS positioning interval to 24h.

Downlink command: 0x12

Format: Command Code (0x12) followed by 3 bytes.

Example: 24 hours:  24(D)=0x18(H)

               Downlink Payload: 12 00 00 18  //AT+GTDC=24

3.15 Set the search network time

Feature: Get or Set the time to join the network(unit: minutes).

AT Command: AT+CSQTIME

Example: AT+CSQTIME=10 //Set the search time to 10 minutes.

Downlink command: 0x13

Format: Command Code (0x13) followed by 1 byte.

Example:  Downlink Payload: 13 0A  //AT+CSQTIME=10

3.16 TTRIG timeout status alarm

Feature: Set Alarm interval of TTRIG1/TTRIG2. (unit: minute)
It needs to be used with AT+TTRIG1/AT+TTRIG2 . When TTRIG times out and causes an alarm, and the status does not change subsequently, an alarm packet will be sent at the alarm interval.

AT Command: AT+TTRALARM

Example:

  • AT+TTRALARM=0        //disable continuous alarm
  • AT+TTRALARM=60      //Set the alarm interval to 60 minutes (unit: minutes)

Downlink Command: 0x0A

Example:

  • Downlink payload: 0x0A 00    //AT+TTRALARM=0
  • Downlink payload: 0x0A 3C    //AT+TTRALARM=60, 60(D)=0x3C(H)

3.17 Enable / Disable Alarm

Feature: Enable/Disable Alarm for open/close event. Default value 0.

AT Command:  AT+DISALARM

Command ExampleFunctionResponse
AT+DISALARM=1End node will only send packets in TDC time.OK
AT+DISALARM=0End node will send packets in TDC time or status change for door sensorOK

Downlink Command:  0x0B

Example: Downlink payload: 0x0B 00    //AT+DISALARM=0

3.18 Number of channel of door sensors

Feature: Set the number of door sensor channels.

AT Command:

Command ExampleFunctionResponse

AT+TTRCHANNEL=1

Set as single channel, only use PA8 pin as interrupt pin.

OK

AT+TTRCHANNEL=2

Set as dual channel, use PA8 pin and PA4 pin as interrupt pin.

OK

Downlink Command: 0x0C

Format: Command Code (0x0C) followed by 1 byte.

Example:   Downlink payload: 0C 02         // AT+TTRCHANNEL = 2

3.19 Alarm Base on Timeout

CPL03-CB can monitor the timeout for a status change, this feature can be used to monitor some events such as door opening too long etc. Related Parameters are:

1. Keep Status: Status to be monitor

Keep Status = 1: Monitor Close to Open event

Keep Status = 0: Monitor Open to Close event

2. Keep Time: Timeout to send an Alarm

Range 0 ~ 65535(0xFFFF) seconds.

If keep time = 0, Disable Alarm Base on Timeout feature.

If keep time > 0, device will monitor the keep status event and send an alarm when status doesn’t change after timeout.

Feature: Set Alarm Base on Timeout.

AT Command: AT+TTRIG1, AT+TTRIG2

Downlink Command: 0x0D, 0x0F

Format:  AT+TTRIG1-->Command Code (0x0D) followed by 8 bytes, each parameter after 0D takes 4 bytes.

              AT+TTRIG2-->Command Code (0x0F) followed by 8 bytes, each parameter after 0F takes 4 bytes.

1) AT+TTRIG1 : (PA8 of pin)

AT Command to configure:

  • AT+TTRIG1=1,30   --> When the Keep Status change from close to open, and device remains in open status for more than 30 seconds. DS03A-CB will send an uplink packet, the Alarm1 bit(the second bit of 1st byte of payload) on this uplink packet is set to 1.

    AT+TTRIG1=0,30   --> When the Keep Status change from open to close, and device remains in open status for more than 30 seconds. DS03A-CB will send an uplink packet, the Alarm1 bit (the second bit of 1st byte of payload) on this uplink packet is set to 1.

  • AT+TTRIG1=0,0    -->  Default Value, disable timeout Alarm.



Downlink Command to configure:

Example:

0x0D 00 00 00 01 00 00 00 1E equal to AT+TTRIG1=1,30

0x0D 00 00 00 00 00 00 00 00 equal to AT+TTRIG1=0,0

2) AT+TTRIG2 : (PA4 of pin,need to use AT+TTRCHANNEL=2)

AT Command to configure:

  • AT+TTRIG2=1,30   --> When the Keep Status change from close to open, and device remains in open status for more than 30 seconds. DS03A-CB will send an uplink packet, the Alarm2 bit (the second bit of 12st byte of payload) on this uplink packet is set to 1.

    AT+TTRIG2=0,30   --> When the Keep Status change from open to close, and device remains in open status for more than 30 seconds. DS03A-CB will send an uplink packet, the Alarm2 bit (the second bit of 12st byte of payload) on this uplink packet is set to 1.

  • AT+TTRIG2=0,0    -->  Default Value, disable timeout Alarm.



Downlink Command to configure:

Example:

0x0F 00 00 00 01 00 00 00 1E equal to AT+TTRIG2=1,30

0x0F 00 00 00 00 00 00 00 00 equal to AT+TTRIG2=0,0

3.20 Clear current door open count

Feature: Manually Clear current door open count

AT Command: AT+CLRC    //Clear current door open count

Downlink Command: 0xA0 00   //AT+CLRC

3.21 Count Mod

Feature: Manually set the count mode.

AT Command: AT+COUNTMOD      0: Accumulative (Default), 1: Reset after uplink.

Example:

  • AT+COUNTMOD=0   //Cumulative count.
  • AT+COUNTMOD=1   //Re-count after uplink & Re-count after reset.

Downlink Command: 0xA1

Example: 0xA1 00     //AT+COUNTMOD=0

3.22 Set the IPv4 or IPv6

This command is used to set IP version.

AT command:

  • AT+IPTYPE=1      // IPv4
  • AT+IPTYPE=2      // IPv6

3.23 Configure Network Category to be Searched for under LTE RAT.

AT command: AT+IOTMOD=xx

xx:       0: eMTC

            1: NB-IoT

            2: eMTC and NB-IoT

3.24 Factory data reset

Two different restore factory Settings configurations.

AT command:

  • AT+FDR       // Reset Parameters to Factory Default.
  • AT+FDR1     // Reset parameters to factory default values except for passwords.

3.25 Set CoAP option

Feature: Set CoAP option, follow this link to set up the CoaP protocol.

AT command: AT+URI1~AT+URI8

AT+URI1=11,CoAP endpoint URl length,"CoAP endpoint URl"   // 11 is a fixed parameter.

Example:  AT+URI1=11,38,"i/13a35fbe-9515-6e55-36e8-081fb6aacf86"

3.26 Power on / power off BG95 module

This command is used to power on and power off BG95 module.

  • AT command: AT+QSW

The module is powered on after the command is sent for the first time, and powered off after the command is sent again.


3.27 Example Query saved historical records

  • AT command: AT+CDP

This command can be used to search the saved history, recording up to 32 groups of data, each group of historical data contains a maximum of 100 bytes.


3.28 Uplink log query

  • AT command: AT+GETLOG

This command can be used to query upstream logs of data packets.


4. Battery & Power Consumption

DS03A-CB use ER26500 + SPC1520 battery pack. See below link for detail information about the battery info and how to replace.

Battery Info & Power Consumption Analyze .

5. Firmware update

User can change device firmware to::

  • Update with new features.
  • Fix bugs.

Firmware and changelog can be downloaded from : Firmware download link

Methods to Update Firmware:

  • (Recommended way) OTA firmware update via BLE: Instruction.

6. FAQ

6.1 How can I access the BG95-NGFF AT Commands?

User can access to BG95-NGFF directly and send AT Commands.

See BG95-NGFF AT Command set

6.2 General Manual for -CB , -CS models

Users can follow the instructions in this link to see how to configure to connect to different servers.

7. Order Info

Part Number: DS03A-CB-XX

XX

  • GE: General version ( Exclude SIM card)
  • 1T: with 1NCE* 10 years 500MB SIM card and Pre-configure to ThingsEye server

8. ​Packing Info

Package Includes:

  • DS03A-CB NB-IoT/LTE-M Door sensor x 1
  • External antenna x 1

Dimension and weight:

  • Device Size: 13.0 x 5 x 4.5 cm
  • Device Weight: 150g
  • Package Size / pcs : 14.0 x 8x 5 cm
  • Weight / pcs : 180g


9. Support

  • Support is provided Monday to Friday, from 09:00 to 18:00 GMT+8. Due to different timezones we cannot offer live support. However, your questions will be answered as soon as possible in the before-mentioned schedule.
  • Provide as much information as possible regarding your enquiry (product models, accurately describe your problem and steps to replicate it etc) and send a mail to Support@dragino.cc.



Tags:
Created by Mengting Qiu on 2024/07/12 14:39

Copyright ©2010-2022 Dragino Technology Co., LTD. All rights reserved
Dragino Wiki v2.0
