WSS-23 -- CO2, PM2.5, PM10


1. Introduction​

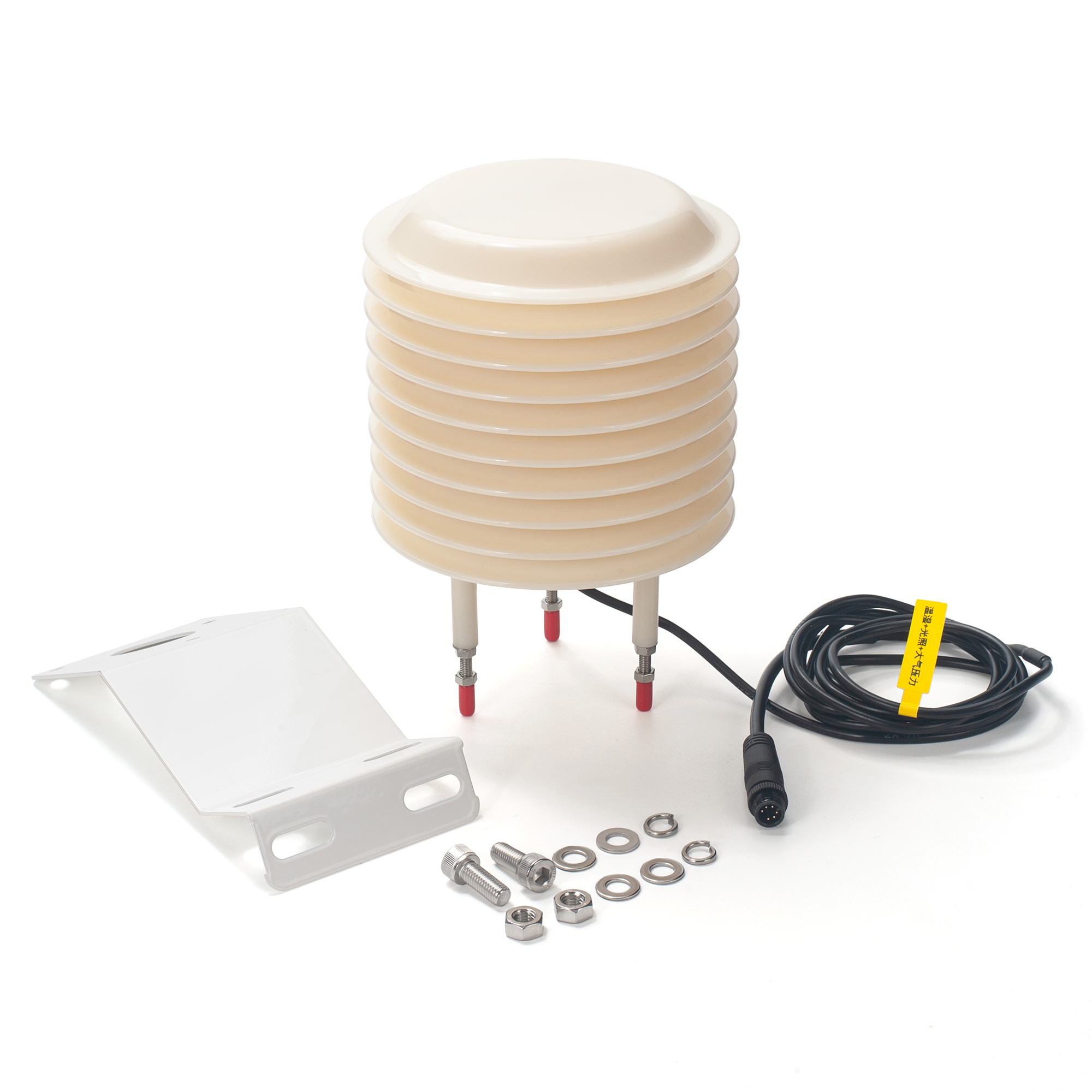

WSS-23 is a RS485 Air Quality sensor. It can monitor CO2, PM2.5 and PM10 at the same time.

WSS-23 uses weather proof shield which can make sure the sensors are well protected against UV & radiation.

1.1 Feature​

  • RS485 CO2, PM2.5, PM10 sensor
  • NDIR to measure CO2 with Internal Temperature Compensation
  • Laser Beam Scattering to PM2.5 and PM10

1.2 Specification​

  • CO2 Range: 0 ~ 5000ppm, accuracy: ±3%F•S(25℃)
  • CO2 resolution: 1ppm
  • PM2.5/PM10 Range: 0 ~ 1000μg/m3 , accuracy ±3%F•S(25℃)
  • PM2.5/PM10 resolution: 1μg/m3
  • Input Power: DC 7 ~ 24v
  • Preheat time: 3min
  • Interface: RS485
  • Default Baud Rate (with WSC2-L host): 4800
  • Working Temperature:
    • CO2: 0℃ ~ 50℃;
    • PM2.5/PM10: -30 ~ 50℃
  • Working Humidity:
    • PM2.5/PM10: 15 ~ 80%RH (no dewing)
    • CO2: 0 ~ 95%RH
  • Power Consumption: 50mA@ 12v.

1.3 Wiring​


1.4 Device Dimension​


1.5 Installation Notice​

Do not power on while connect the cables. Double check the wiring before power on.



1.6 RS485 Commands​

The RS485 command is as follows: Weather_Sensors_Modbus_Command_List
