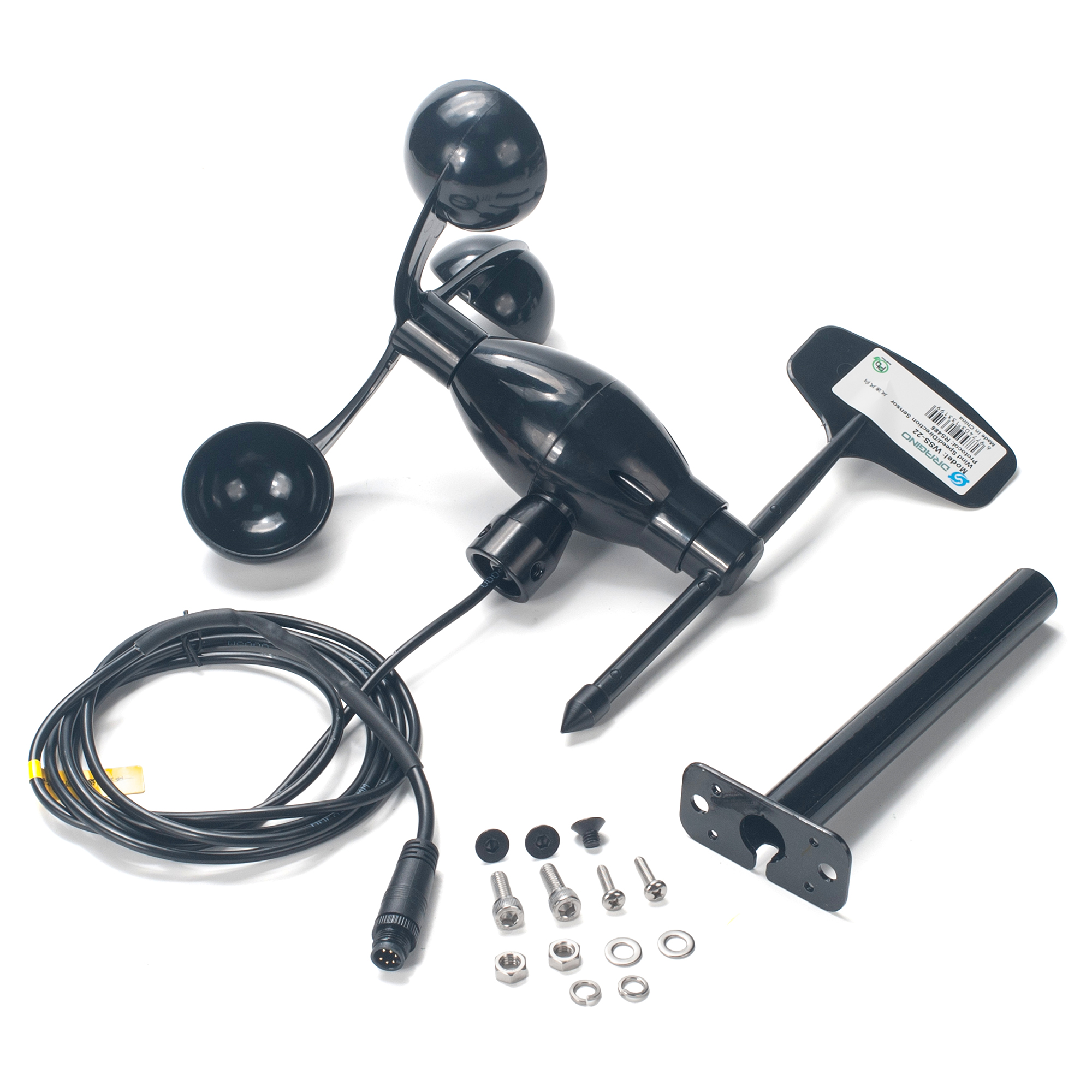

WSS-22 -- Integrated wind speed and direction sensor
1. Introduction
WSS-22 is a RS485 wind speed and wind direction monitor designed for weather station solution.
WSS-22 shell is made of polycarbonate composite material, which has good anti-corrosion and anti-corrosion characteristics, and ensure the long-term use of the sensor without rust. At the same time, it cooperates with the internal smooth bearing system to ensure the stability of information collection
1.1 Feature
- RS485 wind speed / direction sensor
- PC enclosure, resist corrosion
1.2 Specification
- Wind speed range: 0 ~ 60m/s
- Wind direction range: 0 ~ 360°
- Start wind speed: ≤0.3 m/s
- Accuracy: ±(0.3＋0.03V) m/s , ±1°
- Input Power: DC 5 ~ 24v
- Interface: RS485
- Default Baud Rate (with WSC2-L host): 4800
- Working Temperature: -30℃ ~ 70℃
- Working Humidity: <100% (no dewing)
- Power Consumption: 13mA @ 12v.
- Cable Length: 2 meters
1.3 Wiring
1.4 Device Dimension
1.5 Angle Mapping
1.6 Installation Notice
Do not power on while connect the cables. Double check the wiring before power on.
The sensor must be installed with below direction, towards North.
1.7 RS485 Commands
The RS485 command is as follows: Weather_Sensors_Modbus_Command_List
