Dragino NB/CB Series MQTT TLS Certificate Configuration Guide

1. Overview

This document describes how to write TLS certificates to Dragino NB/CB series devices for secure MQTT connection (e.g., connecting to ThingsEye platform via TLS).

This feature is available starting from the following protocol stack versions:

• NB-IoT Series (BC660K):Stack version 006 and above
• LTE-M Series (BG95-M2/M3):Stack version 004 and above

With these stack versions, TLS certificates can be written directly using standard AT commands within the working firmware. Previously, this required a dedicated firmware tool.

Applicable Device Models:

• -NB, -NS, -NB2, -N series (NB-IoT, BC660K module)
• -CB, -CS, -CB2, -C series (LTE-M, BG95-M2/M3 module)

2. Upload TLS Certificates to ThingsEye Platform (Example)

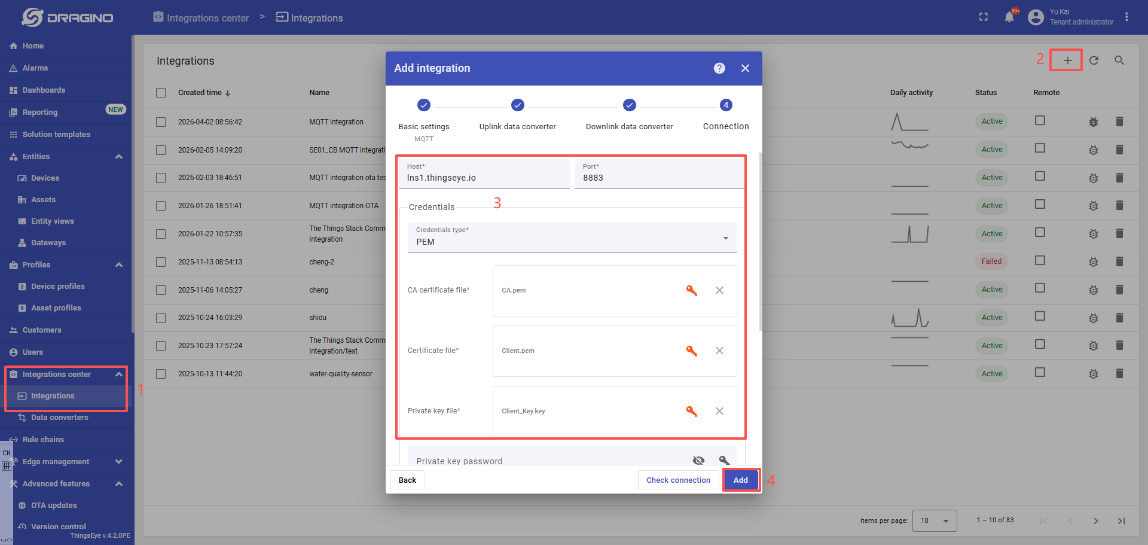

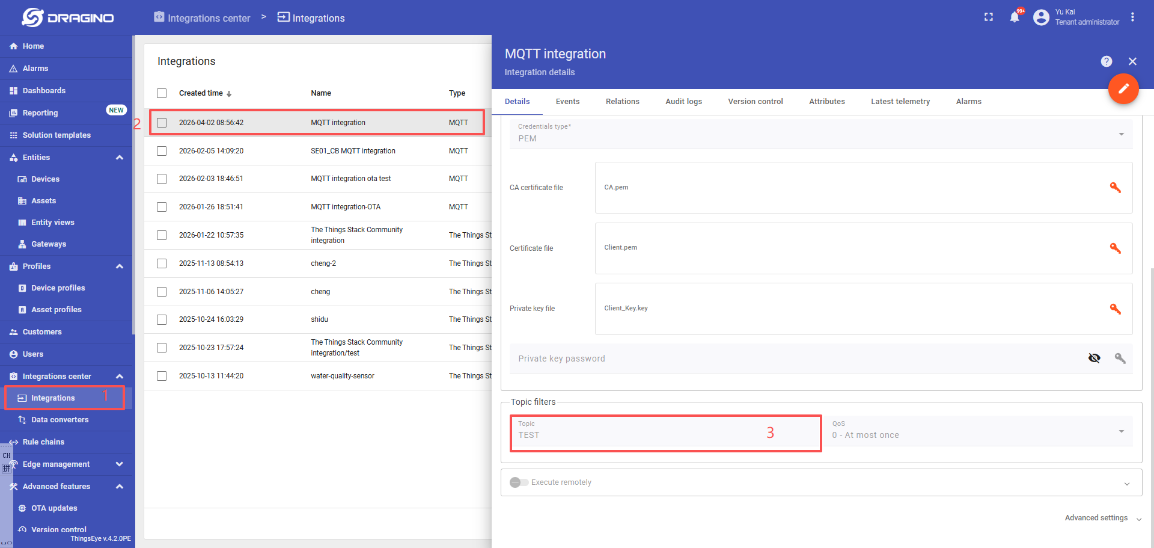

1. After logging in to the TE platform, click "Integration Center" in the menu bar on the left side of the home page.
2. Click the "+" icon in the top-right corner of the "Integrations" interface to add an MQTT integration.
3. During the setup process, upload the TLS certificates to the platform one by one.
4. Click "Add" to complete the process.

3. Write TLS Certificates to Dragino NB/CB Device

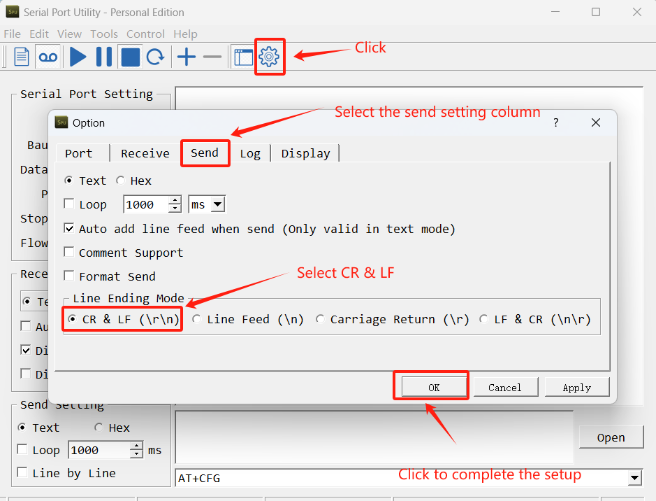

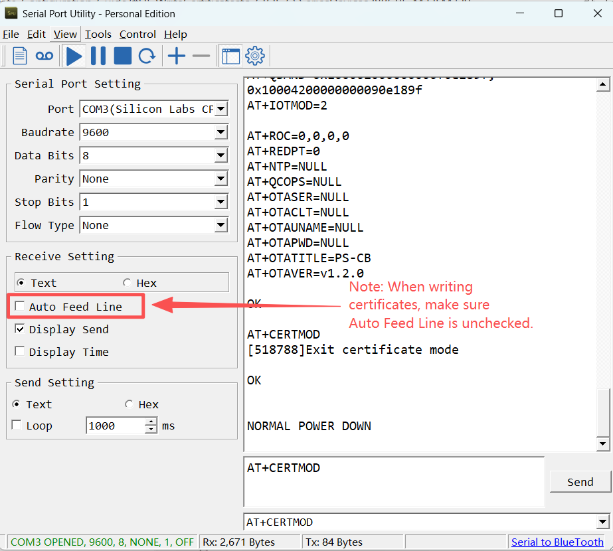

Note: To avoid certificate writing failures, ensure your serial port tool is configured to automatically append a newline character (CR/LF) when sending commands. Certificates written without a terminating newline will be invalid.

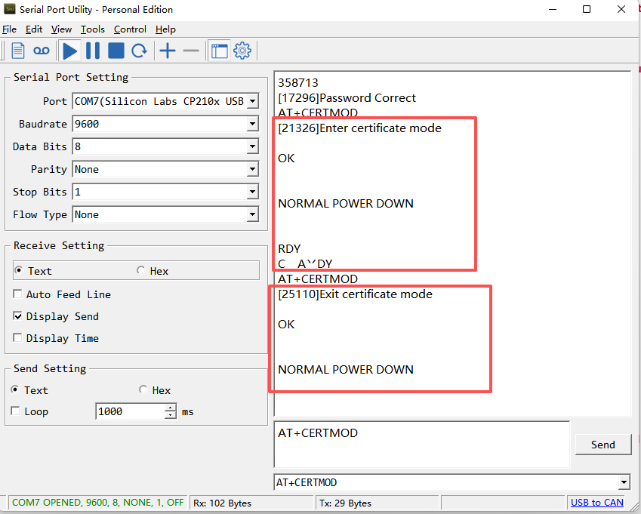

Using the Serial Port Utility as an example:

4. Write Certificates to -NB/-NS Series Devices (BC660K)

4.1 Configure CA Certificate

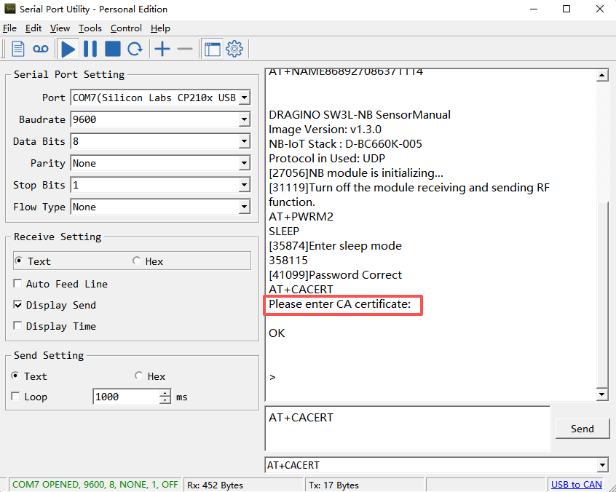

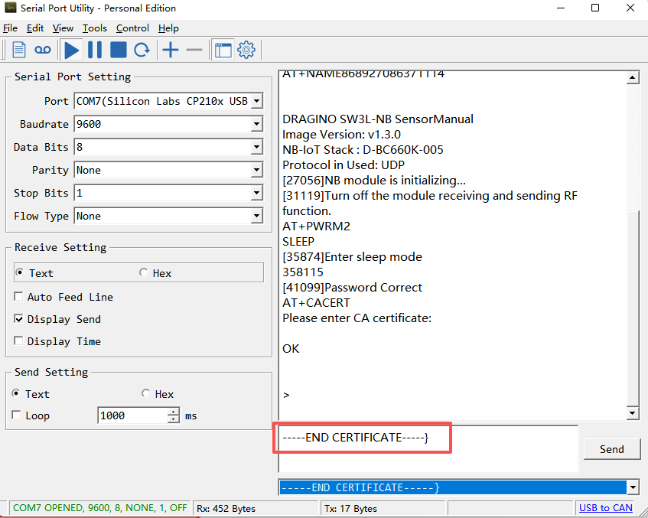

Send the AT command AT+CACERT via serial port tool. After sending, wait for the device to display "Please enter CA certificate", then send the certificate content line by line.

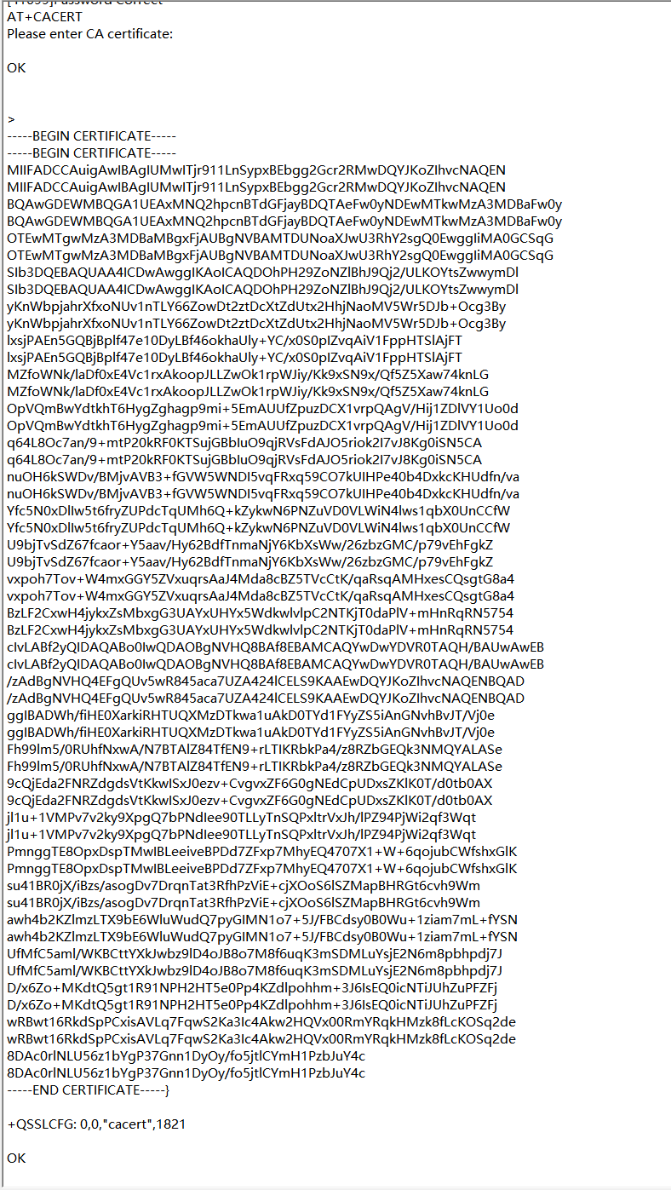

After successful execution, as shown in the following figure.

The device will respond with:
+QSSLCFG: 0,0,"cacert",<total_chars>

Where <total_chars> = Total characters in the certificate file + Number of line breaks.

Example: If the certificate file has 1792 characters and 29 line breaks, the response will show 1821 characters.

4.2 Configure Client Certificate

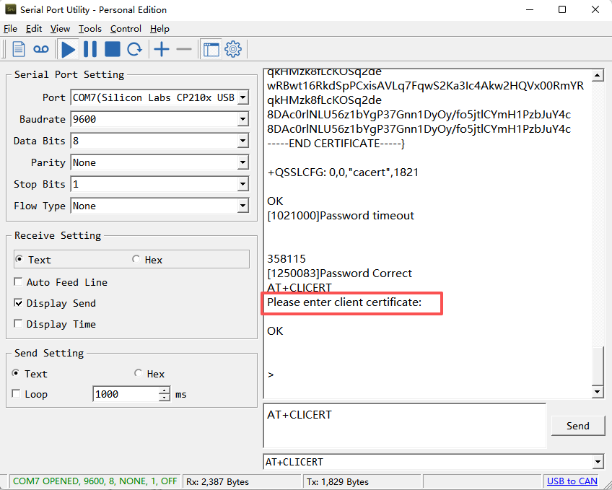

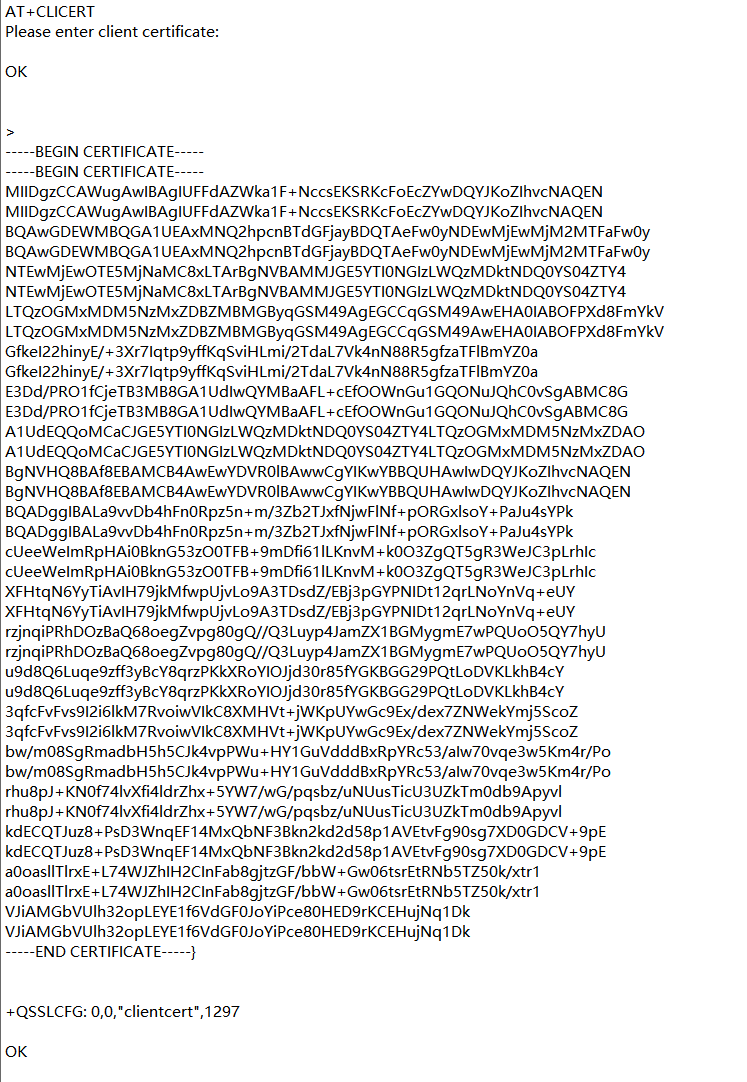

Send the AT command AT+CLICERT via serial port tool. After sending, wait for the device to display "Please enter client certificate", then send the certificate content line by line.

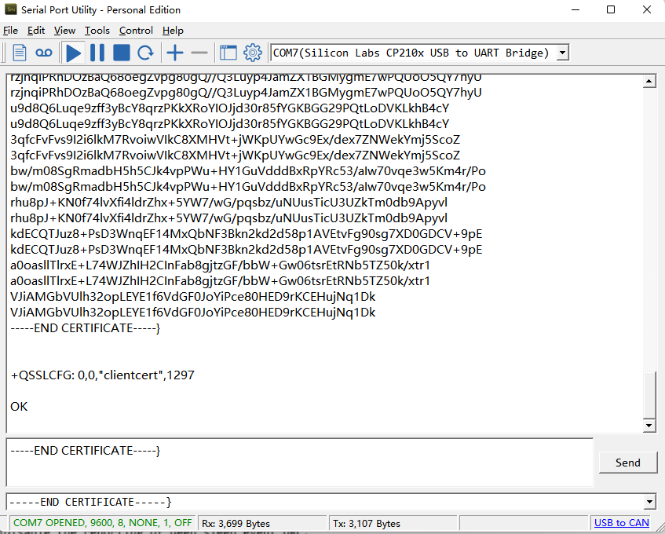

After successful execution, as shown in the following figure.

The device will respond with:
+QSSLCFG: 0,0,"clientcert",<total_chars>

Where <total_chars> = Total characters in the certificate file + Number of line breaks.

Example: If the certificate file has 1276 characters and 21 line breaks, the response will show 1297 characters.

4.3 Configure Client Private Key

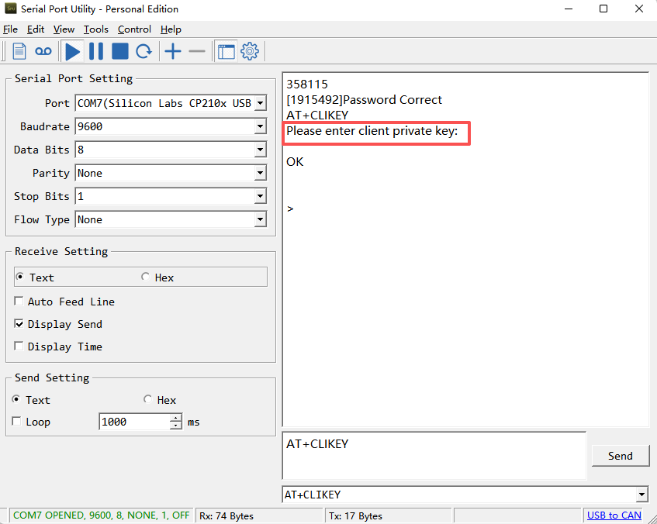

Send the AT command AT+CLIKEY via serial port tool. After sending, wait for the device to display "Please enter client private key", then send the certificate content line by line.

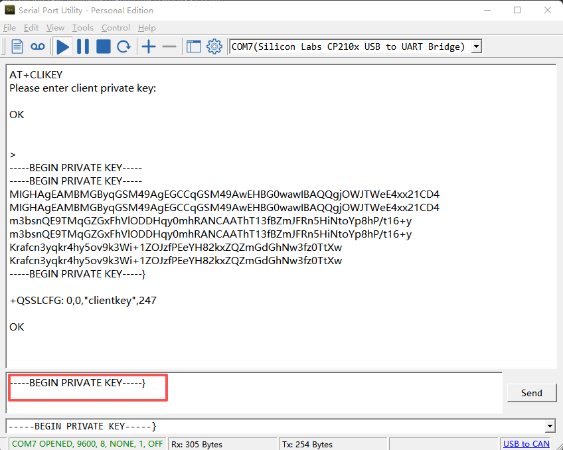

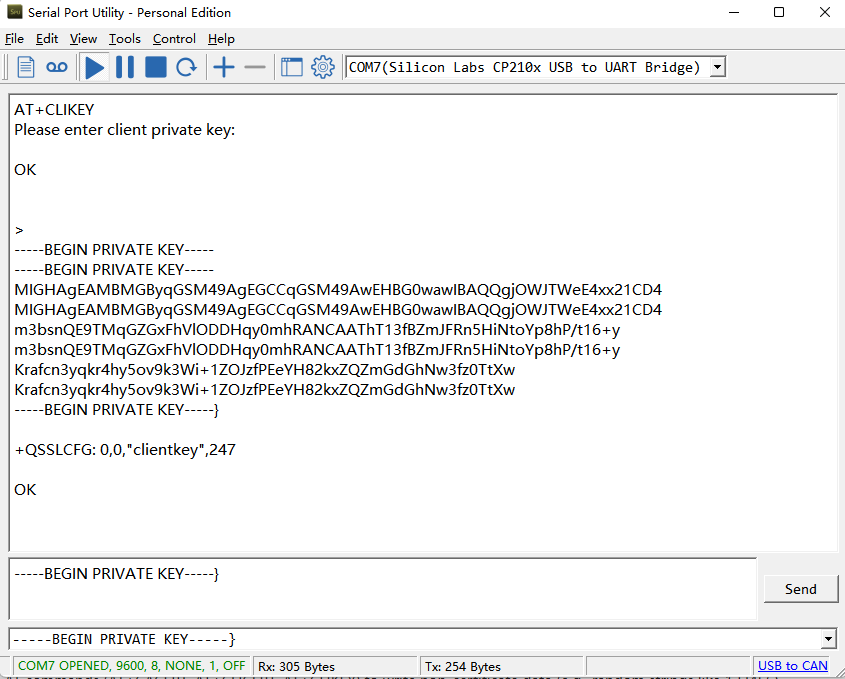

After successful execution, as shown in the following figure.

The device will respond with:
+QSSLCFG: 0,0,"clientkey",<total_chars>

Where <total_chars> = Total characters in the certificate file + Number of line breaks.

Example: If the certificate file has 241 characters and 6 line breaks, the response will show 247 characters.

4.4 Clear Certificates by Overwriting

The -NB/-NS modules (BC660K) do not support direct certificate deletion via AT commands or firmware updates. To remove existing certificates, overwrite them with dummy data.

Steps:

1. Use the standard write commands (AT+CACERT, AT+CLICERT, AT+CLIKEY) to enter certificate writing mode.
2. Instead of real certificate data, write a dummy string (e.g., "123456").

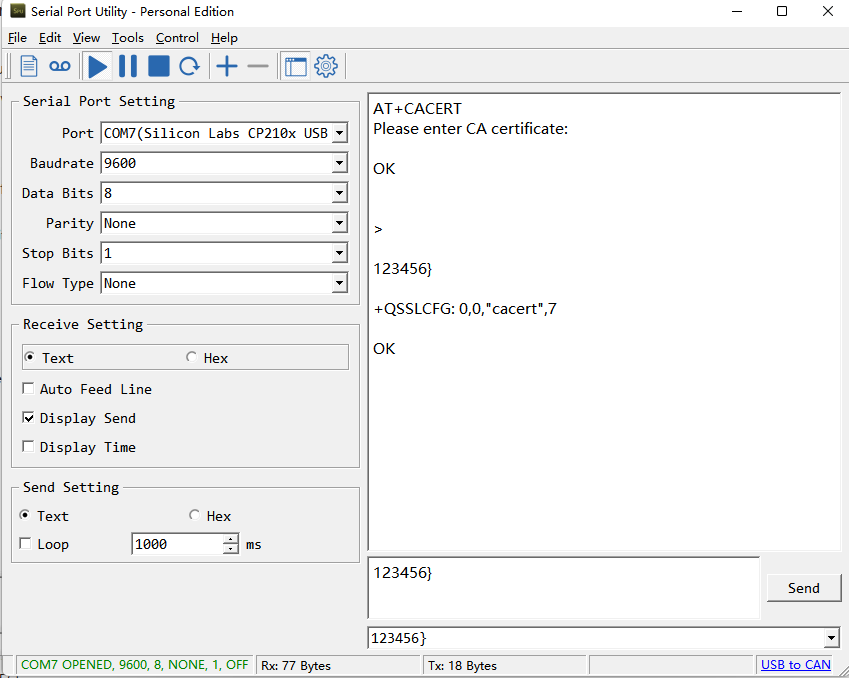

① Example - Delete CA certificate:

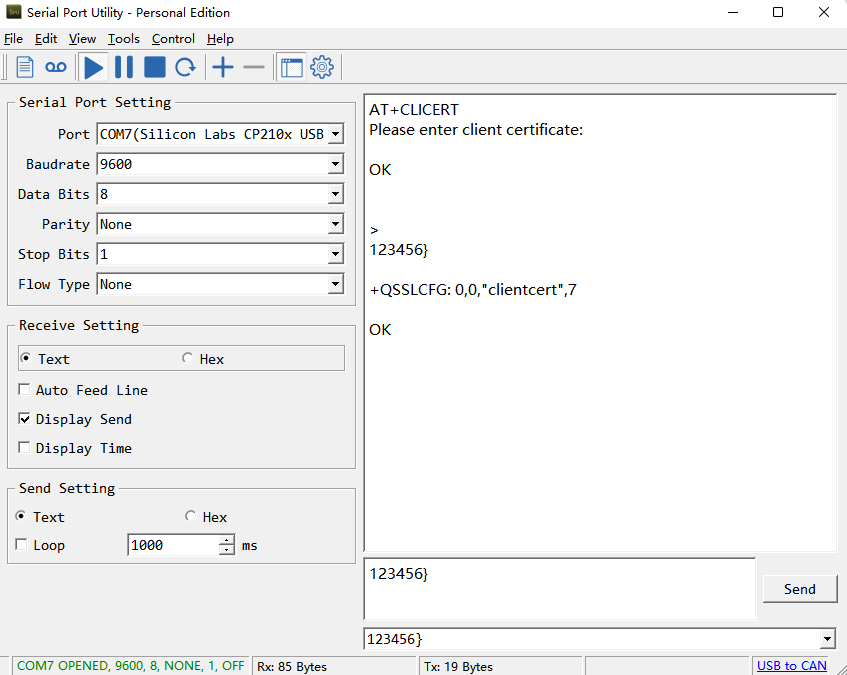

② Example - Delete client certificate:

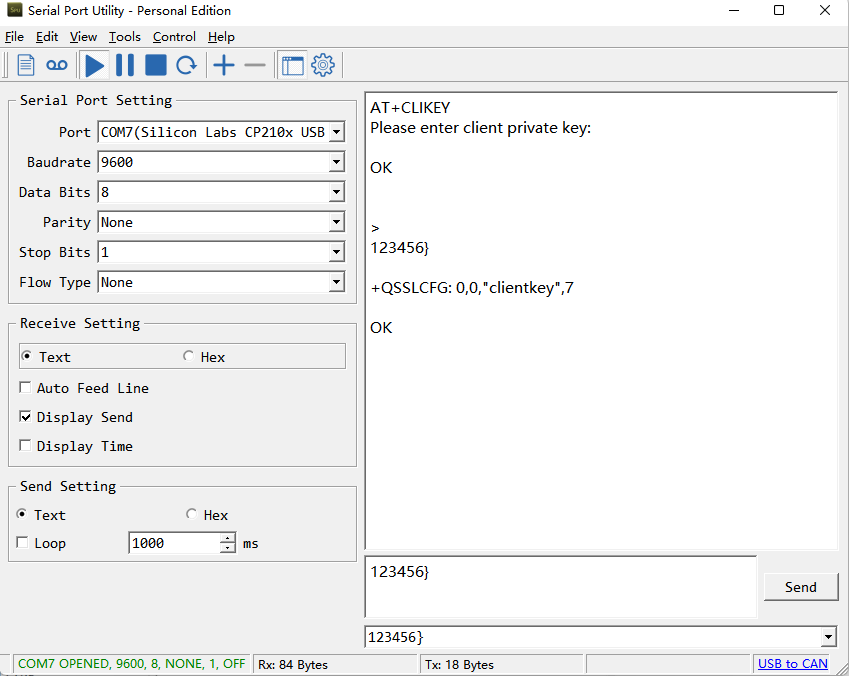

③ Example - Delete client private key:

If you receive a "Failure" response, retry the operation or check the module connection.

5. Write Certificates to -CB/-CS Series Devices (BG95-M2/M3)

5.1 Configure CA Certificate

Note: You can choose either CA1 or CA3 certificate.

1. Send the AT command AT+QFUPL="cacert.pem",<size>,100 via serial port tool.

2. After sending, wait for the device to display "CONNECT", then send the certificate content line by line.

Parameter <size> description: Total characters in the certificate file + Total number of line breaks.

Example:

If the certificate file has 1792 characters and 29 line breaks, then <size> = 1792 + 29 = 1821.

The write command would be: AT+QFUPL="cacert.pem",1821,100

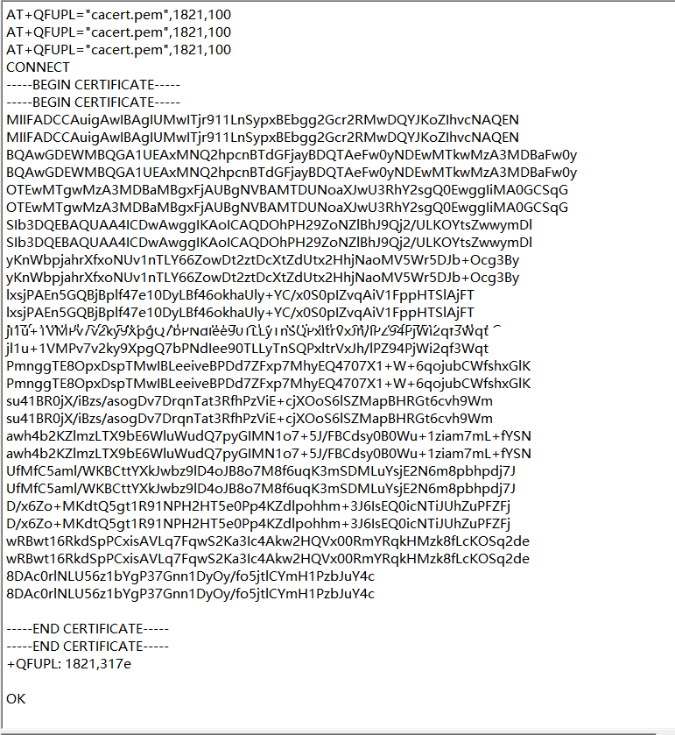

After successful execution, as shown in the following figure.

The device will respond with:
"+QFUPL: <total_chars>,<checksum>"

Parameter Description:

• <total_chars>: Total number of characters written, matches the "size" value specified in the command.
• <checksum>: Checksum automatically calculated by the device.

5.2 Configure Client Certificate

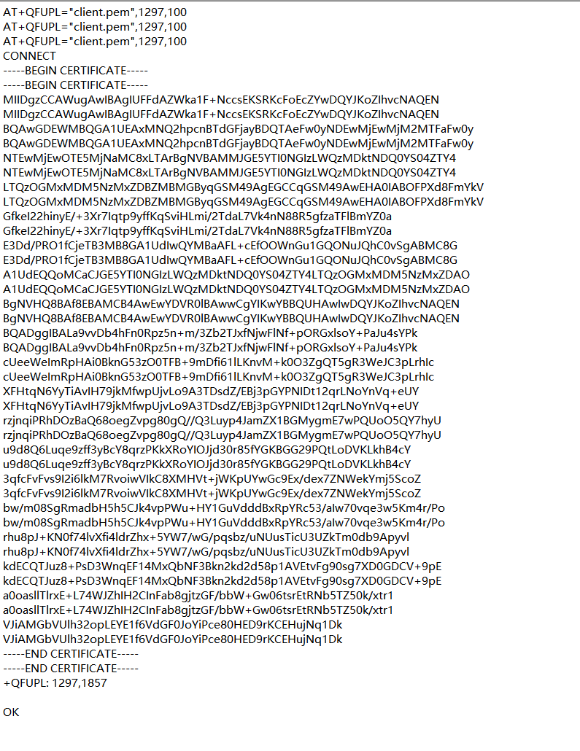

1. Send the AT command AT+QFUPL="client.pem",<size>,100 via serial port tool.

2. After sending, wait for the device to display "CONNECT", then send the certificate content line by line.

Parameter <size> description: Total characters in the certificate file + Total number of line breaks.

Example:

If the certificate file has 1276 characters and 21 line breaks, then <size> = 1276 + 21 = 1297.
The write command would be: AT+QFUPL="client.pem",1297,100

After successful execution, as shown in the following figure.

The device will respond with:
+QFUPL: <total_chars>,<checksum>Parameter Description:

• <total_chars>: Total number of characters written, matches the "size" value specified in the command.
• <checksum>: Checksum automatically calculated by the device.

5.3 Configure Client Private Key

1. Send the AT command AT+QFUPL="user_key.pem",<size>,100 via serial port tool.

2. After sending, wait for the device to display "CONNECT", then send the certificate content line by line.

Parameter <size> description: Total characters in the certificate file + Total number of line breaks.

Example:

If the certificate file has 241 characters and 5 line breaks, then <size> = 241 + 5 = 246.

The write command would be: AT+QFUPL="user_key.pem",246,100

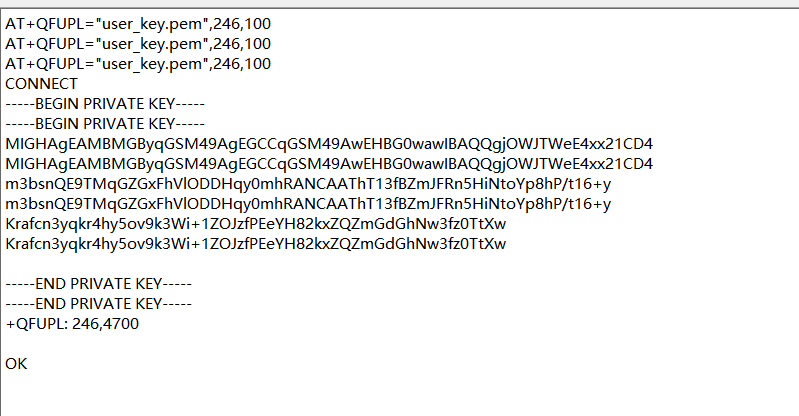

After successful execution, as shown in the following figure.

The device will respond with:
+QFUPL: <total_chars>,<checksum>Parameter Description:

• <total_chars>: Total number of characters written, matches the "size" value specified in the command.
• <checksum>: Checksum automatically calculated by the device.

5.4 Delete or Replace Certificates

If you have written an incorrect certificate or need to replace an existing certificate, use the following commands to delete the current certificates first:

AT+QFDEL="cacert.pem"AT+QFDEL="client.pem"AT+QFDEL="user_key.pem"

6. Configure Device to Connect to ThingsEye

6.1 Set Data Format

AT+PRO=3,5 (MQTT JSON format uplink)

6.2 Set Server Address

AT+SERVADDR=lns1.thingseye.io,8883

6.3 Set MQTT Topics

ThingsEye does not restrict topic names, so you can set any topic.

AT+SUBTOPIC=<any_topic>AT+PUBTOPIC=<any_topic>

6.4 Set TLS Mode

AT+TLSMOD=1,2

The AT+TLSMOD command configures the TLS authentication mode:

- AT+TLSMOD=1,0 - No authentication

• AT+TLSMOD=1,1 - Server authentication only
• AT+TLSMOD=1,2 - Server and client authentication (recommended for AWS/ThingsEye)

6.5 Restart Device

After completing all configurations, restart the device using one of the following methods:

• Send the AT command: ATZ
• Press the ACT button for more than 3 seconds

The device will reboot and apply all configuration changes.

7. Verify Data on ThingsEye

7.1 Find MQTT Test Client

In the MQTT test client, enter the topic you configured with AT+PUBTOPIC. If you have forgotten your topic, you can use # as a wildcard to subscribe to all topics.

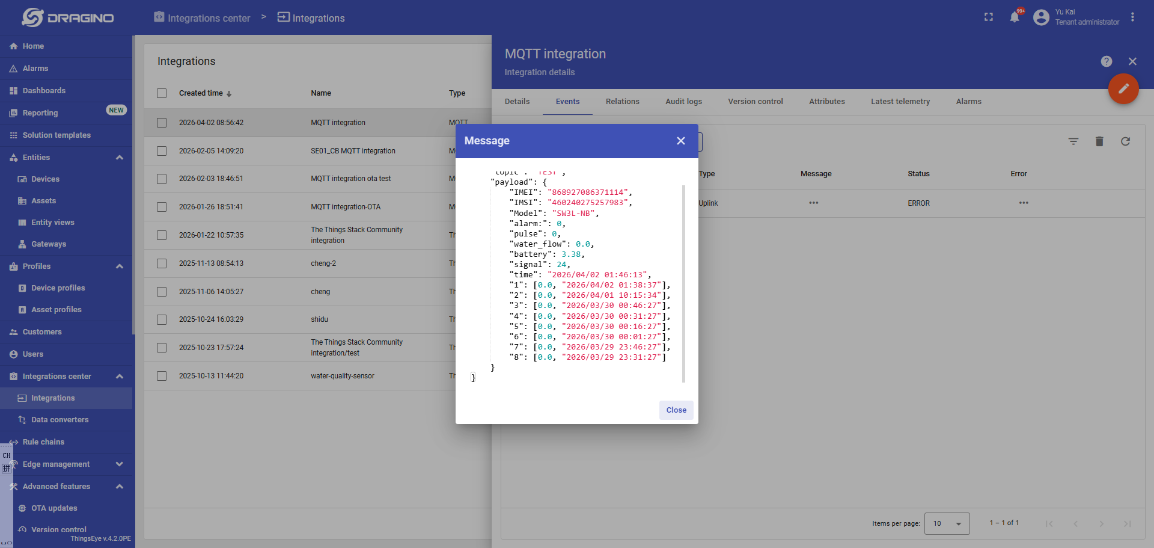

7.2 View Subscribed Data

After subscribing, you will see the device uplink data in the Subscriptions panel.
