DishSense

1. Introduction

1.1 ​ What is DishSense Dishwasher Wireless Thermometer

DishSense is a professional-grade dishwasher thermometer designed for accurate and reliable temperature monitoring in commercial food service environments. Ideal for restaurants, central kitchens, food service establishments, and food processing facilities, DishSense ensures that critical temperatures required by hygiene standards are met during the high-temperature cleaning and sanitizing processes of dishwashers. Its precise monitoring helps verify sanitizing effectiveness, ensures tableware hygiene and safety, and meets HACCP compliance standards.

With built-in LoRaWAN connectivity, DishSense enables long-range, low-power, and maintenance-friendly data transmission even in complex commercial kitchen environments. Temperature records and sanitization status can be sent in real time to an IoT backend or kitchen management system, allowing operators to monitor dishwasher performance remotely, receive alerts when temperature thresholds are not met, and maintain traceable compliance logs without manual checks.

DishSense is ideal for environments requiring strict adherence to food safety regulations, such as restaurants, central kitchens, food service establishments, and food processing plants.

​1.2 Features

• Dishwasher Thermometer– Designed specifically for dishwasher water temperature monitoring
• Food-Grade – Safe for food contact and dishwasher-compatible for easy cleaning
• LoRaWAN Connectivity – Enables long-range, low-power data transmission to IoT platforms

1.3 Specification

Supply Voltage:

• Built-in 2400mAh 3.0v CR17450 battery

Operating Temperature:

• -20°C ~ 93°C or -4°F ~ 199.4°F
• Accuracy: ±0.5°C or ±0.9°F

IP Rate: IP67

1.4 ​ Applications

• Commercial Kitchen
• Restaurant
• Catering
• Food Processing
• Central Kitchen

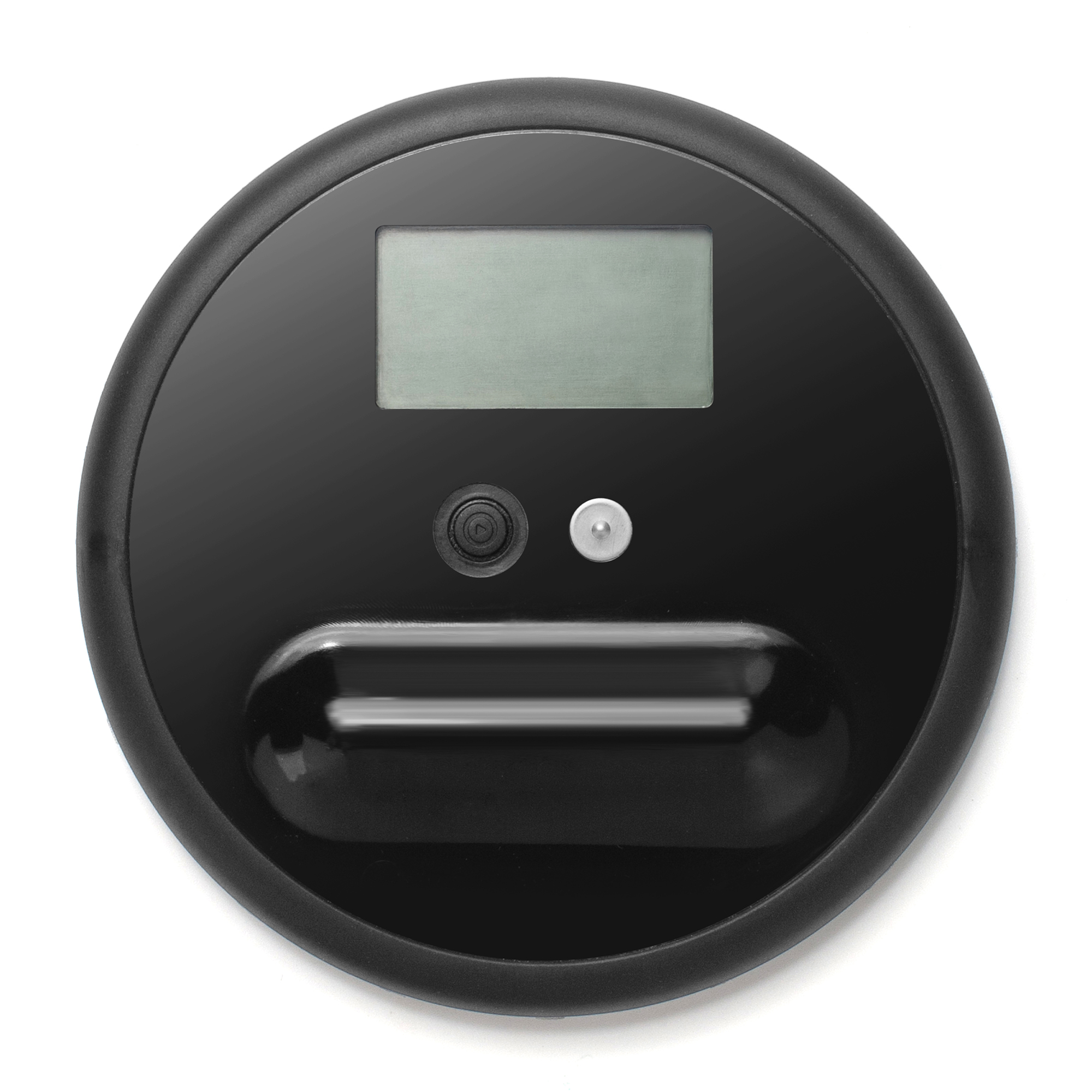

1.5 Product Apperance

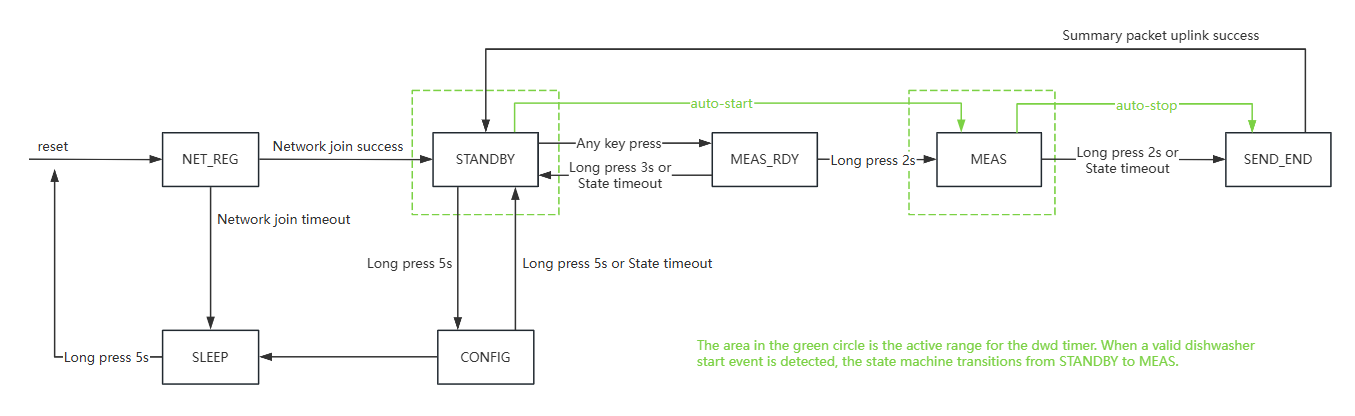

1.6 Working Mode and LCD Display

1. 上面每一块区域需要标注是什么功能。

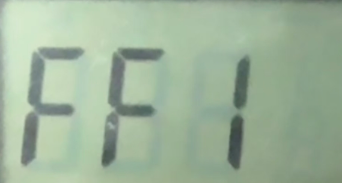

FF1: Represents MOD1

FF2: Represents MOD2

FF3: Represents MOD3

Power On:

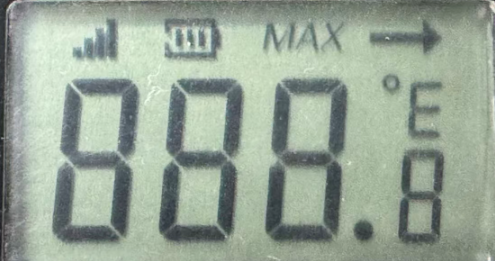

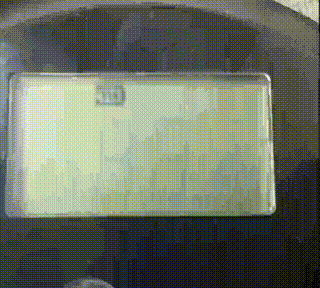

Each time powered on or reset, all segments of the LCD will be displayed in sequence and then disappear, then it will shows the current mod.

FF1 to FF3 standands for MOD1 to MOD3. Example Display as below: 下面放一个启动动态符

Registering LoRaWAN Network

After Power ON, the battery level will be displayed, and device will start to Join Network. Signal strength will be shown after network join successful, otherwise, there will no signal icon . The arrow will flash each time there is transmit to LoRaWAN or get a signal from LoRaWAN network.

Standby

After Join Successful, the device will show STA5 to STA0 and then enter Standby model.

In Standby mode, DishSense will:

• Turn off LCD to make sure the lowest power consumption.
• Send Keep Alive Message every 12 hours.
• Wait for user to push button to wait up and measure.

Notice: if Dishsense join fail to LoraWAN network, it will keep join to the network, untill successful. The join behaviour is as explain here:

• EU868 OTAA Join DR Logic. SF7->SF8->SF9->SF10->SF11->SF12; Each SF will make 3 attempts and then loop
• US915 and AU915 OTAA Join procedure,. End node by default will use all 72 channels (All sub-bands) to join and it will be set to use the proper sub-band after Join success

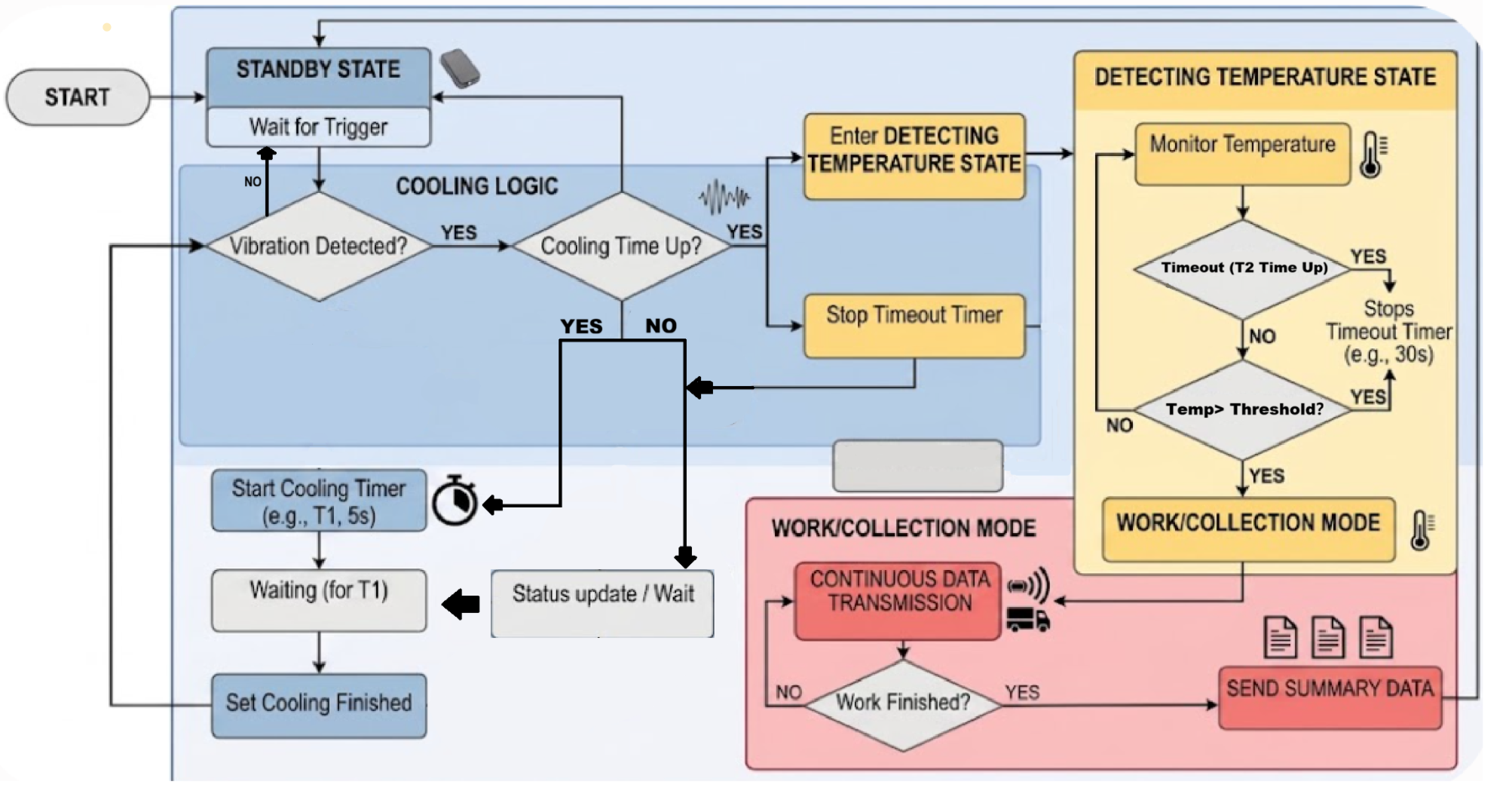

Measuring

In Standby mode:

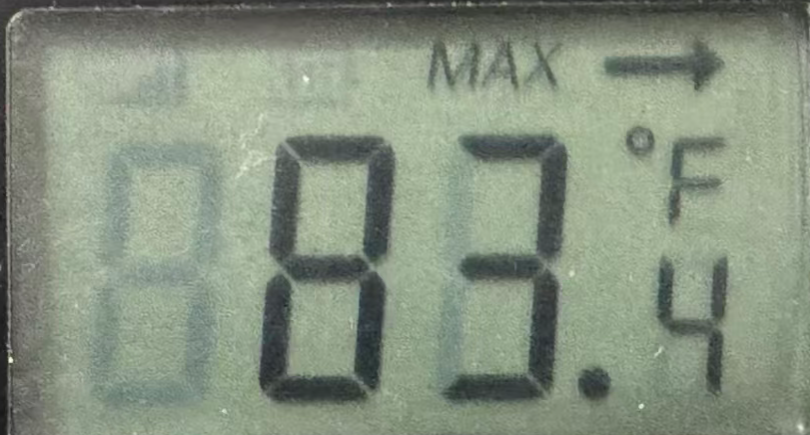

1. Single press turn on display will show FFx (1s) and then last max temp 1s (Last: 38.4) and then display RDY (3 seconds)

2. Press and hold for 2 seconds to start new measure cycle. ( Display: GO 3 --> 2 --> 1 --> 0) and then start. Shows temperautre change in the first 5 seconds and then display turn off.

3. Place DishSense with other dishware before start of wash cycle.

4. During Measurement, Dishsense will send an uplink at the begining and send uplink every 15 seconds.

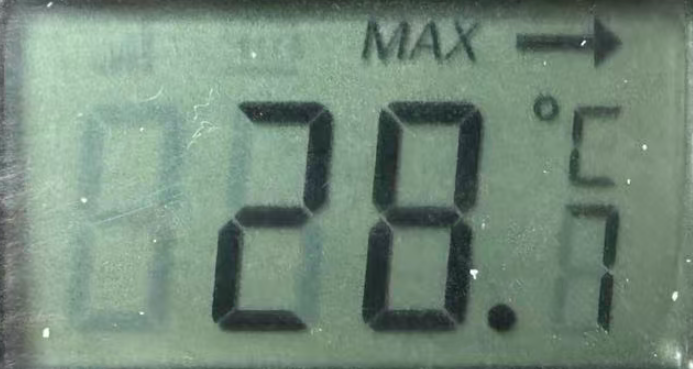

5. After wash cycle, Press and hold for 2 seconds to check the Max TEMP and exit measure mode. Before exit the measurement mode, DishSense will send an uplink with MAX temp during the measure cycle. To make sure the uplink not lost, the uplink will use Datalog and Retry feature.

6. Automatic Exit Mode. You can set the device to automatically exit working mode after a certain period. The factory default is 2 minutes and 15 seconds. You can set the corresponding time using download port 1.

Minimum time is 90 seconds, download command is 39 00 00 00 09 Minimum time increment is 15 seconds, 105 seconds, download command is 39 00 00 00 0A Maximum time is 1200 seconds, download command is 39 00 00 00 50

Configure MODE

To enter ready mode, tap once in standby mode; otherwise, enter standby mode after 20 seconds of inactivity. Alternatively, press and hold for 3 seconds to enter standby mode.

In Register mode or Standand by mode:

Press and hold for 5 to enter configure mode. User will see CFG (last 3 seconds), press will switch between below option. when display showing the option, press and hold for 3 seconds will enable the configure of this option:

• SLP: Deep Sleep Mode: Sensor doesn't have any LoRaWAN activate. This mode is used for storage and shipping to save battery life.
• RST: Reset DishSense to re-join network
• U C: Set unit to °C
• U F: Set unit to F°
• FF1: Set measuring mode to mod 1
• FF2: No function yet, features to be developed.
• FF3: No function yet, features to be developed.

After setting, press and hold for 5 seconds to return to the main interface.

1.7 Some other instructions

The LCD transmission result shows 0, indicating that the transmission was successful, which means that the data packet was sent. In fact, the platform side may not receive it due to packet loss, but the actual fcnt has been increased, so the number of packets lost during the period can be determined by receiving the next unlost data packet. To ensure successful network access and reduce packet loss, good signal strength needs to be ensured. The device may not work when the battery power is too low. Pay attention to the upstream battery voltage.

2. Use DishSense

2.1 ​Quick guide to connect to a LoRaWAN server (OTAA)

In this example, we use The Things Stack as the LoRaWAN network server to show you how to register the DishSense with a LoRaWAN network server and how to activate it using OTAA. In this network diagram, the probe sends data packets to the charger/repeater unit via BLE. The repeater then converts those BLE data packets to LoRa packets and sends them to the Network Server.

In this example, we use the LPS8v2 as the LoRaWAN gateway.

Sign up for a free account with The Things Stack Sandbox if you do not have one yet. Then, create an application as shown in the screenshots below.

Application ID: Provide a unique name to identify your application within The Things Stack, e.g., dragino-docs.

2.1.1 Adding manually

You can refer to the screenshots below to register your DishSense using The Things Stack's manual option.

On The Things Stack console:

1. Click Applications.

2. Click <your application>. E.g. dragino-docs

3 Click End devices.

4. Click + Register end device button.

5. Select Enter end device specifies manually option.

6. Frequency plan: Select the frequency plan that matches your device. E.g.: Europe 863-870 MHz (SF9 for RX2 - recommended).

7. LoRaWAN version: LoRaWAN Specification 1.0.3

8. Regional Parameters version: You can't change it and it will select automatically.

9. Click on the Show advanced activation, LoRaWAN class and cluster settings to expand the section.

10. Select Over the air activation (OTAA) option.

11. Select None (class A only).

12. JoinEUI: Enter the AppEUI of the device (see the registration information sticker) and Click the Confirm button.

13. DevEUI: Enter the DevEUI of the device (see the registration information sticker).

14. AppKey: Enter the AppKey of the device (see the registration information sticker).

15. End device ID: Enter a name for your end device to uniquely identify it within this application.

16. Click View registered end device option.

17. Click Register end device button.

You will be navigated to the Device overview page.

2.1.2 Power on the DishSense

Power on the DishSense. It will then join The Things Stack. Once successfully connected, the device will begin uplinking sensor data to The Things Stack, which can be viewed on the Live data panel.

2.1.3 Uplink Decoder in The Things Stack

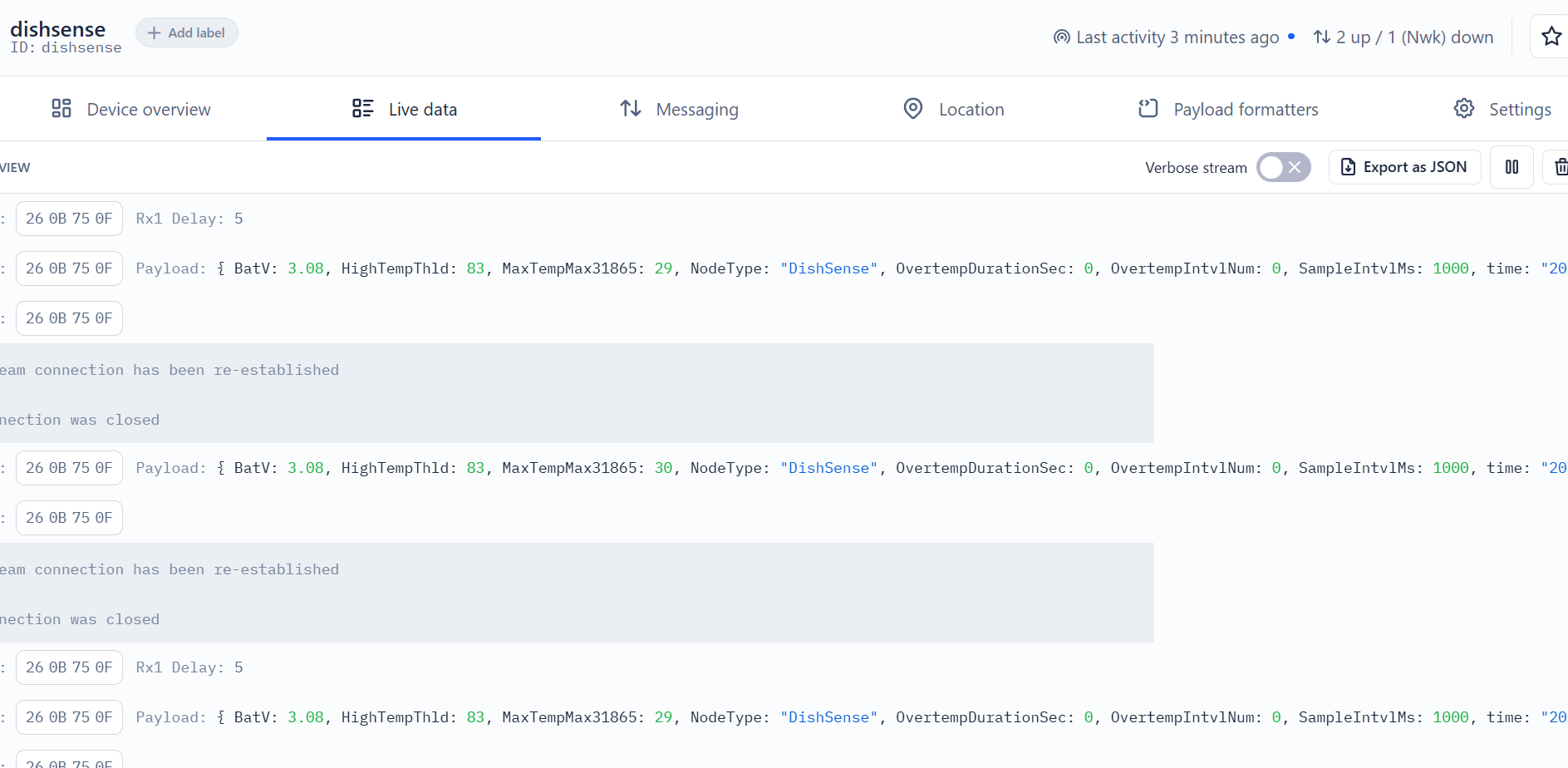

When the uplink payload arrives in The Things Stack, it is displayed in HEX format, which is not easy to read. You can add the DishSense decoder in The Things Stack for easier readability of each sensor reading.

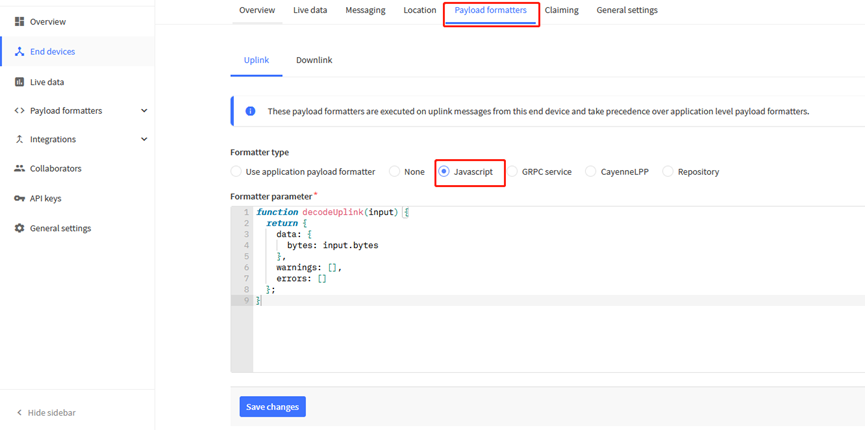

The uplink decoder can be added to thePayload Formatters of your device in The Things Stack. Refer to the screenshot below.

1. Click Uplink tab.

2. Formatter type: Select Custom Javascript formatter.

3. Formatter code: Copy the uplink payload formatter code from our dragino-end-node-decoder GitHub repository and paste it here.

4. Finally, click on the Save changes button.

2.2 LoRaWAN Uplink Payload

Uplink payloads include two types: Valid Sensor Values and other status/control commands.

• Valid Sensor Values: Use FPort=2.
• Other status/control commands: Use FPort other than 2

2.2.1 DishSense Working Modes FPort=2

This port is used for reporting probe placement status, charging events, and periodic keep-alive messages.

The payload includes the Timestamp, ProbeEvent, and the battery level of the charger/repeater box. The format is as follows:

timestamp (4 Bytes) + battery voltage (1 Byte, 0.02V) + MAX31865 maximum temperature (1 Byte, 1℃) + temperature threshold (1 Byte, 1℃) + Number of sampling intervals exceeding the temperature threshold (2 Bytes, up to 600 groups) + acquisition interval (2 Bytes, 1ms)

Size(bytes)	4	1	1	1	2	2
Value	times tamp	BAT	max temp	temp threshold	Number of collections	collection interval

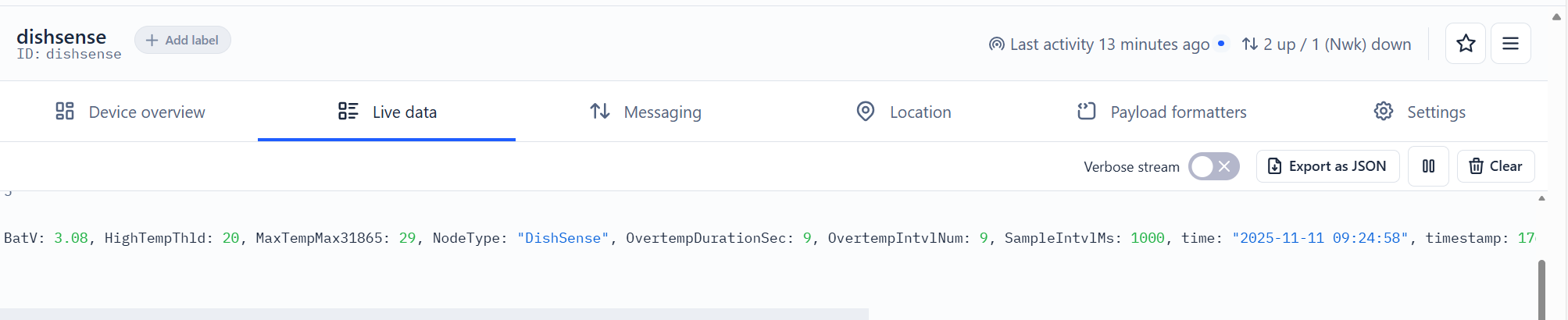

Example in The Things Stack: 691300EA 9A 1D 14 0009 03E8

Timestamp:0x691300EA=2025-11-11 09 : 24 : 58

BAT: ( 0x9A * 20) / 1000= 3.08V

max temp :0x1D=29

temp threshold:0x14=20

Number of collections:0x0009=9

collection interval:0x03E8=1000

2.2.2 Temperature acquisition, FPort=17

Size(bytes)	4	1	1	3
Value	times tamp	BAT	temp	Meaningless

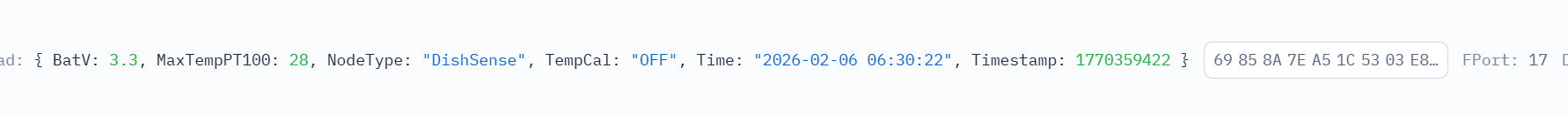

Example in The Things Stack:69 85 8A 7E A5 1C 53 03 E8

Timestamp:0x69 85 8A 7E=1770359422=2026-2-6-Friday AM6:30

BAT: ( 0xA5 * 20) / 1000= 3.3V

max temp :0x1C=28

temp threshold:0x14=20

2.2.3 Device Status, FPort=5

You can use the downlink command (0x26 01) to request DishSense to send its configuration details, including the device configuration status. DishSense will uplink a payload to the LoRaWAN Network Server via FPort = 5.

The Payload format is as below.

Device Status (FPort=8)
Size (bytes)	1	2	1	1	2
Value	Sensor Model	Firmware Version	Frequency Band	Sub-band	BAT

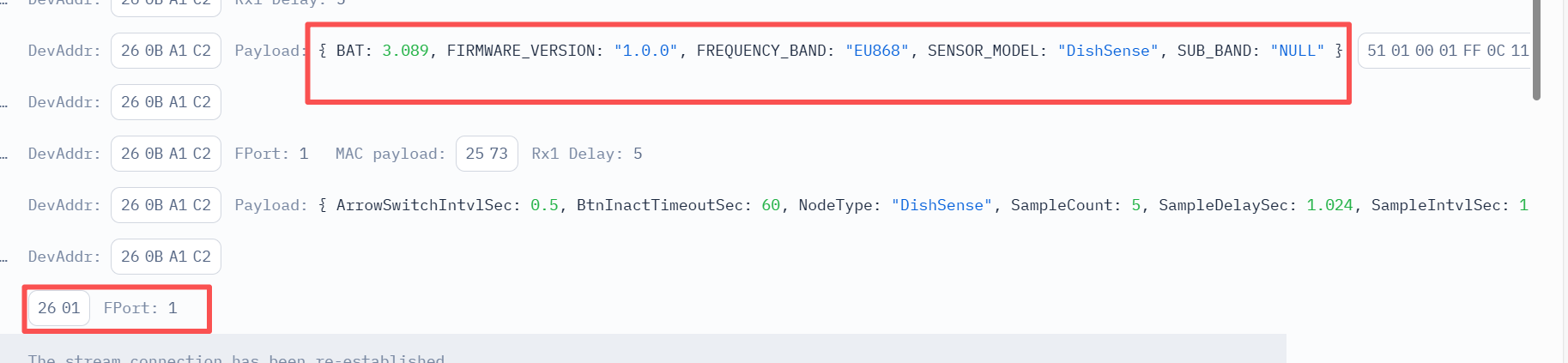

Example in The Things Stack: 51 0100 01 FF 0C11

Sensor Model: For DishSense, this value is 0x51

Firmware Version: 0x0100, which means v1.0.0

Frequency Band:

0x01: EU868

0x02: US915

0x03: IN865

0x04: AU915

0x05: KZ865

0x06: RU864

0x07: AS923

0x08: AS923-1

0x09: AS923-2

0x0a: AS923-3

0x0b: CN470

0x0c: EU433

0x0d: KR920

0x0e: MA869

Sub-Band:

AU915 and US915: value 0x00 ~ 0x08

CN470: value 0x0B ~ 0x0C

Other Bands: Always 0x00

BAT:0x0C11/1000=3.089v

2.2.4 Device MOD Status (FPort=8)

The Datalog uplinks use the following payload format.

2.2.4.1 Work MOD1

Working mode (1 Byte) + Delay (2 Bytes, 1ms) + Arrow symbol flashing interval (2 Bytes, 1ms) + Acquisition interval (2 Bytes, 1ms) + Number of acquisition groups (2 Bytes, maximum 600 groups) + Temperature threshold (2 Bytes, 0.01℃)

Size(bytes)	1	2	2	2	2	2
Value	MOD	Delay	flashing interval	Acquisition interval	Number of acquisition	Temp threshold

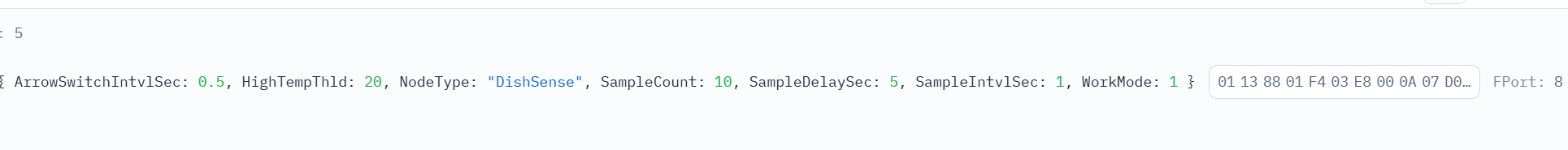

Example in The Things Stack: 01 1388 01F4 03E8 000A 07D0

BAT: 0x0C0E= 3.088V

Delay:0x1388=5000ms

flashing interval:0x01F4=500ms

acquisition interval:0x03E8=1000ms

Number of collections:0x000A=10

Temp threshold:0x07D0/100=20.00°C

2.2.4.2 Work MOD2 and Work MOD3

Working mode (1 Byte) + Delay time before start of data acquisition (2 Bytes, 1ms) + Arrow symbol flashing interval (2 Bytes, 1ms) + Data acquisition interval (2 Bytes, 1ms) + Number of data acquisition groups (1 Byte, maximum 117 groups in mode 2, maximum 58 groups in mode 3) + Timeout for entering low-power state without button operation (2 Bytes, 1s, actual configurable range is 1 minute to 1 hour)

Size(bytes)	1	2	2	2	1	2
Value	MOD	Delay	flashing interval	Acquisition interval	Number of acquisition	Temp threshold

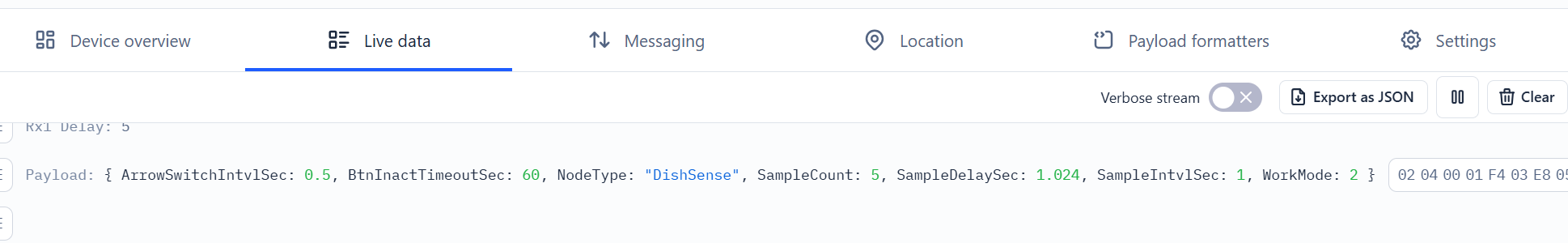

Example in The Things Stack: 02 0400 01F4 03E8 05 003C

MOD:0x02=2

Delay:0x0400=1024ms

flashing interval:0x01F4=500ms

acquisition interval:0x03E8=1000ms

Number of collections:0x005=5

Temp threshold:0x003C=60°C

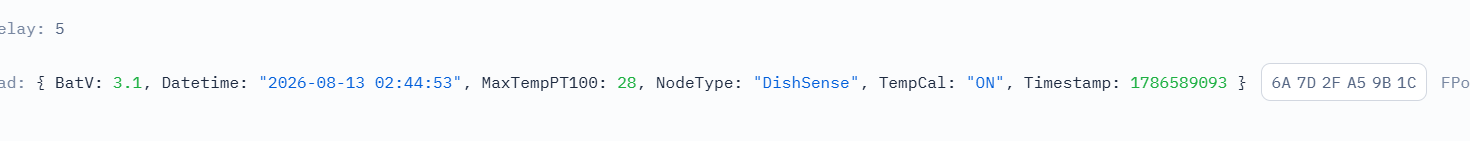

​2.3 Decode payload

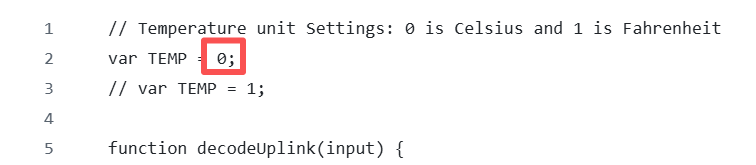

While using TTN V3 network, you can add the payload format to decode the payload.

The payload decoder function for TTN V3 are here:

DishSense Payload Decoder: dragino-end-node-decoder/DishSense at main · dragino/dragino-end-node-decoder

3. Configure DishSense

3.1 Configure Methods

DishSense supports below configure method:

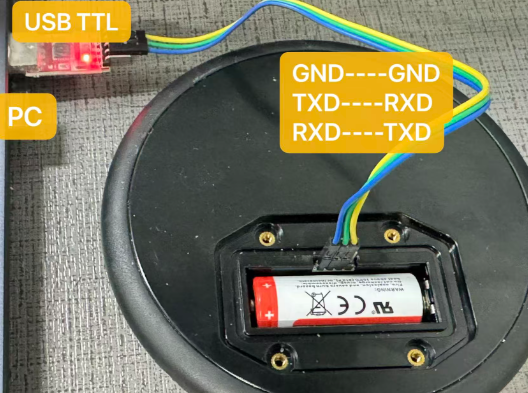

• AT Command via UART Connection : See UART Connection.
• LoRaWAN Downlink. Instruction for different platforms: See IoT LoRaWAN Server section.

3.2 General Commands

These commands are to configure:

• General system settings like: uplink interval.
• LoRaWAN protocol & radio related command.

They are same for all Dragino Devices which support DLWS-005 LoRaWAN Stack. These commands can be found here:

End Device AT Commands and Downlink Command

3.3 Commands special design for DishSense

These commands only valid for DishSense, as below:

3.3.1 Set Transmit Interval Time

Feature: Change LoRaWAN End Node Transmit Interval.

AT Command: AT+TDC

Command Example	Function	Response
AT+TDC=?	Show current transmit Interval	30000 OK the interval is 30000ms = 30s
AT+TDC=60000	Set Transmit Interval	OK Set transmit interval to 60000ms = 60 seconds

Downlink Command: 0x01

Format: Command Code (0x01) followed by 3 bytes time value.

If the downlink payload=0100003C, it means set the END Node's Transmit Interval to 0x00003C=60(S), while type code is 01.

• Example 1: Downlink Payload: 0100001E // Set Transmit Interval (TDC) = 30 seconds
• Example 2: Downlink Payload: 0100003C // Set Transmit Interval (TDC) = 60 seconds

3.3.2 Get Device Status

Send a LoRaWAN downlink to ask the device to send its status.

Downlink Payload: 0x26 01

Sensor will upload Device Status via FPORT=5. See payload section for detail.

3.3.3 Temperature Unit

Feature, Set the temperature unit AT Command: AT+TEMPUNIT

Command Example	Function	Response
AT+TEMPUNIT=?	Query the current state. Unit: None. Default value: 0.	0
AT+TEMPUNIT=1	Value range: 0 is Celsius, 1 is Fahrenheit.	OK

Downlink Command: 0x40 - Example 1: Downlink Payload: 4001 // Set temperature unit to Fahrenheit.

3.3.4 Temperature Threshold

Feature, Set the temperature threshold AT Command: AT+TEMPTHLD

Command Example	Function	Response
AT+TEMPTHLD=?	Query temperature threshold. Unit: Celsius. Default value: 8300 (actual temperature divided by 100, which is 83.00 Celsius).	8300
AT+TEMPTHLD=8300	Value range: -32768 ~ 32767.	OK

Downlink Command: 0x41 - Example 1: Downlink Payload: 41 aa aa // Set the temperature threshold.

3.3.5 Temperature Calibration Function Switch

Feature, Set the temperature calibration on or off AT Command: AT+TEMPCALENB

Command Example	Function	Response
AT+TEMPCALENB=?	Query the current state. Unit: None. Default value: 0.	0
AT+TEMPCALENB=1	Value range: 0 is Close, 1 is Open.	OK

Downlink Command: 0x44 - Example 1: Downlink Payload: 4401 // Open the temperature calibration function.

3.3.6 Clear Temperature Calibration Offset

Feature, Clear the offset value for temperature calibration AT Command: AT+TEMPCALRST

Command Example	Function	Response
AT+TEMPCALRST	Clear the calibration offset. Unit: None. Default value: None. Value range: None.	OK

Downlink Command: 0x45 - Example 1: Downlink Payload: 45 // Clear temperature calibration offset.

3.3.7 Generate Temperature Calibration Offset

Feature, Generate an offset value based on ambient temperature AT Command: AT+TEMPCALGEN

Command Example	Function	Response
AT+TEMPCALGEN=?	Query generated offset. Unit: Celsius. Default value: 0.	0
AT+TEMPCALGEN=2000	Parameter 'a' is the ambient temperature multiplied by 100. Value range: -2000 ~ 2000, which is -20.00℃ to 20.00℃.	OK

Downlink Command: 0x46 - Example 1: Downlink Payload: 46 aa aa // Generate temperature calibration offset.

3.3.8 Force Set Temperature Calibration Offset

Feature, Forcibly set the temperature calibration offset value AT Command: AT+TEMPCALSET

Command Example	Function	Response
AT+TEMPCALSET=?	Query set offset value.	0
AT+TEMPCALSET=1000	Parameter 'a' is the ambient temperature multiplied by 100. Unit: None. Default value: None. Value range: -32768 ~ 32767.	OK

Downlink Command: 0x47 - Example 1: Downlink Payload: 47 aa aa // Force set the temperature calibration offset.

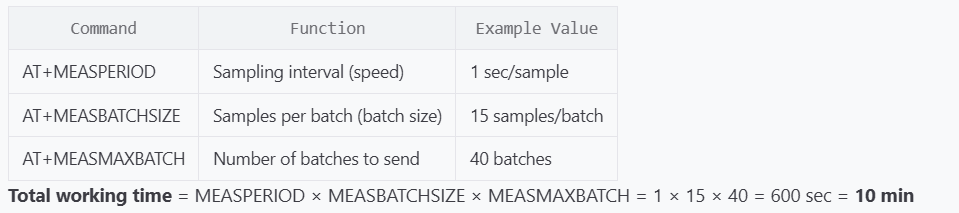

3.3.9 Configure Temperature Sampling Period in Measure Status

Feature, Set the period for temperature sampling during measurement AT Command: AT+MEASSPERIOD

Command Example	Function	Response
AT+MEASSPERIOD=?	Query sampling period. Unit: seconds. Default value: 1.	1
AT+MEASSPERIOD=1	Value range: 1 - 14400.	OK

Downlink Command: 0x48 - Example 1: Downlink Payload: 48 aa aa aa aa // Configure the sampling period.

3.3.10 Configure Window Size in Measure Status

Feature, Set the window size during measurement AT Command: AT+MEASBATCHSIZE

Command Example	Function	Response
AT+MEASBATCHSIZE=?	Query window size. Unit: None. Default value: 15.	15
AT+MEASBATCHSIZE=15	Value range: 15 - 65535.	OK

Downlink Command: 0x49 - Example 1: Downlink Payload: 49 aa aa // Configure window size in measure status.

3.3.11 Configure Window Quantity in Measure Status

Feature, Set the number of windows during measurement AT Command: AT+MEASMAXBATCH

Command Example	Function	Response
AT+MEASMAXBATCH=?	Query window quantity. Unit: None. Default value: 40.	40
AT+MEASMAXBATCH=40	Value range: 1 - 65535.	OK

Downlink Command: 0x4A - Example 1: Downlink Payload: 4A aa aa // Configure window quantity in measure status.

3.3.12 Set Maximum Runtime in Measure Status

Feature, Configure the maximum runtime parameters during measurement AT Command: AT+MEASMAXRUNTIME

Command Example	Function	Response
AT+MEASMAXRUNTIME=?	This command can input 1~3 parameters. If the 3rd parameter is omitted, or both 2nd and 3rd are omitted, default values are used.	15,15,1
AT+MEASMAXRUNTIME=15,15,1	a Unit: seconds (Range: 15 ~ 4294967295). b Unit: None (Default: 15, Range: 15 ~ 65535). c Unit: seconds (Default: 1, Range: 1 ~ 14400).	OK

Downlink Command: 0x4B - Example 1: Downlink Payload: 4B aa aa aa aa bb bb cc cc cc cc // Set maximum runtime.

3.3.13 Configure Network Join Timeout in Join Status

Feature, Set the network join timeout duration AT Command: AT+NETREGTMO

Command Example	Function	Response
AT+NETREGTMO=?	Query join timeout. Unit: minutes. Default value: 10.	10
AT+NETREGTMO=10	Value range: 1 - 60.	OK

Downlink Command: 0x60 - Example 1: Downlink Payload: 60 aa aa aa aa // Set network join timeout.

3.3.14 Configure No Key Action Timeout in Measure Ready Status

Feature, Set timeout for no key actions in measure ready status AT Command: AT+MEASRDYTMO

Command Example	Function	Response
AT+MEASRDYTMO=?	Query timeout. Unit: seconds. Default value: 20.	20
AT+MEASRDYTMO=20	Value range: 10 - 14400.	OK

Downlink Command: 0x61 - Example 1: Downlink Payload: 61 aa aa aa aa // Configure measure ready timeout.

3.3.15 Configure No Key Action Timeout in Configure Status

Feature, Set timeout for no key actions in configure status AT Command: AT+CONFIGTMO

Command Example	Function	Response
AT+CONFIGTMO=?	Query timeout. Unit: seconds. Default value: 120.	120
AT+CONFIGTMO=120	Value range: 20 - 14400.	OK

Downlink Command: 0x62 - Example 1: Downlink Payload: 62 aa aa aa aa // Configure configure status timeout.

3.3.16 Acceleration Sensor Vibration Threshold Setting

Feature, Configure acceleration sensor settings AT Command: AT+VIBSET

Command Example	Function	Response
AT+VIBSET=?	Query current settings.	0,0,6,5
AT+VIBSET=0,0,6,5	a Range (g, Default: 0, Range: 0-3 where 0: ±2g, 1: ±4g, 2: ±8g, 3: ±16g). b Frequency (Hz, Default: 0, Range: 0-4 where 0: 25Hz, 1: 50Hz, 2: 100Hz, 3: 200Hz, 4: 400Hz). c Threshold (Default: 6, Range: 2-127). d Duration (Default: 5, Range: 1-127).	OK

Downlink Command: 0x09 - Example 1: Downlink Payload: 09 aa bb cc dd // Set vibration threshold.

3.3.17 Automatic Function Switch

Feature, Set the automatic function on or off AT Command: AT+DWDASSENB

Command Example	Function	Response
AT+DWDASSENB=?	Query the current state. Unit: None. Default value: 0.	0
AT+DWDASSENB=1	Value range: 0 is Close, 1 is Open.	OK

Downlink Command: 0x50 - Example 1: Downlink Payload: 5001 // Open the automatic function.

3.3.18 Automatic Function Detection Method

Feature, Set the detection method for the automatic function AT Command: AT+DWDASSSTRAT

Command Example	Function	Response
AT+DWDASSSTRAT=?	Query detection method. Unit: None. Default value: 2.	2
AT+DWDASSSTRAT=2	Value range: 1 uses detection method 1, 2 uses detection method 2. This is fixed to 2 and cannot be modified.	OK

Downlink Command: 0x51 - Example 1: Downlink Payload: 5102 // Use automatic function detection method 2.

3.3.19 Automatic Function Cooling Time

Feature, Set the cooling time duration AT Command: AT+DWDASTCD

Command Example	Function	Response
AT+DWDASTCD=?	Query cooling time. Unit: minutes. Default value: 240.	240
AT+DWDASTCD=240	Value range: 0 - 14400 minutes.	OK

Downlink Command: 0x52 - Example 1: Downlink Payload: 52000000F0 // Set the automatic function cooling time to 240 minutes.

3.3.20 Temperature Sampling Period for Automatic Function 2

Feature, Set the temperature sampling period for method 2 AT Command: AT+DWD2PER

Command Example	Function	Response
AT+DWD2PER=?	Query sampling period. Unit: seconds. Default value: 1.	1
AT+DWD2PER=1	Value range: 1 - 300 seconds.	OK

Downlink Command: 0x5D - Example 1: Downlink Payload: 5D aa aa aa aa // Set the temperature sampling period.

3.3.21 Temperature Thresholds for Automatic Function 2

Feature, Set heating start and cooling end temperature thresholds AT Command: AT+DWD2TEMPTHR

Command Example	Function	Response
AT+DWD2TEMPTHR=?	Query temperature thresholds. Unit: ℃. Default values: Heating start 40.0, Cooling end 35.0.	40.0,35.0
AT+DWD2TEMPTHR=40.0,35.0	a is heating start threshold (range: 40.0 - 60.0). b is cooling end threshold (range: 20.0 - 39.0).	OK

Downlink Command: 0x5E - Example 1: Downlink Payload: 5E aa aa aa aa bb bb bb bb // a = heating start threshold, b = cooling end threshold.

3.3.22 Heating Timeout for Automatic Function 2

Feature, Set the maximum heating timeout time AT Command: AT+DWD2RISETMO

Command Example	Function	Response
AT+DWD2RISETMO=?	Query timeout time. Unit: seconds. Default value: 600.	600
AT+DWD2RISETMO=600	Value range: 10 - 14400 seconds.	OK

Downlink Command: 0x5F - Example 1: Downlink Payload: 5F aa aa aa aa // Set the heating timeout time.

4. Firmware update

User can change firmware DishSense to:

• Change Frequency band/ region.
• Update with new features.
• Fix bugs.

Firmware and changelog can be downloaded from : Firmware download link

Methods to Update Firmware:

• (Recommanded way) OTA firmware update via wireless: Firmware OTA Update for LoRaWAN End Node
• Update through UART TTL interface: Instruction.
•

5. FAQ

6. Order Info

Part Number: DishSense-XX

XX:

• EU433: Frequency bands EU433
• EU868: Frequency bands EU868
• KR920: Frequency bands KR920
• CN470: Frequency bands CN470
• AS923: Frequency bands AS923
• AU915: Frequency bands AU915
• US915: Frequency bands US915
• IN865: Frequency bands IN865
• CN779: Frequency bands CN779

7. ​ Packing Info

Package Includes:

• DishSense x 1

Dimension and weight:

• Package Size / pcs : 1908050mm
• Weight / pcs : 310g

8. ​Support

• Support is available Monday to Friday, from 09:00 to 18:00 GMT+8. Due to different time zones, we cannot offer live support. However, your questions will be answered as soon as possible within the above-mentioned schedule.
• Please provide as much information as possible regarding your inquiry (product models, a detailed description of the problem, and steps to reproduce it) and send an email to support@dragino.com.
