General Configure for -KN & -KS Models (LTE CAT-1)

1. The use of this guideline

This configure instruction is for Dragino NB-IoT models with -KN or -KS suffix, for example S31B-KS. These models use the same NB-IoT Module EG800-NGFF and has the same software structure. The have the same configure instruction to different IoT servers. Use can follow the instruction here to see how to configure to connect to those servers.

2. Attach Network

2.1 General Configure to attach network

To attache end nodes to CAT-M1 Network, You need to:

1. Get a CAT-M1 SIM card from Service Provider. (Not the same as the SIM card we use in mobile phone)

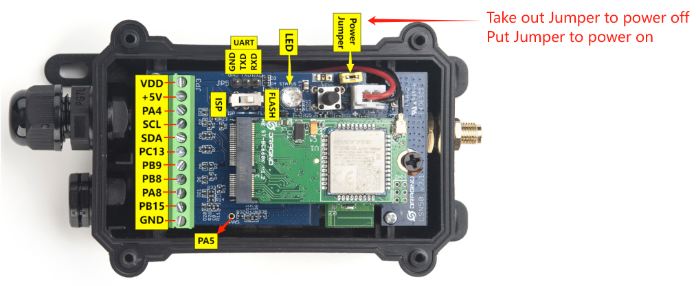

2. Power Off End Node ( See below for the power off/on position)

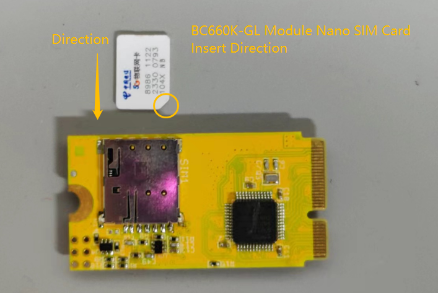

3. Insert the SIM card to Sensor. ( See below for direction)
4. Power On End Node
5. Configure APN in the sensor (AT+APN=<APN>), example AT+APN=iot.1nce.net

After doing above, the end nodes should be able to attach to NB-IoT network .

The -KN and -KS models support CAT-M1, with below frequency band: multiple frequency bands of

--CAT-M1: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B27/B28/B66/B85.

Make sure you use a the CAT-M1 SIM card.

SIM Provider	AT+APN=	NB-IoT Coverage	LTE-M Coverage	Comments
1NCE	iot.1nce.net	Coverage Reference Link Austria, Belgium, Bulgaria, China, Croatia, Czech Republic, Denmark, Estonia, Finland, Germany, Great Britain, Greece, Hungary, Ireland,Italy, Latvia, Malta, Netherlands, Norway, Portugal, Puerto Rico, Russia, Slovak,Republic, Slovenia, Spain, Sweden, Switzerland, Taiwan, USA, US Virgin Islands	Argentina, Austria, Australia, Belgium, Canada, Denmark,Estonia, Finland, France, Germany, Great Britain, Hungary, Ireland, Japan,Jersey, Korea, Repiblic of, Latvia, Luxembourg, Mexico, Netherlands, New Zealand, Norway, Poland, Puerto Rico, Romania, Spain, Sweden, Switzerland,Taiwan, USA, US Virgin Islands.	UK: Band20
China Mobile	No need configure	China Mainland, HongKong
China Telecom	ctnb	China Mainland

2.2 Speed Up Network Attach time

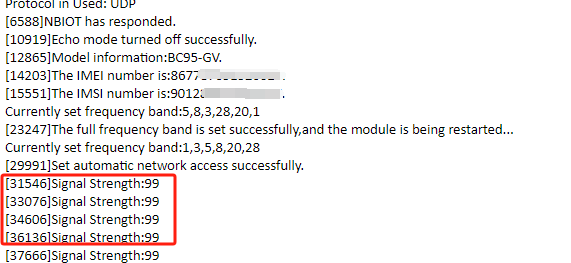

EG800-NGFF supports multi bands in CAT-M1. It will search one by one and try to attach, this will take a lot of time and even cause attach fail and show Signal Strenght:99. User can lock the band to specify band for its operator to make this faster.

note

Before using the NB module command, users need to power on the NB module. Run the AT+QSW command to turn on and off the NB module. Remember to shut down after using the NB module command, otherwise it will consume power.

Attache to 1NCE card for Australia use:

AT+COPS=1,2,"50501",8
AT+QCFG="band",0,0x7FFFFFFFFFFFFFFF,1

After connection is successful, user can use AT+QENG="servingcell" to check which band is actually in used.

AT+QENG="servingcell"
+QENG: "servingcell","NOCONN","eMTC","FDD",505,01,90D2C0B,258,9410,28,5,5,901A,-112,-17,-80,10,27

See bands used for different provider: NB-IoT Deployment , Bands, Operator list

2.2.1 Configure Frequency Band

AT+QCFG="band"[,<bandval>,<ltebandval>[,<effect>]]

<bandval>:

0          No change
0x1        EGSM900
0x2        DCS1800
0x4        GSM850
0x8        PCS1900
0000FFFF   Full frequency bands

<ltebandval>:

0                    No change
0x1                  LTE B1
0x2                  LTE B2
0x4                  LTE B3
0x8                  LTE B4
0x10                 LTE B5
0x40                 LTE B7
0x80                 LTE B8
0x80000              LTE B20
0x4000000            LTE B27
0x8000000            LTE B28
0x200000000          LTE B34
0x2000000000         LTE B38
0x4000000000         LTE B39
0x8000000000         LTE B40
0x10000000000        LTE B41
0x20000000000000000  LTE B66
0x7FFFFFFFFFFFFFFF   Full frequency bands

For example, setting the LTE-M network frequency band to 8.

AT+QCFG="band",0,0x80,1

When searching for all bands, the value of this command is set to:

AT+QCFG="band",0,0x7FFFFFFFFFFFFFFF,1

2.2.2 AT command to set frequency band and network category

AT+QBAND=0,0    //<bandval>,<ltebandval>

Example :

Taking the use of 1nce cards in the United States as an example.

AT+APN=iot.1nce.net  //set APN
AT+QBAND=0,0x4       //GSM/WCDMA: No change; CAT1: Set frequency band B3

Setting the above commands in the United States will greatly reduce the network search time of the NB module.

3. Configure to connect to different servers

3.1 General UDP Connection

The NB-IoT Sensor can send packet to server use UDP protocol.

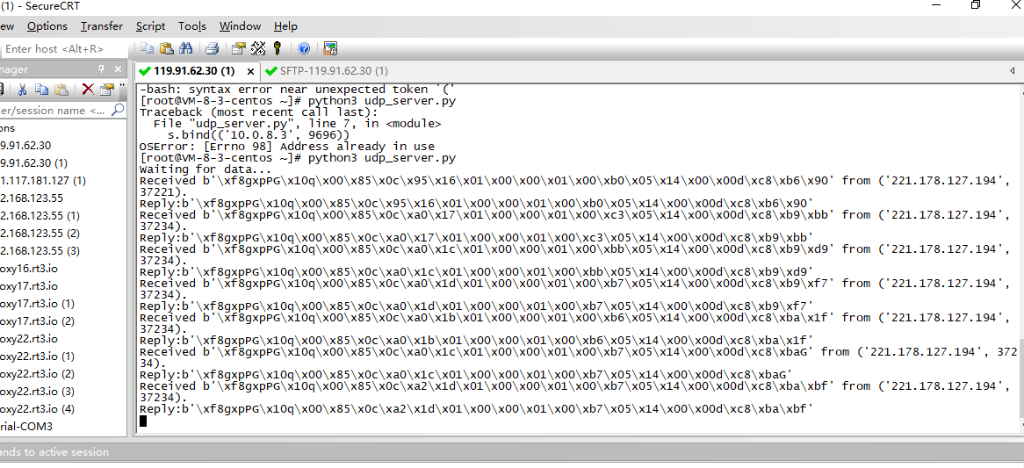

3.1.1 Simulate UDP Connection by PC tool

We can use PC tool to simulate UDP connection to make sure server works ok.

3.1.2 Configure NB-IoT Sensor

3.1.2.1 AT Commands

AT Commands:

• AT+PRO=2,0 // Set to use UDP protocol to uplink ,Payload Type select Hex payload

• AT+SERVADDR=8.135.10.183,56477 // Set UDP server address and port

3.1.2.2 Uplink Example

3.2 General MQTT Connection

The NB-IoT Sensor can send packet to server use MQTT protocol.

Below are the commands.

AT Commands:

• AT+PRO=3,0 // Set to use MQTT protocol to uplink, Payload Type select Hex payload.

• AT+SERVADDR=8.217.91.207,1883 // Set MQTT server address and port

• AT+CLIENT=CLIENT // Set up the CLIENT of MQTT

• AT+UNAME=UNAME // Set the username of MQTT

• AT+PWD=PWD // Set the password of MQTT

• AT+PUBTOPIC=NSE01_PUB // Set the sending topic of MQTT

• AT+SUBTOPIC=NSE01_SUB // Set the subscription topic of MQTT

Notice: MQTT protocol has a much higher power consumption compare with UDP/CoAP protocol. Please check the power analyze document and adjust the uplink period to a suitable interval.

3.3 ThingSpeak (via MQTT)

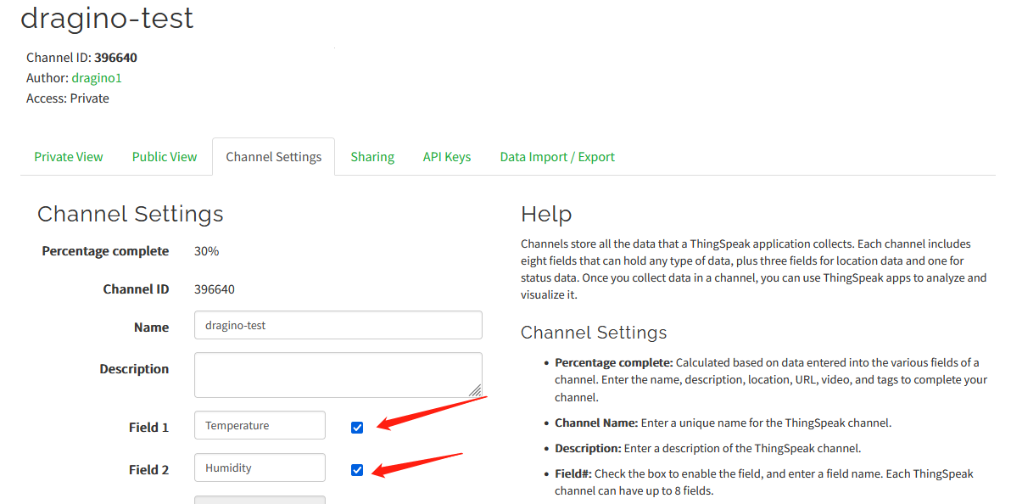

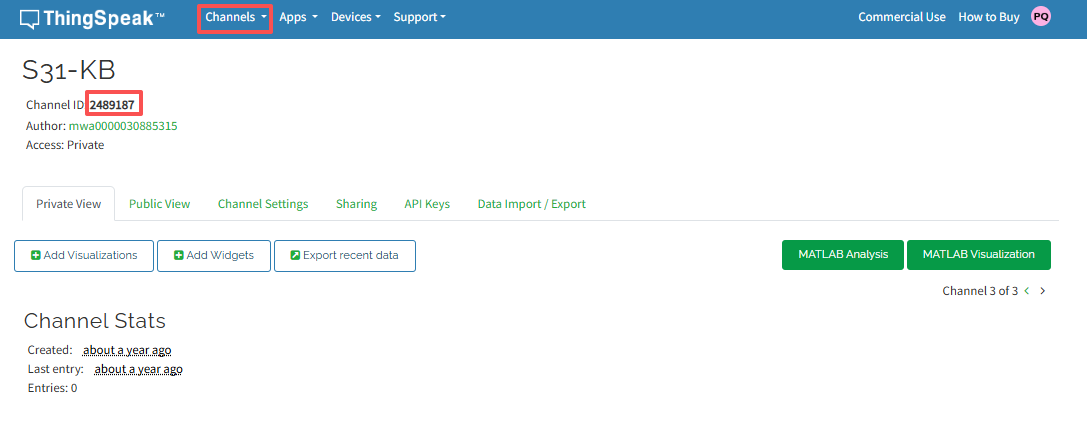

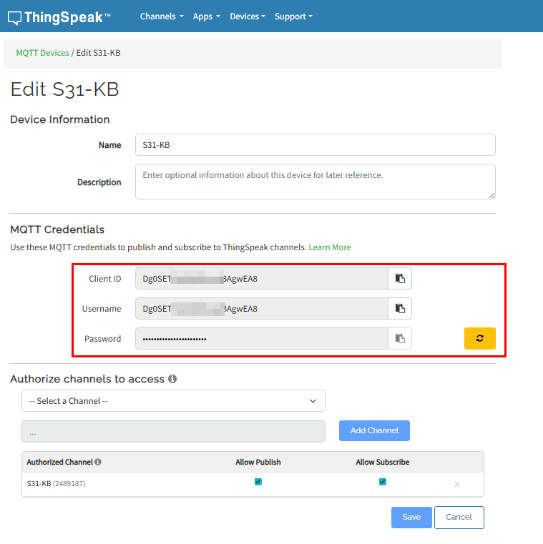

3.3.1 Get MQTT Credentials

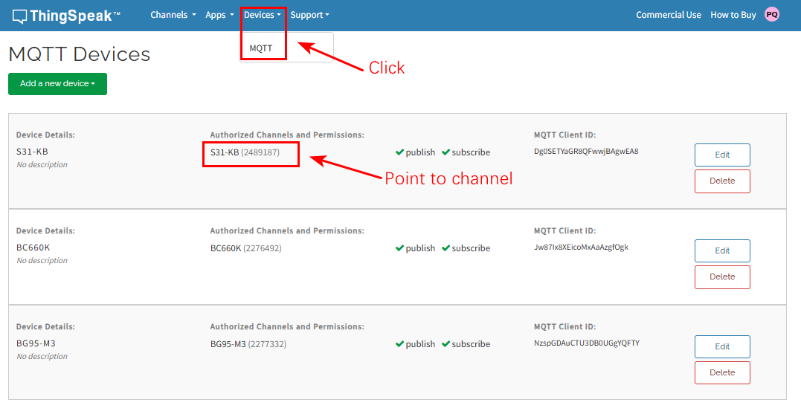

ThingSpeak connection uses MQTT Connection. So we need to get MQTT Credentials first. You need to point MQTT Devices to ThingSpeak Channel as well.

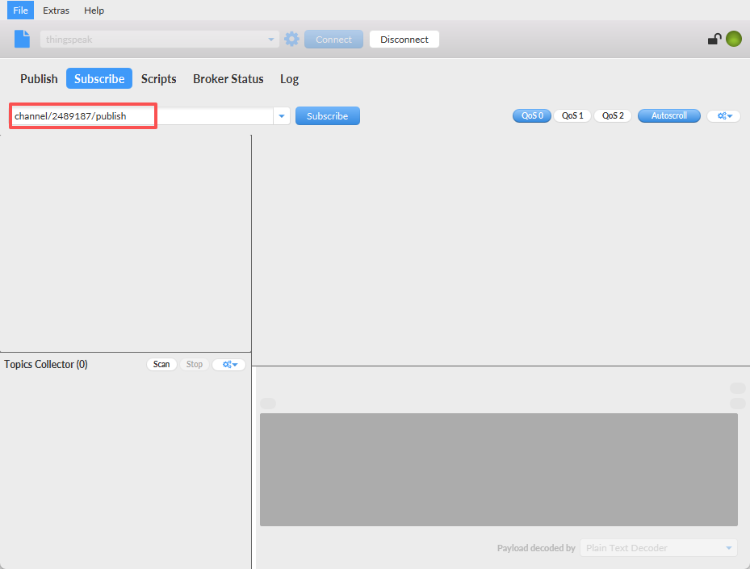

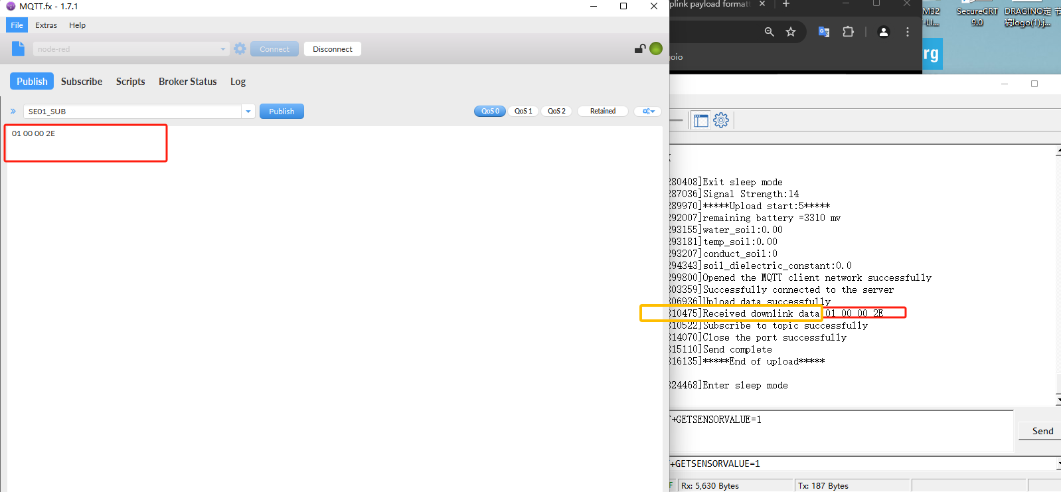

3.3.2 Simulate with MQTT.fx

3.3.2.1 Establish MQTT Connection

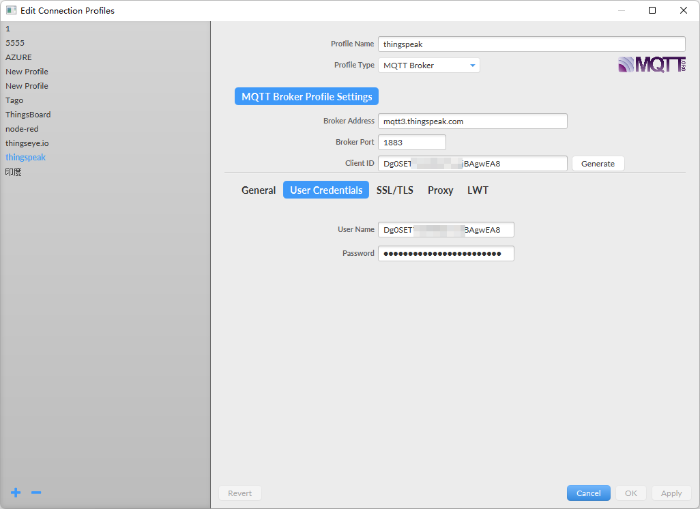

After we got MQTT Credentials, we can first simulate with PC tool MQTT.fx tool to see if the Credentials and settings are fine.

• Broker Address: mqtt3.thingspeak.com

• Broker Port: 1883

• Client ID: <Your ThingSpeak MQTT ClientID>

• User Name: <Your ThingSpeak MQTT User Name>

• Password: <Your ThingSpeak MQTT Password>

3.3.2.2 Publish Data to ThingSpeak Channel

In MQTT.fx, we can publish below info:

• Topic: channels/YOUR_CHANNEL_ID/publish

• Payload: field1=63&field2=67&status=MQTTPUBLISH

Where 63 and 67 are the value to be published to field1 & field2.

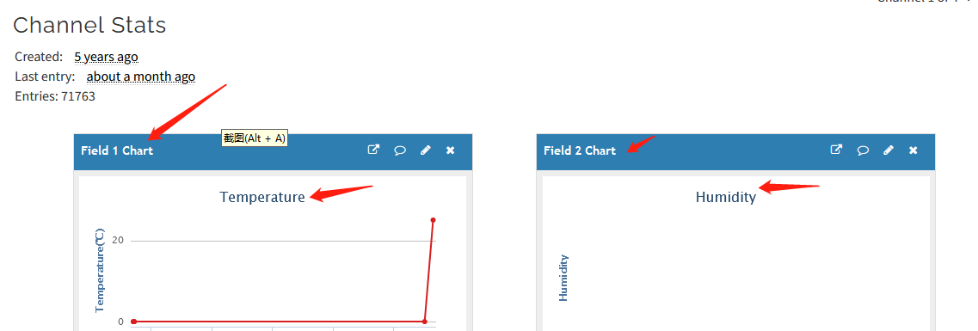

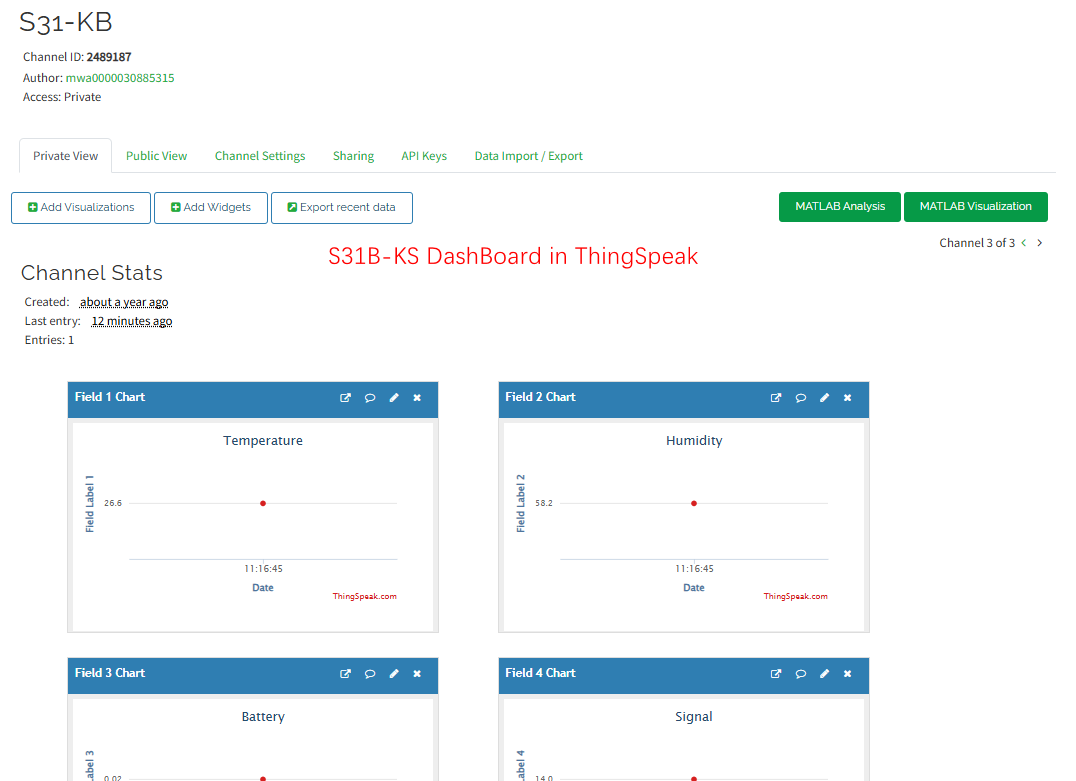

Result:

3.3.3 Configure NB-IoT Sensor for connection

3.3.3.1 AT Commands:

In the NB-IoT, we can run below commands so to publish the channels like MQTT.fx

• AT+PRO=3,1 // Set to use ThingSpeak Server and Related Payload

• AT+CLIENT=<Your ThingSpeak MQTT ClientID>

• AT+UNAME=<Your ThingSpeak MQTT User Name>

• AT+PWD=<Your ThingSpeak MQTT Password>

• AT+PUBTOPIC=<YOUR_CHANNEL_ID>

• AT+SUBTOPIC=<YOUR_CHANNEL_ID>

3.3.3.2 Uplink Examples

For SE01-NB

For DDS20-NB

For DDS45-NB

For DDS75-NB

For NMDS120-NB

For SPH01-NB

For NLM01-NB

For NMDS200-NB

For CPN01-NB

For DS03A-NB

For SN50V3-NB

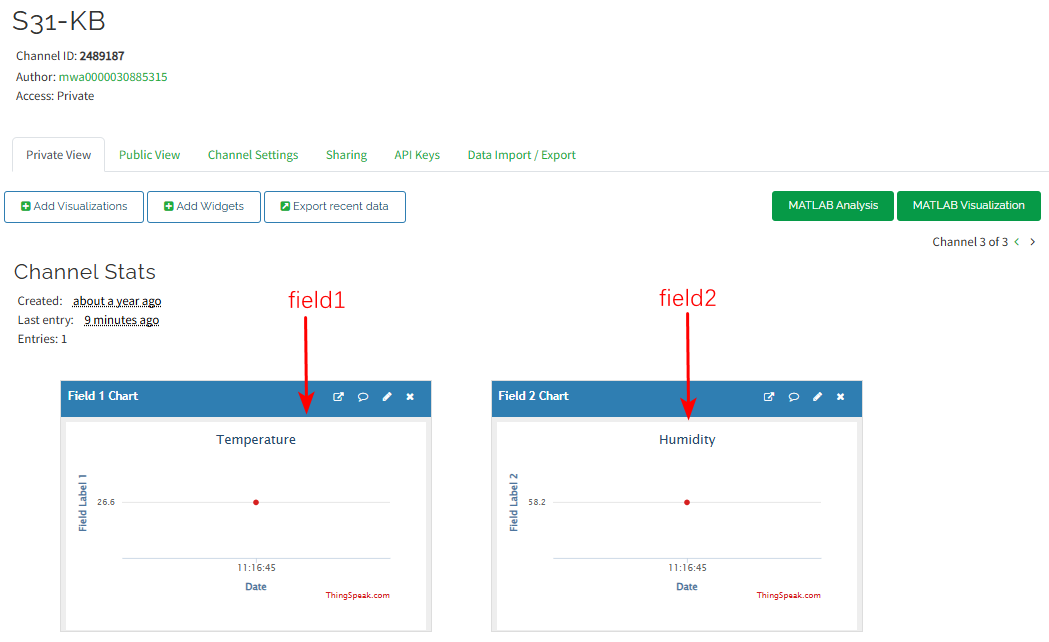

3.3.3.3 Map fields to sensor value

When NB-IoT sensor upload to ThingSpeak. The payload already specify which fields related to which sensor value. User need to create fields in Channels Settings. with name so to see the value correctly.

Below is the NB-IoT Product Table show the mapping.

Model	Field1	Field2	Field3	Field4	Field5	Field6	Field7	Field8	Field9	Field10
S31x-KS	Temperature	Humidity	Battery	RSSI
SE01-KS	Temperature	Humidity	conduct	dielectric_constant	Battery	RSSI
DDS20-KS	distance	Battery	RSSI
DDS45-KS	distance	Battery	RSSI
DDS75-KS	distance	Battery	RSSI
NMDS120-KS	distance	Battery	RSSI
SPH01-KS	ph	Temperature	Battery	RSSI
NLM01-KS	Humidity	Temperature	Battery	RSSI
NMDS200-KS	distance1	distance2	Battery	RSSI
CPN01-KS	alarm	count	door open duration	calc flag	Battery	RSSI
DS03A-KS	level	alarm	pb14door open num	pb14 last open time	pb15 level status	pb15 alarm status	pb15 door open num	pb15 last open time	Battery	RSSI
SN50V3-KS mod1	mod	Battery	RSSI	DS18B20 Temp	exit_state/input PA4	adc0	Temperature	Humidity
SN50V3-KS mod2	mod	Battery	RSSI	DS18B20 Temp	exit_state/input PA4	adc0	distance
SN50V3-KS mod3	mod	Battery	RSSI	adc0	exit_state/input PA4	adc1	Temperature	Humidity	adc4
SN50V3-KS mod4	mod	Battery	RSSI	DS18B20 Temp	adc0	exit_state/input PA4	DS18B20 Temp2	DS18B20 Temp3
SN50V3-KS mod5	mod	Battery	RSSI	DS18B20 Temp	adc0	exit_state/input PA4	Weight
SN50V3-KS mod6	mod	Battery	RSSI	count

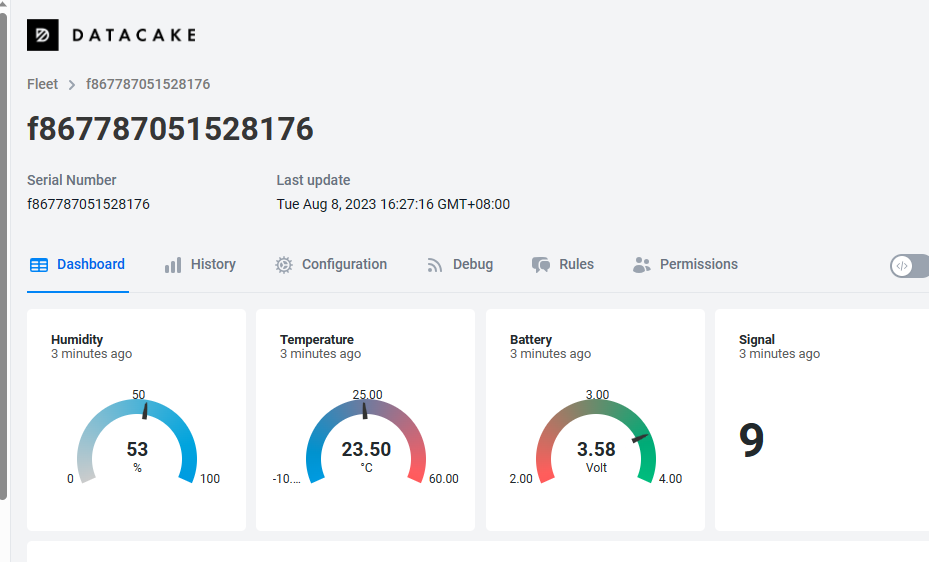

3.4 Datacake

Dragino NB-IoT sensors has its template in Datacake Platform. There are two version for NB Sensor,

As example for S31B-KB. there are two versions: S31B-KB-1T and S31B-KB.

• S31B-CB-1T: This version comes pre-configured for connection to the ThingsEye platform. Users simply need to power on the device, and it will automatically connect and send data to the ThingsEye server.

• S31B-CB: This verson doesn't have pre-configure Datacake connection. User need to enter the AT Commands to connect to Datacake. See below for instruction.

3.4.1 For device Already has template

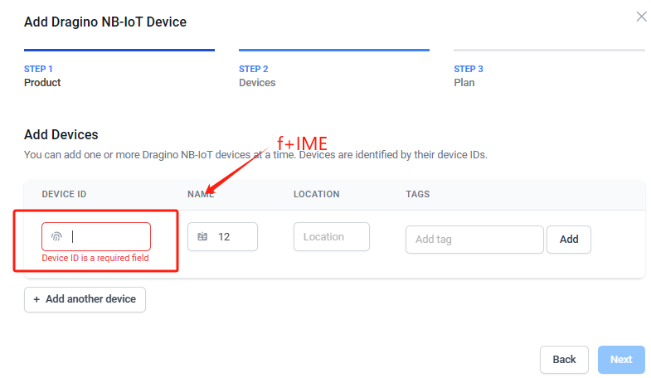

3.4.1.1 Create Device

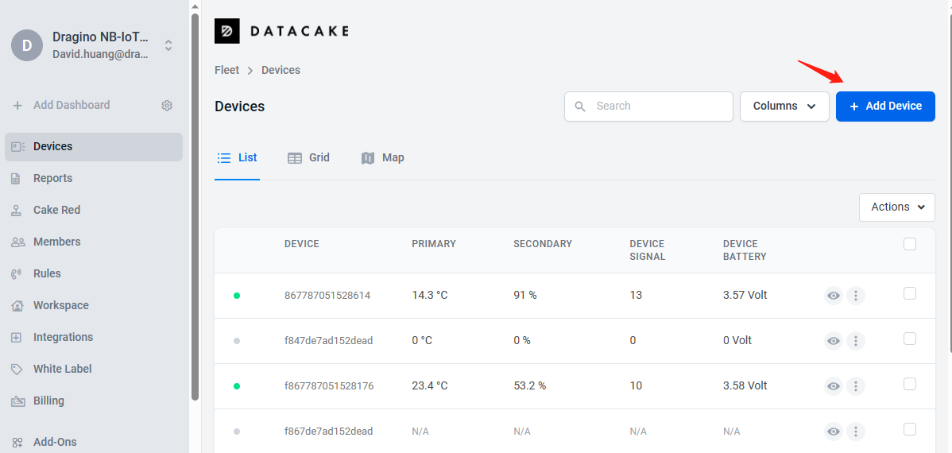

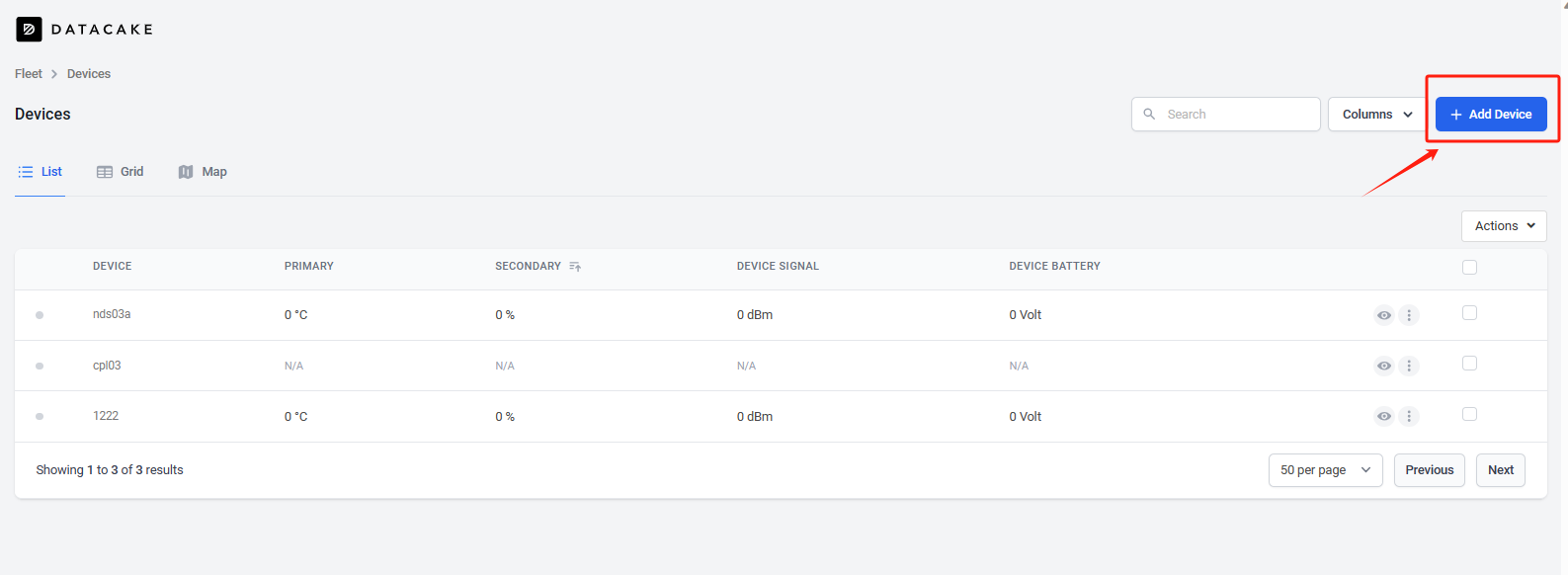

Add Device in DataCake.

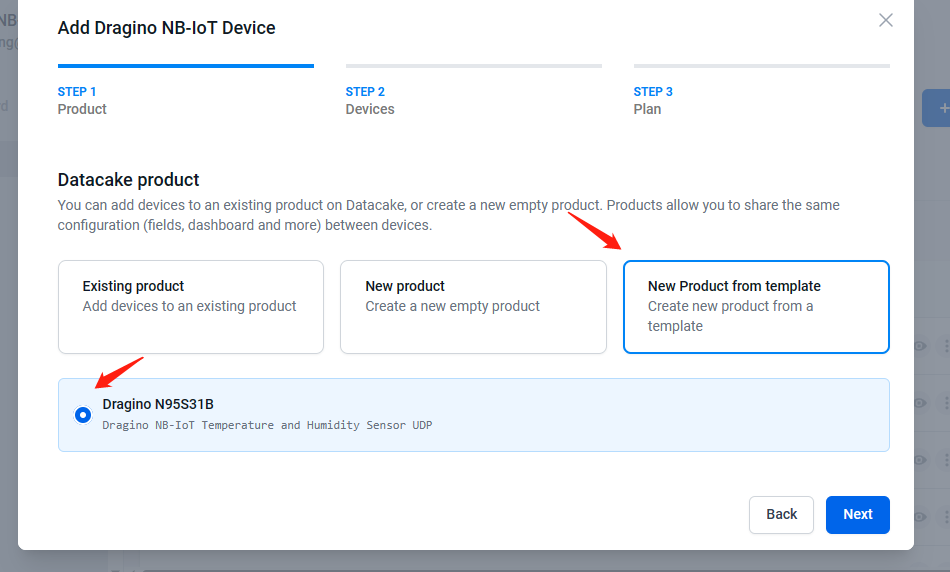

Choose the correct model from template.

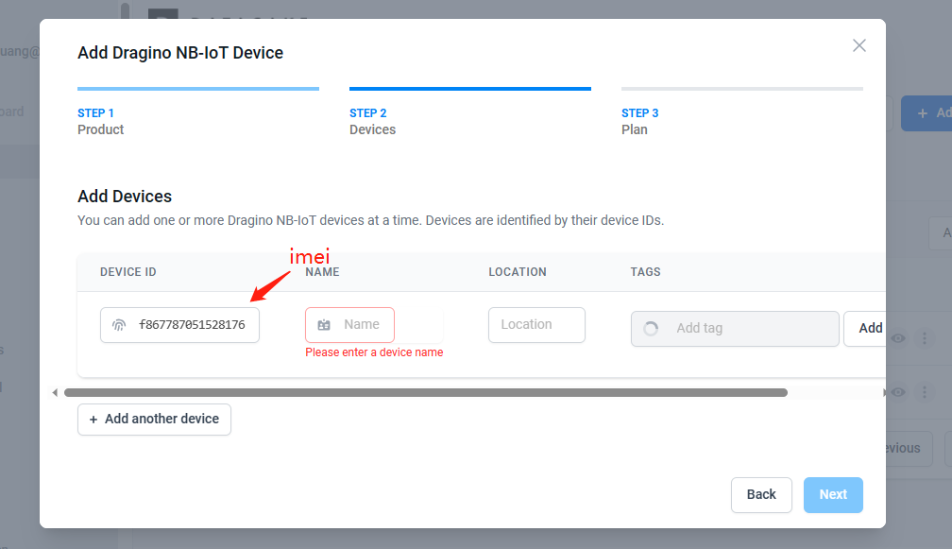

Fill Device ID. The device ID needs to be filled in with IMEI, and a prefix of 'f' needs to be added.

3.4.2 For Device already registered in DataCake before shipped

3.4.2.1 Scan QR Code to get the device info

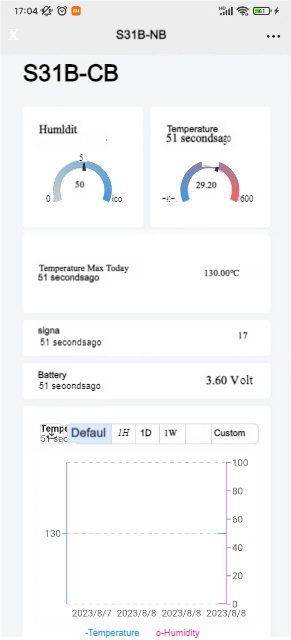

Users can use their phones or computers to scan QR codes to obtain device data information.

3.4.2.2 Claim Device to User Account

By Default, the device is registered in Dragino's DataCake Account. User can Claim it to his account.

3.4.3 Manual Add Decoder in DataCake ( don't use the template in DataCake)

Step1: Add a device

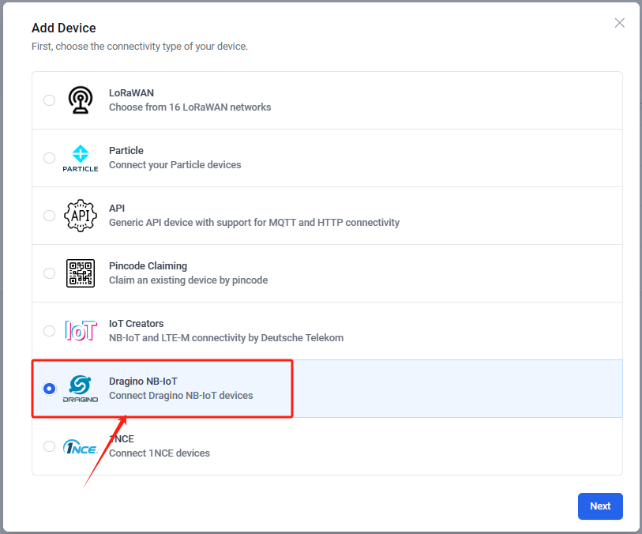

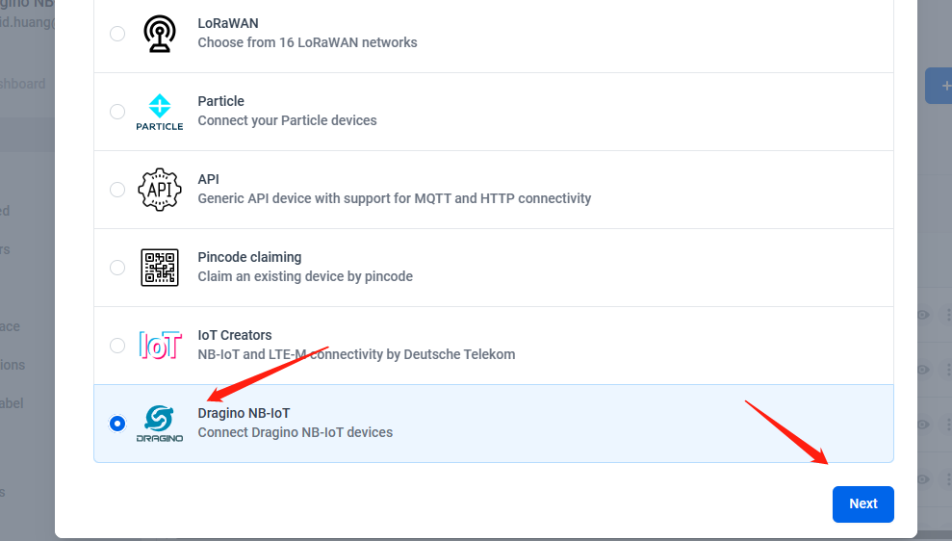

Step2: Choose your device type,please select dragino NB-IOT device

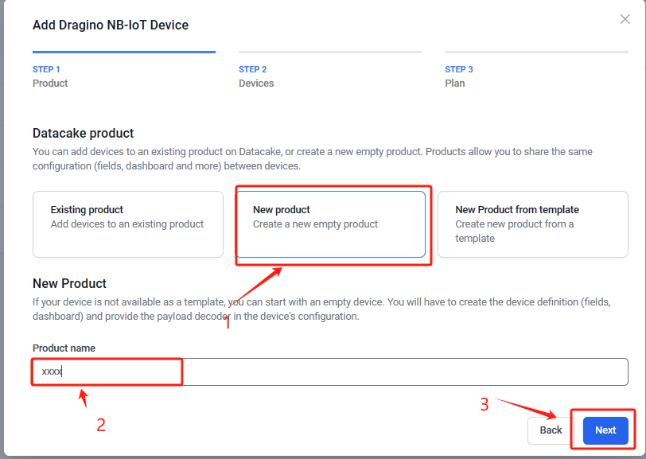

Step3: Choose to create a new device

Step4: Fill in the device ID of your NB device

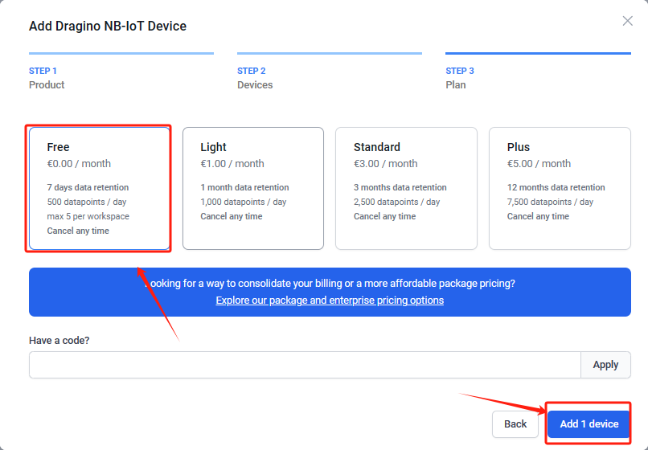

Step5: Please select your device plan according to your needs and complete the creation of the device

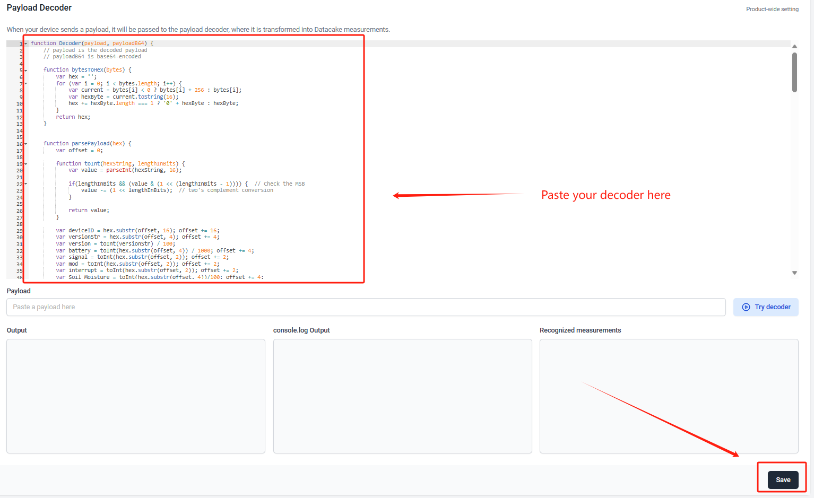

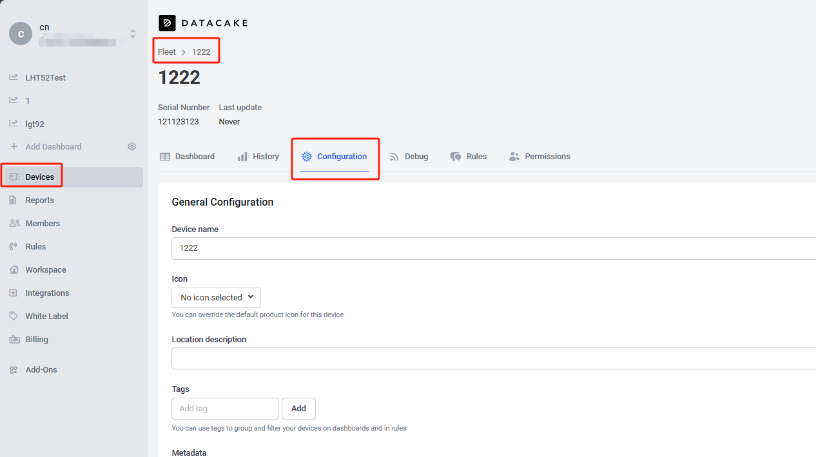

Step6: Please add the decoder at the payload decoder of the device configuration.

Decoder location:dragino-end-node-decoder/Datacake-Dragino_NB at main · dragino/dragino-end-node-decoder (github.com)

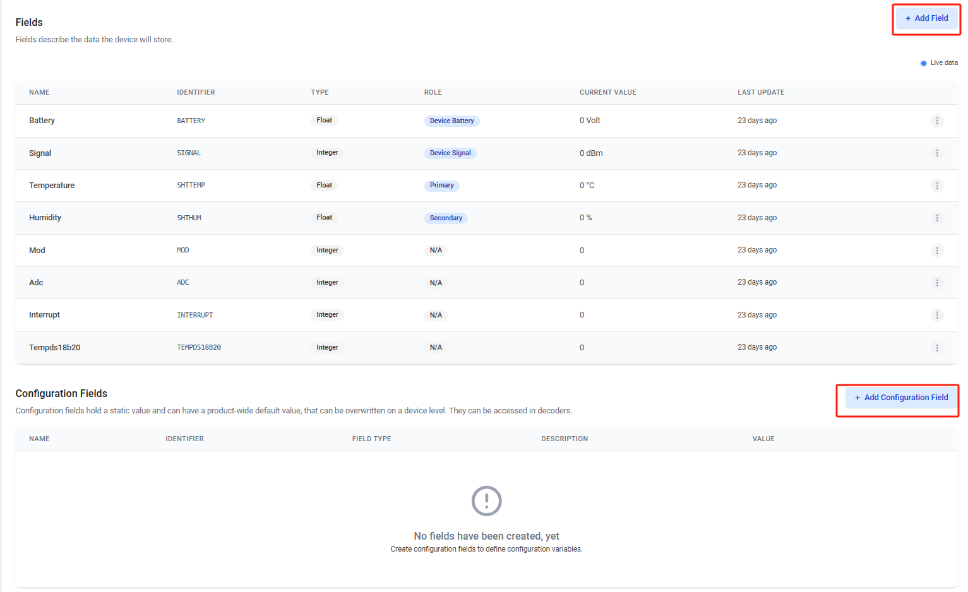

Step7: Add the output of the decoder as a field

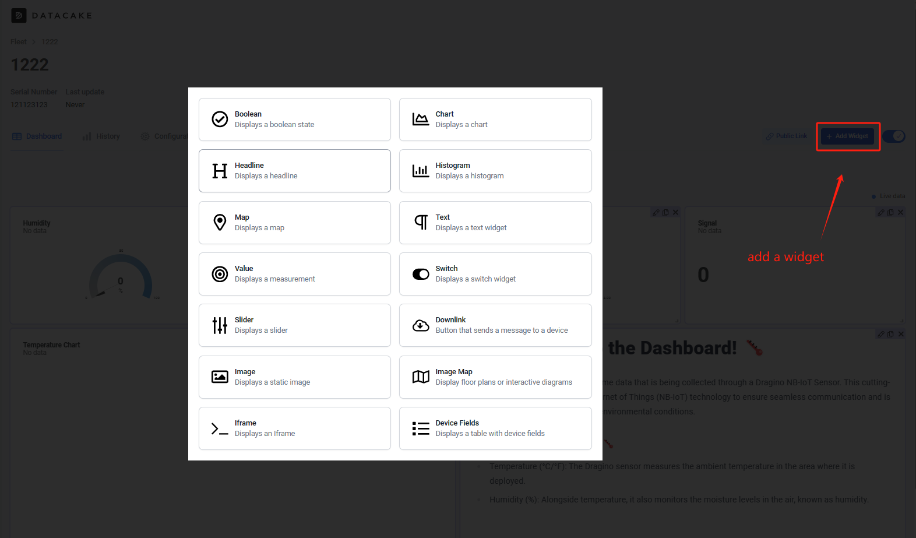

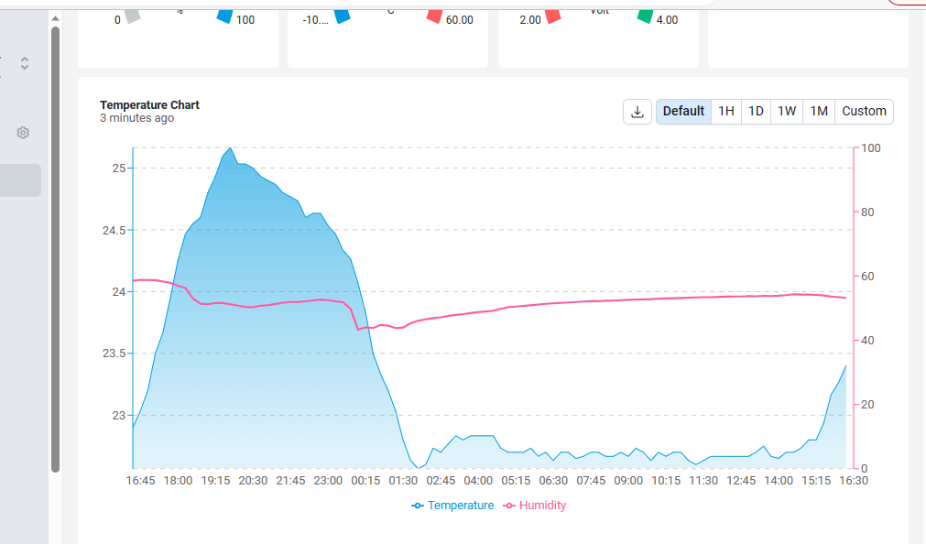

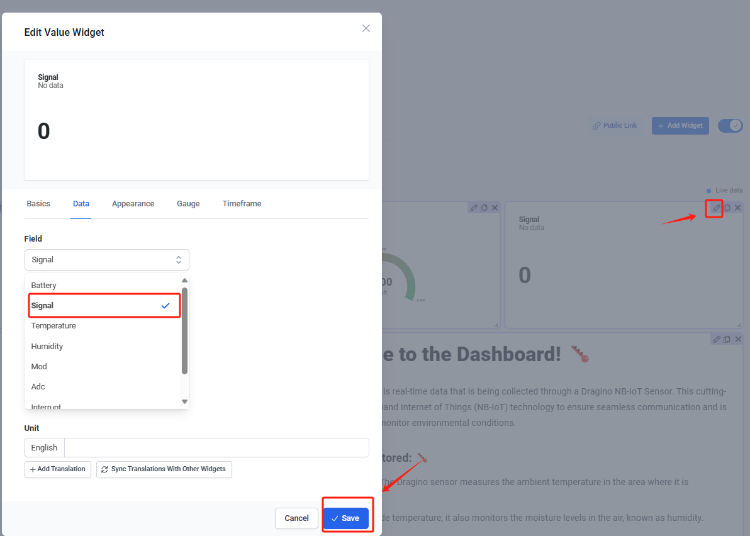

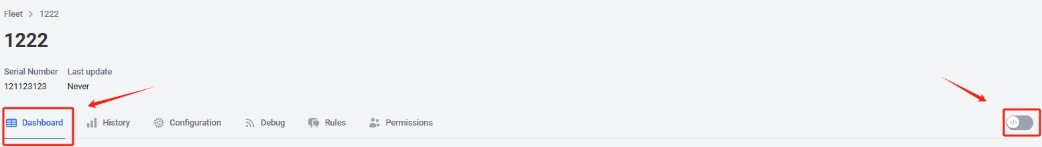

Step8: Customize the dashboard and use fields as parameters of the dashboard

3.4.4 For device have not configured to connect to DataCake

Use AT command for connecting to DataCake

AT+PRO=2,0

AT+SERVADDR=67.207.76.90,4445

3.5 Node-Red (via MQTT)

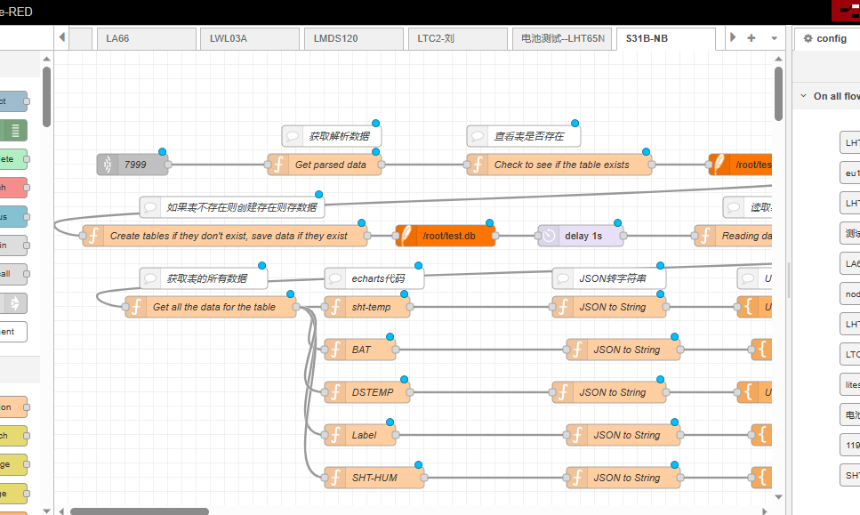

3.5.1 Configure Node-Red

Take S31-KB UDP protocol as an example.

Dragino provides input flow examples for the sensors.

User can download the required JSON file through Dragino Node-RED input flow template.

Download sample JSON file link: https://www.dropbox.com/sh/mduw85jcuwsua22/AAAvwPhg9z6dLjJhmZjqBf_ma?dl=0

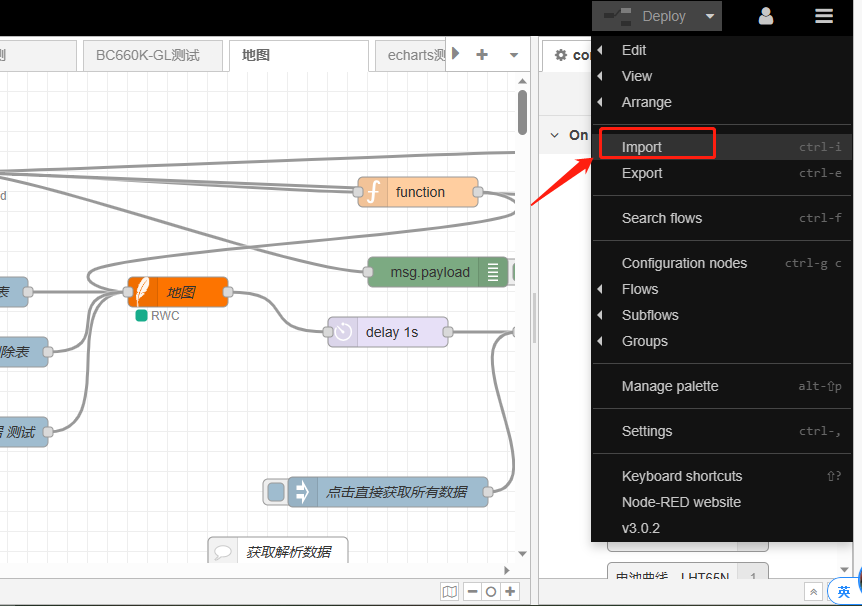

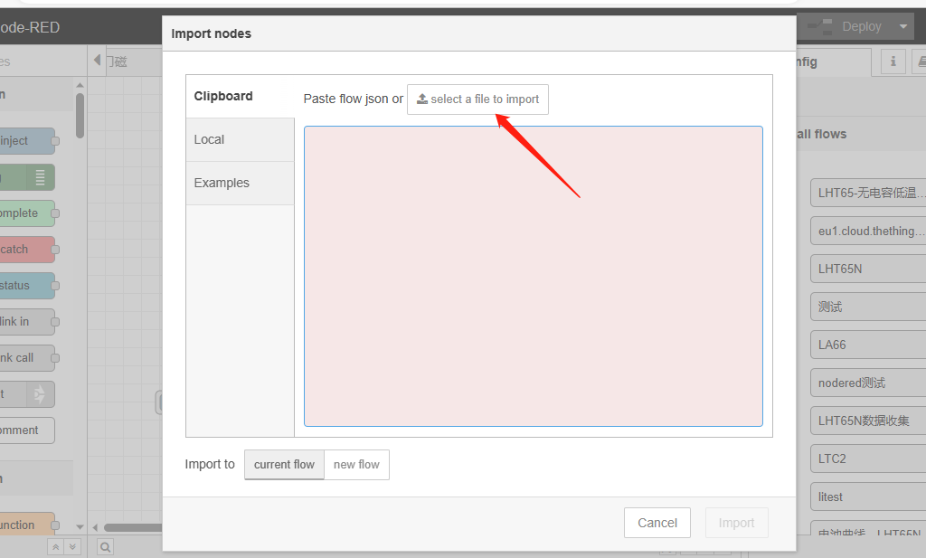

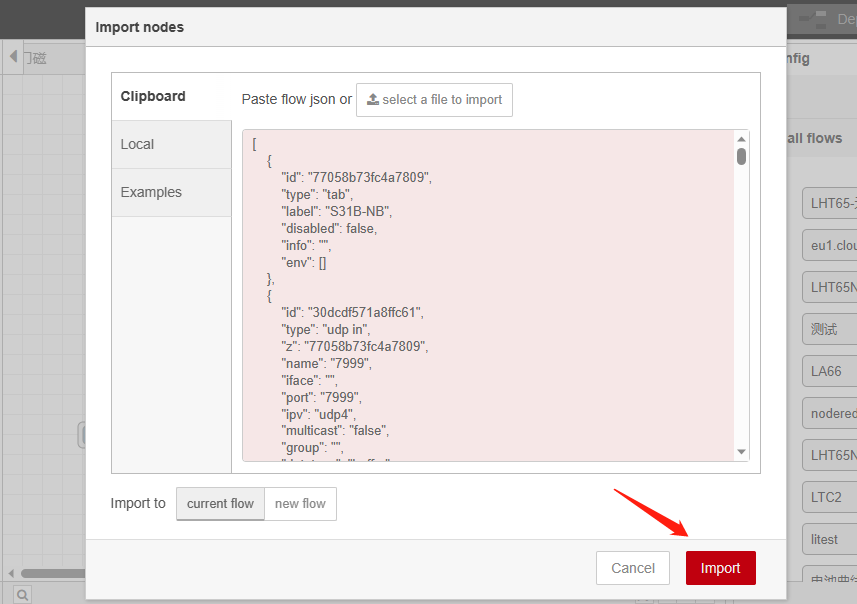

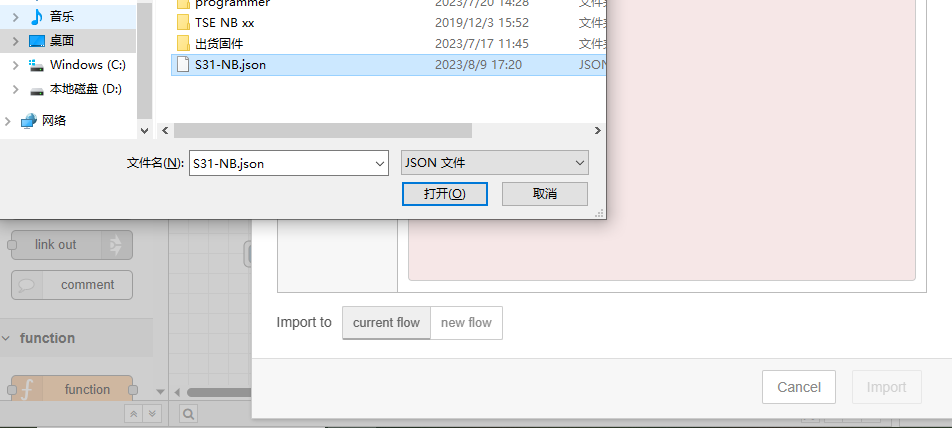

We can directly import the template.

The templates for S31-KB and NB95S31B are the same.

Please select the NB95S31B template.

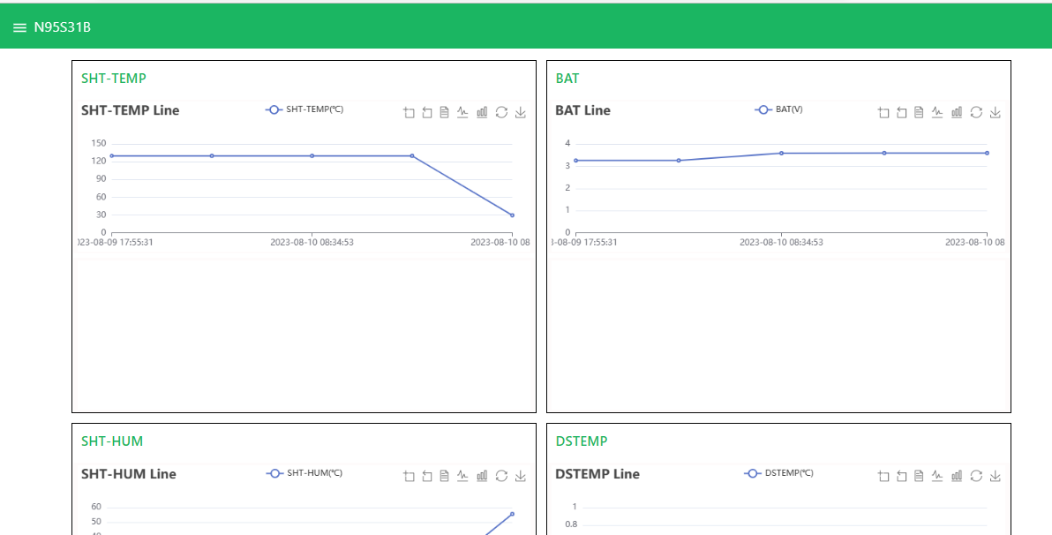

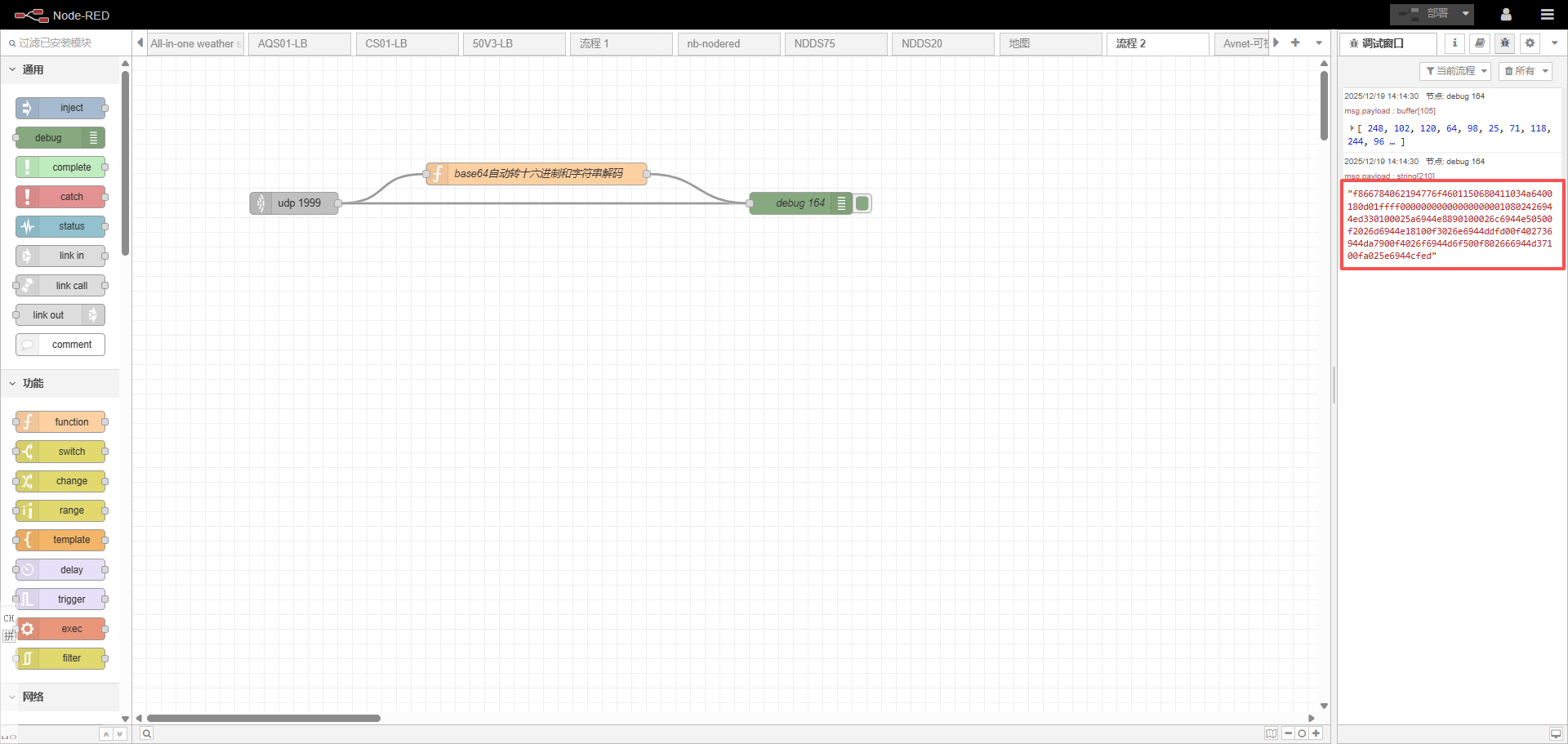

Successfully imported template.

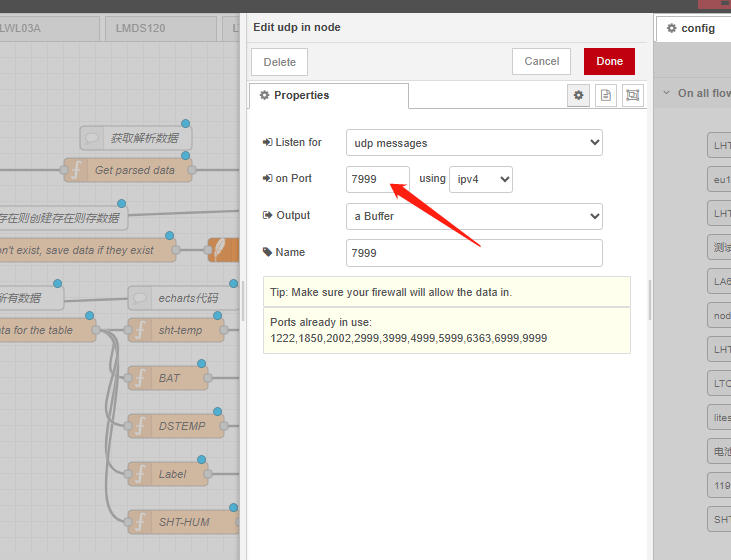

Users can set UDP port.

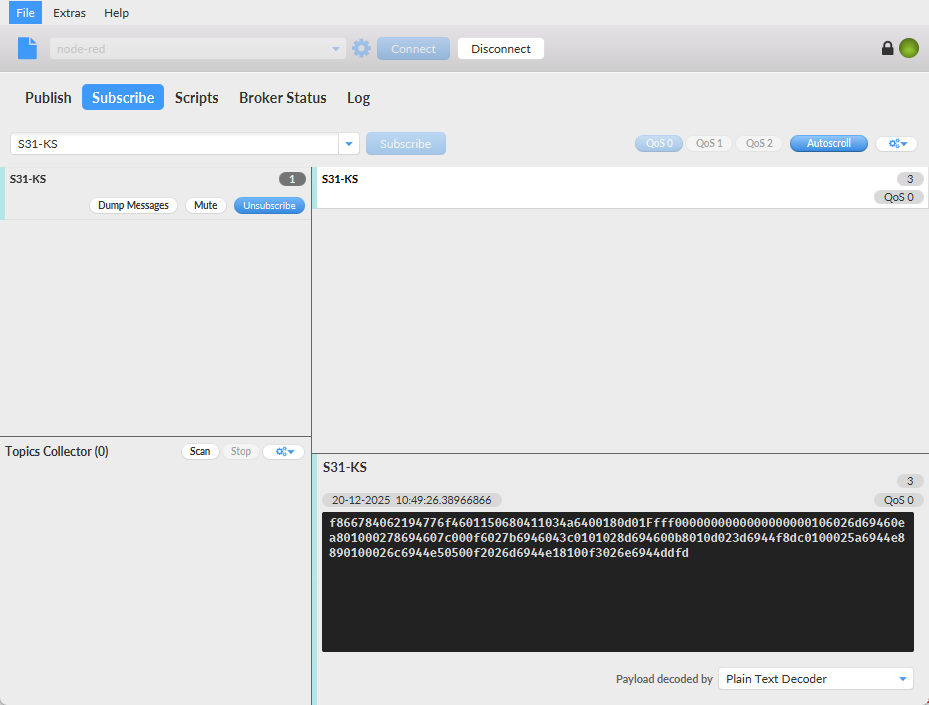

3.5.2 Simulate Connection

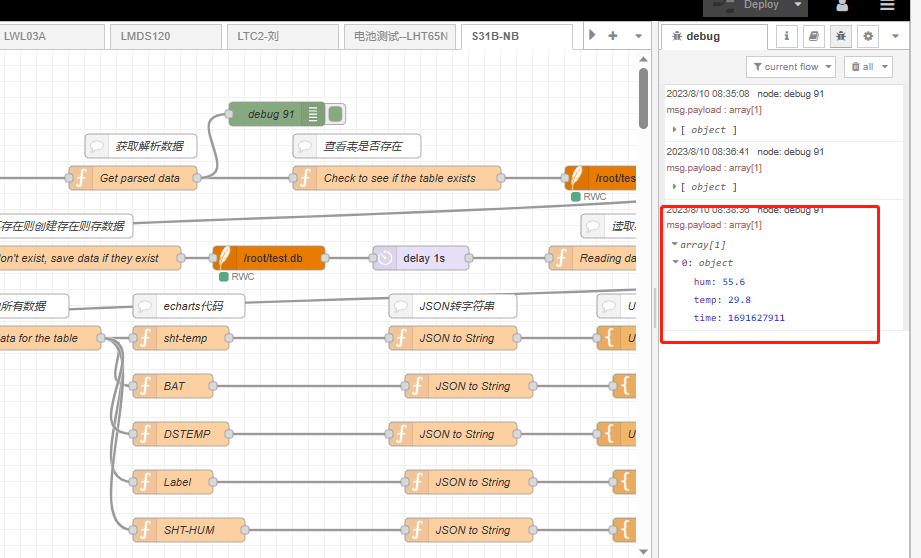

We have completed the configuration of UDP. We can try sending packets to node red.

3.5.3 Configure NB-IoT Sensors

• AT+PRO=3,0 or 3,5 // hex format or json format
• AT+SUBTOPIC=<device name> or User Defined
• AT+PUBTOPIC=<device name> or User Defined
• AT+CLIENT=<device name> or User Defined
• AT+UNAME=<device name> or User Defined
• AT+PWD=“Your device token”

3.6 ThingsBoard.Cloud (via MQTT)

3.6.1 Configure ThingsBoard

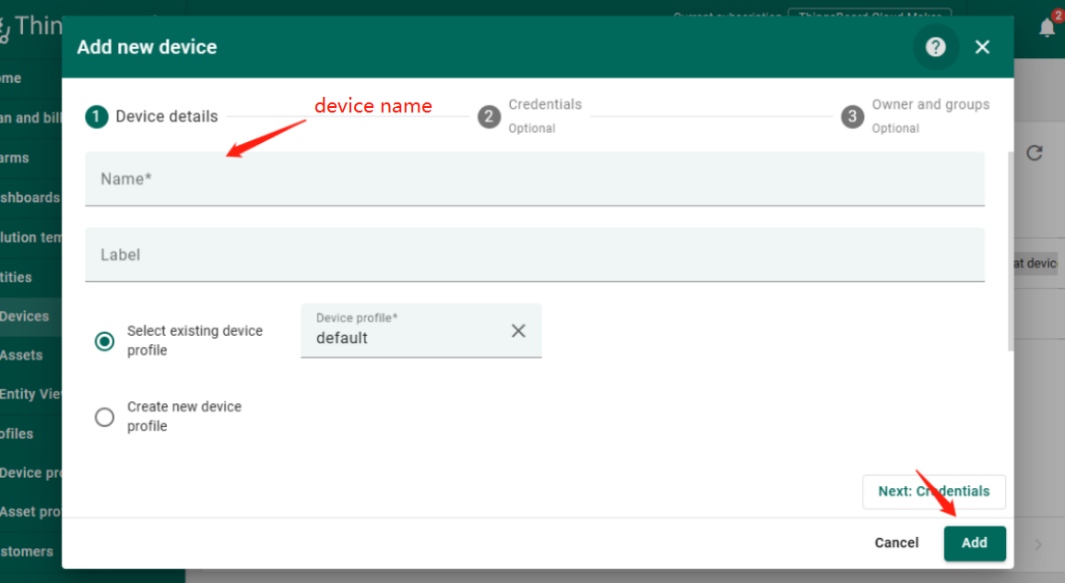

3.6.1.1 Create Device

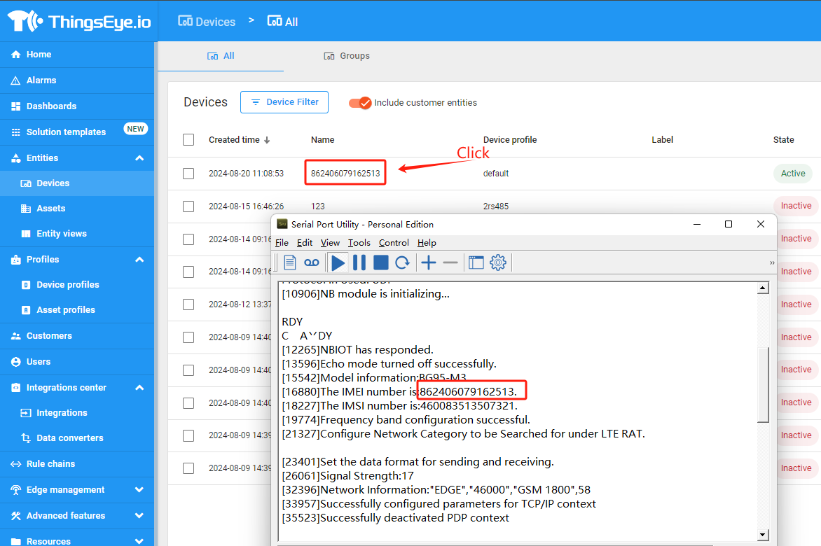

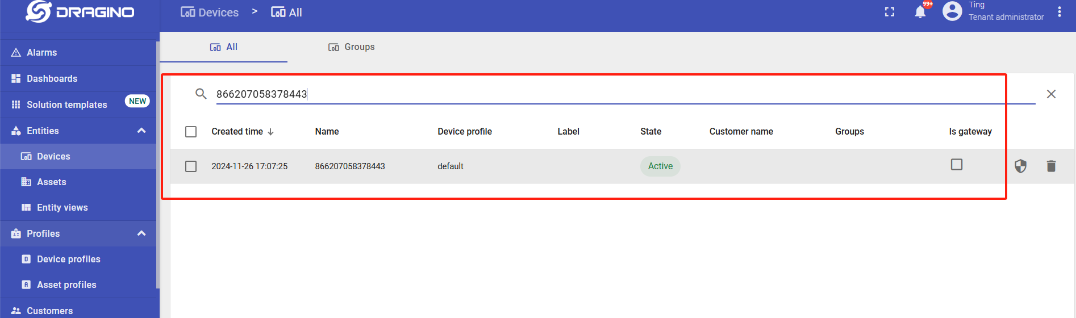

Create a New Device in ThingsBoard. Record Device Name which is used for MQTT connection.

3.6.1.2 Create Uplink & Downlink Converter

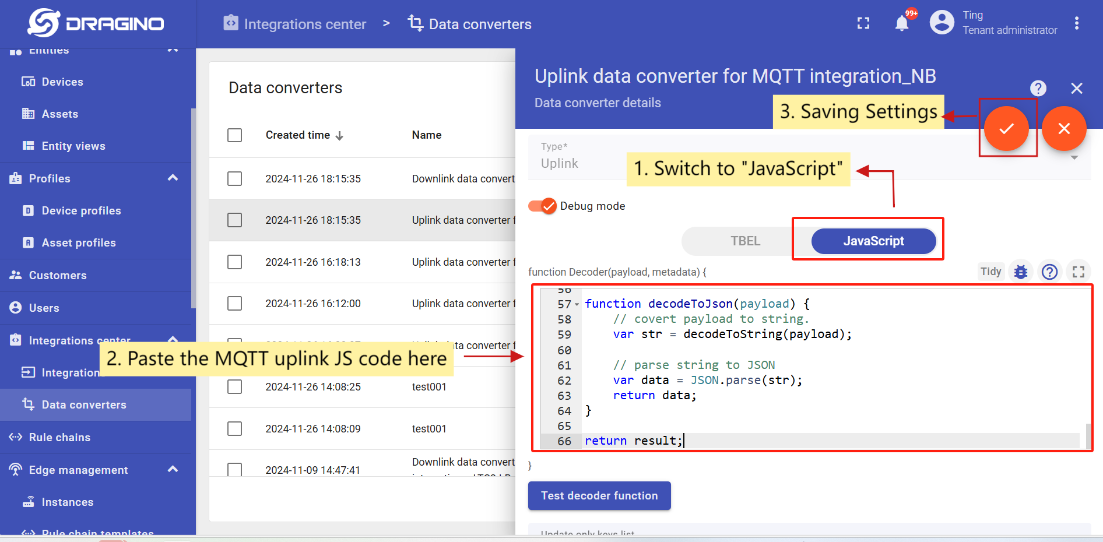

Uplink Converter

The purpose of the decoder function is to parse the incoming data and metadata to a format that ThingsBoard can consume. deviceName and deviceType are required, while attributes and telemetry are optional. Attributes and telemetry are flat key-value objects. Nested objects are not supported.

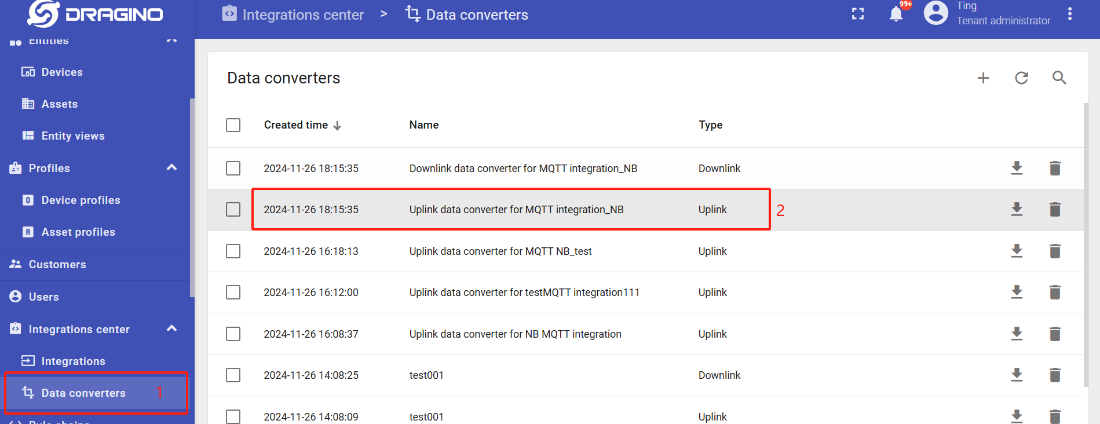

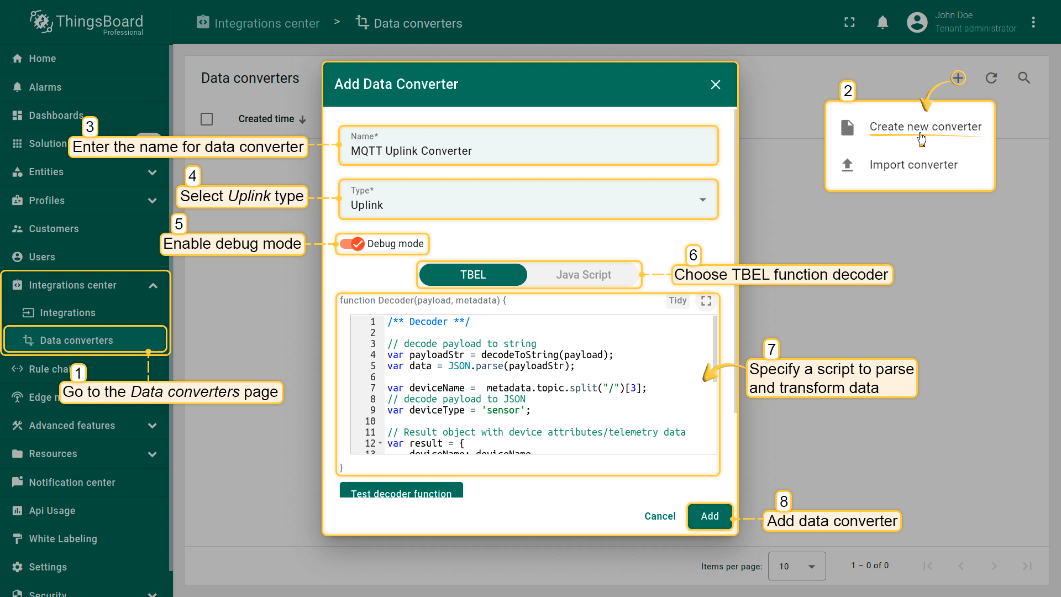

To create an uplink converter go to the Integrations center ->Data converters page and click “plus” button. Name it “MQTT Uplink Converter” and select type "Uplink". Use debug mode for now.

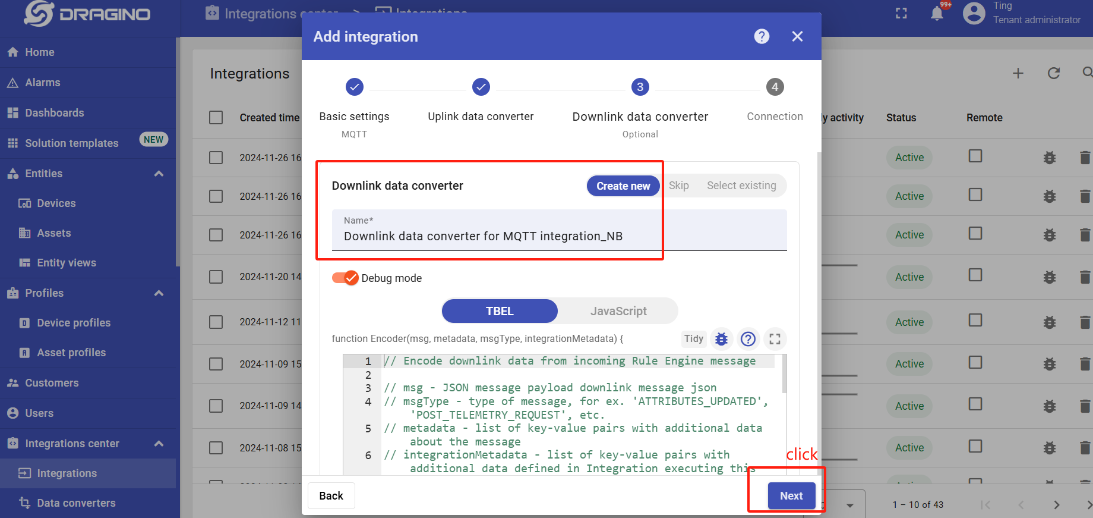

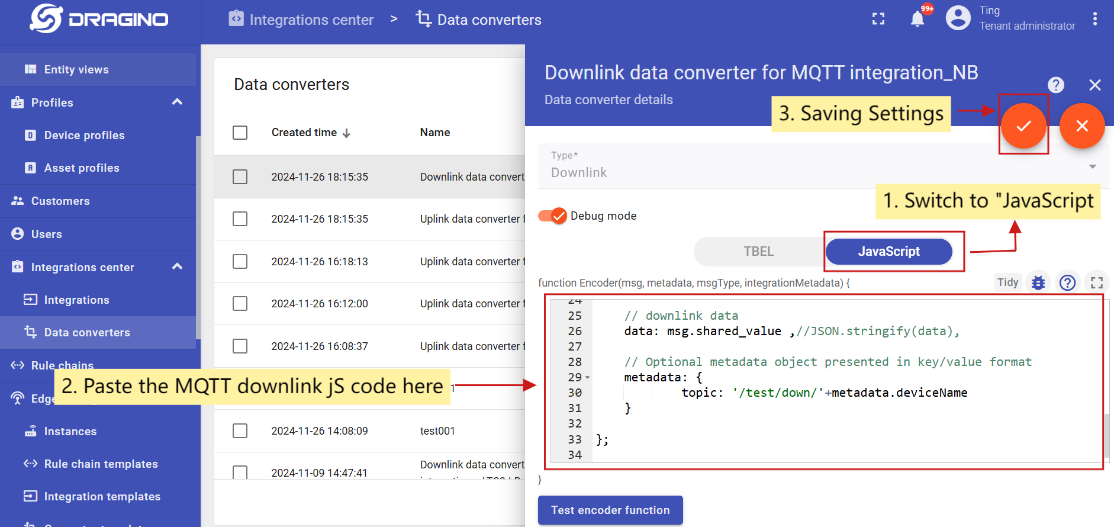

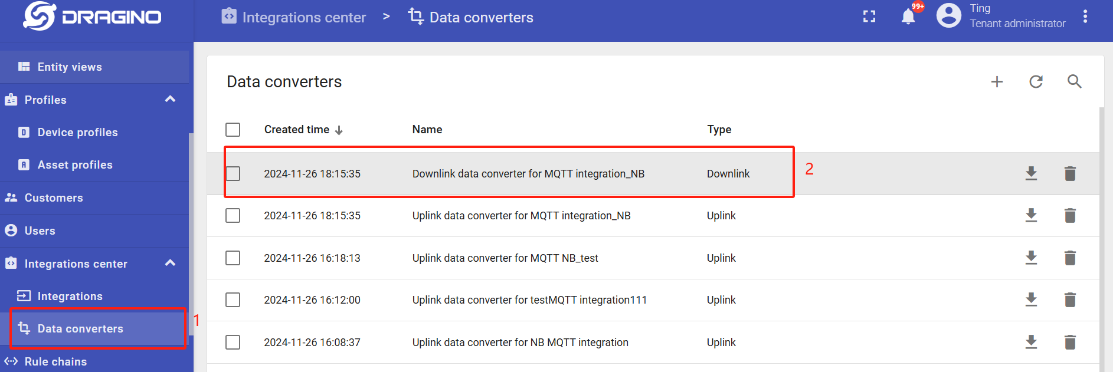

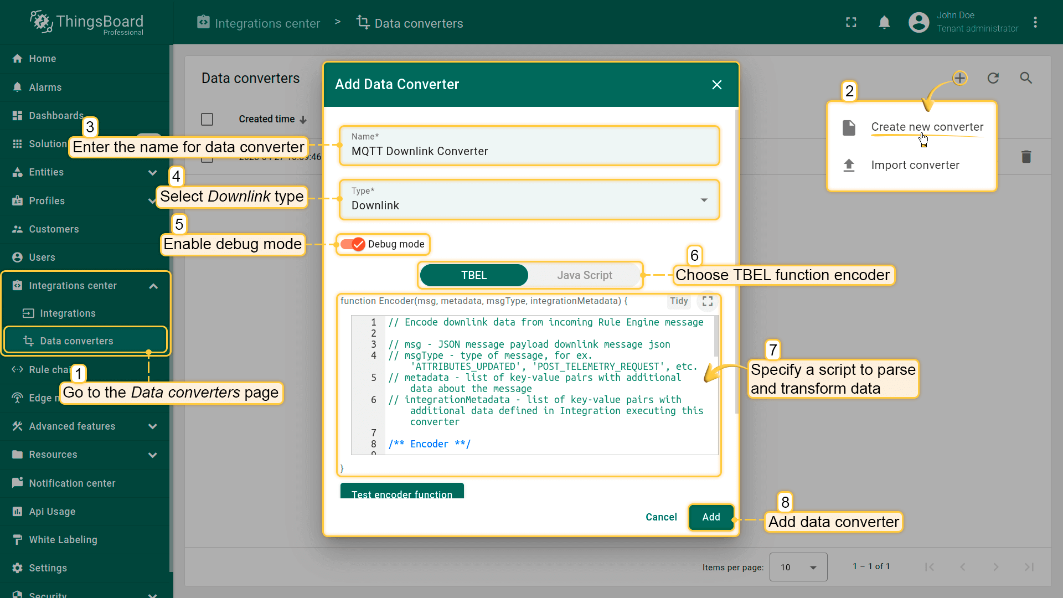

Downlink Converter

The Downlink converter transforming outgoing RPC message and then the Integration sends it to external MQTT broke

Note: Our device payload is already human readable data. Therefore, users do not need to write decoders. Simply create by default.

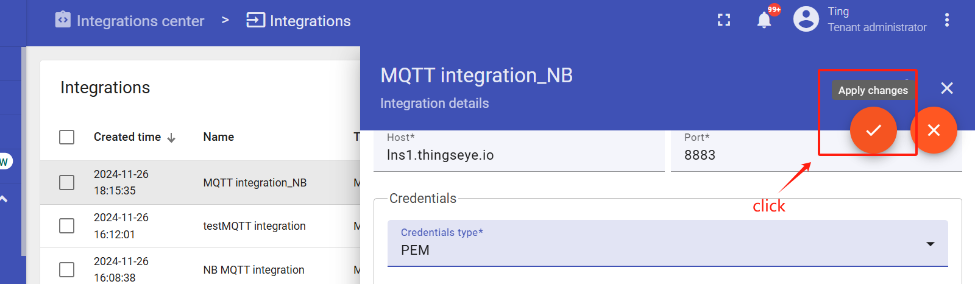

3.6.1.3 MQTT Integration Setup

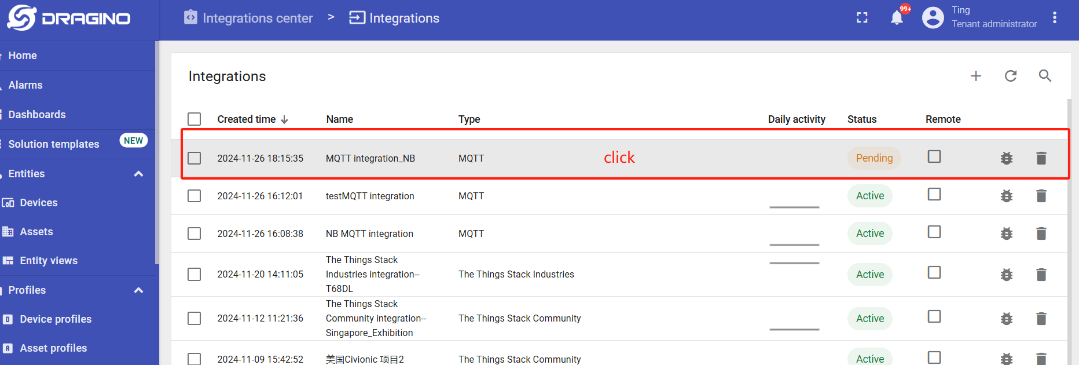

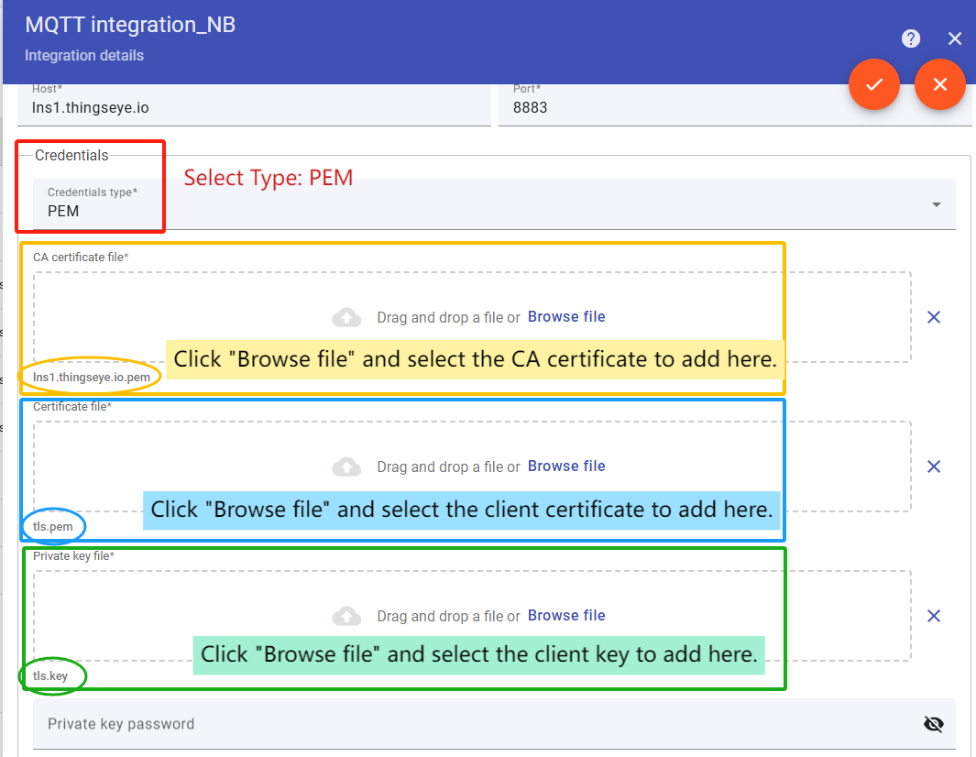

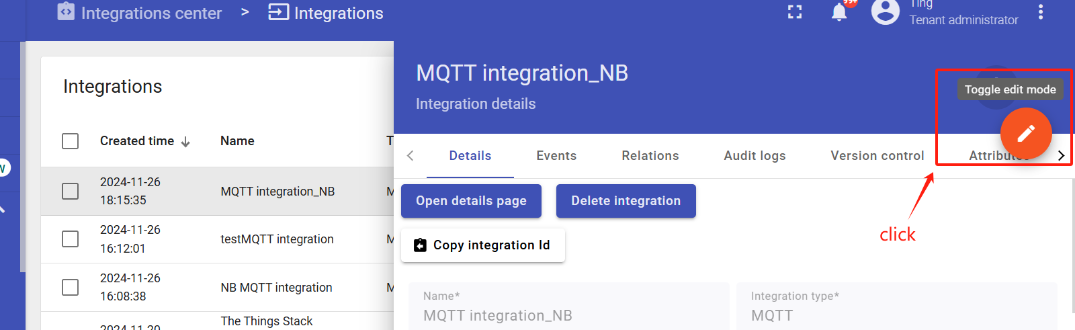

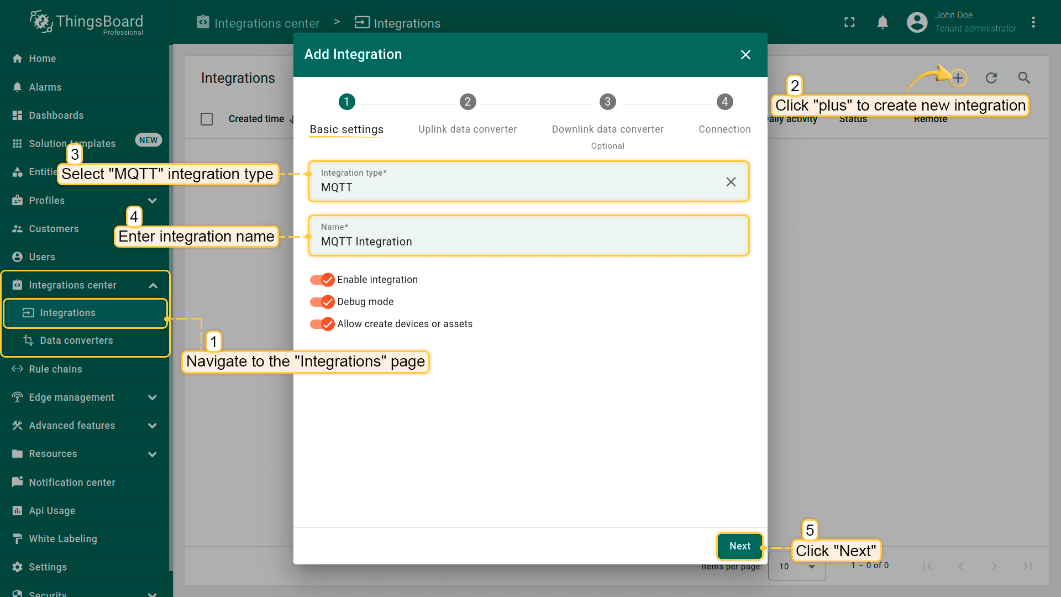

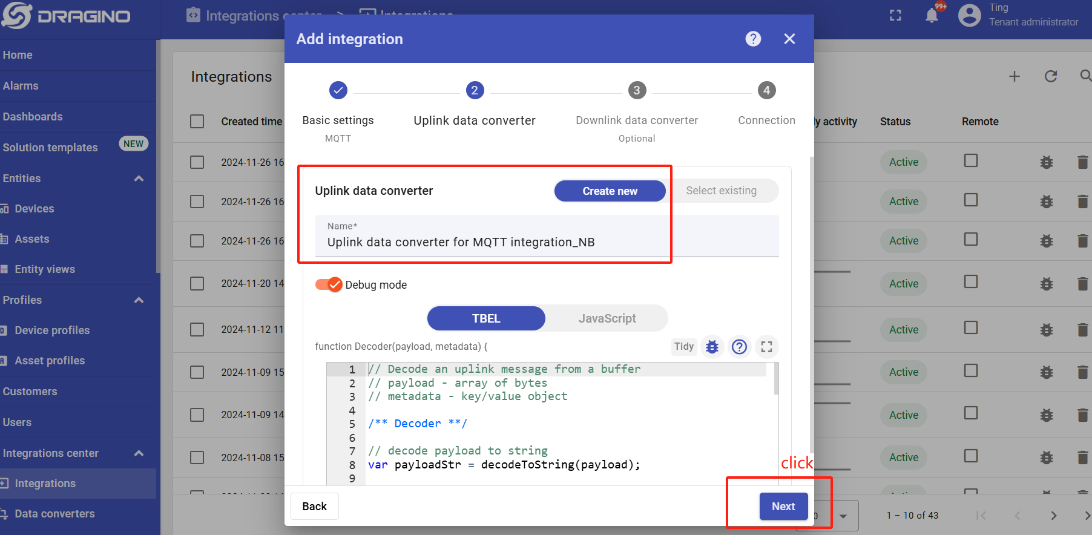

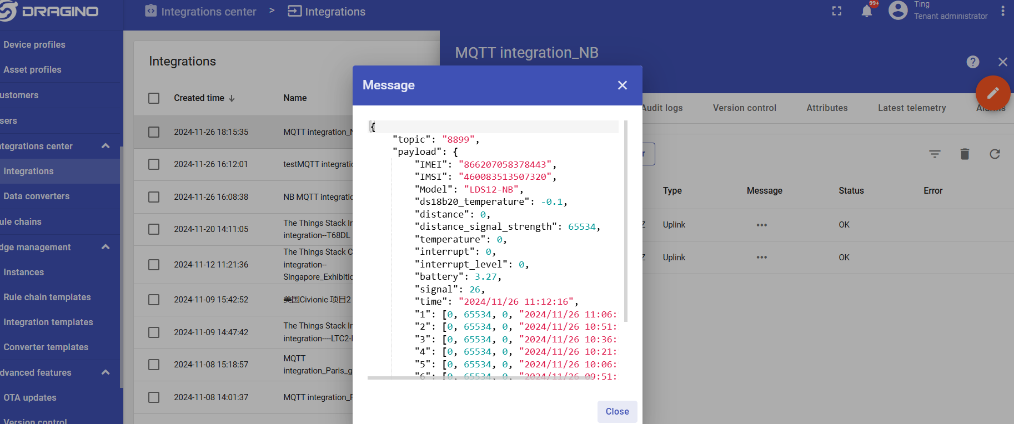

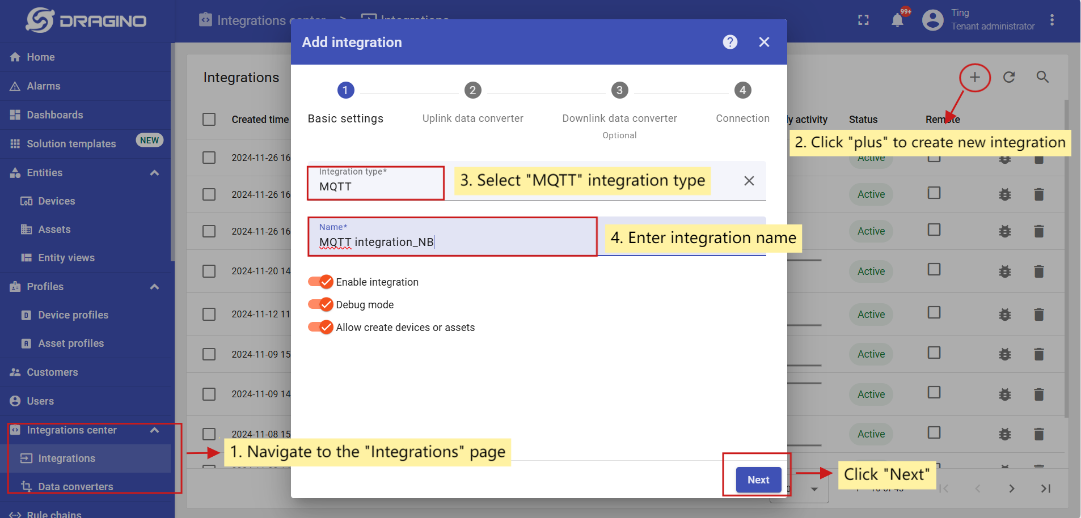

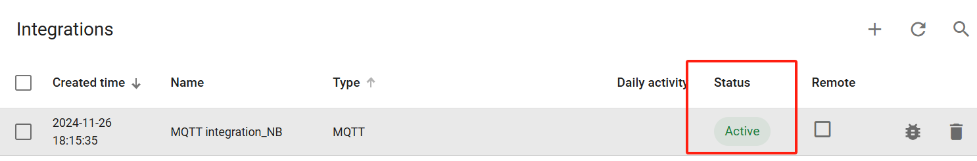

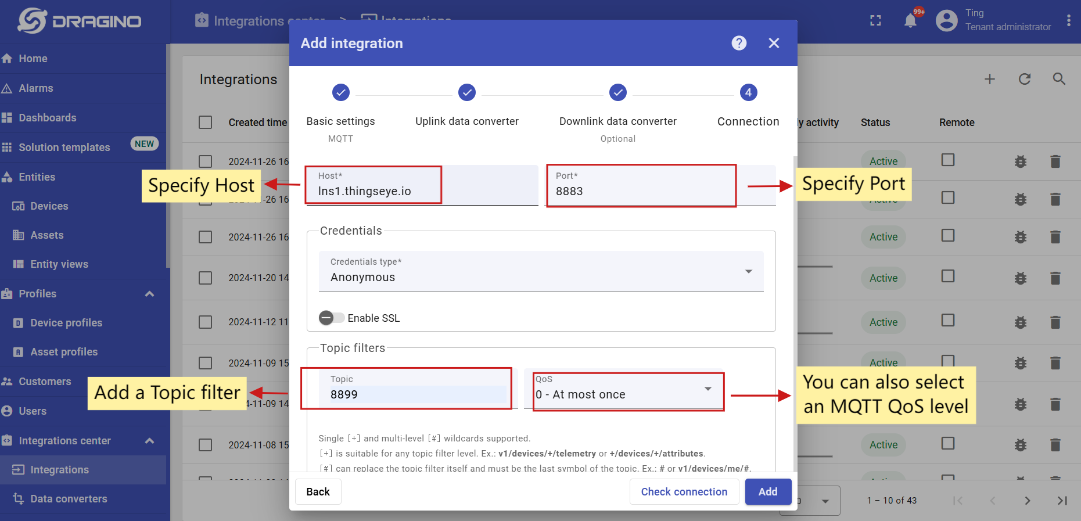

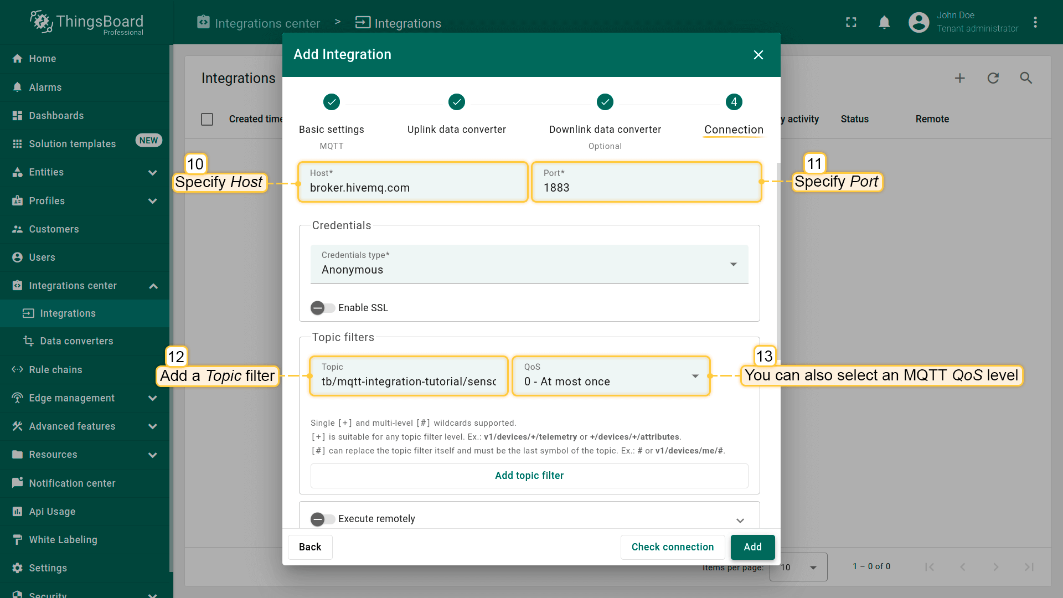

Go to the Integrations center -> Integrations page and click “plus” icon to add a new integration. Name it “MQTT Integration”, select type MQTT;

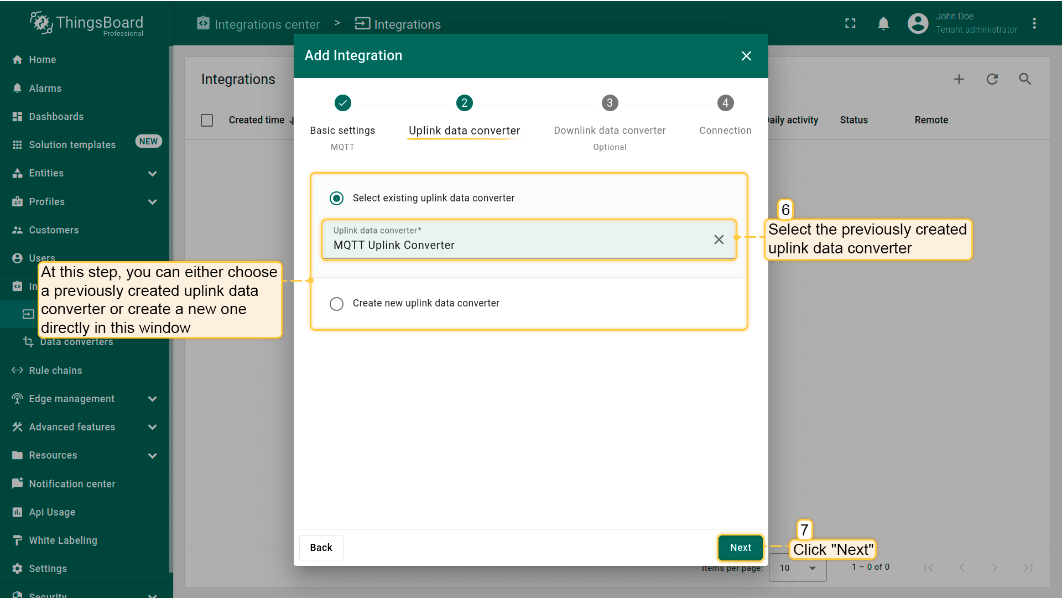

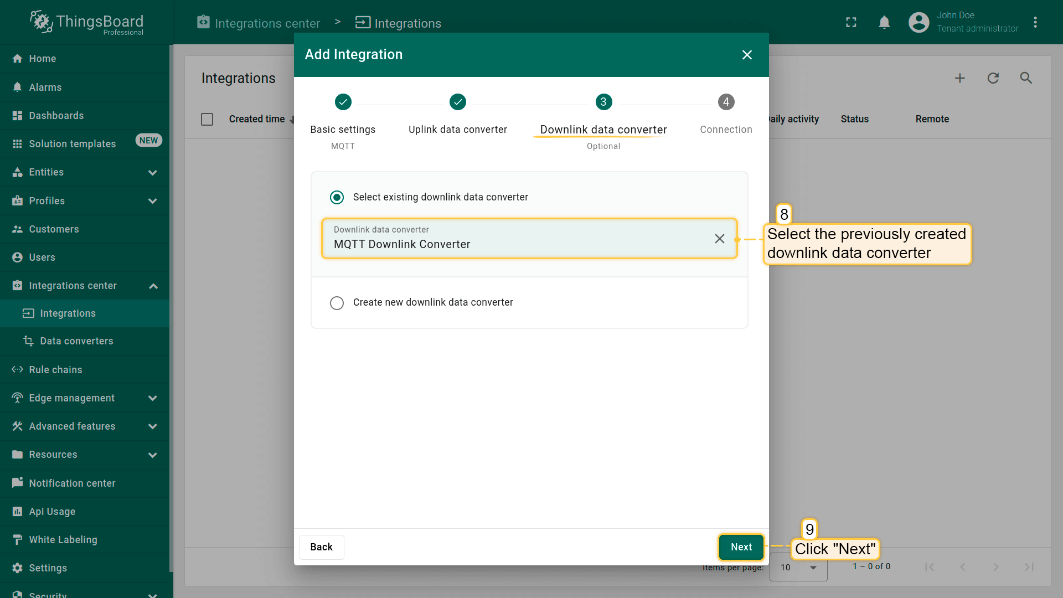

• The next steps is to add the recently created uplink and downlink converters;

Add a topic filter:

Consistent with the theme of the node setting.

You can also select an MQTT QoS level. We use MQTT QoS level 0 (At most once) by default;

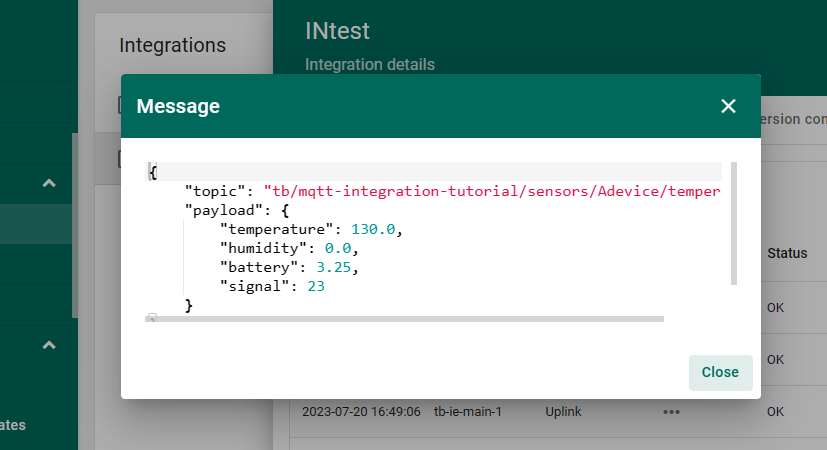

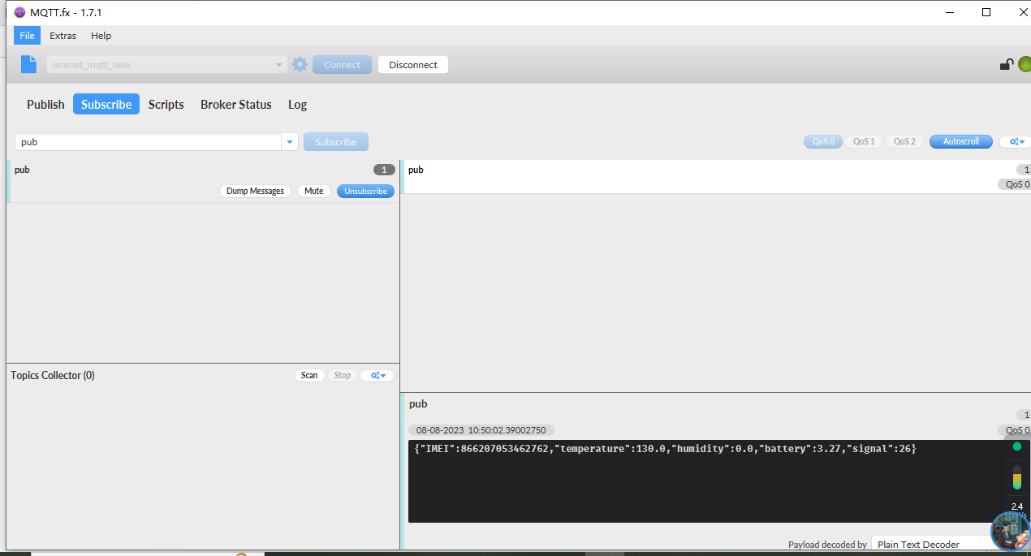

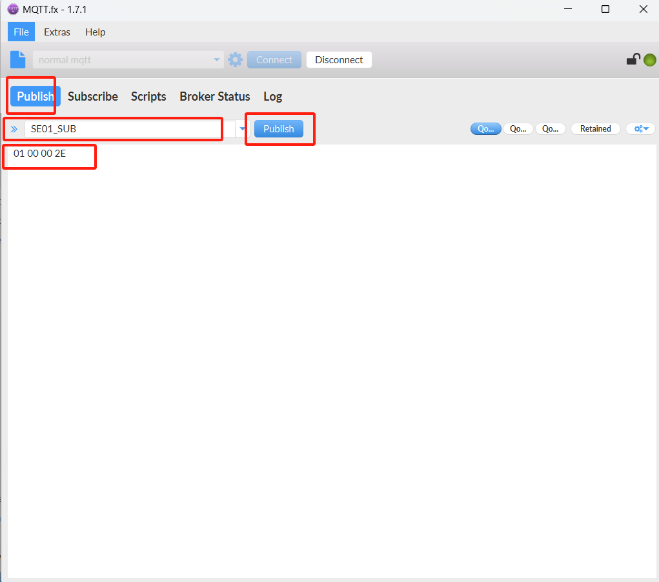

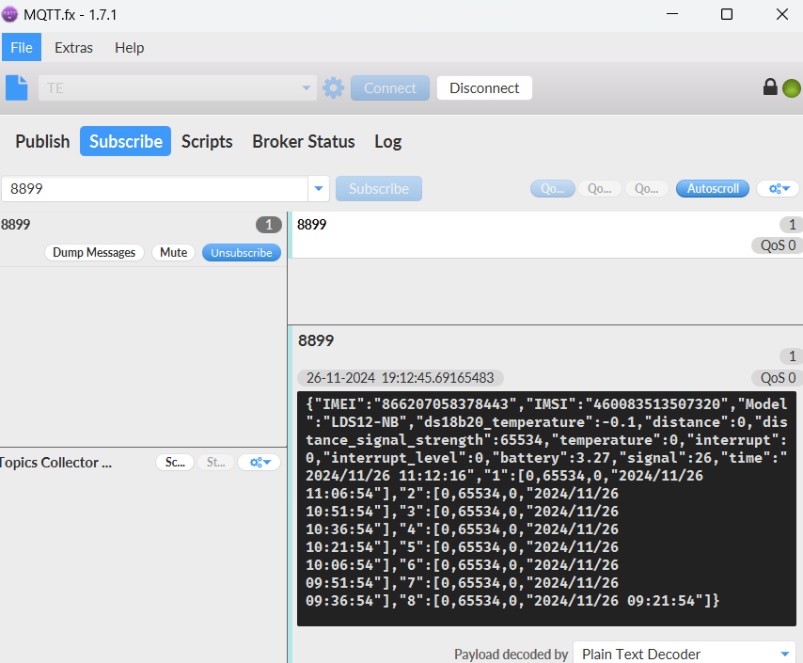

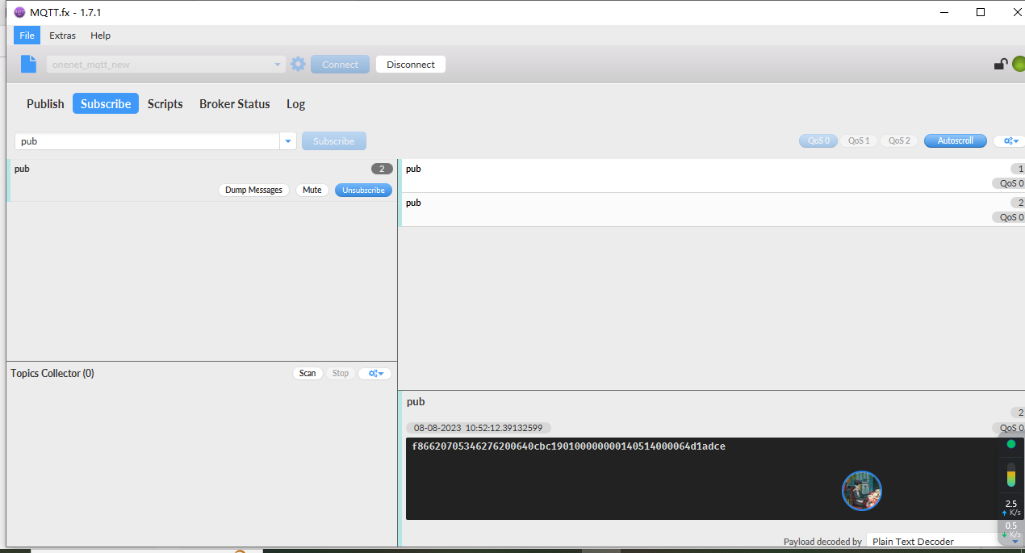

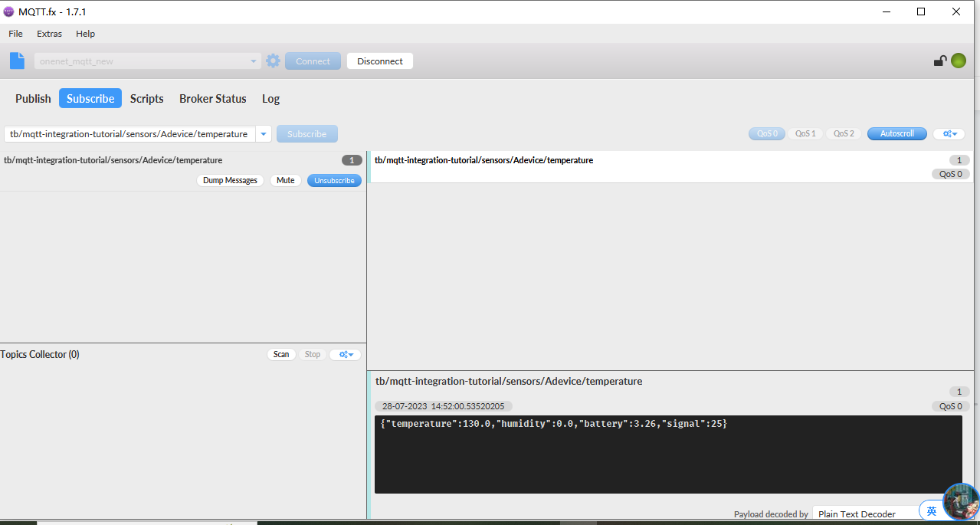

3.6.2 Simulate with MQTT.fx

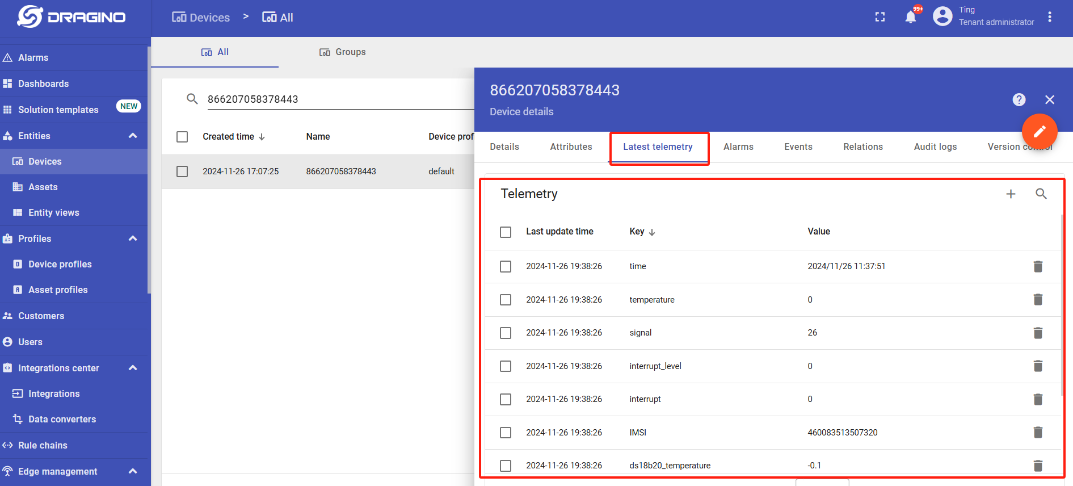

3.6.3 Configure NB-IoT Sensor

AT Commands

• AT+PRO=3,3 // Use MQTT to connect to ThingsBoard. Payload Type set to 3.

• AT+SUBTOPIC=<device name>

• AT+PUBTOPIC=<device name>

• AT+CLIENT=<device name> or User Defined

• AT+UNAME=<device name> or User Defined

• AT+PWD=<device name> or User Defined

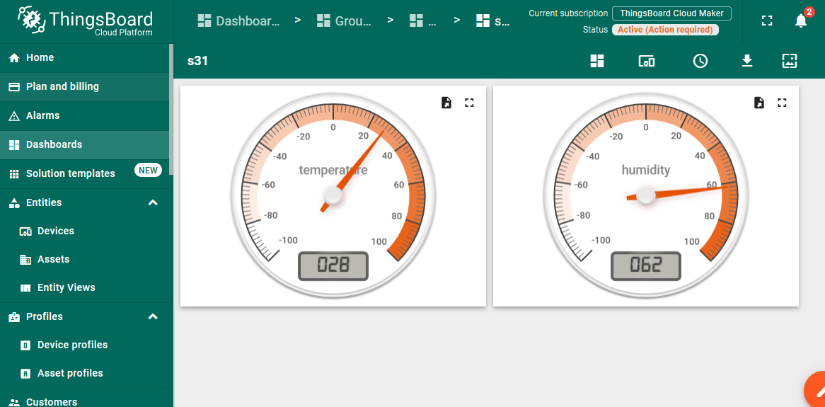

Test Uplink by click the button for 1 second

3.8 Tago.io (via MQTT)

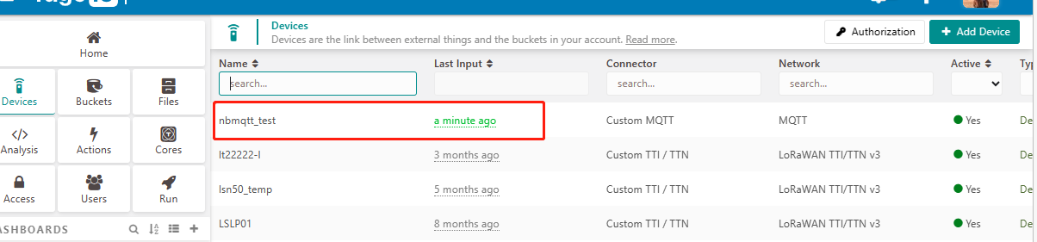

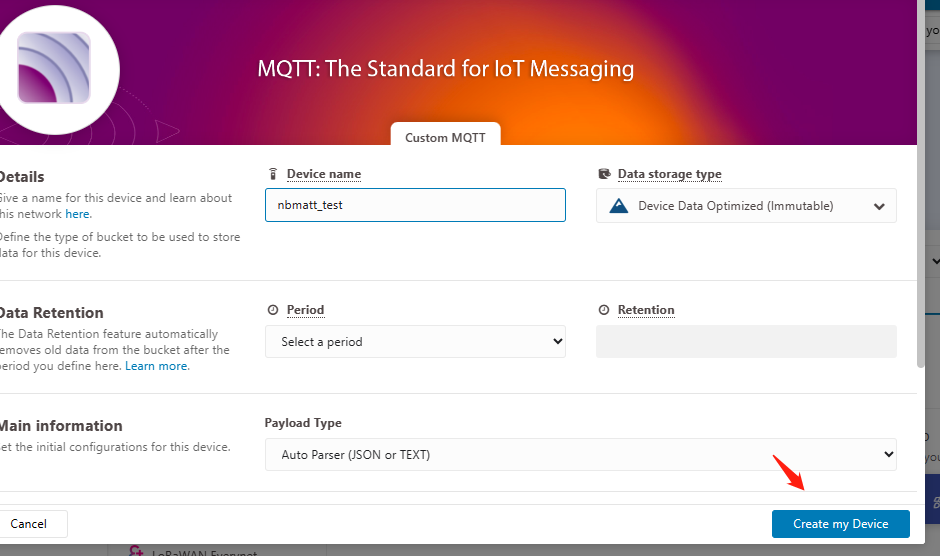

3.8.1 Create device & Get Credentials

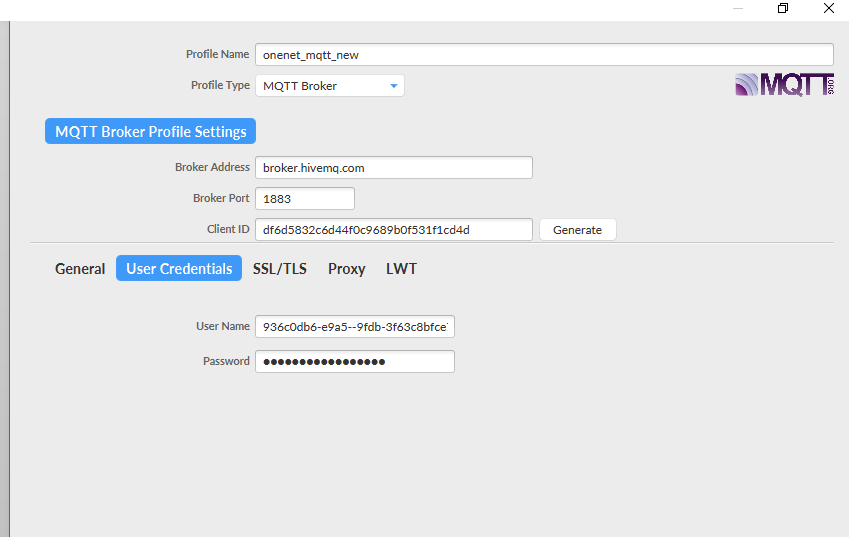

We use MQTT Connection to send data to Tago.io. We need to Create Device and Get MQTT Credentials first.

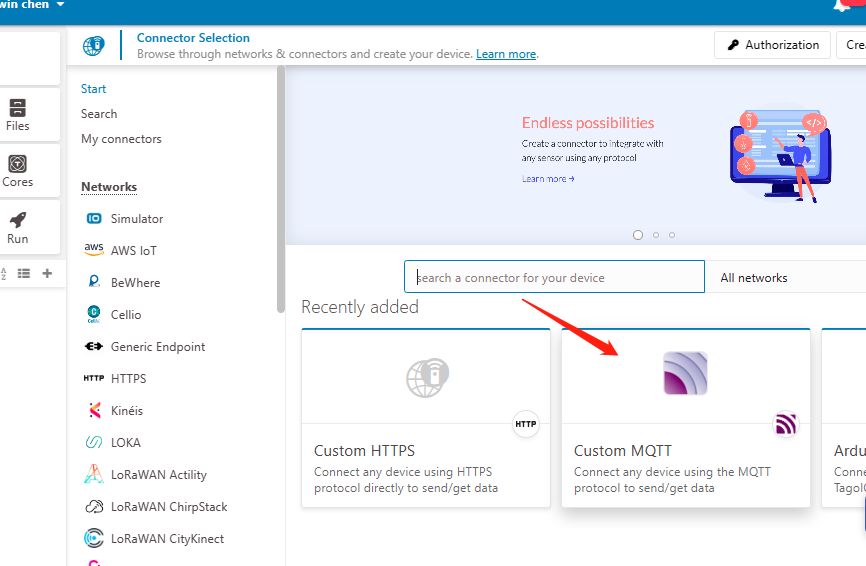

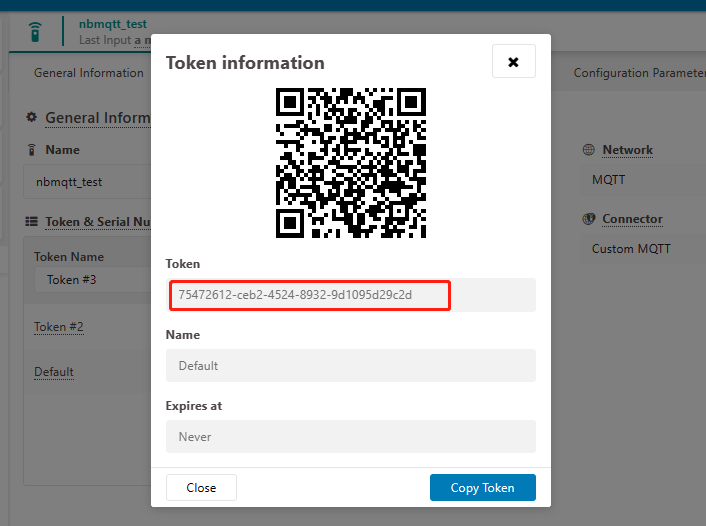

Go to the Device section and create a device. Then, go to the section tokens and copy your device-token.

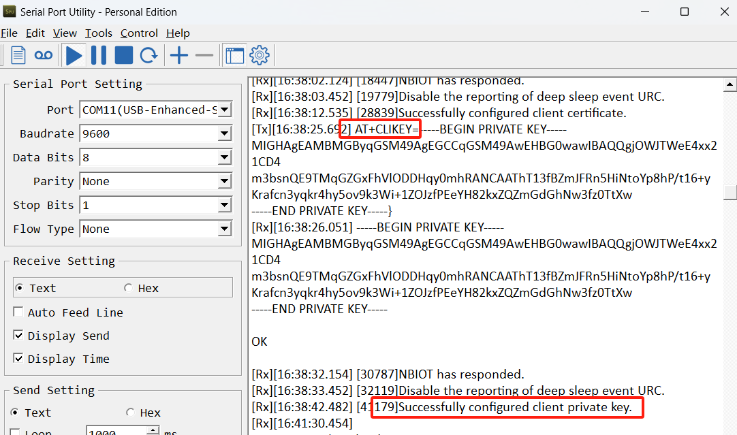

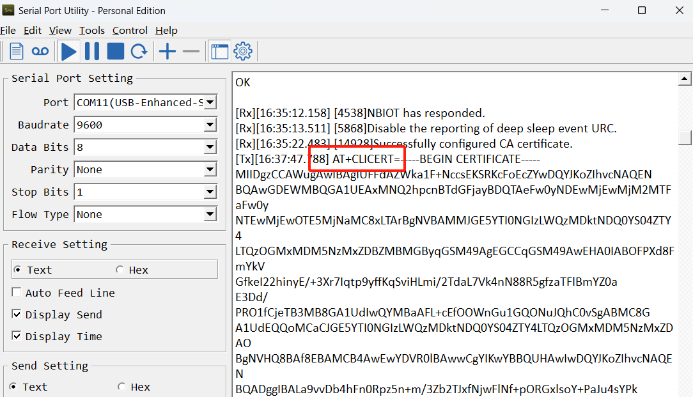

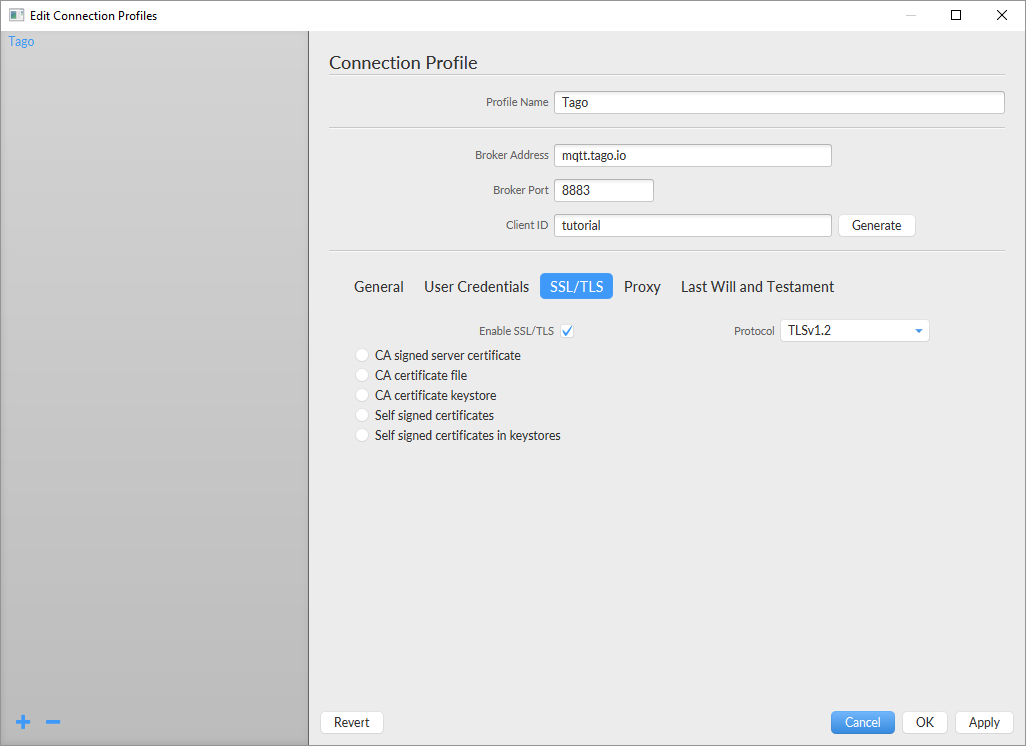

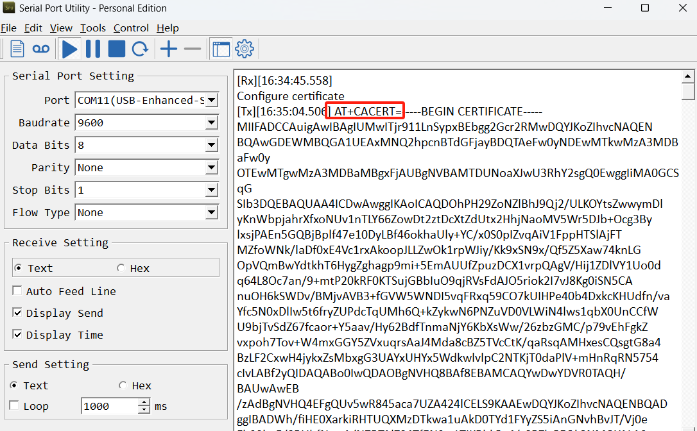

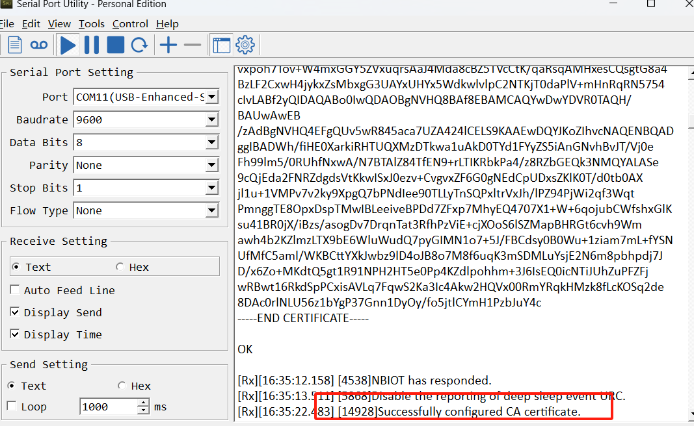

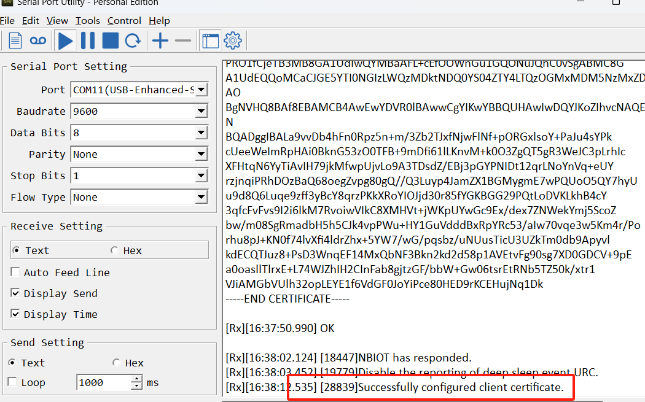

The device needs to enable the TLS mode and set the AT+TLSMOD=1,0 command. On the Connection Profile window, set the following information:

• Profile Name: “Any name”

• Broker Address: mqtt.tago.io

• Broker Port: 8883

• Client ID: “Any value”

On the section User credentials, set the following information:

• User Name: “Any value” // Tago validates your user by the token only

• Password: “Your device token”

• PUBTOPIC: “Any value”

• SUBTOPIC: “Any value”

AT command:

• AT+PRO=3,0 or 3,5 // hex format or json format

• AT+SUBTOPIC=<device name> or User Defined

• AT+PUBTOPIC=<device name> or User Defined

• AT+CLIENT=<device name> or User Defined

• AT+UNAME=<device name> or User Defined

• AT+PWD=“Your device token”

3.8.2 Simulate with MQTT.fx

Users can run the AT+PRO=3,5 command, and the payload will be converted to JSON format.

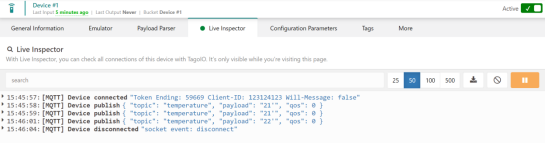

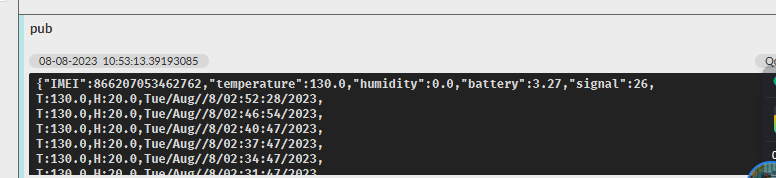

3.8.3 tago data

3.9 TCP Connection

AT command:

• AT+PRO=4,0 // Set to use TCP protocol to uplink(HEX format)

• AT+PRO=4,5 // Set to use TCP protocol to uplink(JSON format)

• AT+SERVADDR=8.135.10.183,34196 // to set TCP server address and port

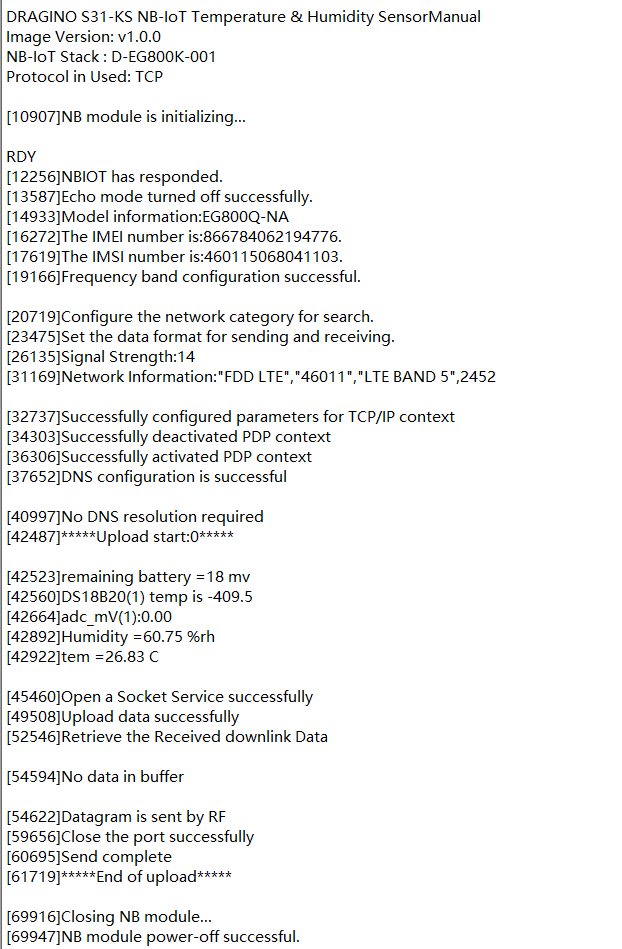

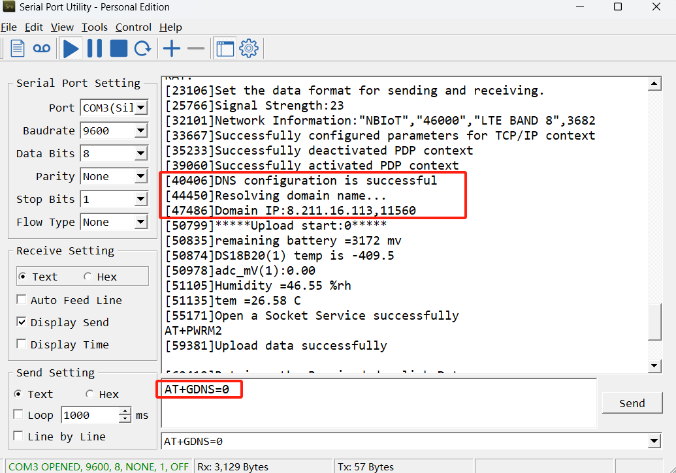

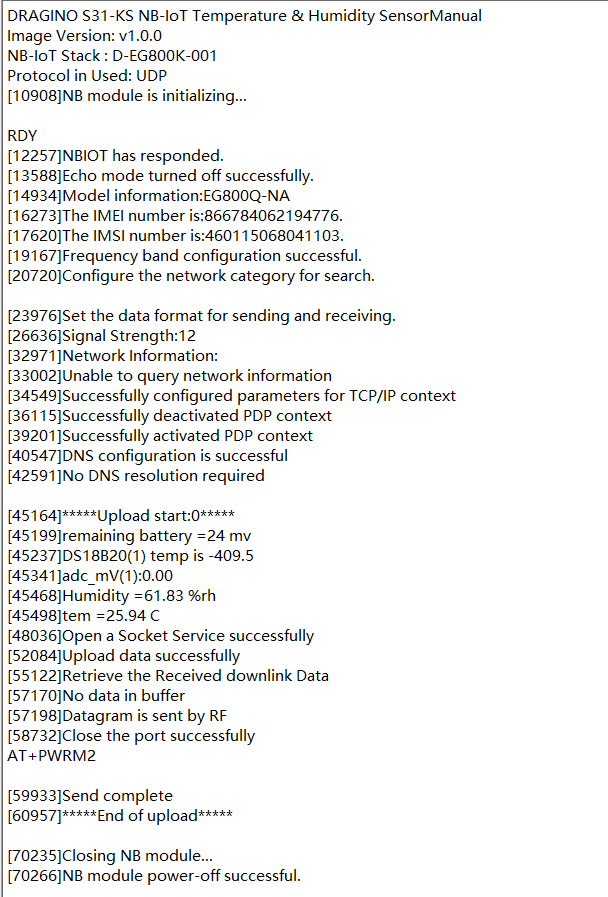

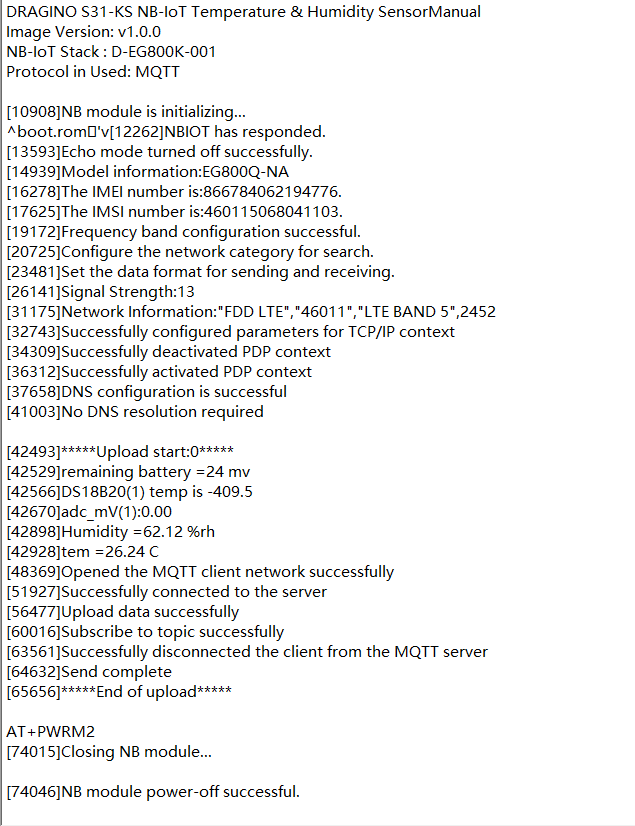

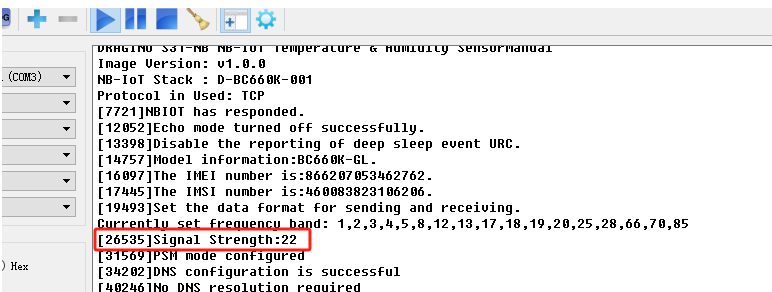

Sensor Console Output when Uplink:

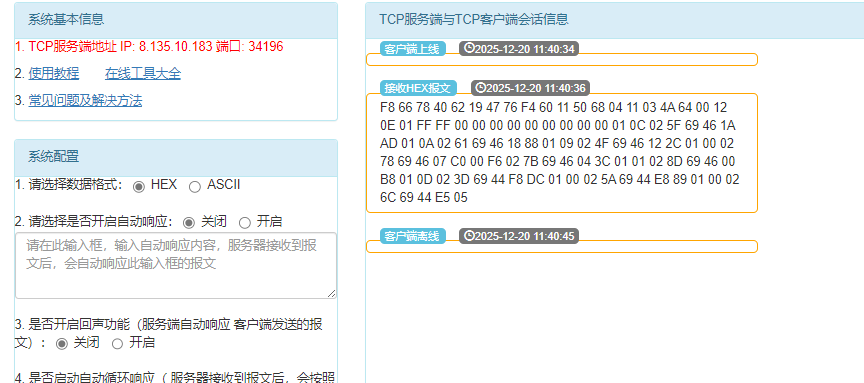

See result in TCP Server:

3.10 AWS Connection

Users can refer to Dragino NB device connection to AWS platform instructions

3.11 ThingsEye (via MQTT)

3.11.1 Configure ThingsEye

3.11.1.1 Create MQTT integration

Go to the Integrations center -> Integrations page and click “plus” icon to add a new integration. Name it “MQTT Integration_NB”, select type MQTT;

Next, directly select to create a new Uplink data converter and downlink data converter.

Add a topic filter:

Consistent with the theme of the node setting.

Note: Recommended MQTT broker: lns1.thingseye.io 8883, fixed use. Topic can be changed on their own, but it need to be consistent with the node's publish and subscribe topic.

You can also select an MQTT QoS level. We use MQTT QoS level 0 (At most once) by default;

3.11.1.2 Add credentials to the MQTT integration

Click on the MQTT integration you just created.

Click the edit icon in the upper right corner to enter the edit mode.

Add credential files.

Click this link to download the certificates.

When the addition is complete, save the Settings.

3.11.1.3 Setup uplink and downlink converters

First, you need to download the MQTT uplink/downlink JS code.

• Uplink Converter

The purpose of the decoder function is to parse the incoming data and metadata to a format that ThingsBoard can consume.

Go to the Integrations center ->Data converters page, and find that MQTT uplink converter that was newly created when the integration was created.

Enter edit mode and apply MQTT uplink JS code to this uplink converter.

• Downlink Converter

Go to the Integrations center ->Data converters page, and find that MQTT downlink converter that was newly created when the integration was created.

Enter edit mode and apply MQTT downlink JS code to this downlink converter.

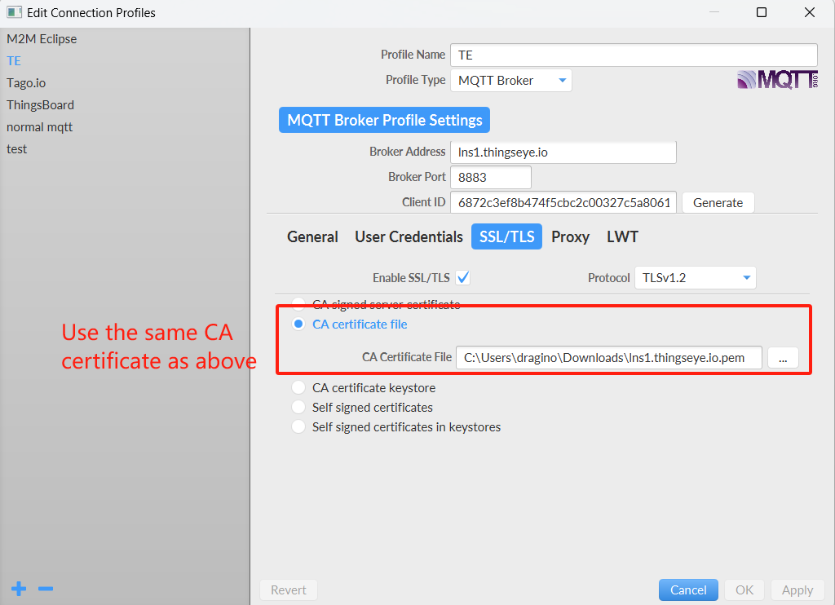

3.11.2 Simulate with MQTT.fx

3.11.3 Configure -KS & KN node

First you need to configure the certificate to the -NB node. Follow the instructions in this link to configure the certificate.

Screenshot of successful certificate configuration:

• Configuring the CA Certificate

• Configure client certificate

• Configure client private key

When the certificate is configured, burn the boot program, burn the working firmware, and then restart the device.

Then configure the -KS & KN node to connect to the ThingsEye platform:

AT Commands

• AT+PRO=3,5 // Use MQTT Connection & Json Payload
• AT+SERVADDR=lns1.thingseye.io,8883
• AT+SUBTOPIC=8899// Consistent with the Topic of MQTT integration created by ThingsEye
• AT+PUBTOPIC=8899// Consistent with the Topic of MQTT integration created by ThingsEye
• AT+CLIENT=NULL
• AT+UNAME=NULL
• AT+PWD=NULL
• AT+TLSMOD=1,2

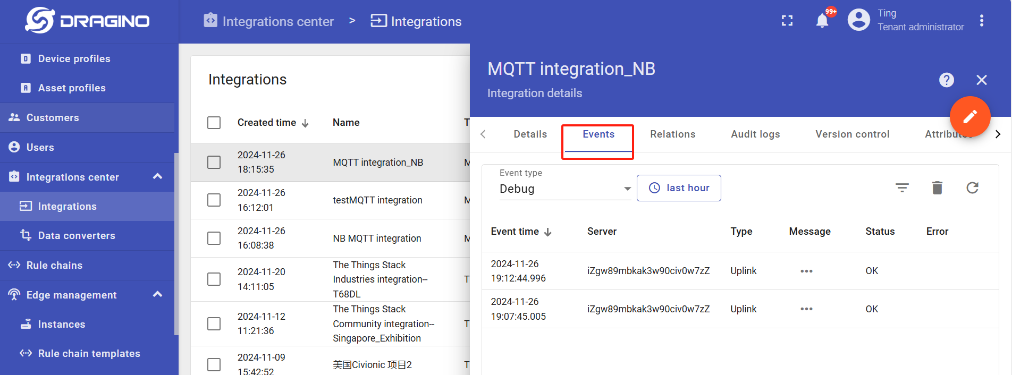

Test Uplink by click the button for 1~3 seconds, the MQTT integration in ThingsEye allows you to view the data upstream from the device:

Go to "Device" -> "Search Device", enter the IMEI of the device to find the device.

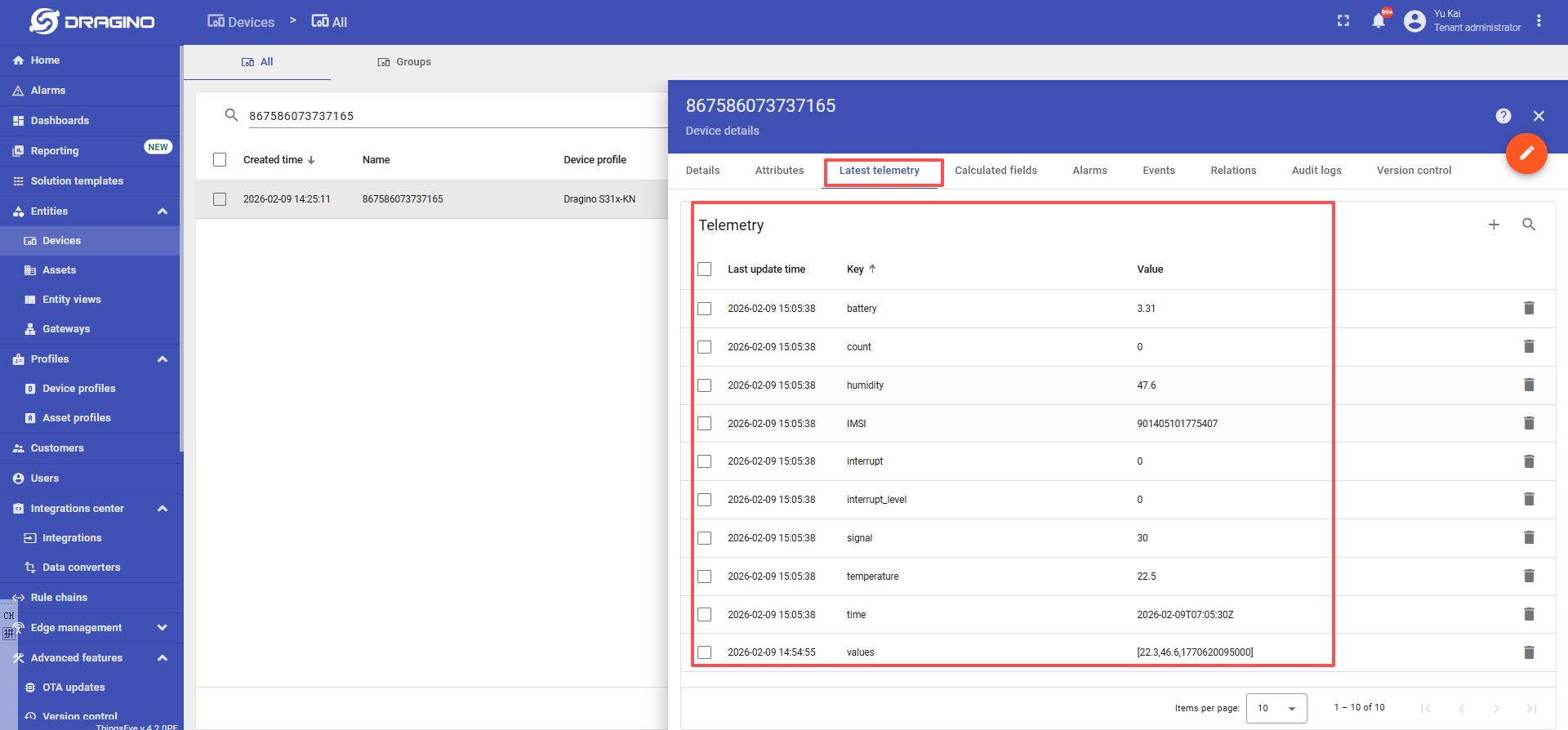

You can view the data that has just been uplink on the device:

3.12 ThingsEye (via UDP)

3.12.1 Configure ThingsEye

Note:

1. Since platform configuration involves port data forwarding, it will be handled by platform technicians.

2. Users only need to configure their NB devices and provide the NB device's “IMEI” to the platform technicians for port data forwarding to the corresponding user account.

3.12.2 Device Configuration

AT Commands

• AT+PRO=2,5 // Use UDP Connection & Json Payload
• AT+SERVADDR=server1.thingseye.io,11560// Configure the UDP server domain name and port

Click the button for 1–3 seconds to test the uplink. ThingsEye's UDP integration feature allows you to view your device's upstream data.

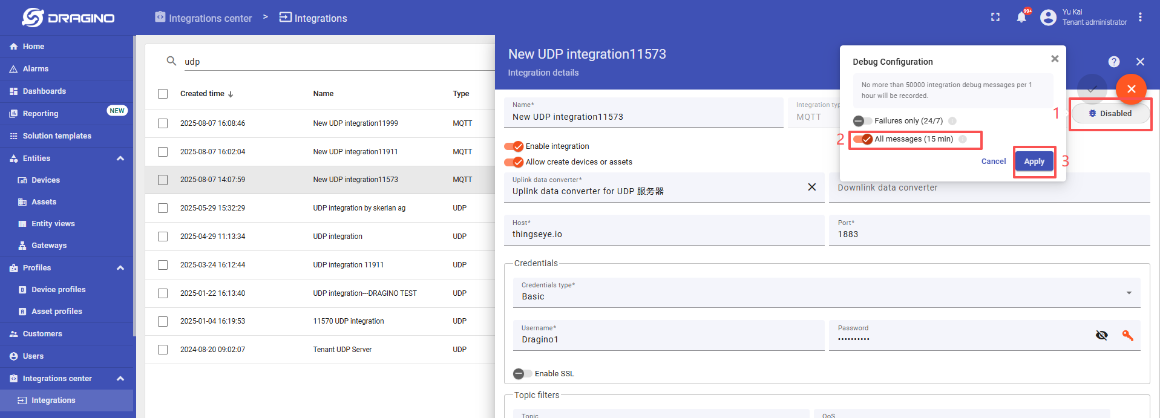

Note: Requires enabling the Debug Receive Data function within the UDP integration feature, which is disabled by default.

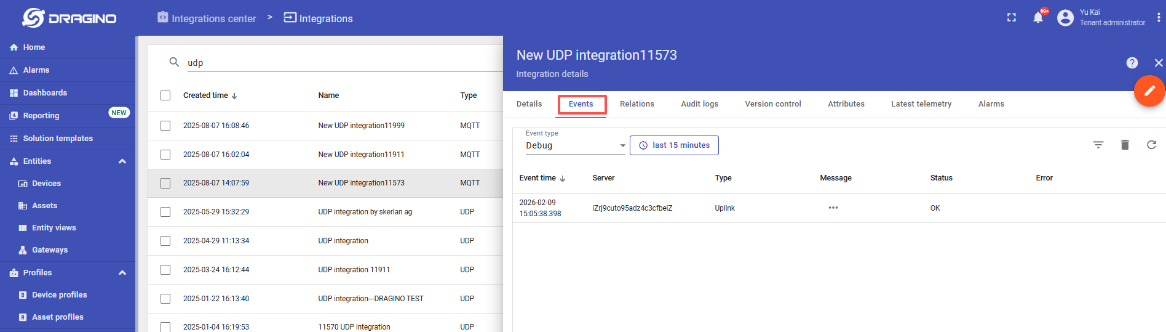

Select the corresponding UDP integration -> Click to enter the UDP integration configuration interface -> Click the button in the upper-right corner to enter edit mode -> Click "Debug mode" -> Open "All messages (15 min)" -> Click "Apply" to save

:

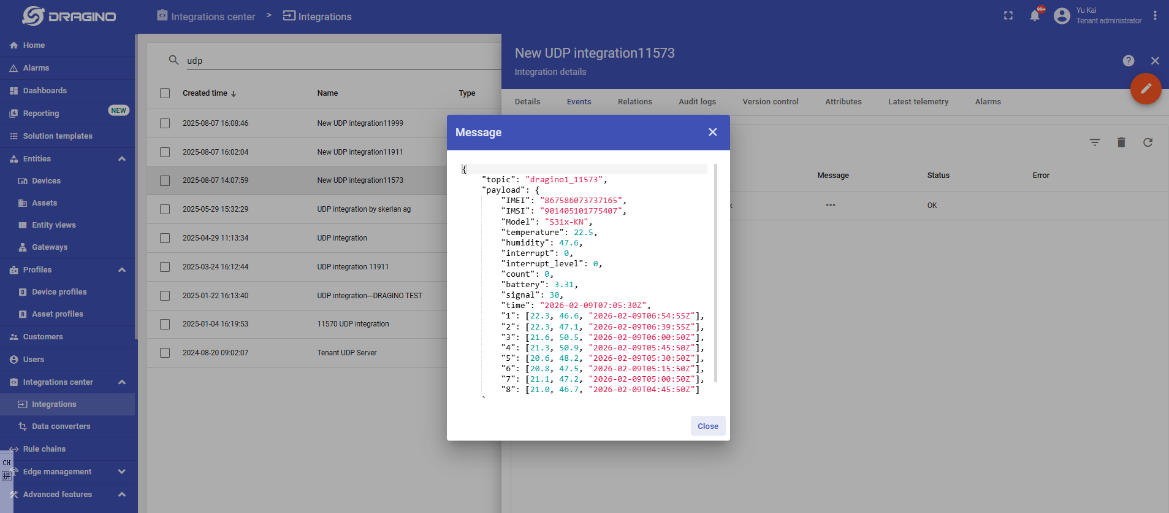

Test Uplink by click the button for 1~3 seconds, the UDP integration in ThingsEye allows you to view the data upstream from the device:

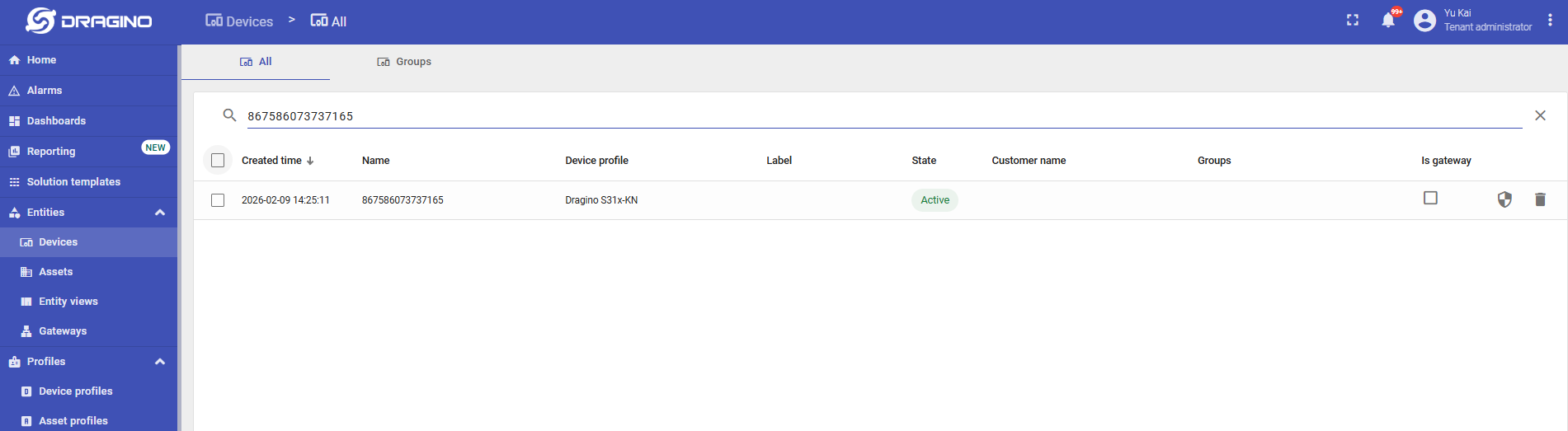

Go to "Device" -> "Search Device", enter the IMEI of the device to find the device.

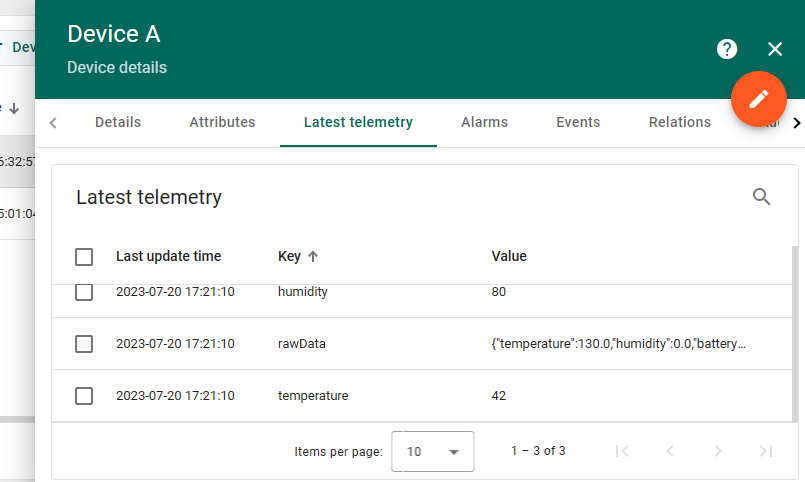

You can view the data that has just been uplink on the device:

4. UDP/MQTT/TCP downlink

4.1 MQTT (via MQTT.fx)

Configure MQTT connections properly and send downlink commands to configure nodes through the Publish function of MQTT.fx.

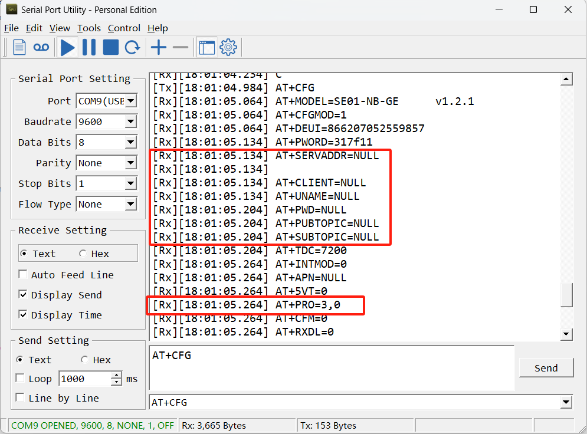

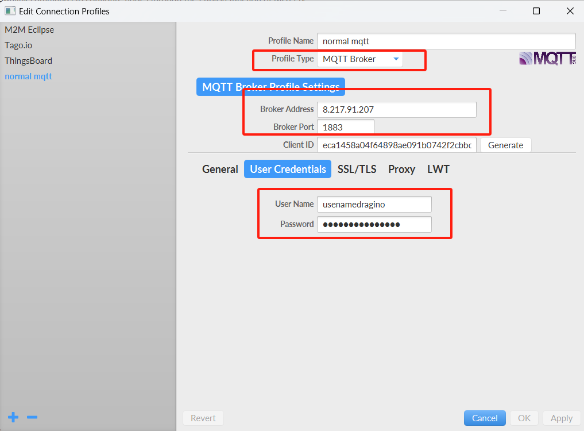

1. Configure node MQTT connection (via MQTT.fx): AT command:

• AT+PRO=3,0 or 3,5 // hex format or json format
• AT+SUBTOPIC=User Defined
• AT+PUBTOPIC=User Defined
• AT+UNAME= or User Defined
• AT+PWD= or User Defined
• AT+SERVADDR=8.217.91.207,1883 // to set MQTT server address and port

Note: To uplink and downlink via MQTT.fx, we need set the publish topic and subscribe topic different, for example: AT+SUBTOPIC=SE01_SUB & AT+PUBTOPIC=SE01_PUB.

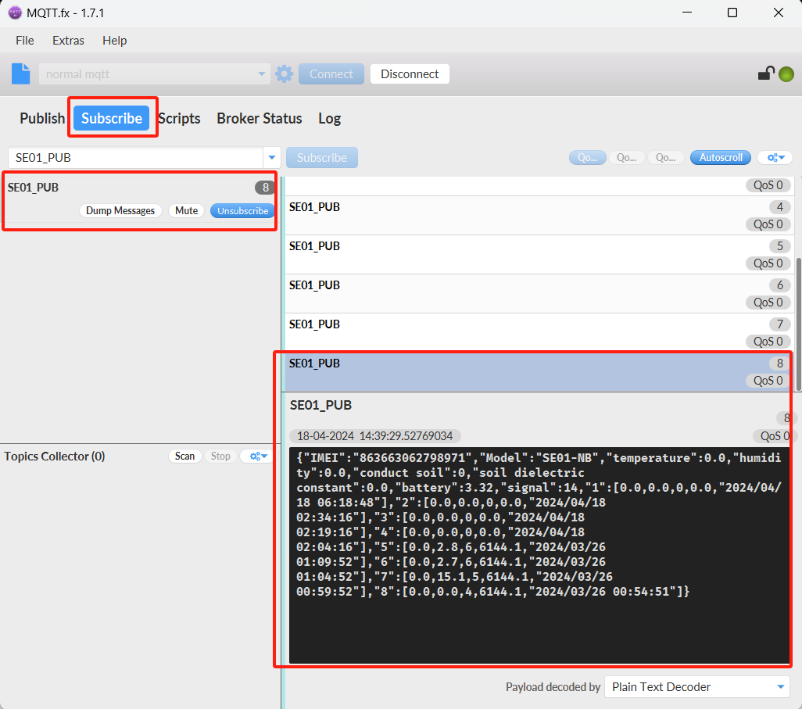

2. When the node uplink packets, we can observe the data in MQTT.fx.

3. The downlink command can be successfully sent only when the downlink port is open.

The downlink port is opened for about 3 seconds after uplink packets are sent.

Therefore, when we see the node uplink packets in the Subscribe window, we need to immediately switch to the publish window to publish the hex format command.

Note: Users can edit the hex command in advance. When the node uplink, directly click the publish button several times to increase the success rate of command configuration.

4.2 UDP (via Thingseye)

Note: The UDP service on the ThingsEye platform needs to be built by the user. (Description Link:UDP service building instructions)

After the node is successfully connected to the platform, you need to select the corresponding node (you can refer to the node's IMEI to find it)

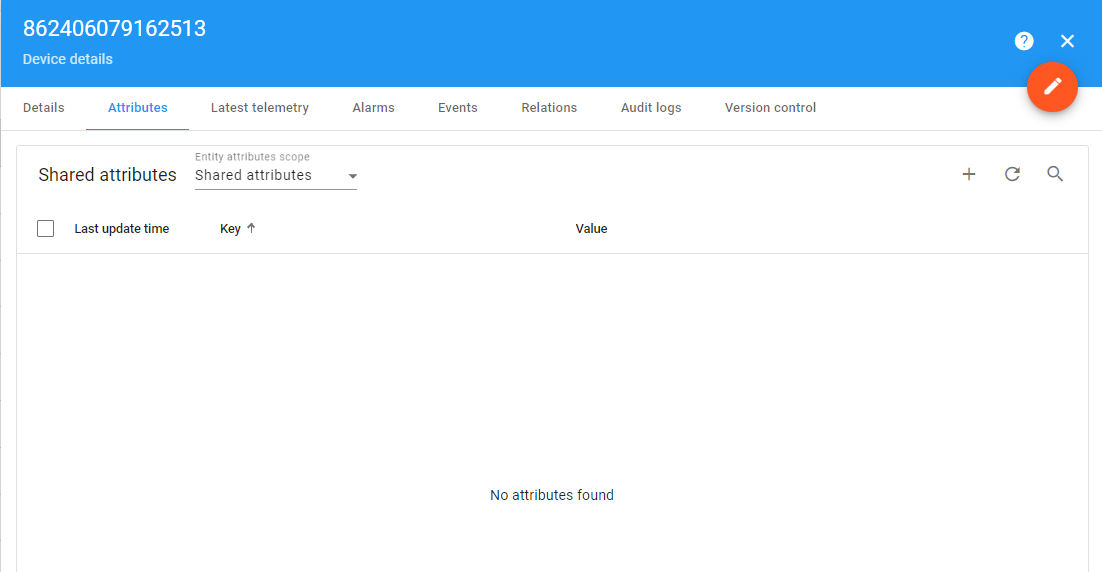

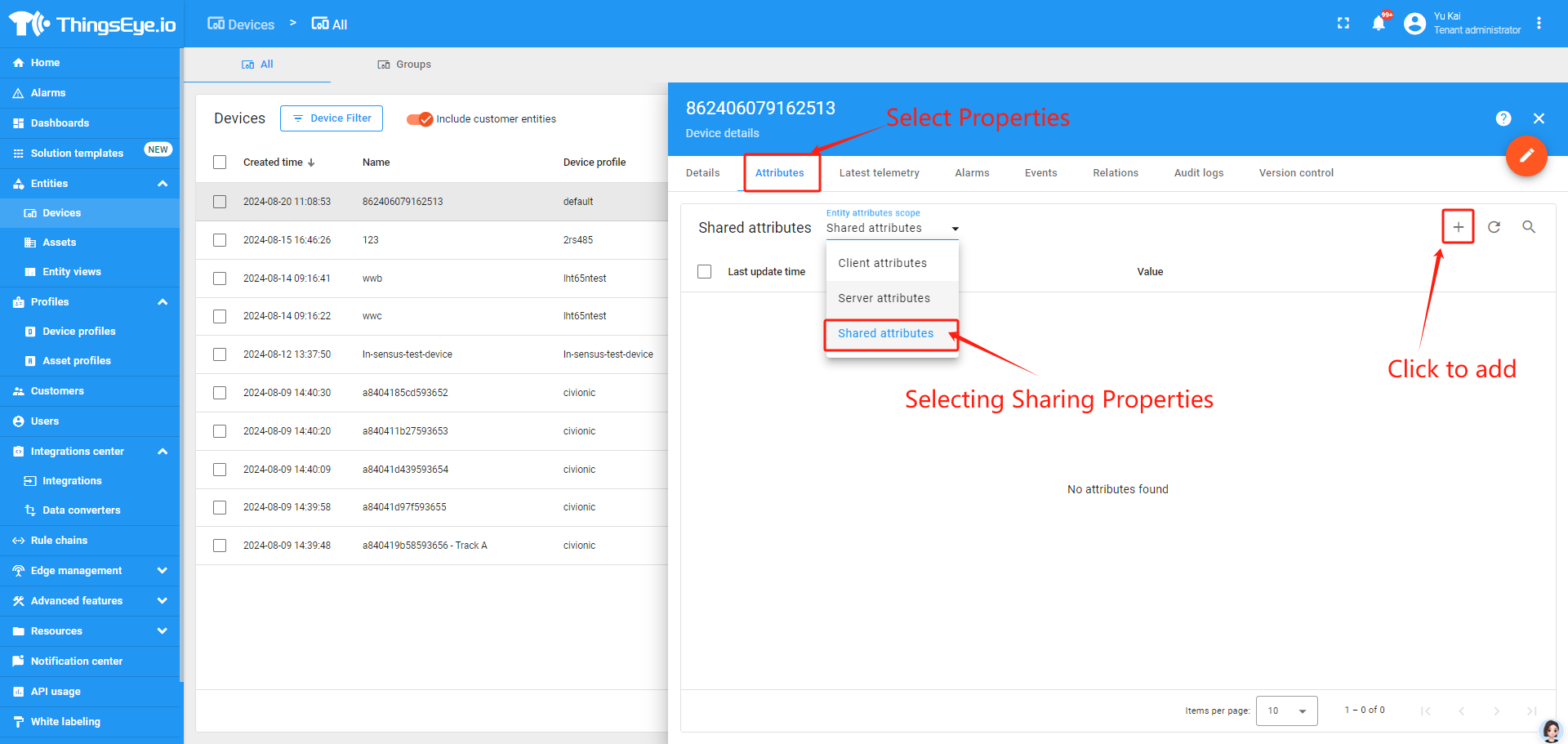

After clicking Show Node Details Page, Select Properties --- select Shared Properties --- click Add Properties

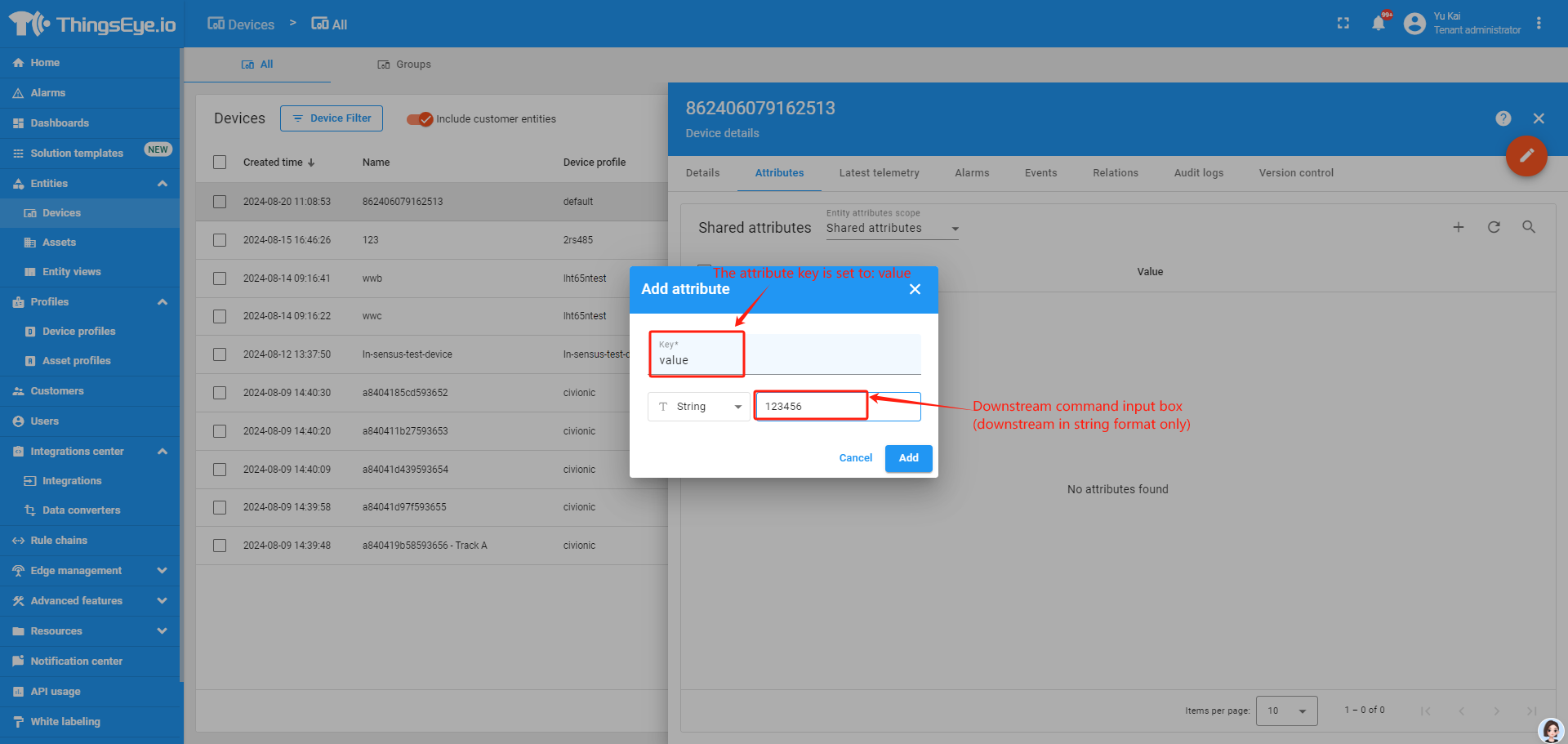

After clicking Add Shared Attribute, set the key to value, and write the command that needs to be downlinked in the Downlink Command Input box (Note: Downlinks can only be downlinked in string format, otherwise the node will not recognize the downlink command.)

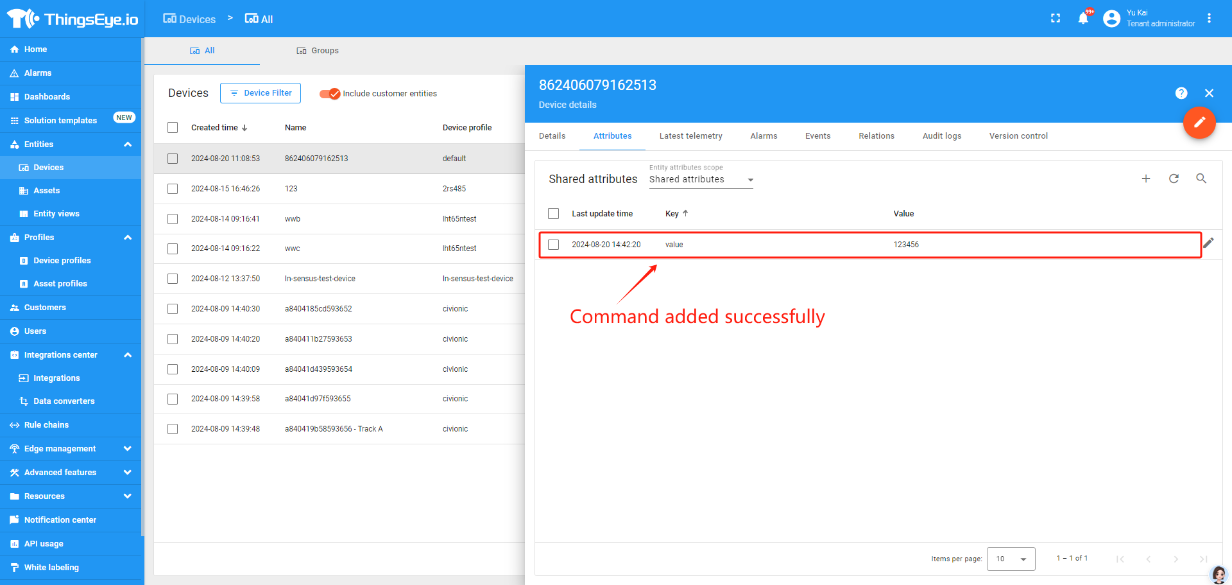

After the command is successfully added, the platform will send the command down on the node's next uplink.

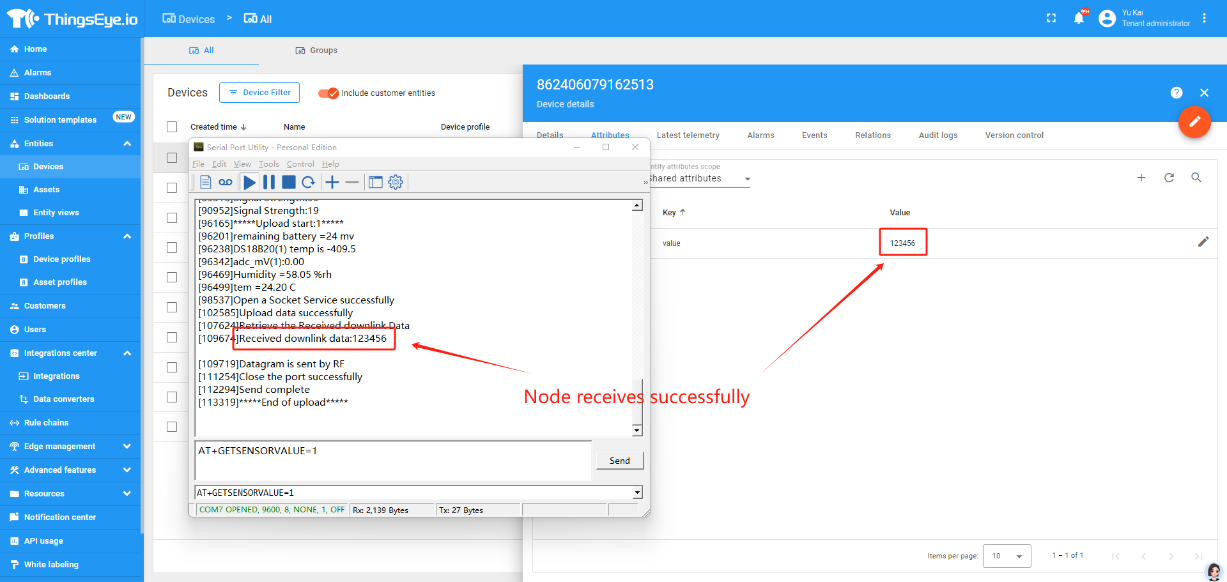

Upon successful issuance, the platform automatically eliminates the attributes from the queue and waits for the next addition of new attributes

5. FAQ

5.1 What is the usage of Multi Sampling and One Uplink?

The NB series has the feature for Multi Sampling and one uplink. See one of them

/docs/NB-IoT/rs485-sdi-12-sensor-nodes/sn50v3-nb/#25-multi-samplings-and-one-uplink

User can use this feature for below purpose:

1. Reduce power consumption. The NB-IoT transmit power is much more higher than the sensor sampling power. To save battery life, we can sampling often and send in one uplink.
2. Give more sampling data points.
3. Increase reliable in transmission. For example. If user set

• AT+TR=1800 // The unit is seconds, and the default is to record data once every 1800 seconds (30 minutes, the minimum can be set to 180 seconds)
• AT+NOUD=24 // The device uploads 24 sets of recorded data by default. Up to 32 sets of record data can be uploaded.
• AT+TDC=7200 // Uplink every 2 hours.
• this will mean each uplink will actually include the 6 uplink data (24 set data which cover 12 hours). So if device doesn't lost 6 continue data. There will not data lost.

5.2 Why the uplink JSON format is not standard?

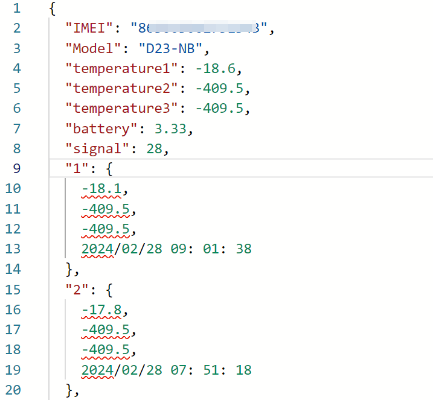

The json format in uplink packet is not standard Json format. Below is the example. This is to make the payload as short as possible, due to NB-IoT transmit limition, a standard Json is not able to include 32 sets of sensors data with timestamp.

The firmware version released after 2024, Mar will use change back to use Json format. Detail please check changelog.

6. Trouble Shooting:

6.1 Checklist for debuging Network Connection issue. Signal Strenght:99 issue.

There are many different providers provide NB-IoT service in the world. They might use different band, different APN & different operator configuration. Which makes connection to NB-IoT network is complicate.

If end device successfully attached NB-IoT Network, User can normally see the signal strengh as below (between 0~31)

If fail to attach network, it will shows signal 99. as below:

When see this issue, below are the checklist:

• Does your SIM card support NB-IoT network? If SIM card doesn't not specify support NB-IoT clearly, normally it doesn't support. You need to confirm with your operator.
• Do you configure the correct APN? Check here for APN settings.
• Do you lock the frequency band? This is the most case we see. Explain and Instruction.
• Check if the device is attached to Carrier network but reject. (need to check with operator).
• Check if the antenna is connected firmly.

If you have check all above and still fail. please send console log files (as many as possible) to support@dragino.com so we can check.

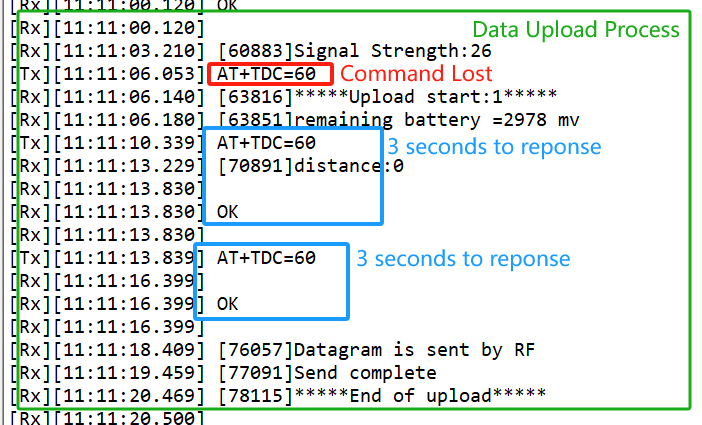

6.2 Why sometime the AT Command is slow in reponse?

When the MCU is communicating with the NB-IoT module, the MCU response of AT Command will become slower, it might takes several seconds to response.

6.3 What is the Downlink Command Format for KS Devices?

Firstly, it is recommended that users upgrade the firmware of the -KS node to the latest version, as the processing method for downlink commands varies depending on the firmware version. Below, we will introduce the latest downlink command format.

UDP Protocol:

Only supports valid HEX-format downlink commands corresponding to AT command.

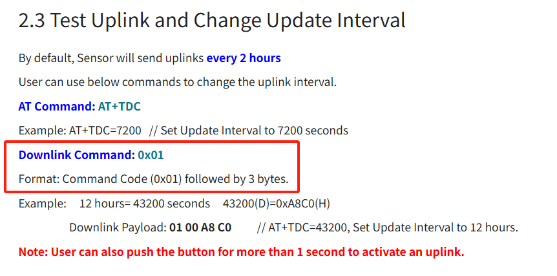

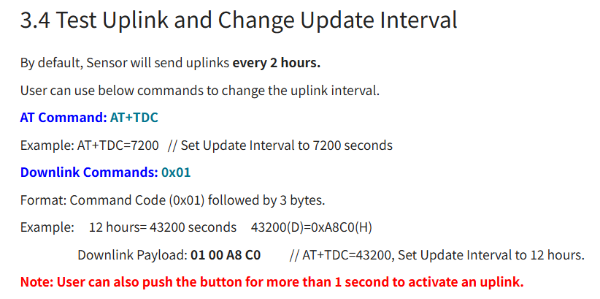

Take the AT+TDC command of S31-KS as an example, that is, only the valid HEX format downstream command corresponding to the AT+TDC command can be used:

Downward format: 01000384 // There are no Spaces. 0x0384(H)=900(D), that is, modify TDC to 900 seconds.

MQTT Protocol:

1. HEX-format

Supports HEX-format downlink commands (corresponding to AT commands).

Example: For the S31-KS's uplink interval modification (AT+TDC=900):

Downlink command: 01000384 // There are no Spaces. 0x0384(H)=900(D), that is, modify TDC to 900 seconds.

2. JSON-format

2.1 JSON format template.

All -KS nodes support downlink configuration modification using JSON format templates.

We can use templates to configure multiple commands AT once. Users only need to modify the parameters of the required AT commands in the correct template for each device.

Template.

Take the template of DDS75-KS as an example:

{
  "AT+SERVADDR": "119.91.62.30,1882",
  "AT+CLIENT": "JwcXKjQBNhQ2JykDDAA5Ahs",
  "AT+UNAME": "usenamedragino",
  "AT+PWD": "passworddragino",
  "AT+PUBTOPIC": "123",
  "AT+SUBTOPIC": "321",
  "AT+TDC": "7200",
  "AT+INTMOD": "0",
  "AT+APN": "NULL",
  "AT+5VT": "0",
  "AT+PRO": "3,5",
  "AT+TR": "15",
  "AT+NOUD": "8",
  "AT+CSQTIME": "5",
  "AT+GDNS": "0",
  "AT+TLSMOD": "0,0",
  "AT+MQOS": "0",
  "AT+IPTYPE": "0",
  "AT+GTDC": "0",
  "AT+GNSST": "10",
  "AT+GPS": "0"
}

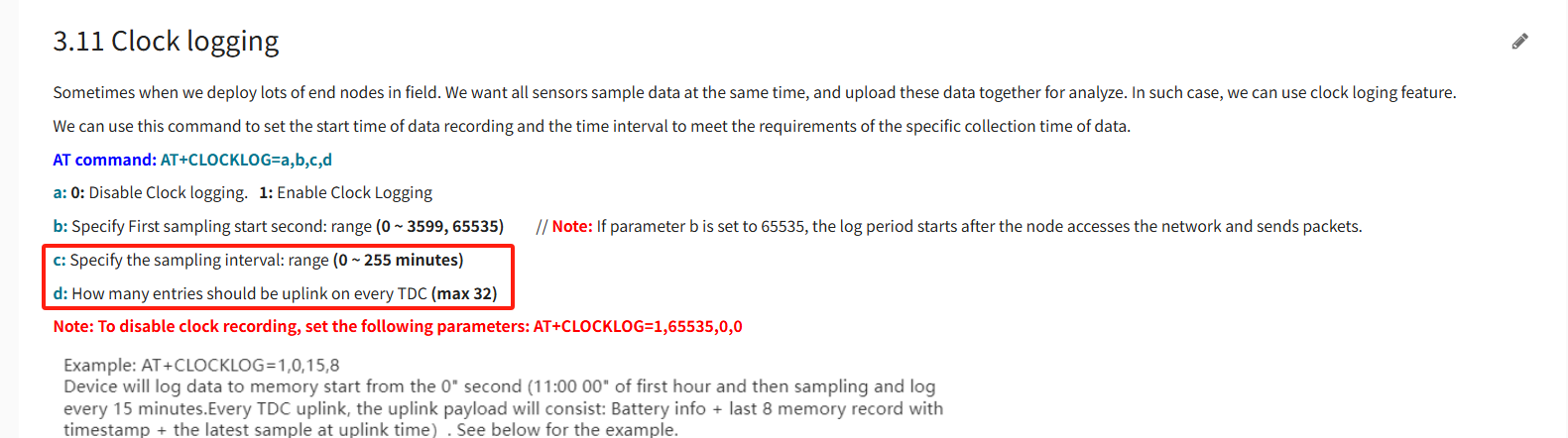

Explanations of two special commands in the template: AT+TR (set the detection interval: 0 ~ 255 minutes) and AT+NOUD (set the number of groups) correspond to parameters in AT+CLOCKLOG.

Instructions for Using the Template:

1. Modify the parameters for each AT command in the template as needed.
2. Send the entire template in one downlink command.

Note:

• The template may vary depending on the device model.
• Currently, each specific template is being updated and tested. If you need a template for your specific device, please contact Dragino Technical Support at support@dragino.com to request the latest downlink template.

2.2 Support sending json format commands separately

Some models of nodes support sending json format commands separately: RS485-KS, LDS25-KS, CS01-KS, SDI-12-KS, SW3L-KS, WL03A-KS, PS-KS

Example: For the PS-KS's uplink interval modification (AT+TDC=900):

Downlink command: {AT+TDC=900} // The correct format is {AT Command}. No extra characters other than valid AT commands can be added within {}.

Note:

1. Only when the correct and valid download command is used and the format is correct can the device be configured through the download command. Invalid download content cannot be processed by the device and will be automatically restarted.

2. Devices designed with downlink commands can utilize different downlink formats (e.g., JSON or HEX) for configuration. However, regardless of the format, the functionality is strictly limited to the downlink command specifications described in the user manual's AT command explanation.

For example, the HEX-format downlink command corresponding to AT+TDC can only be used to configure TDC and cannot be used for queries. There is no HEX-format downlink command equivalent to AT+TDC=? , so querying TDC via downlink is not supported.

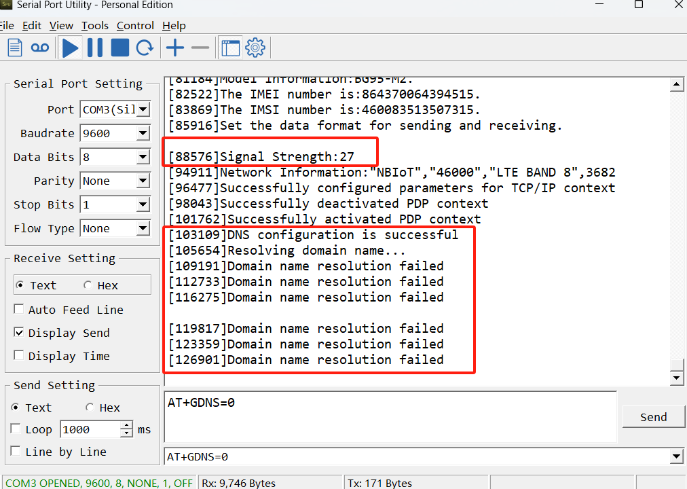

6.4 What if the signal is good but the domain name resolution fails?

If the domain name resolution fails, first check whether the domain name is correct, users can use their own website domain name resolution tool to verify the domain name.

If the domain name is correct, but the domain name cannot be resolved, the user can turn off the domain name resolution function(AT+GDNS=1) and use the domain name communication directly.

• Set the DNS

AT Command: AT+GDNS

AT+GDNS=0 // Default. Automatically resolves the domain name and uses the resolved IP to communicate.

AT+GDNS=1 // Disabling Domain name resolution. Use the domain name directly to communicate.

Note: For -KS products, with the exception of AT+PRO=2,5, all protocols and payload formats support direct domain communication.

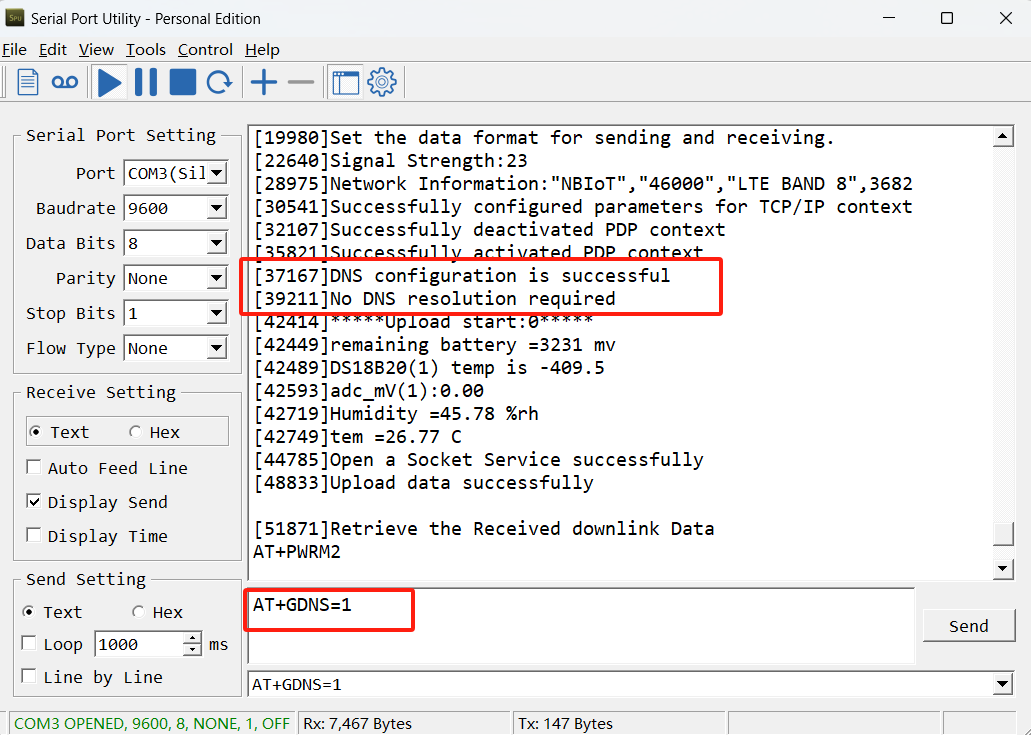

Example:

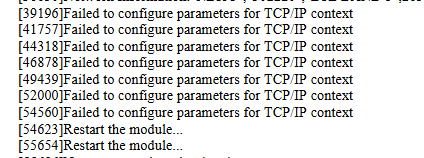

6.5 KS device configuration TCP/IP failed

Use AT+IPTYPE=? to check the IPTYPE configuration.

AT+IPTYPE can only be configured as 1 or 2.

If it is configured otherwise, this error will occur.

6.6 How to get the debug log for further analyze?

EG800-NGFF model use the same debug instruction as NB model. Please check this link:

How to Get Full Log?

8. NB-IoT Stack Changelog

To be updated
